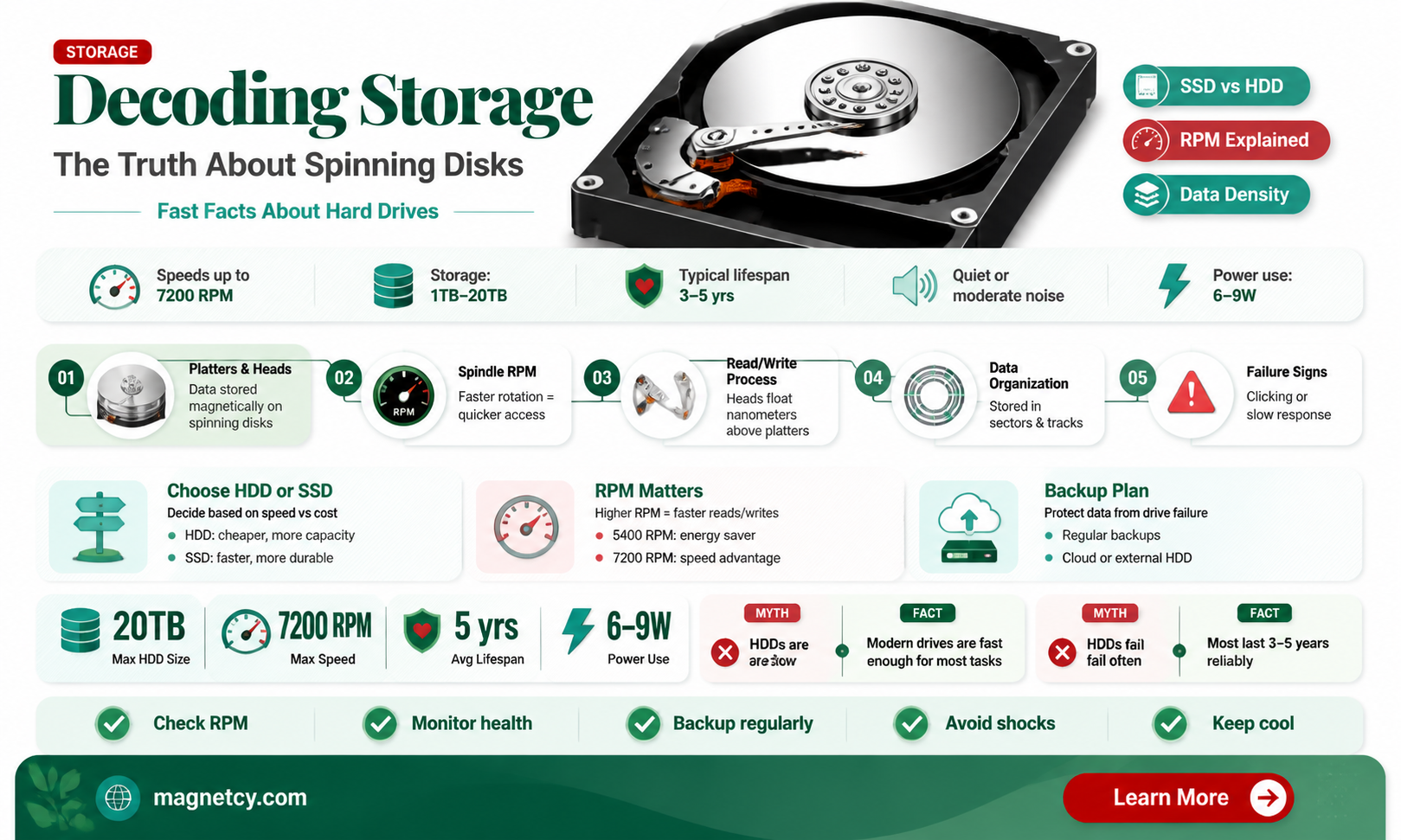

Hard disk drives (HDDs) are data storage devices that use spinning magnetic disks to store and retrieve digital information. These disks are coated with a magnetic material and rotate at high speeds, typically ranging from 5,400 to 10,000 revolutions per minute (RPM). As the disks spin, a read/write head moves across the surface, using magnetic fields to read data from or write data to the disk. HDDs have been a cornerstone of computer storage for decades, offering high capacity and relatively low cost per gigabyte compared to other storage technologies like solid-state drives (SSDs). However, their mechanical nature makes them susceptible to wear and tear, and they can be slower to access data than SSDs, which have no moving parts.
Explore related products
$21.59
What You'll Learn
- HDD Components: Platters, read/write heads, actuator arm, spindle, and firmware
- Data Storage: Magnetic recording, data density, sectors, tracks, and cylinders
- HDD Operation: Spindle speed, head movement, data read/write process, and caching
- HDD Types: IDE, SATA, SCSI, SSD hybrid drives, and external drives
- HDD Maintenance: Cleaning, defragmentation, SMART monitoring, and data recovery
HDD Components: Platters, read/write heads, actuator arm, spindle, and firmware
The heart of a hard disk drive (HDD) lies in its spinning magnetic disks, known as platters. These platters are the surfaces where data is stored magnetically. Typically made from an aluminum or glass substrate coated with a magnetic layer, platters are crucial for the HDD's functionality. The number of platters in an HDD can vary, with more platters generally allowing for greater storage capacity.
To read from or write to these platters, HDDs use read/write heads. These heads are attached to an actuator arm, which moves them across the surface of the platters. The read/write heads function by detecting or altering the magnetic orientation on the platter's surface, corresponding to binary data. The precision with which these heads can move and operate is critical for the reliability and speed of data access.
The actuator arm, controlled by an electromagnetic actuator, is responsible for positioning the read/write heads accurately over the platters. This arm must move swiftly and with great precision to access different parts of the platter. The spindle, a central component around which the platters rotate, is driven by a motor that spins the platters at a constant speed, usually measured in revolutions per minute (RPM). The typical RPM for HDDs ranges from 5,400 to 10,000, with higher speeds generally providing faster data access.
Firmware plays an essential role in managing the HDD's operations. It controls the movement of the actuator arm, the speed of the spindle, and the reading and writing processes. The firmware also includes algorithms for error correction and data redundancy, ensuring the integrity of the stored data. Additionally, it manages the interface between the HDD and the computer's operating system, facilitating communication and data transfer.
In summary, the components of an HDD—platters, read/write heads, actuator arm, spindle, and firmware—work together to store and retrieve data efficiently. The platters provide the storage medium, the read/write heads access the data, the actuator arm positions the heads, the spindle spins the platters, and the firmware orchestrates these operations. Understanding these components is crucial for appreciating how HDDs function and store vast amounts of data reliably.
The Surprising Truth About Car Magnets: Are They Really Hard to Remove?
You may want to see also
Explore related products
Data Storage: Magnetic recording, data density, sectors, tracks, and cylinders
Magnetic recording is the process by which data is stored on a hard disk drive (HDD) using magnetization. The data density of an HDD refers to the amount of data that can be stored on a given surface area of the disk. This density is determined by the number of sectors, tracks, and cylinders on the disk. A sector is the smallest unit of data storage on an HDD, and it is typically 512 bytes in size. Tracks are concentric circles on the disk that contain sectors, and cylinders are stacks of tracks that extend from the top to the bottom of the disk.
The data density of an HDD is directly related to the number of sectors, tracks, and cylinders on the disk. As the number of these components increases, the data density also increases. This is because each sector, track, and cylinder can store a specific amount of data, and as more of these components are added to the disk, the total amount of data that can be stored increases.
One of the challenges associated with increasing data density on HDDs is the need to maintain data integrity. As the number of sectors, tracks, and cylinders increases, the risk of data corruption also increases. This is because the magnetic fields that store data on the disk can become weaker and more susceptible to interference. To address this challenge, HDD manufacturers use a variety of techniques to improve data integrity, such as error correction codes and magnetic field stabilization.
Another challenge associated with increasing data density on HDDs is the need to improve read/write speeds. As the number of sectors, tracks, and cylinders increases, the time it takes to read or write data to the disk also increases. This is because the read/write head must move further to access data on the outer tracks and cylinders. To address this challenge, HDD manufacturers use a variety of techniques to improve read/write speeds, such as increasing the rotational speed of the disk and using more advanced read/write head designs.
In conclusion, the data density of an HDD is determined by the number of sectors, tracks, and cylinders on the disk. As the number of these components increases, the data density also increases, but this also presents challenges related to data integrity and read/write speeds. HDD manufacturers use a variety of techniques to address these challenges and improve the performance of their products.
Attractive Conversations: What Did the Paper Clip Say to the Magnet?
You may want to see also
Explore related products
HDD Operation: Spindle speed, head movement, data read/write process, and caching
Hard disk drives (HDDs) operate through a complex interplay of mechanical and electronic components. At the heart of an HDD is the spindle, which rotates the magnetic platters at a constant speed. This spindle speed, typically measured in revolutions per minute (RPM), can range from 5,400 RPM in older or more budget-friendly drives to 10,000 RPM or higher in enterprise-grade HDDs. The faster the spindle speed, the quicker data can be accessed and transferred, though this also increases power consumption and heat generation.
The read/write heads, suspended above the platters on actuator arms, move radially across the disks to access different data tracks. This movement is guided by a voice coil actuator, which receives electrical signals to precisely position the heads. The heads themselves are incredibly small and sensitive, capable of reading and writing data to the magnetic surface of the platters with high accuracy.
Data is read from or written to an HDD in a process that involves several steps. First, the drive's controller receives a request from the computer's operating system to access or modify data. The controller then determines the location of the data on the platters and moves the read/write heads to the appropriate track. Once the heads are in position, the data is either read from the platter or written to it using electromagnetic signals. Finally, the data is transferred to or from the computer's memory via the drive's interface, such as SATA or SAS.
Caching plays a crucial role in improving HDD performance. Most modern HDDs include a small amount of solid-state memory, known as a cache, which can temporarily store frequently accessed data. This allows the drive to quickly retrieve data without having to access the slower mechanical components, significantly reducing latency and improving overall performance. The cache is managed by the drive's controller, which uses algorithms to predict which data will be needed next and pre-load it into the cache.
In summary, HDD operation involves a delicate balance of mechanical precision and electronic control. The spindle speed, head movement, data read/write process, and caching mechanisms all work together to ensure that data is stored and retrieved efficiently and reliably. Understanding these components and processes can help users make informed decisions about HDD selection and maintenance, ultimately leading to better performance and data security.
Exploring the Nature of Magnetic Forces: Contact or Non-Contact?
You may want to see also
Explore related products
HDD Types: IDE, SATA, SCSI, SSD hybrid drives, and external drives
Hard disk drives (HDDs) come in various types, each with its own set of characteristics and use cases. IDE (Integrated Drive Electronics) drives, also known as PATA (Parallel ATA), were once the standard for internal storage but have largely been replaced by newer technologies. SATA (Serial ATA) drives are the current mainstream standard, offering faster data transfer rates and improved reliability over IDE drives. SCSI (Small Computer System Interface) drives, while less common in consumer systems, are still used in enterprise environments for their high performance and scalability.
Solid-state drives (SSDs) represent a significant shift in storage technology, as they do not rely on spinning magnetic disks. Instead, SSDs use flash memory to store data, resulting in much faster access times, lower power consumption, and increased durability. Hybrid drives, which combine a traditional HDD with an SSD cache, aim to provide the best of both worlds by offering the capacity of an HDD with the speed of an SSD.
External drives are another important category of storage devices. These drives can be connected to a computer via USB, Thunderbolt, or other interfaces, providing additional storage capacity or serving as a backup solution. External drives can be based on HDD or SSD technology, and some even offer cloud storage integration for added convenience and data redundancy.
When choosing a hard drive, it's essential to consider factors such as capacity, speed, reliability, and power consumption. For example, if you need a drive for a gaming PC, you may prioritize speed and performance, opting for an SSD or a high-RPM HDD. On the other hand, if you're looking for a drive to store large amounts of data, such as videos or photos, you may prioritize capacity and choose a larger HDD.
In terms of reliability, SSDs generally have a lower failure rate than HDDs due to their lack of moving parts. However, SSDs have a limited number of write cycles, which can be a concern for users who frequently write and delete large amounts of data. HDDs, while more prone to mechanical failure, can last for many years with proper care and maintenance.
Overall, the choice of hard drive depends on your specific needs and preferences. By understanding the different types of drives available and their respective strengths and weaknesses, you can make an informed decision that will serve you well for years to come.
Effortless Door Control: Installing Your Magnetic Door Stopper
You may want to see also
Explore related products
HDD Maintenance: Cleaning, defragmentation, SMART monitoring, and data recovery
Regular cleaning is essential for maintaining the performance and longevity of HDDs. Dust and debris can accumulate on the drive's components, leading to overheating and potential data loss. To clean an HDD, start by disconnecting it from the power source and removing it from the computer case. Use compressed air to gently blow away any loose dust, and then use a soft, lint-free cloth dampened with isopropyl alcohol to wipe down the drive's exterior. Avoid using harsh chemicals or abrasive materials, as these can damage the drive's surface.
Defragmentation is another important aspect of HDD maintenance. Over time, files can become fragmented, leading to slower read and write speeds. Defragmentation tools, such as the built-in Disk Defragmenter in Windows, can help optimize the drive's performance by reorganizing files and consolidating free space. It's recommended to defragment the drive at least once a month, or more frequently if the drive is heavily used.
SMART (Self-Monitoring, Analysis, and Reporting Technology) monitoring is a feature built into HDDs that allows them to detect and report potential issues before they lead to data loss. SMART data can be accessed using various software tools, such as CrystalDiskInfo or HD Tune. By regularly monitoring SMART data, users can identify potential problems, such as bad sectors or failing components, and take action to prevent data loss.
Data recovery is a critical aspect of HDD maintenance, as data loss can occur due to various reasons, such as accidental deletion, corruption, or hardware failure. To recover lost data, users can employ data recovery software, such as Recuva or EaseUS Data Recovery Wizard. These tools can scan the drive for recoverable files and restore them to a safe location. In cases of severe data loss or hardware failure, professional data recovery services may be necessary.
In addition to these maintenance tasks, it's important to handle HDDs with care to prevent physical damage. Avoid dropping or bumping the drive, and always use proper tools and techniques when installing or removing the drive from a computer case. By following these maintenance guidelines, users can help ensure the reliability and longevity of their HDDs.
Reviving Your Rose: Alternative Charging Methods Without a Magnetic Charger
You may want to see also
Frequently asked questions
Hard disk drives (HDDs) are data storage devices that use spinning magnetic disks to store and retrieve digital information. They are commonly used in computers and other electronic devices to provide long-term storage of files, applications, and operating systems.
HDDs work by using a combination of magnetic recording and mechanical movement. The spinning disks, called platters, are coated with a magnetic material that can be polarized to represent binary data (0s and 1s). A read/write head, which is a small electromagnetic device, moves across the surface of the platters to read or write data. The movement of the head is controlled by an actuator arm, which can position the head at any point on the platter.
HDDs offer several advantages, including high storage capacity, relatively low cost per gigabyte, and good performance for sequential data access. They are also widely available and compatible with most computer systems. Additionally, HDDs are non-volatile, meaning that they retain data even when power is turned off.
HDDs have some disadvantages compared to other storage technologies, such as solid-state drives (SSDs). They are slower for random data access, more prone to mechanical failure, and can be damaged by physical shock or vibration. HDDs also consume more power and generate more heat than SSDs, which can be a concern in some applications.
