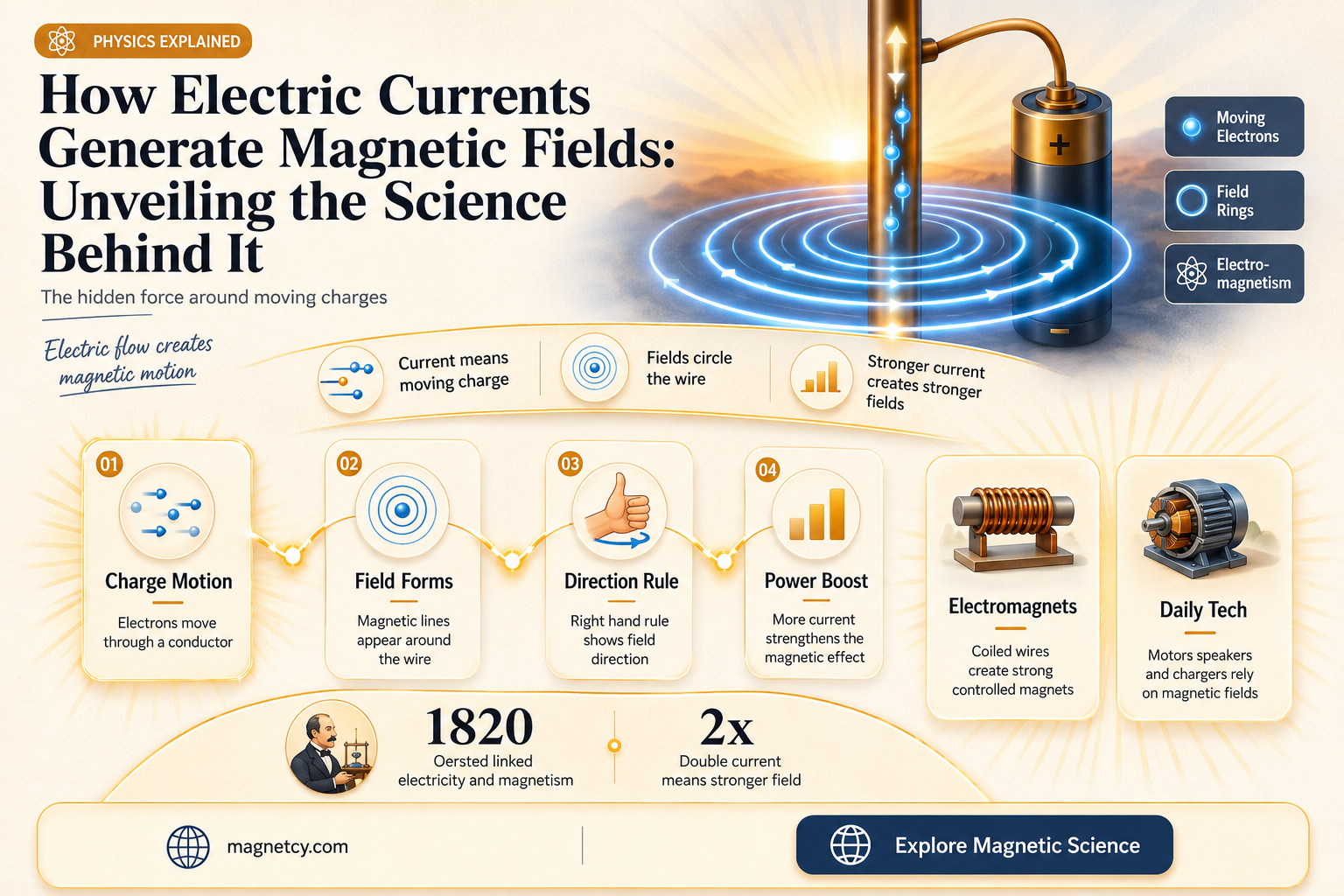

The relationship between electricity and magnetism is a fundamental concept in physics, and one intriguing aspect of this connection is the ability of an electric current to generate a magnetic field. When electric charges flow through a conductor, such as a wire, they create a magnetic effect around the current-carrying path. This phenomenon, known as electromagnetism, was first discovered by Hans Christian Ørsted in 1820 and later explained by André-Marie Ampère's circuital law. The magnetic field produced by a current-carrying wire forms concentric circles around the wire, with the direction of the field determined by the right-hand rule. This principle underlies the operation of numerous devices, including electromagnets, electric motors, and transformers, showcasing the profound impact of this interplay between electricity and magnetism in various technological applications.
| Characteristics | Values |
|---|---|
| Can a current create a magnetic field? | Yes |
| Mechanism | Electromagnetism (Ampère's Law) |
| Direction of Magnetic Field | Perpendicular to the current direction, following the right-hand rule |
| Strength of Magnetic Field (B) | Directly proportional to the current (I) and number of turns (N) in a coil: B ∝ I * N |
| Field Shape Around a Straight Wire | Circular concentric circles around the wire |
| Field Shape Around a Coil | Similar to a bar magnet (north and south poles) |
| Units of Magnetic Field | Tesla (T) or Gauss (G) |
| Practical Applications | Electromagnets, motors, generators, transformers, MRI machines |
| Inverse Relationship | Magnetic field strength decreases with distance from the current-carrying conductor (B ∝ 1/r) |
| Material Influence | Magnetic field strength can be enhanced by using ferromagnetic materials (e.g., iron, nickel) as cores |
| Quantitative Relationship (Biot-Savart Law) | B = (μ₀ * I) / (2πr), where μ₀ is the permeability of free space, I is the current, and r is the distance from the wire |
Explore related products
What You'll Learn
- Biot-Savart Law: Describes magnetic field generated by steady current, fundamental principle in electromagnetism
- Ampere's Law: Relates magnetic field to current, useful for symmetric current distributions
- Solenoids: Coiled wires with current produce uniform magnetic fields inside, practical applications
- Right-Hand Rule: Determines magnetic field direction around a current-carrying conductor
- Magnetic Field Strength: Depends on current magnitude, wire length, and distance from wire
Biot-Savart Law: Describes magnetic field generated by steady current, fundamental principle in electromagnetism
Electric currents don't just flow aimlessly—they leave a magnetic trail. The Biot-Savart Law quantifies this phenomenon, providing a mathematical framework to calculate the magnetic field generated by a steady current. At its core, the law states that the magnetic field (\( \mathbf{B} \)) at a point in space due to a current element is directly proportional to the current (\( I \)), the length of the current element (\( d\mathbf{l} \)), and the sine of the angle between the current element and the position vector (\( \mathbf{r} \)), and inversely proportional to the square of the distance from the current element to the point. Mathematically, it’s expressed as \( d\mathbf{B} = \frac{\mu_0}{4\pi} \frac{I d\mathbf{l} \times \mathbf{r}}{r^3} \), where \( \mu_0 \) is the permeability of free space (\( 4\pi \times 10^{-7} \, \text{T·m/A} \)).
To apply the Biot-Savart Law, follow these steps: 1) Identify the current distribution—whether it’s a straight wire, a loop, or a more complex geometry. 2) Choose a point in space where you want to calculate the magnetic field. 3) Break the current into infinitesimal elements and integrate their contributions. For example, for a straight wire carrying current \( I \), the magnetic field at a perpendicular distance \( R \) is \( B = \frac{\mu_0 I}{2\pi R} \). Caution: This law is computationally intensive for complex geometries, so symmetry is your ally—exploit it to simplify calculations.
Consider a practical example: a circular loop of radius \( R \) carrying current \( I \). At the center of the loop, the magnetic field is uniform and given by \( B = \frac{\mu_0 I}{2R} \). This principle underpins devices like electromagnets and MRI machines. Takeaway: The Biot-Savart Law isn’t just theoretical—it’s the backbone of technologies that rely on precise magnetic field control.
While the Biot-Savart Law is powerful, it’s not always the most efficient tool. For instance, Ampere’s Law often provides a shortcut for highly symmetric systems. However, Biot-Savart shines in its generality, handling asymmetric or non-uniform current distributions where other methods fail. Key insight: Understanding when to use Biot-Savart versus other methods is crucial for both academic and engineering applications.
In essence, the Biot-Savart Law bridges the gap between current flow and magnetic fields, offering a precise, if sometimes laborious, method for calculating magnetic fields. Its elegance lies in its ability to describe fundamental electromagnetic interactions, making it an indispensable tool in the physicist’s and engineer’s toolkit. Whether designing a solenoid or analyzing a particle accelerator, this law ensures that the magnetic consequences of current flow are never left to chance.
Can Iron Be Magnetized? Exploring Magnetic Properties and Processes
You may want to see also
Explore related products
Ampere's Law: Relates magnetic field to current, useful for symmetric current distributions
Electric currents generate magnetic fields, a phenomenon harnessed in everything from electromagnets to MRI machines. Ampère's Law quantifies this relationship, offering a powerful tool for calculating magnetic fields produced by steady currents. At its core, the law states that the line integral of the magnetic field around a closed loop is proportional to the total current passing through the loop. Mathematically, it’s expressed as ∮ B · dl = μ₀I, where B is the magnetic field, dl is an infinitesimal length element along the loop, μ₀ is the permeability of free space (4π × 10⁻⁷ T·m/A), and I is the total current enclosed. This equation is particularly useful for symmetric current distributions, such as those in straight wires, solenoids, or toroidal coils, where the symmetry simplifies the integration.
Consider a long, straight wire carrying a current I. The magnetic field lines form concentric circles around the wire. Applying Ampère's Law here is straightforward: choose a circular path centered on the wire. Due to symmetry, the magnetic field strength B is constant along this path, and the direction of B is tangential to the circle. The left side of the equation becomes B × 2πr, where r is the radius of the circle. The right side is μ₀I. Equating both sides yields B = (μ₀I)/(2πr), a result that directly links the magnetic field to the current and distance from the wire. This example illustrates how Ampère's Law leverages symmetry to reduce complex field calculations to simple algebra.
While Ampère's Law is elegant, its application requires careful consideration of system symmetry. For instance, it’s ineffective for calculating fields around irregularly shaped current distributions or time-varying currents, as these break the symmetry assumptions. In such cases, alternative methods like the Biot-Savart Law or numerical simulations are more appropriate. However, for symmetric systems, Ampère's Law remains indispensable. Practical applications include designing electromagnets, where the field inside a solenoid is calculated using the law, or analyzing toroidal transformers, where the field is confined within the core due to the symmetry of the current loop.
To apply Ampère's Law effectively, follow these steps: (1) Identify the symmetry of the current distribution—whether cylindrical, planar, or spherical. (2) Choose an Amperian loop that exploits this symmetry, ensuring the magnetic field is constant or varies predictably along the loop. (3) Calculate the line integral of the magnetic field around the loop, simplifying using symmetry. (4) Determine the total current passing through the loop and solve for the magnetic field. Caution: avoid misapplying the law to asymmetric systems or those with changing currents, as this leads to inaccurate results. When in doubt, verify symmetry assumptions before proceeding.
In summary, Ampère's Law is a cornerstone of magnetostatics, bridging the gap between current and magnetic field. Its strength lies in its ability to simplify calculations for symmetric systems, making it an essential tool for engineers and physicists alike. By understanding its principles and limitations, practitioners can harness its power to design and analyze a wide range of electromagnetic devices with precision. Whether optimizing a solenoid for a particle accelerator or modeling a toroidal plasma confinement system, Ampère's Law provides a clear, efficient path to solutions.
CNC Milling Magnetic Materials: Challenges, Techniques, and Best Practices
You may want to see also
Explore related products
Solenoids: Coiled wires with current produce uniform magnetic fields inside, practical applications
A coiled wire carrying an electric current generates a magnetic field, and when this coil is wound into a helix, it becomes a solenoid—a fundamental component in electromagnetism. The beauty of a solenoid lies in its ability to produce a remarkably uniform magnetic field inside the coil, a characteristic that makes it indispensable in various applications. This uniformity is achieved when the length of the solenoid is significantly greater than its diameter, ensuring that the magnetic field lines are parallel and closely spaced within the coil. The strength of this magnetic field is directly proportional to the current flowing through the wire and the number of turns in the coil, as described by the equation *B = μnI*, where *B* is the magnetic field strength, *μ* is the permeability of the core material, *n* is the number of turns per unit length, and *I* is the current.
Consider the practical application of solenoids in electromechanical systems, such as door locks and valves. In an electric door lock, a solenoid is activated by a current, which generates a magnetic field that either attracts or repels a plunger, thereby locking or unlocking the door. For instance, a typical solenoid in a home security system might operate at 12 volts and draw 0.5 amps, producing a magnetic force sufficient to move a steel plunger with minimal energy consumption. Similarly, solenoid valves in irrigation systems use a coil to control the flow of water by opening or closing a valve in response to an electrical signal. These applications highlight the solenoid’s role as a reliable, efficient actuator in everyday technology.
From an analytical perspective, the uniformity of the magnetic field inside a solenoid makes it an ideal tool for scientific experiments and medical devices. In magnetic resonance imaging (MRI) machines, solenoids are used to create strong, uniform magnetic fields that align the protons in the human body, enabling detailed imaging. A standard MRI machine might employ a solenoid with thousands of turns and a current of several amperes to generate a field strength of 1.5 to 3 Tesla. This precision is critical for accurate diagnostics, demonstrating how solenoids bridge the gap between theoretical electromagnetism and practical healthcare solutions.
For those looking to experiment with solenoids, a simple DIY project involves building an electromagnet to lift small metallic objects. Start by winding 100 turns of insulated copper wire around a cylindrical core (e.g., a nail), ensuring the turns are tight and evenly spaced. Connect the wire ends to a 9-volt battery, and observe the nail’s ability to attract paperclips or pins. Caution: Always use low voltage to avoid overheating the wire, and insulate the connections to prevent short circuits. This hands-on activity not only illustrates the principles of solenoids but also fosters an understanding of how current and coil design influence magnetic strength.
In conclusion, solenoids exemplify the practical utility of electromagnetism, transforming electrical energy into controlled magnetic fields with precision and efficiency. Whether in security systems, medical devices, or educational experiments, their ability to produce uniform magnetic fields inside coiled wires makes them a cornerstone of modern technology. By understanding their design and operation, one can appreciate not only their theoretical significance but also their tangible impact on daily life.
Exploring the Myth: Can a Bar Magnet Exist with a Single Pole?
You may want to see also
Explore related products
Right-Hand Rule: Determines magnetic field direction around a current-carrying conductor
Electric currents don't just flow invisibly through wires—they generate magnetic fields. This phenomenon, discovered by Hans Christian Ørsted in 1820, underpins everything from electromagnets to electric motors. But how do you predict the direction of this field? Enter the Right-Hand Rule, a simple yet powerful tool that demystifies the relationship between current and magnetism.
Step-by-Step Application:
- Point Your Thumb: Extend your right hand and align your thumb with the direction of the current in the conductor. For conventional current, this means pointing your thumb in the direction of positive charge flow (from positive to negative, even though electrons move opposite).
- Curl Your Fingers: Bend your fingers around the wire. The direction in which they naturally curl represents the magnetic field lines encircling the conductor.
- Visualize the Field: Imagine concentric circles of magnetic flux around the wire, following the direction of your curled fingers.
Cautions and Common Mistakes:
Avoid confusing conventional current (thumb direction) with electron flow, which is opposite. Also, the rule applies only to straight, current-carrying conductors—coils or solenoids require modifications like the Right-Hand Grip Rule. Lastly, ensure your hand is oriented correctly; using the left hand or misaligning fingers will yield incorrect results.
Practical Applications:
This rule isn’t just theoretical—it’s essential in engineering. For instance, in designing electromagnets, knowing the field direction ensures proper polarity alignment. In electric motors, it helps determine rotor spin direction. Even in everyday devices like headphones, the Right-Hand Rule ensures speakers convert electrical signals into sound accurately.
Takeaway:
The Right-Hand Rule transforms abstract electromagnetism into a tangible, predictable process. By mastering this technique, you gain a foundational skill for understanding and manipulating magnetic fields in countless technological applications. It’s a small gesture with a big impact—literally shaping the invisible forces that power our world.
Overlapping Magnetic Fields: Can Two Exist Simultaneously in the Same Space?
You may want to see also
Explore related products
Magnetic Field Strength: Depends on current magnitude, wire length, and distance from wire
Electric currents don't just power our devices; they invisibly sculpt magnetic fields around them. This phenomenon, described by Ampere's Law, reveals that the strength of a magnetic field generated by a current-carrying wire depends on three key factors: the magnitude of the current, the length of the wire, and the distance from the wire. Understanding this relationship is crucial for designing electromagnets, transformers, and even everyday devices like electric motors.
Imagine a wire as a river of electrons. The stronger the current (the faster the electron flow), the more powerful the resulting magnetic field. This is directly proportional – double the current, and you double the field strength. Similarly, a longer wire provides more "space" for the magnetic field lines to form, increasing their overall influence. Think of it like a longer magnet: its field extends further. However, this magnetic influence diminishes with distance. The field strength weakens rapidly as you move away from the wire, following an inverse square law. This means that if you double the distance from the wire, the field strength becomes one-fourth as strong.
To illustrate, consider a simple experiment. A 2-meter long wire carrying 1 ampere of current will generate a measurable magnetic field. If we increase the current to 2 amperes, the field strength doubles. If we shorten the wire to 1 meter, the field strength decreases. Conversely, extending the wire to 4 meters increases the field's reach. Finally, moving a compass (which detects magnetic fields) twice as far from the wire will result in a significantly weaker deflection, demonstrating the inverse square relationship.
This understanding has practical applications. In electromagnets, increasing the current or using a coil of wire (effectively increasing the "length" of the current path) strengthens the magnetic force, allowing them to lift heavier objects. Transformers, crucial for electricity distribution, rely on this principle to efficiently transfer energy between coils. Even the humble doorbell chime utilizes a small electromagnet, highlighting the ubiquity of this current-magnetism connection in our daily lives.
Effective Methods to Demagnetize a Magnet: A Comprehensive Guide
You may want to see also
Frequently asked questions
Yes, an electric current always generates a magnetic field around it, as described by Ampere's Law.
The strength of the magnetic field is directly proportional to the magnitude of the electric current; a larger current produces a stronger magnetic field.
Yes, the direction of the current determines the direction of the magnetic field lines, following the right-hand rule.
No, magnetic fields are inherently linked to moving charges (current), though permanent magnets have aligned atomic currents creating their fields.
The magnetic field around a straight wire forms concentric circles centered on the wire, with the wire as the axis.
