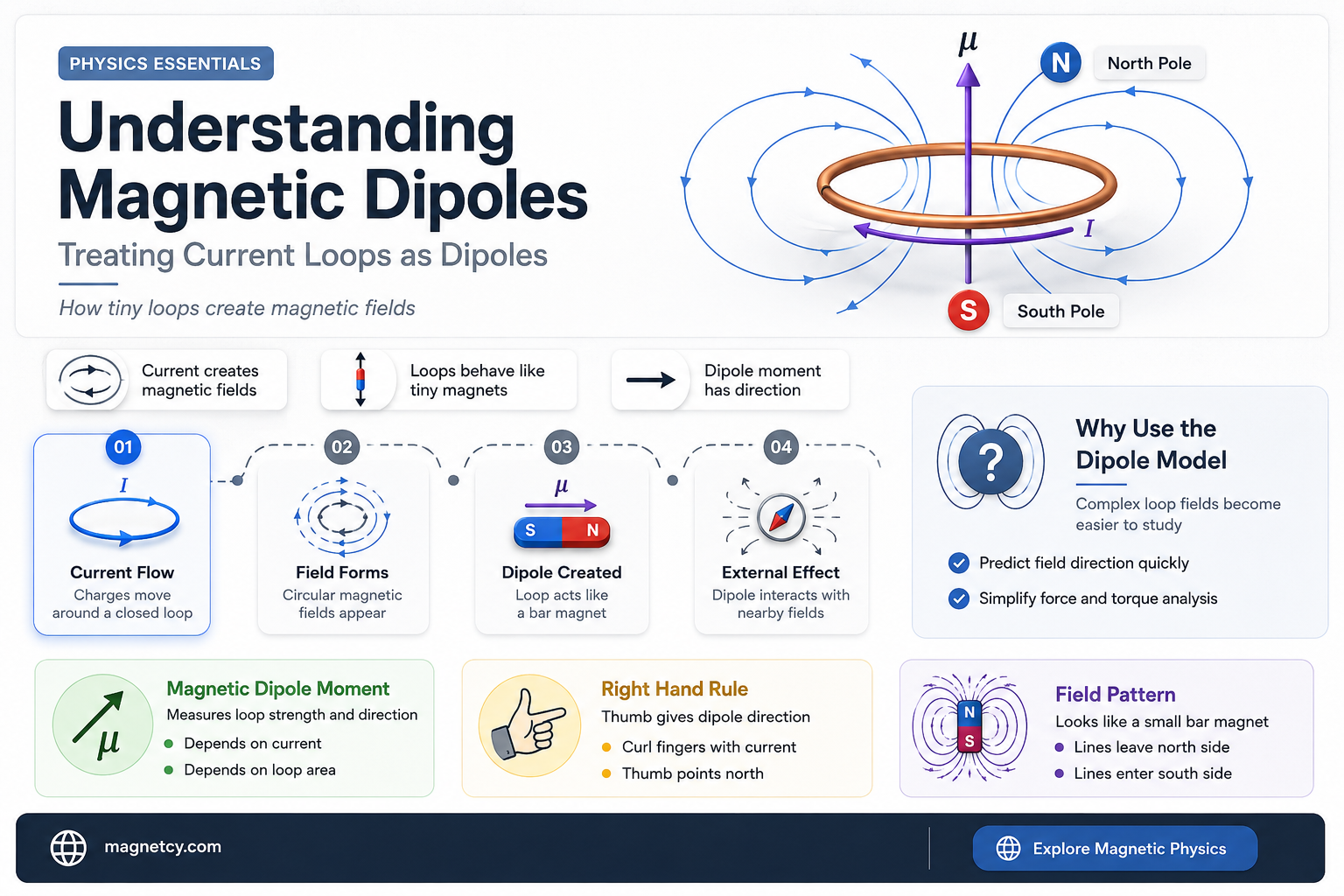

The concept of treating a current loop as a magnetic dipole is a fundamental principle in electromagnetism, rooted in the understanding of how currents generate magnetic fields. When a steady current flows through a closed loop, it produces a magnetic field that resembles the field of a bar magnet, with distinct north and south poles. This similarity allows the current loop to be modeled as a magnetic dipole, where the magnetic moment is directly proportional to the current, the area of the loop, and the number of turns in the case of a coil. This analogy simplifies complex magnetic field calculations and is widely applied in physics and engineering, particularly in the design of electromagnets, motors, and other devices where magnetic fields play a crucial role. By treating a current loop as a magnetic dipole, scientists and engineers can predict and manipulate magnetic interactions with greater precision and efficiency.
| Characteristics | Values |
|---|---|
| Definition | A current loop can be treated as a magnetic dipole if the loop is small compared to the distance from the observation point. |
| Magnetic Dipole Moment (μ) | μ = I * A, where I is the current and A is the area vector of the loop (perpendicular to the plane of the loop). |
| Magnetic Field at the Center | B = (μ₀ * μ) / (4π * r³), where μ₀ is the permeability of free space, and r is the distance from the center of the loop. |
| Torque in a Magnetic Field (τ) | τ = μ × B, where B is the external magnetic field vector. |
| Potential Energy (U) | U = -μ · B, which is minimum when μ and B are parallel and maximum when they are antiparallel. |
| Radiation Pattern | Similar to an electric dipole, with a doughnut-shaped field pattern around the loop's axis. |
| Far-Field Approximation | Valid when the size of the loop (a) is much smaller than the wavelength of the radiation (λ), i.e., a << λ. |
| Applications | Used in modeling magnetic behavior of small current-carrying coils, NMR (Nuclear Magnetic Resonance), and magnetic dipole antennas. |
| Limitations | Assumes uniform current distribution and neglects edge effects for small loops. |
Explore related products
What You'll Learn
- Magnetic Moment Definition: Understanding the magnetic moment of a current loop as a measure of its strength
- Dipole Field Comparison: Analyzing how a current loop's field resembles that of a magnetic dipole
- Torque in Magnetic Field: Exploring the torque experienced by a current loop in an external magnetic field
- Energy Alignment: Investigating the energy changes when aligning a current loop with a magnetic field
- Limitations of Analogy: Discussing conditions under which the current loop-dipole analogy breaks down
Magnetic Moment Definition: Understanding the magnetic moment of a current loop as a measure of its strength
A current loop generates a magnetic field akin to that of a bar magnet, and this behavior forms the basis for treating it as a magnetic dipole. When current flows through a loop, it creates a magnetic field with a north and south pole, depending on the direction of the current. This dipolar nature is quantified by the magnetic moment, a vector that encapsulates both the strength and orientation of the loop’s magnetic properties. Understanding the magnetic moment is crucial because it directly relates to the loop’s ability to interact with external magnetic fields, making it a fundamental concept in electromagnetism.
To calculate the magnetic moment (\( \mu \)) of a current loop, use the formula \( \mu = I \cdot A \), where \( I \) is the current and \( A \) is the area of the loop. The direction of \( \mu \) is perpendicular to the plane of the loop, following the right-hand rule. For example, a loop carrying 2 amperes of current with an area of 0.01 square meters has a magnetic moment of \( 0.02 \, \text{A} \cdot \text{m}^2 \). This value not only measures the loop’s magnetic strength but also determines its torque when placed in an external magnetic field, calculated as \( \tau = \mu \times B \), where \( B \) is the magnetic field strength.
Practical applications of the magnetic moment in current loops are widespread. In devices like electric motors and generators, the torque produced by the interaction of magnetic moments with external fields drives mechanical motion or generates electricity. For instance, in a simple DC motor, the magnetic moment of the current-carrying loop interacts with permanent magnets to create rotational motion. Similarly, in magnetic resonance imaging (MRI), precise control of magnetic moments is essential for generating detailed images of internal body structures. Understanding and manipulating the magnetic moment of current loops is thus vital for optimizing the performance of such technologies.
While the magnetic moment provides a concise measure of a current loop’s magnetic strength, it is important to note limitations. For non-uniform current distributions or complex loop geometries, the simple \( I \cdot A \) formula may not suffice, requiring more advanced calculations. Additionally, the magnetic moment assumes idealized conditions, such as a perfectly circular loop and uniform current density, which may not hold in real-world scenarios. Practitioners should account for these factors when applying the concept to practical designs, ensuring accuracy in both theoretical predictions and experimental outcomes.
Can a Computer Magnet Remove Security Tags? Facts and Risks Explained
You may want to see also
Explore related products
Dipole Field Comparison: Analyzing how a current loop's field resembles that of a magnetic dipole
A current loop generates a magnetic field that strikingly resembles that of a bar magnet, a classic example of a magnetic dipole. This similarity isn't coincidental. When current flows through a loop, it creates a magnetic field with distinct north and south poles, mirroring the dipolar nature of a permanent magnet. This analogy isn't just conceptual; it's mathematically robust. The magnetic moment of a current loop, a vector quantity representing its strength and orientation, is directly proportional to the current and the loop's area. This parallels the magnetic moment of a bar magnet, which depends on its pole strength and separation.
Example: Imagine a circular loop carrying a current of 2 amperes with a radius of 0.1 meters. Its magnetic moment would be calculated as μ = I * A = 2 A * π * (0.1 m)² ≈ 0.0628 A·m². This value dictates the strength and direction of the loop's magnetic field, behaving identically to a tiny bar magnet with the same magnetic moment.
This resemblance extends beyond mere analogy. The field lines of a current loop, when visualized, exhibit the familiar pattern of a dipole: converging at one face of the loop (the "north pole") and diverging at the other (the "south pole"). The field strength diminishes with distance from the loop, following the inverse cube law, just like a magnetic dipole. This predictable behavior allows us to model and predict the interaction of current loops with other magnetic fields or objects.
Analysis: The key to this similarity lies in the symmetry of the current distribution. The uniform current flowing in a closed loop creates a magnetic field that's symmetric about the loop's axis. This symmetry results in a net magnetic moment, a defining characteristic of a dipole. Any deviation from this symmetry, such as an irregularly shaped loop or non-uniform current distribution, would weaken the dipolar nature of the field.
Practical Application: Understanding this dipole analogy is crucial in various fields. In electromagnetics, it forms the basis for designing electromagnets, where multiple current loops are stacked to create stronger magnetic fields. In geophysics, the Earth's magnetic field is often approximated as a magnetic dipole, with its source attributed to circulating currents in the planet's core. Even in everyday devices like electric motors and generators, the interaction between current loops and permanent magnets relies on this dipole analogy.
Takeaway: The current loop's magnetic field isn't just similar to a dipole; it *is* a dipole in every meaningful sense. This understanding allows us to leverage the well-established principles of magnetic dipoles to analyze, predict, and manipulate the behavior of current loops in a wide range of practical applications.
Can Bar Magnets Be Switched On and Off? Exploring Magnetic Control
You may want to see also
Explore related products
Torque in Magnetic Field: Exploring the torque experienced by a current loop in an external magnetic field
A current loop in an external magnetic field behaves much like a compass needle aligning with the Earth’s magnetic field, but the mechanics are far more intricate. When a loop of wire carrying current is placed in a uniform magnetic field, it experiences a torque that tends to rotate it into alignment with the field lines. This phenomenon arises because the current loop generates its own magnetic field, and the interaction between this induced field and the external field results in a rotational force. The torque (\(\tau\)) is given by the vector product \(\tau = \mathbf{m} \times \mathbf{B}\), where \(\mathbf{m}\) is the magnetic dipole moment of the loop and \(\mathbf{B}\) is the external magnetic field. The direction of the torque is perpendicular to both the dipole moment and the field, following the right-hand rule.
To visualize this, imagine a circular loop of wire lying flat on a table with current flowing counterclockwise. If a uniform magnetic field is applied vertically downward, the loop will experience a torque that tries to flip it into a vertical orientation, aligning its magnetic moment with the field. The magnitude of this torque depends on the area (\(A\)) of the loop, the current (\(I\)), the strength of the magnetic field (\(B\)), and the angle (\(\theta\)) between the loop’s normal and the field direction. Mathematically, it is expressed as \(\tau = IAB \sin(\theta)\), where \(IA\) represents the magnetic dipole moment. This equation highlights the importance of the loop’s orientation relative to the field in determining the torque.
Practical applications of this principle abound in devices like electric motors and galvanometers. In an electric motor, the torque on a current-carrying loop is harnessed to produce rotational motion, converting electrical energy into mechanical work. For instance, a simple DC motor uses a current loop (armature) placed in a magnetic field, where the torque causes the loop to rotate continuously as long as current flows. To maximize efficiency, engineers often use multiple loops or coils to ensure smooth rotation. Conversely, in a galvanometer, the deflection of a current loop in a magnetic field is used to measure small currents, with the torque balanced by a restoring spring to provide a readable scale.
However, there are limitations and cautions to consider. The torque is zero when the loop is aligned parallel or antiparallel to the field (\(\theta = 0^\circ\) or \(180^\circ\)), rendering it ineffective for rotation. Additionally, non-uniform magnetic fields can introduce complexities, as the torque may vary across the loop. For precise applications, such as in sensitive scientific instruments, the loop’s geometry and the field’s uniformity must be carefully controlled. For example, in a NMR (Nuclear Magnetic Resonance) machine, the torque on atomic-scale current loops (spins) is critical, and even small deviations in the magnetic field can affect results.
In conclusion, the torque experienced by a current loop in an external magnetic field is a fundamental concept that bridges theoretical electromagnetism and practical engineering. By treating the loop as a magnetic dipole, we gain insights into its behavior and can design systems that leverage this torque for useful purposes. Whether in motors, sensors, or advanced scientific equipment, understanding this interaction is key to optimizing performance and avoiding pitfalls. For enthusiasts and professionals alike, experimenting with simple setups—such as a current loop suspended in a magnetic field—can provide hands-on insight into this fascinating phenomenon.
Can Magnets Go in the Oven? Safety Tips and Facts
You may want to see also
Explore related products
$90.22 $116.59
Energy Alignment: Investigating the energy changes when aligning a current loop with a magnetic field
A current loop, when placed in a magnetic field, behaves much like a bar magnet, exhibiting properties of a magnetic dipole. This analogy is not just theoretical but is supported by experimental evidence and mathematical formulations. The magnetic moment of a current loop is directly proportional to the current flowing through it and the area it encloses, given by the equation μ = I * A, where μ is the magnetic moment, I is the current, and A is the loop area. When such a loop is aligned with an external magnetic field, the interaction between the two results in a torque that tends to align the loop’s magnetic moment with the field lines. This alignment process is accompanied by changes in energy, which can be quantified and analyzed.
To investigate the energy changes during alignment, consider a current loop with a magnetic moment μ placed in a uniform magnetic field B. The potential energy U of the loop in the field is given by U = –μ * B * cos(θ), where θ is the angle between the magnetic moment and the field direction. When θ = 0° (aligned), the energy is at its minimum, and when θ = 180° (anti-aligned), the energy is at its maximum. The energy difference between these two states is ΔU = 2 * μ * B, representing the work done to flip the loop from one orientation to the other. For practical experiments, a small loop with a current of 1 A and an area of 0.01 m² in a field of 1 T would yield a magnetic moment of 0.01 A·m² and an energy change of 0.02 J.
The process of aligning a current loop with a magnetic field can be visualized as a rotational motion under the influence of torque. The torque τ acting on the loop is given by τ = μ * B * sin(θ), which drives the loop toward alignment (θ = 0°). As the loop rotates, the work done by the torque is converted into kinetic energy, eventually dissipating as heat due to resistance in the wire. To minimize energy loss, use low-resistance materials like copper and ensure the loop is free to rotate without mechanical constraints. For educational demonstrations, a simple setup involving a circular loop suspended by a thin fiber in a uniform magnetic field can illustrate these principles effectively.
A comparative analysis of energy alignment in current loops versus permanent magnets reveals intriguing similarities. Both systems exhibit a bistable energy landscape, with stable states at alignment and anti-alignment. However, the energy density in current loops is typically lower due to the smaller magnetic moments achievable with practical currents and loop sizes. For instance, a neodymium magnet with a magnetic moment of 1 A·m² in a 1 T field would have an energy change of 2 J, significantly higher than the 0.02 J observed in the current loop example. This comparison underscores the scalability of magnetic dipole behavior and its dependence on the system’s physical parameters.
In practical applications, understanding energy alignment in current loops is crucial for designing devices like electric motors, galvanometers, and magnetic sensors. For instance, in a stepper motor, precise control of current in the loops allows for incremental rotations by aligning the magnetic moments with the field in discrete steps. To optimize performance, engineers must account for energy losses during alignment, such as hysteresis and eddy currents, by selecting appropriate materials and geometries. A tip for hobbyists: when experimenting with current loops, start with low currents (e.g., 0.5 A) and gradually increase to observe the torque and energy changes without overheating the wire. This hands-on approach deepens intuition about the interplay between current, magnetism, and energy.
Exploring the Strength and Limits of a 20,000 Gauss Magnetic Catch
You may want to see also
Explore related products
Limitations of Analogy: Discussing conditions under which the current loop-dipole analogy breaks down
The current loop-magnetic dipole analogy is a powerful tool in electromagnetism, simplifying complex phenomena into manageable concepts. However, this analogy, like all simplifications, has its limits. Understanding these limitations is crucial for accurate analysis and practical applications.
One major breakdown occurs when the loop's dimensions become comparable to the wavelength of the electromagnetic radiation it interacts with. In such cases, the assumption of a point dipole, where the loop's size is negligible, fails. This is particularly relevant in high-frequency applications like radiofrequency engineering or interactions with visible light. Here, the loop's geometry and spatial distribution of current significantly influence the electromagnetic field, deviating from the dipole's idealized radial pattern.
Another limitation arises when the current distribution within the loop deviates significantly from uniformity. The dipole model assumes a constant current density throughout the loop. In reality, factors like skin effect at high frequencies or non-uniform wire thickness can lead to current concentration in specific regions. This non-uniformity alters the magnetic moment and field distribution, rendering the dipole approximation inaccurate.
Furthermore, the analogy falters when considering dynamic situations involving accelerating charges. While a steady current loop can be approximated as a static dipole, accelerating charges within the loop generate time-varying fields and radiation. This introduces complexities beyond the static dipole model, requiring more sophisticated descriptions like multipole expansions or full electromagnetic field calculations.
Lastly, the analogy breaks down when dealing with loops in highly inhomogeneous magnetic fields. The dipole model assumes a uniform external field. In reality, strong field gradients can induce significant forces and torques on the loop, leading to complex dynamics that cannot be captured by the simple dipole interaction.
Understanding these limitations allows us to apply the current loop-dipole analogy judiciously. It remains a valuable tool for initial analysis and qualitative understanding, but for precise calculations and real-world applications, especially in high-frequency, non-uniform, or dynamic scenarios, more sophisticated models are necessary.
Can Magnets Attract Silver? Unveiling the Truth Behind the Myth
You may want to see also
Frequently asked questions
Yes, a current loop can be treated as a magnetic dipole because it produces a magnetic field similar to that of a bar magnet, with a north and south pole.
The current loop must be small in size compared to the distance from the observation point, and the current flowing through it must be steady (DC).
The magnetic moment (μ) of a current loop is calculated as the product of the current (I), the area of the loop (A), and the unit vector perpendicular to the plane of the loop: μ = I * A.
The shape of the loop affects the uniformity of the magnetic field, but as long as the loop is closed and carries a steady current, it can still be approximated as a magnetic dipole, especially for small loops.
The magnetic field of a current loop resembles that of a bar magnet, with field lines emerging from one face (north pole) and re-entering the other (south pole), though the strength and distribution may differ.
