Magnetic fields are fundamental to various physical phenomena, and their ability to store energy is a topic of significant interest in physics and engineering. When a magnetic field is established or altered, it can indeed store energy, which is manifested as magnetic potential energy. This energy arises from the work done to create or change the magnetic field configuration, such as by passing current through a coil or altering the geometry of a magnetic material. The stored energy can be released when the magnetic field collapses or changes, converting back into other forms of energy, such as electrical or mechanical energy. Understanding this property is crucial in applications like transformers, inductors, and magnetic storage devices, where the efficient use and management of magnetic energy are essential for their operation.
| Characteristics | Values |
|---|---|
| Can a magnetic field store energy? | Yes |
| Mechanism | Magnetic potential energy is stored in the field when work is done to establish the field or when current flows through a conductor. |
| Formula | U = (1/2) * L * I² (for an inductor), where U is energy, L is inductance, and I is current. |
| Units | Joules (J) |
| Applications | Inductors in circuits, transformers, magnetic storage devices (e.g., hard drives), and magnetic resonance imaging (MRI) machines. |
| Dependence | Energy storage depends on the strength of the magnetic field (B), the volume of the field, and the magnetic permeability of the material within the field. |
| Conservation | Magnetic energy can be converted to other forms of energy, such as electrical energy in a generator or kinetic energy in a motor. |
| Non-isolated fields | In free space, magnetic fields are always accompanied by electric fields, and the total energy is shared between them (Poynting vector). |
| Inductance | A key parameter determining the amount of energy stored in a magnetic field; higher inductance allows for more energy storage. |
| Saturation | In ferromagnetic materials, energy storage capacity is limited by magnetic saturation, beyond which further increases in current do not significantly increase the magnetic field. |
| Losses | Energy can be lost as heat due to resistance in conductors (Joule heating) or hysteresis and eddy currents in magnetic materials. |
Explore related products
What You'll Learn
Magnetic Field Energy Density
Magnetic fields are not just invisible forces; they are reservoirs of potential energy. When a magnetic field is established or altered, energy is stored within it, ready to be released or transformed. This phenomenon is quantified by magnetic field energy density, a measure of how much energy is packed into a given volume of space occupied by the field. Mathematically, it is expressed as \( u_B = \frac{B^2}{2\mu} \), where \( B \) is the magnetic field strength and \( \mu \) is the permeability of the medium (often free space, \( \mu_0 \)). This formula reveals a direct relationship: stronger fields or higher permeability materials store more energy per unit volume.
Consider a practical example: an electromagnet in a particle accelerator. As current flows through its coil, a magnetic field builds up, storing energy in the surrounding space. If the current is abruptly halted, this stored energy is rapidly released, often as heat or mechanical motion. Engineers must account for this energy density to prevent damage to components or ensure efficient operation. For instance, in a 1 Tesla field (typical in MRI machines), the energy density in free space is \( \approx 398 \, \mu\text{J/m}^3 \). While this seems small, the cumulative effect in a large volume can be significant, underscoring the importance of precise calculations.
To harness or manage magnetic field energy density effectively, follow these steps: First, determine the magnetic field strength using a Gaussmeter or through theoretical calculations. Second, identify the medium’s permeability—air or vacuum uses \( \mu_0 = 4\pi \times 10^{-7} \, \text{T·m/A} \), while materials like iron have much higher values. Third, apply the energy density formula to estimate the stored energy. Caution: in high-field applications, such as superconducting magnets, sudden discharges (quench events) can release energy explosively, requiring robust safety systems.
Comparatively, magnetic energy density is less than electric field energy density in many scenarios, but its advantages lie in its stability and ease of containment. For instance, capacitors store energy in electric fields at densities up to \( \approx 10^6 \, \text{J/m}^3 \), while magnetic storage in devices like inductors rarely exceeds \( 10^2 \, \text{J/m}^3 \). However, magnetic fields excel in applications requiring sustained, controllable forces, such as levitation systems or energy storage in SMES (Superconducting Magnetic Energy Storage) systems, where energy densities of \( \approx 10^4 \, \text{J/m}^3 \) are achievable.
In conclusion, magnetic field energy density is a critical parameter for designing and optimizing systems that rely on magnetic fields. Whether in medical devices, industrial machinery, or cutting-edge energy storage, understanding and calculating this value ensures efficiency, safety, and innovation. By mastering this concept, engineers and scientists can unlock the full potential of magnetic fields as a medium for storing and managing energy.
Can Iron Be Magnetized? Exploring Magnetic Properties and Processes
You may want to see also
Explore related products
Inductors and Stored Energy
Magnetic fields are not just invisible forces; they are reservoirs of potential energy, a concept vividly illustrated by inductors. These passive electronic components, often overlooked, play a pivotal role in storing and releasing energy within circuits. When current flows through an inductor, it generates a magnetic field around its coil. This field is not static; it evolves with the current, and in this dynamic process, energy is stored. The amount of energy stored in an inductor is directly proportional to the square of the current passing through it and the inductance of the component, as given by the formula \( E = \frac{1}{2} L I^2 \), where \( E \) is energy, \( L \) is inductance, and \( I \) is current.
Consider a practical example: a 10 mH inductor in a circuit carrying a current of 2 A. Using the formula, the energy stored is \( E = \frac{1}{2} \times 0.01 \, \text{H} \times (2 \, \text{A})^2 = 0.02 \, \text{J} \). This might seem trivial, but in applications like power supplies or electric vehicles, where inductors handle much higher currents and inductance values, the stored energy becomes significant. For instance, a 1 H inductor with a 10 A current stores \( 50 \, \text{J} \), enough to power a small LED for a brief moment.
The process of storing energy in an inductor is not without its challenges. When the current through an inductor is interrupted, the collapsing magnetic field induces a voltage that opposes the change, a phenomenon known as back EMF. This can lead to voltage spikes that damage components if not managed properly. Engineers often use flyback diodes across inductors to provide a safe path for this induced current, preventing damage to transistors or other sensitive parts. This is particularly critical in switching circuits, where currents change rapidly.
Comparing inductors to capacitors highlights their unique role in energy storage. While capacitors store energy in an electric field, inductors store it in a magnetic field. This difference makes inductors ideal for applications requiring smooth current flow and energy release over time, such as in DC-DC converters or radio frequency (RF) circuits. However, their bulk and inefficiency at high frequencies limit their use in compact, high-speed devices, where capacitors often take precedence.
In conclusion, inductors are not just passive components but active participants in energy management within circuits. Their ability to store energy in magnetic fields makes them indispensable in various applications, from power electronics to telecommunications. Understanding their behavior—how they store energy, the challenges they pose, and their comparative advantages—is crucial for designing efficient and reliable systems. Whether you're a hobbyist or a professional engineer, mastering inductors opens up new possibilities in circuit design and energy utilization.
Can Gold Be Magnetized? Unveiling the Truth About Gold's Magnetic Properties
You may want to see also
Explore related products
![[WIDER SHELF] 2 SET Strong Magnetic Shelf Basket for Fridge with Tag & Bamboo Top, XXL Large Magnetic Spice Rack Shelves for Side of Refrigerator, Kitchen Pantry Storage Organizer for Food Fruit Veg](https://m.media-amazon.com/images/I/71RDXPPzUPL._AC_UL320_.jpg)
Energy in Solenoids

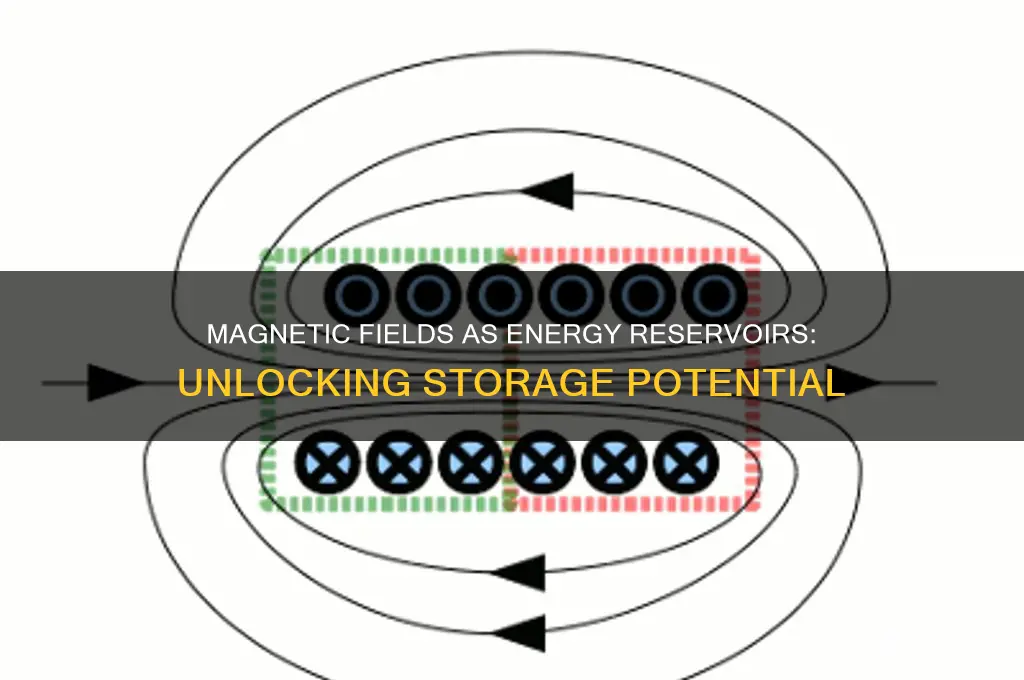

Magnetic fields are indeed capable of storing energy, and solenoids serve as a prime example of this phenomenon. A solenoid is a coil of wire tightly wound in a helix, often around a cylindrical core. When an electric current passes through the wire, it generates a magnetic field inside and around the solenoid. This magnetic field is not merely a byproduct; it is a reservoir of energy. The energy stored in the magnetic field of a solenoid can be calculated using the formula \( U = \frac{1}{2} L I^2 \), where \( U \) is the stored energy, \( L \) is the inductance of the solenoid, and \( I \) is the current flowing through it. This equation highlights the direct relationship between the energy stored and the square of the current, emphasizing that higher currents result in greater energy storage.
To understand how solenoids store energy, consider the process of building the magnetic field. As current increases, the magnetic field strengthens, and energy is transferred from the electrical source into the magnetic field. This energy is not lost but stored within the field. For instance, a solenoid with 100 turns, a length of 0.5 meters, and a cross-sectional area of 0.01 square meters has an inductance of approximately \( 1.26 \times 10^{-4} \) Henry. If a current of 2 Amperes flows through it, the stored energy is \( U = \frac{1}{2} \times 1.26 \times 10^{-4} \times (2)^2 = 2.52 \times 10^{-4} \) Joules. This demonstrates how even small solenoids can store measurable amounts of energy.
Practical applications of energy storage in solenoids are widespread. In electromagnets, for example, the stored energy allows the solenoid to lift heavy ferromagnetic objects, such as scrap metal in junkyards. Similarly, solenoids in relays and valves use stored magnetic energy to perform mechanical work. However, caution is necessary when working with high-energy solenoids. Rapidly interrupting the current can cause the stored energy to discharge as a voltage spike, potentially damaging components. To mitigate this, engineers often use flyback diodes across the solenoid to provide a safe path for the current to dissipate.
Comparing solenoids to other energy storage devices, such as capacitors, reveals their unique advantages. While capacitors store energy in an electric field, solenoids store it in a magnetic field, making them ideal for applications requiring magnetic force or induction. For instance, solenoids are used in MRI machines to generate strong, uniform magnetic fields, storing energy that is crucial for imaging. In contrast, capacitors are better suited for high-frequency applications. This distinction underscores the importance of selecting the right energy storage mechanism based on the specific requirements of the application.
In conclusion, solenoids exemplify the ability of magnetic fields to store energy, offering a practical and efficient solution for various technological needs. By understanding the principles of energy storage in solenoids, engineers and enthusiasts can harness this capability effectively, ensuring both safety and optimal performance in their designs. Whether in industrial machinery, medical devices, or everyday electronics, the energy stored in solenoids plays a vital role in modern technology.
Can Cell Phones Magnetize Watches? Debunking the Myth and Facts
You may want to see also
Explore related products
Magnetic Potential Energy
Magnetic fields are not just invisible forces; they are reservoirs of potential energy, waiting to be harnessed or released. Consider a simple electromagnet: when current flows through a coil, it generates a magnetic field, storing energy in the process. This energy is not lost but resides within the field itself, ready to perform work when the conditions are right. For instance, in a relay switch, the magnetic field created by a small current can pull a lever, closing a much larger circuit. This demonstrates how magnetic potential energy can be converted into mechanical energy, showcasing its utility in everyday technology.
To understand magnetic potential energy quantitatively, examine the formula \( U = \frac{1}{2} L I^2 \), where \( U \) is the stored energy, \( L \) is the inductance of the coil, and \( I \) is the current. Inductance, measured in henries (H), is a property of the coil that determines how much energy it can store for a given current. For example, a coil with an inductance of 1 H stores 0.5 joules of energy when carrying a current of 1 ampere. This relationship highlights the direct proportionality between the square of the current and the stored energy, making it a critical factor in designing energy-efficient devices like transformers and inductors.
One practical application of magnetic potential energy is in regenerative braking systems used in electric vehicles. When the driver applies the brakes, the motor acts as a generator, converting kinetic energy back into electrical energy. This energy is temporarily stored in the magnetic field of the motor’s coils before being returned to the battery. For a typical electric car, regenerative braking can recover up to 70% of the energy normally lost during braking, significantly extending the vehicle’s range. This example illustrates how magnetic potential energy serves as a bridge between mechanical and electrical energy, enhancing efficiency in modern transportation.
However, storing energy in magnetic fields is not without challenges. Unlike chemical batteries, magnetic storage systems require continuous current to maintain the field, leading to energy losses through heat dissipation. Superconducting magnetic energy storage (SMES) systems address this issue by using superconducting coils, which eliminate electrical resistance when cooled to cryogenic temperatures (typically below 77 K). While SMES systems can store energy with efficiencies exceeding 95%, the high cost of superconducting materials and cooling systems limits their widespread adoption. Despite these hurdles, SMES remains a promising solution for high-power applications, such as stabilizing power grids during sudden surges or outages.
In summary, magnetic potential energy is a versatile and efficient form of energy storage with applications ranging from small electronic devices to large-scale power systems. By understanding its principles and limitations, engineers can design systems that maximize its benefits while minimizing drawbacks. Whether in a simple electromagnet or a cutting-edge SMES system, magnetic fields continue to prove their value as a dynamic and reliable energy storage medium.
Can Magnets Stick to Copper? Unveiling the Surprising Truth
You may want to see also
Explore related products
Energy Conservation in Fields
Magnetic fields are not just invisible forces; they are reservoirs of potential energy. When a current flows through a conductor, it generates a magnetic field around it, and this process inherently stores energy. This stored energy is proportional to the square of the current and the inductance of the coil, as described by the formula \( U = \frac{1}{2} L I^2 \), where \( U \) is the energy, \( L \) is the inductance, and \( I \) is the current. Understanding this principle is crucial for designing efficient electrical systems, from transformers to MRI machines.
Consider the practical application of this energy storage in everyday devices. For instance, inductive chargers for smartphones rely on magnetic fields to transfer energy wirelessly. When you place your phone on a charging pad, the pad creates a magnetic field that induces a current in the phone’s coil, storing energy temporarily before converting it to electrical charge. This process highlights how magnetic fields act as intermediaries in energy conservation, bridging the gap between potential and kinetic energy. To maximize efficiency, ensure the charger and device are properly aligned, as misalignment reduces the magnetic coupling and wastes energy.
However, energy conservation in magnetic fields is not without challenges. One significant issue is energy loss due to resistance and hysteresis. In transformers, for example, the core material’s magnetic properties can lead to energy dissipation as heat, reducing overall efficiency. To mitigate this, engineers use materials with low hysteresis loss, such as silicon steel, and design cores to minimize eddy currents. For DIY enthusiasts working with electromagnets, selecting a core material with high permeability and low coercivity can significantly improve energy retention.
Comparing magnetic fields to other forms of energy storage reveals their unique advantages and limitations. Unlike batteries, which store chemical energy, magnetic fields store energy in a form that is instantly accessible and convertible. However, their storage capacity is limited by the inductance and current constraints. For high-energy applications, superconducting magnetic energy storage (SMES) systems offer a solution, storing energy in powerful magnetic fields with minimal loss. These systems are ideal for stabilizing power grids but require cryogenic cooling, making them costly and specialized.
In conclusion, magnetic fields are a dynamic medium for energy conservation, offering both opportunities and challenges. By understanding their properties and optimizing their use, we can harness their potential in innovative ways. Whether in consumer electronics or industrial applications, the efficient management of magnetic field energy is key to advancing sustainable energy solutions. Always prioritize proper design and material selection to minimize losses and maximize the benefits of this fascinating phenomenon.
Magnetic Influence: Can Magnets Specifically Interact with Copper?
You may want to see also
Frequently asked questions
Yes, a magnetic field can store energy. This energy is stored in the form of magnetic potential energy when a current flows through a conductor or when a magnetic material is magnetized.
Energy is stored in a magnetic field by doing work to establish the field, such as passing an electric current through a coil or magnetizing a material. The energy is proportional to the square of the magnetic field strength and the volume of the field.
Magnetic field energy is commonly utilized in devices like inductors, transformers, and electromagnets. It is also a key component in technologies such as MRI machines, generators, and energy storage systems like superconducting magnetic energy storage (SMES).
Yes, the energy stored in a magnetic field is recoverable. When the magnetic field collapses or changes, the stored energy is released as electrical energy (in the case of inductors) or mechanical work (in the case of magnetic actuators).
