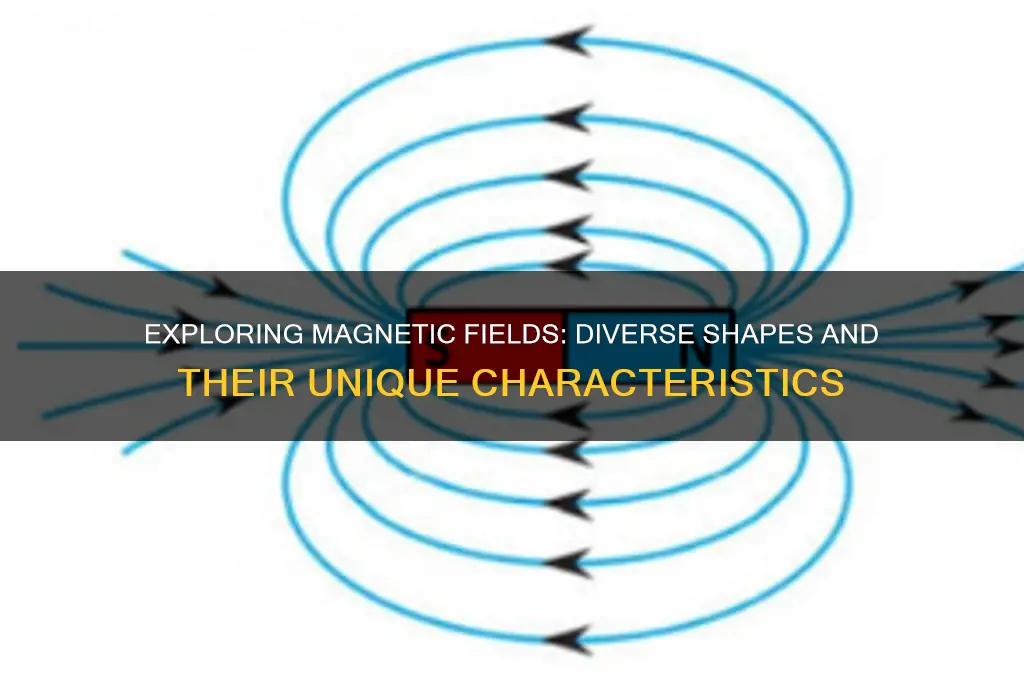

Magnetic fields, often visualized as invisible lines of force, are not confined to a single shape but can indeed take on various forms depending on the source generating them. For instance, a simple bar magnet produces a dipolar field with distinct north and south poles, while a current-carrying loop creates a toroidal or doughnut-shaped field. More complex arrangements, such as those in electromagnets or planetary magnetospheres, can result in fields that are asymmetric, elongated, or even chaotic. Understanding the shapes of magnetic fields is crucial in fields like physics, engineering, and astronomy, as it influences applications ranging from electric motors to the behavior of charged particles in space. Thus, the question of whether a magnetic field can take different shapes not only highlights its versatility but also underscores its significance in both theoretical and practical contexts.
| Characteristics | Values |
|---|---|
| Shape of Magnetic Field | Magnetic fields can indeed take different shapes depending on the source and configuration. Common shapes include dipolar (bar magnet), circular (current loop), and complex shapes around current-carrying wires or multiple magnets. |
| Dependence on Source | The shape is determined by the arrangement of magnetic sources (e.g., permanent magnets, current-carrying conductors). |
| Field Lines | Field lines are continuous, closed loops that emerge from the north pole and enter the south pole, or circulate around currents. |
| Symmetry | Symmetrical sources (e.g., solenoids) produce uniform, predictable field shapes, while asymmetrical sources create irregular shapes. |
| Strength Variation | Field strength varies with distance from the source and the shape of the field (e.g., stronger near poles, weaker at distances). |
| Interaction with Materials | Magnetic fields can be altered by ferromagnetic materials, which can concentrate or distort the field lines. |
| Visualization Tools | Tools like iron filings or magnetic field viewers (e.g., Hall effect sensors) are used to visualize field shapes. |
| Mathematical Description | Field shapes are described using vector fields (e.g., B-field) and equations like the Biot-Savart Law or Ampere's Law. |
| Applications | Different shapes are utilized in technologies such as MRI machines (toroidal fields), electric motors (rotational fields), and particle accelerators (dipole fields). |
| Non-Uniformity | Fields can be non-uniform, with varying density and direction across space, depending on the source configuration. |
Explore related products
What You'll Learn
- Field Lines Visualization: Understanding how magnetic fields are represented visually through lines and their patterns
- Symmetry in Fields: Exploring symmetrical shapes like circles, spheres, and their impact on field distribution
- Asymmetrical Configurations: Analyzing irregular shapes and their effects on magnetic field behavior and strength
- Field Shaping Techniques: Methods to manipulate magnetic fields into specific shapes using materials or currents
- Natural vs. Artificial Shapes: Comparing naturally occurring field shapes with those created by human intervention
Field Lines Visualization: Understanding how magnetic fields are represented visually through lines and their patterns
Magnetic field lines are a powerful tool for visualizing the invisible forces that shape our world. These lines, though not physical entities, provide a clear and intuitive way to understand the direction and strength of a magnetic field. By convention, field lines emerge from the north pole of a magnet and terminate at the south pole, forming closed loops. This simple yet elegant representation allows us to grasp complex magnetic interactions, from the behavior of compass needles to the dynamics of electromagnetic devices.
To visualize magnetic field lines effectively, consider the following steps: first, place a magnet on a flat surface. Next, sprinkle iron filings around it or use a compass to trace the paths. The filings will align themselves along the field lines, revealing their shape and density. Alternatively, specialized software can simulate these patterns, offering a dynamic and adjustable view. Key patterns to observe include the concentration of lines at the poles, indicating stronger field strength, and their gradual dispersion as they move away, reflecting diminishing influence.
One striking example of magnetic field visualization is the Earth’s magnetosphere. Here, field lines extend from the planet’s magnetic north to south poles, creating a protective shield against solar radiation. During geomagnetic storms, these lines can distort and compress, illustrating how external forces alter magnetic shapes. Similarly, in electromagnets, the field lines form concentric circles around the current-carrying wire, demonstrating how the shape of the field adapts to the geometry of the source.
While field lines are invaluable for understanding magnetic behavior, they come with limitations. For instance, they cannot represent zero-field points or areas of uniform field strength effectively. Additionally, their density does not always correlate linearly with field intensity, requiring careful interpretation. Despite these caveats, mastering field line visualization enhances our ability to predict and manipulate magnetic phenomena in applications ranging from MRI machines to electric motors.
In practical terms, educators and engineers can leverage field line visualization to demystify magnetism for students and professionals alike. Hands-on activities, such as constructing electromagnets or analyzing magnetic levitation systems, reinforce theoretical concepts. Advanced users can explore 3D modeling tools to simulate complex magnetic environments, fostering innovation in fields like renewable energy and space exploration. By combining observational skills with analytical thinking, anyone can unlock the secrets of magnetic fields through the art of field line visualization.
