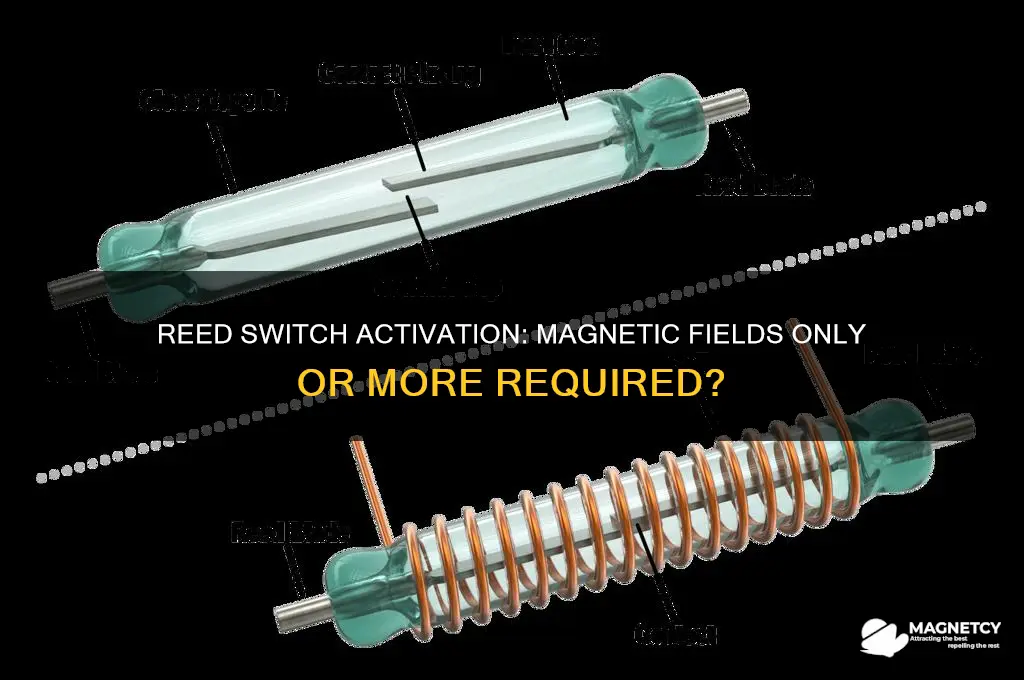

A reed switch is a type of electrical switch operated by an applied magnetic field, consisting of two thin, flexible metal reeds that are hermetically sealed within a glass tube. The fundamental question of whether a reed switch can be activated solely by a magnet is rooted in its design and operational principle. When a magnetic field is applied, the reeds are drawn together, completing the electrical circuit and allowing current to flow. The activation of a reed switch depends entirely on the presence and strength of the magnetic field, as no physical contact or mechanical force is required beyond the magnetic interaction. Therefore, a reed switch can indeed be activated with a magnet alone, provided the magnetic field is sufficiently strong and properly oriented to cause the reeds to close.
Explore related products
What You'll Learn
- Reed Switch Basics: Understanding reed switch operation, structure, and magnetic field activation principles
- Magnetic Field Strength: Minimum magnetic force required to activate a reed switch reliably
- Magnet Types: Effectiveness of permanent magnets, electromagnets, and magnetic materials on reed switches
- Switch Sensitivity: Factors influencing reed switch sensitivity to magnetic fields and activation distance
- Applications: Practical uses of reed switches activated solely by magnetic fields in devices
Reed Switch Basics: Understanding reed switch operation, structure, and magnetic field activation principles
Reed switches are remarkably simple yet highly effective devices, consisting of two ferromagnetic blades encased in a glass tube filled with an inert gas. When a magnetic field is applied, these blades—normally separated by a small gap—are drawn together, completing an electrical circuit. This mechanism is the cornerstone of their operation, but it raises a critical question: can a reed switch be activated solely by a magnetic field? The answer lies in understanding the interplay between the switch’s structure and the magnetic force applied.
To activate a reed switch, the magnetic field must be strong enough to overcome the mechanical resistance of the blades and the restoring force of the flexible metal. Typically, a magnetic field strength of 20 to 60 AT (ampere-turns) is required, depending on the switch’s design and blade material. For example, a standard reed switch with nickel-iron blades may require a neodymium magnet placed within 10 mm to reliably close the circuit. This specificity highlights why not just any magnet will suffice—the field strength and proximity are crucial.
Consider the practical implications: in applications like security systems or liquid level sensors, reed switches are often paired with permanent magnets. The magnet’s orientation and distance from the switch determine activation. For instance, a reed switch in a door sensor will close when the magnet mounted on the door is within the required range, typically 5 to 15 mm. This demonstrates that while magnetic activation is possible, it is not a one-size-fits-all scenario—precision in magnet selection and placement is essential.
A comparative analysis reveals that reed switches are more sensitive to magnetic fields than Hall effect sensors, which rely on semiconductor principles. However, reed switches are mechanical devices, making them susceptible to wear over millions of cycles. This trade-off underscores the importance of matching the switch to the application. For low-cycle applications like window alarms, a reed switch activated by a magnet alone is ideal. For high-cycle environments, such as rotary encoders, durability becomes a limiting factor.
In conclusion, a reed switch can indeed be activated with a magnetic field alone, but success hinges on understanding its operational principles. By selecting the appropriate magnet strength, ensuring proper alignment, and considering the switch’s mechanical limitations, engineers and hobbyists can harness this technology effectively. Whether in consumer electronics or industrial automation, the reed switch remains a versatile tool—provided its activation requirements are met with precision.
