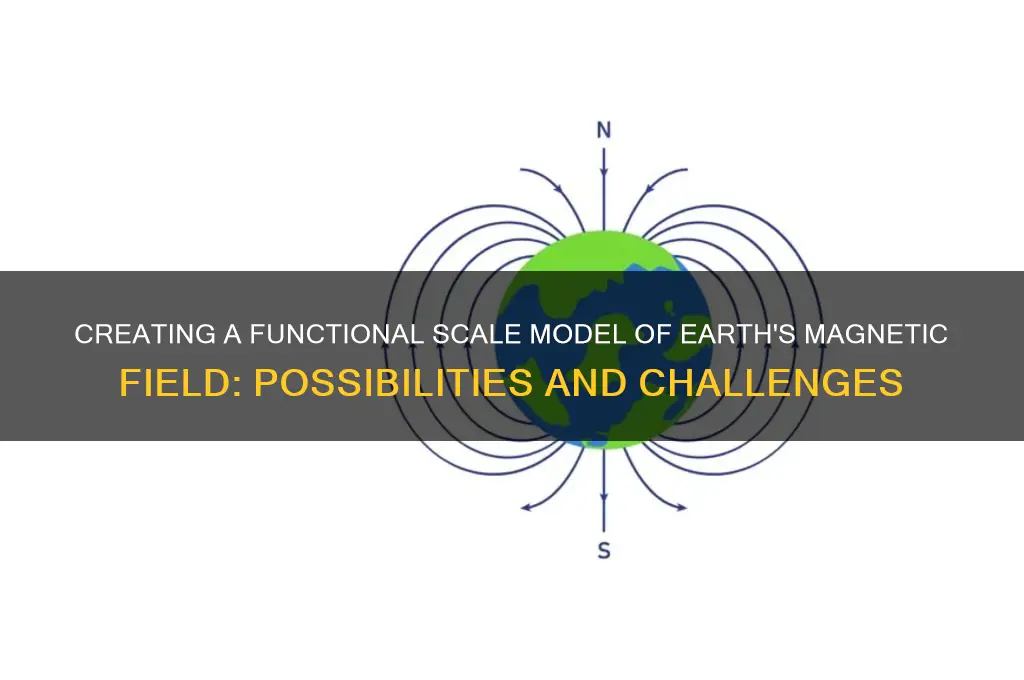

The Earth's magnetic field is a complex and dynamic system generated by the movement of molten iron in the planet's outer core, playing a crucial role in protecting our planet from solar radiation and guiding navigation systems. Creating a working scale model of this magnetic field presents both scientific and engineering challenges, as it requires simulating the geodynamo process and accurately replicating the field's strength, orientation, and fluctuations. Such a model could offer invaluable insights into geomagnetic phenomena, aid in understanding space weather impacts, and serve as an educational tool. However, achieving this feat demands advanced materials, precise instrumentation, and a deep understanding of geophysics, making it a fascinating yet formidable endeavor at the intersection of physics, geology, and technology.
| Characteristics | Values |
|---|---|
| Feasibility | Theoretically possible, but extremely challenging |
| Scale | Would need to be vastly smaller than Earth (e.g., 1:1,000,000 or smaller) due to size constraints |
| Core Material | Requires a molten, electrically conductive material (e.g., liquid sodium or alloy) to simulate Earth's outer core |
| Rotation | Must replicate Earth's rotation speed (approx. 1,670 km/h at equator) to generate dynamo effect |
| Magnetic Field Strength | Target: ~25,000–65,000 nanoteslas (nT) at the model's surface, similar to Earth's |
| Power Requirements | Extremely high, likely requiring advanced energy sources or continuous input |
| Stability | Maintaining a stable, self-sustaining dynamo effect is a major technical hurdle |
| Size Constraints | Even at a 1:1,000,000 scale, the model would be impractically large (e.g., ~12.7 cm diameter for Earth's core) |
| Existing Examples | No fully functional, self-sustaining models exist; only partial simulations (e.g., liquid sodium experiments) |
| Research Status | Active research in geophysics and experimental dynamo projects (e.g., MDM experiment in France) |
| Applications | Studying geomagnetic reversals, space weather, and planetary magnetism |
| Challenges | Scaling laws, energy dissipation, and material limitations |
Explore related products
What You'll Learn
- Magnet Design: Using electromagnets to simulate Earth's magnetic field strength and polarity
- Core Simulation: Modeling Earth's molten outer core dynamics and convection currents
- Field Mapping: Measuring and visualizing the magnetic field lines accurately in the model
- Scale Challenges: Addressing size and material limitations in replicating Earth's field
- Practical Applications: Testing the model for studying geomagnetic storms and navigation systems
Magnet Design: Using electromagnets to simulate Earth's magnetic field strength and polarity
Earth's magnetic field, generated by the dynamo effect in its outer core, is a complex and dynamic system. Replicating this field using electromagnets requires precise control over both strength and polarity. Electromagnets, unlike permanent magnets, allow for adjustable magnetic fields by varying the current through their coils. This flexibility makes them ideal for simulating the Earth's magnetic field, which fluctuates in intensity and occasionally reverses polarity over geological timescales.
To achieve a realistic simulation, start by calculating the required magnetic field strength. Earth's surface field ranges from approximately 25 to 65 microtesla (μT). For a scale model, determine the appropriate reduction factor based on your setup size. For instance, a 1:1,000,000 scale model would require a field strength of 25 to 65 millitesla (mT). Use the formula *B = (μ₀ * N * I) / L* to calculate the magnetic field (*B*) produced by a solenoid, where *μ₀* is the permeability of free space (4π × 10⁻⁷ T·m/A), *N* is the number of turns, *I* is the current, and *L* is the solenoid length. Adjust *N* and *I* to match the desired field strength.
Polarity simulation is equally critical. Earth's magnetic field has a dipolar structure, with magnetic north and south poles. To replicate this, arrange two electromagnets in a dipole configuration, with their currents flowing in opposite directions. Use a compass or a Hall effect sensor to verify the field's orientation. For dynamic simulations, such as geomagnetic reversals, incorporate a programmable power supply to reverse the current flow gradually, mimicking the slow transition observed in Earth's history.
Practical considerations include heat management and stability. Electromagnets generate heat when energized, which can alter their performance. Use heat sinks or cooling systems to maintain consistent temperatures. Additionally, secure the electromagnets firmly to prevent movement during operation. For educational or research purposes, pair the setup with visual aids, such as iron filings or a magnetic field viewer, to illustrate field lines and polarity shifts.
In conclusion, simulating Earth's magnetic field with electromagnets is a feasible and instructive project. By carefully adjusting current, coil configuration, and cooling mechanisms, you can create a dynamic model that accurately reflects the field's strength and polarity. This approach not only enhances understanding of geomagnetism but also serves as a foundation for exploring related phenomena, such as auroras or magnetic navigation.
Magnets and Pet Microchips: Debunking the Erasure Myth
You may want to see also
Explore related products
Core Simulation: Modeling Earth's molten outer core dynamics and convection currents
Earth's magnetic field, generated by the dynamo effect in its molten outer core, is a complex and dynamic system. Recreating this phenomenon on a smaller scale requires simulating the core's convection currents, which are driven by heat from the inner core and the cooling of the mantle. A working scale model must account for the interplay of temperature gradients, fluid motion, and magnetic induction. While full-scale replication is impractical, simplified models using liquid metals like sodium or gallium in rotating cylinders have shown promise. These setups mimic the Coriolis forces and thermal gradients that drive Earth's geodynamo, offering insights into the field's behavior.
To build a core simulation model, start by selecting a fluid with high electrical conductivity, such as gallium alloy, which melts at temperatures manageable in a lab setting (around 30°C). Design a cylindrical container with heating elements at the bottom to simulate the inner core and cooling mechanisms at the top to mimic the mantle. Incorporate a rotating mechanism to introduce the Coriolis effect, essential for generating helical convection currents. Use electromagnetic sensors to monitor the induced magnetic field, ensuring the setup aligns with the principles of the dynamo theory. This hands-on approach allows researchers to observe how changes in rotation speed, temperature, or fluid composition affect field strength and stability.
One challenge in core simulation is scaling the model to reflect Earth's conditions accurately. The Reynolds number, a dimensionless quantity describing fluid flow, must be adjusted to match the core's turbulent regime. However, achieving this in a lab often requires impractical sizes or energy inputs. A workaround is to use numerical simulations alongside physical models, combining experimental data with computational fluid dynamics (CFD) to refine predictions. For instance, a small-scale model might focus on reproducing specific features, like magnetic reversals, rather than the entire field. This hybrid approach bridges the gap between theoretical models and observable phenomena.
Persuasively, core simulation models are not just academic exercises—they have practical applications in understanding geomagnetic storms, which can disrupt satellites and power grids. By studying how convection currents influence field strength, researchers can improve predictions of magnetic field changes. For educators, these models serve as powerful teaching tools, demonstrating the dynamo effect in a tangible way. DIY enthusiasts can even create simplified versions using ferrofluids and magnets to visualize field lines, though these lack the dynamism of liquid metal setups. Ultimately, core simulations demystify Earth's magnetic field, making its complexities accessible to both scientists and the public.
Magnets and Male Anatomy: Debunking the Penis Piercing Myth
You may want to see also
Explore related products
Field Mapping: Measuring and visualizing the magnetic field lines accurately in the model
Magnetic field mapping in a scale model of Earth’s magnetosphere requires precision tools and techniques to capture the complexity of field lines. A common approach involves using a Helmholtz coil system, which generates a uniform magnetic field, paired with a smaller, rotating dipole magnet to simulate Earth’s core. By systematically measuring the field strength at various points with a Hall effect sensor or magnetometer, data points can be collected to reconstruct the field’s geometry. For instance, a 1:10,000 scale model might use a 1-meter diameter coil system with a 10-centimeter dipole magnet, calibrated to match Earth’s 25,000 to 65,000 nanotesla surface field strength. This setup ensures accurate spatial representation of the field lines, from the polar cusps to the magnetotail.
Visualizing these field lines demands both data processing and creative representation. Software like MATLAB or Python with libraries such as Plotly or Mayavi can transform raw sensor data into 3D vector field plots. For physical models, iron filings or ferrofluid can be used to reveal field patterns when exposed to the magnetic field. However, these methods have limitations: iron filings may clump, and ferrofluid requires a transparent container, which can distort scale perception. A more advanced technique involves using laser-induced fluorescence (LIF) to visualize field lines in a gas medium, though this is resource-intensive and typically reserved for high-budget research settings.
Accuracy in field mapping hinges on minimizing external interference and maintaining scale fidelity. Even small magnetic disturbances from nearby electronics or building materials can skew measurements. Shielding the model with mu-metal or placing it in a magnetically quiet environment is essential. Additionally, scaling laws must be rigorously applied; for example, reducing Earth’s 12,742-kilometer diameter to a 1-meter model requires adjusting the magnetic moment proportionally to maintain realistic field gradients. Calibration should include zeroing the sensor at a known baseline and accounting for temperature-induced drift in the equipment.
For educators or hobbyists, a simplified yet effective approach is to use a combination of permanent magnets and a compass grid. Arrange bar magnets to mimic Earth’s dipole structure and trace field lines by moving a compass in small increments. While this method lacks the precision of sensor-based mapping, it offers a tangible, hands-on way to understand field behavior. Pairing this with a digital overlay of theoretical field lines can bridge the gap between observation and scientific accuracy, making it an ideal tool for classroom demonstrations or public exhibits.
In conclusion, field mapping in a scale model of Earth’s magnetic field is a balance of technical precision and creative visualization. Whether using advanced sensors, computational tools, or simple magnets, the goal is to capture the dynamic interplay of forces that shape our planet’s magnetosphere. By carefully selecting methods, controlling variables, and adapting to resource constraints, even a small-scale model can provide profound insights into this invisible yet critical aspect of Earth’s geology.
Overlapping Magnetic Fields: Can Two Exist Simultaneously in the Same Space?
You may want to see also
Explore related products
Scale Challenges: Addressing size and material limitations in replicating Earth's field
Replicating Earth's magnetic field in a scale model demands confronting a fundamental paradox: the very forces we aim to model are inherently tied to the planet's immense size and unique composition. Earth's magnetic field arises from the geodynamo, a process driven by the convection of molten iron in the outer core, a sphere roughly 3,400 kilometers in diameter. Shrinking this system while preserving its dynamics presents a formidable challenge.
Simulations often rely on liquid sodium, a good conductor with a lower melting point than iron, but even this requires massive vessels to achieve meaningful convection. The ZARM facility in Germany, for instance, uses a 3-meter diameter sphere, a mere fraction of Earth's core size, highlighting the inherent scaling limitations.
Material selection further complicates matters. While sodium offers conductivity advantages, its reactivity and safety concerns necessitate specialized containment. Other materials, like molten gallium or alloys, present trade-offs between conductivity, viscosity, and practicality. Achieving the precise balance of physical properties required to mimic Earth's core conditions within a manageable scale remains a significant hurdle.
The challenge extends beyond mere size and material. The geodynamo relies on a delicate interplay of factors: the Coriolis force, temperature gradients, and magnetic field feedback. Scaling down these parameters while maintaining their relative influence is a complex mathematical and engineering problem. Researchers employ sophisticated numerical models and experimental techniques, constantly pushing the boundaries of what's achievable in a laboratory setting.
Despite these challenges, progress is being made. Advances in materials science, computational power, and experimental techniques offer hope for increasingly accurate scale models. These models, though imperfect, provide invaluable insights into the geodynamo's workings, contributing to our understanding of Earth's magnetic shield and its crucial role in protecting life on our planet. Each scaled-down experiment, each refined simulation, brings us closer to unraveling the mysteries hidden within Earth's core.
Magnetic Phone Cases: Potential Risks for Your Samsung S6 Explained
You may want to see also
Explore related products
Practical Applications: Testing the model for studying geomagnetic storms and navigation systems
A working scale model of Earth's magnetic field could revolutionize our ability to study geomagnetic storms, those disruptive solar events that wreak havoc on power grids, satellites, and communication systems. By replicating the complex dynamics of the magnetosphere in a controlled environment, researchers could simulate storm conditions, observe their effects on miniature systems, and develop mitigation strategies without risking real-world infrastructure. Imagine a scaled-down Earth, its magnetic field generated by electromagnets, surrounded by plasma chambers mimicking solar wind. This setup would allow scientists to "fast-forward" through storm scenarios, testing the resilience of power grids, satellite electronics, and even biological systems to extreme magnetic fluctuations.
To effectively test navigation systems, the model must accurately reproduce the Earth's magnetic field gradients and anomalies. GPS relies on precise magnetic readings for orientation, and errors during geomagnetic storms can lead to catastrophic navigation failures. A scale model could simulate these disturbances, allowing engineers to calibrate GPS algorithms and develop backup systems. For instance, testing autonomous vehicles or drones in a controlled magnetic environment would reveal vulnerabilities in their navigation software, enabling the development of more robust, storm-resistant technologies.
One practical application lies in astronaut training and space mission planning. Geomagnetic storms pose significant risks to spacecraft and astronauts, from radiation exposure to communication blackouts. A scale model could recreate the magnetic conditions of low Earth orbit during a storm, providing a safe environment to test spacecraft shielding, radiation dosimeters, and emergency protocols. For example, exposing biological samples or simulated human tissues to scaled magnetic and radiation levels could help establish safe exposure limits for long-duration missions.
However, building such a model presents formidable challenges. Scaling the Earth's magnetic field while maintaining its complexity requires advanced materials and precise engineering. Superconducting magnets, for instance, could generate the necessary field strengths, but cooling them to cryogenic temperatures adds complexity. Additionally, simulating solar wind interactions demands plasma sources capable of reproducing the Sun's particle flux at a reduced scale. Despite these hurdles, the potential payoff—predicting and mitigating the impacts of geomagnetic storms—makes this endeavor a critical investment in our technological future.
Magnets and Garbage Disposals: Potential Risks and Damage Explained
You may want to see also
Frequently asked questions
Yes, a working scale model of the Earth's magnetic field can be created using a dynamo simulation or a simplified setup with a rotating magnetic core, though it requires advanced technology and precise scaling.
Materials include a conductive fluid (like liquid sodium or a substitute), a rotating mechanism, a magnetic core, and sensors to measure the generated field.
Accuracy depends on the complexity of the model. Simplified models capture basic principles but may not replicate all phenomena, such as magnetic reversals or field irregularities.
Challenges include replicating the Earth's core conditions (high pressure, temperature, and rotation), scaling issues, and maintaining stability in the magnetic field generation process.
