Evan Parker

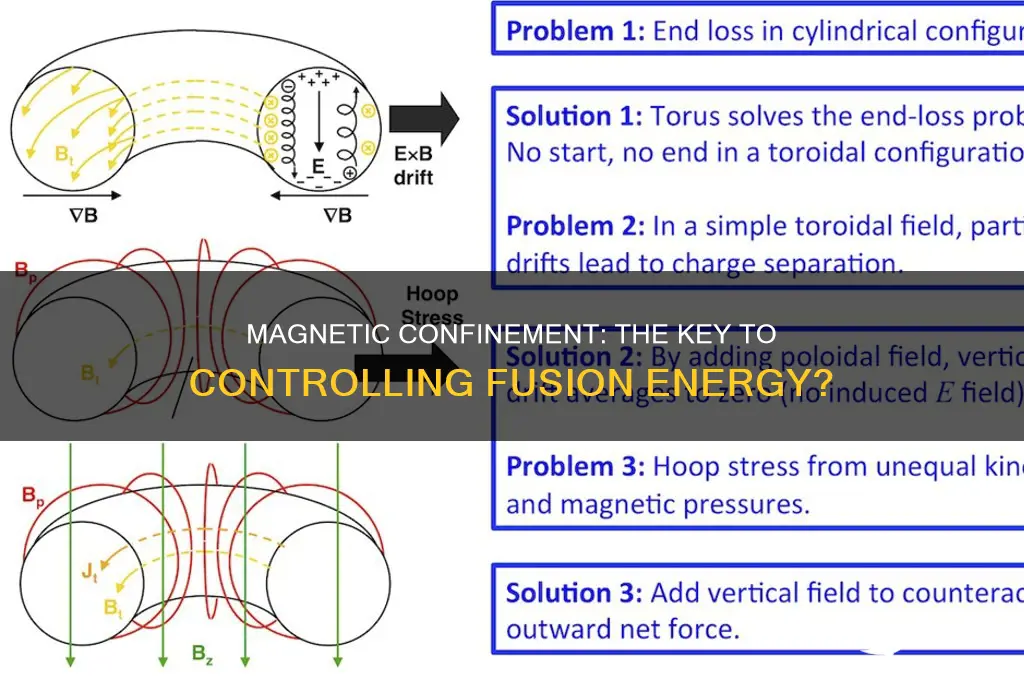

Magnetic confinement is a critical technique in the pursuit of harnessing nuclear fusion as a clean and virtually limitless energy source. By using powerful magnetic fields, scientists aim to contain and control the extremely hot plasma—a state of matter where atoms are stripped of their electrons—required for fusion reactions. This approach, exemplified by devices like tokamaks and stellarators, seeks to replicate the conditions found in the Sun, where fusion occurs naturally. However, the challenge lies in sustaining the plasma at temperatures exceeding 100 million degrees Celsius while preventing it from touching the walls of the containment vessel, which would cause it to cool and halt the reaction. Despite decades of research, achieving stable and efficient magnetic confinement remains a complex scientific and engineering endeavor, with ongoing advancements bringing humanity closer to realizing fusion as a viable energy solution.
| Characteristics | Values |
|---|---|
| Confinement Method | Magnetic confinement using tokamaks, stellarators, or other magnetic devices. |
| Temperature Requirement | Plasma must be heated to 100-150 million °C (10-15 keV) for fusion reactions. |
| Density Requirement | Plasma density must be sufficient (e.g., 10^20 particles/m³) for frequent collisions. |
| Energy Confinement Time | Plasma must be confined for several seconds to achieve net energy gain. |
| Magnetic Field Strength | Typically 5-13 Tesla in modern tokamaks like ITER. |
| Plasma Stability | Requires stable plasma configurations to prevent disruptions. |
| Energy Input Methods | Heating via neutral beam injection, radiofrequency, or electron cyclotron resonance. |
| Current State of Research | Experimental (e.g., ITER, JET, SPARC) with no commercial-scale reactors yet. |
| Challenges | Plasma turbulence, heat loss, and material durability for reactor walls. |
| Achievements | JET achieved 59 MJ of fusion energy in 2021; ITER aims for 500 MW output. |
| Theoretical Feasibility | Yes, but practical implementation remains under development. |
Explore related products
![Fusion energy, an overview of the magnetic confinement approach, its objectives, and pace : report / prepared for the Subcommittee on Energy Research and Production of the Committee on [Leather Bound]](https://m.media-amazon.com/images/I/61IX47b4r9L._AC_UY218_.jpg)
What You'll Learn
Tokamak stability limits
Magnetic confinement in tokamaks, the leading design for fusion reactors, hinges on maintaining plasma stability within a toroidal chamber. The stability of this configuration is governed by the interplay of magnetic fields, plasma current, and external heating. However, tokamaks face inherent limits that challenge their ability to sustain fusion reactions indefinitely. One critical constraint is the kink instability, which occurs when the plasma displaces vertically, disrupting the magnetic field lines and causing the reaction to collapse. This instability arises when the plasma current exceeds a threshold determined by the aspect ratio (the ratio of the major to minor radius of the torus). For example, ITER, the largest tokamak under construction, operates with an aspect ratio of 3.1, carefully chosen to minimize kink instabilities while maximizing confinement efficiency.
Another stability limit is the disruptive instability, which can occur when the plasma density or current density exceeds critical values. Disruptions release stored energy rapidly, damaging reactor components and halting fusion. To mitigate this, tokamaks employ feedback control systems that monitor plasma parameters in real time. For instance, the Joint European Torus (JET) uses magnetic sensors and high-speed actuators to detect and suppress instabilities within milliseconds. Despite these measures, disruptions remain a significant challenge, particularly as reactors scale up to higher power levels. Practical tips for operators include maintaining plasma density below 10^20 m^-3 and avoiding sudden changes in heating power to reduce the risk of disruptions.
A third stability limit arises from magnetohydrodynamic (MHD) modes, which are collective oscillations of the plasma and magnetic field. These modes can grow exponentially, leading to energy loss or even plasma termination. One example is the neoclassical tearing mode, which occurs at rational surfaces where the magnetic field lines reconnect. Stabilizing these modes requires precise control of the plasma’s safety factor (the number of times a field line wraps around the torus), typically kept above 2.5 in modern tokamaks. Advanced techniques, such as electron cyclotron heating or pellet injection, are used to modify the plasma profile and suppress MHD modes. However, these methods add complexity and cost, underscoring the trade-offs in tokamak design.
Finally, the beta limit, defined as the ratio of plasma pressure to magnetic pressure, imposes a fundamental constraint on tokamak stability. High-beta operation is desirable for maximizing fusion performance, but exceeding the critical beta value triggers instabilities. For example, spherical tokamaks like the National Spherical Torus Experiment (NSTX) achieve higher beta values (up to 40%) compared to conventional tokamaks (typically 5–10%), but they face unique stability challenges due to their compact geometry. Researchers are exploring innovative approaches, such as optimizing plasma shaping or using non-inductive current drive, to push beta limits further. Ultimately, understanding and overcoming these stability limits is essential for realizing practical fusion energy.
Magnetic Fields and Reality: Could Extreme Forces Disrupt Our Universe?
You may want to see also
Explore related products
Plasma confinement challenges
Magnetic confinement of plasma is a cornerstone of fusion energy research, yet it grapples with inherent challenges that defy simple solutions. At temperatures exceeding 100 million degrees Celsius, plasma becomes a chaotic, ionized gas that resists containment. Magnetic fields, generated by complex configurations like tokamaks or stellarators, aim to suspend this superheated plasma away from the reactor walls. However, plasma’s tendency to destabilize through turbulence and instabilities undermines the stability required for sustained fusion reactions. These disruptions, if unchecked, can terminate the reaction prematurely, rendering the process inefficient.
Consider the tokamak, the most widely studied magnetic confinement device. Its doughnut-shaped design relies on toroidal and poloidal magnetic fields to confine plasma. Yet, edge-localized modes (ELMs) pose a critical threat. These periodic bursts of heat and particles can erode the reactor’s inner walls, reducing its lifespan. Mitigating ELMs requires precise control of plasma density, temperature, and shape, often achieved through advanced feedback systems or resonant magnetic perturbations. For instance, the ITER project employs coils to apply targeted magnetic fields, smoothing plasma instabilities and prolonging confinement times.
Another formidable challenge is plasma turbulence, a microscopic phenomenon with macroscopic consequences. Turbulence arises from interactions between plasma particles and electromagnetic fields, leading to energy and particle transport that degrades confinement. Researchers use gyrokinetic simulations to model these interactions, aiming to predict and suppress turbulent losses. One strategy involves optimizing the plasma’s pressure and current profiles to create a stable, high-performance regime known as H-mode. Achieving H-mode requires careful management of auxiliary heating systems, such as neutral beam injection or radiofrequency waves, to maintain the necessary conditions.
Comparatively, stellarators offer an alternative approach to magnetic confinement, relying on twisted, three-dimensional magnetic fields to stabilize plasma. Unlike tokamaks, stellarators inherently avoid certain instabilities due to their built-in rotational transform. However, their complex geometry complicates construction and optimization. The Wendelstein 7-X stellarator in Germany exemplifies this trade-off, demonstrating improved confinement but requiring advanced engineering to realize its potential. Stellarators’ modular design allows for tailored magnetic configurations, yet their performance hinges on precise alignment of magnetic coils, a task demanding sub-millimeter accuracy.
In practice, addressing plasma confinement challenges requires a multidisciplinary approach. Material scientists develop advanced materials, like tungsten or liquid metals, to withstand plasma heat fluxes. Control engineers implement real-time diagnostics and actuators to stabilize plasma behavior. Theoretical physicists refine models to predict and mitigate instabilities. For fusion to become a viable energy source, these efforts must converge to create a self-sustaining reaction where energy output exceeds input. Until then, magnetic confinement remains a delicate balance between physics, engineering, and innovation.
Can Cardboard Block a Magnet? Unveiling the Surprising Truth
You may want to see also
Explore related products
Magnetic field strength needs
Magnetic confinement of fusion plasmas hinges on the delicate balance between field strength and plasma pressure. The Lawson criterion, a foundational principle in fusion physics, dictates that the product of plasma density and confinement time must exceed a threshold for self-sustaining reactions. Magnetic fields, typically generated by superconducting coils, provide the necessary confinement by guiding charged particles along field lines. However, the strength of these fields is not arbitrary; it must be sufficient to counteract the thermal pressure of the plasma, which increases with temperature. For instance, the ITER tokamak aims to achieve fusion with a magnetic field strength of 5.3 Tesla, a value carefully calculated to balance confinement and technical feasibility.
To understand the practical implications, consider the relationship between magnetic field strength and plasma stability. Higher fields improve confinement by reducing the gyroradius of particles, making it harder for them to escape. However, increasing field strength also amplifies technical challenges, such as the need for advanced superconducting materials and robust cooling systems. For example, niobium-tin (Nb3Sn) superconductors are favored for their high critical field (up to 30 Tesla), but they require precise manufacturing and operation at cryogenic temperatures. Researchers must therefore strike a balance, optimizing field strength to maximize confinement without exceeding material limits.
A comparative analysis of magnetic confinement devices reveals the diversity of approaches to meeting field strength needs. Tokamaks, like ITER, rely on toroidal and poloidal fields to create a stable plasma configuration, typically operating in the 5–10 Tesla range. Stellarators, such as Wendelstein 7-X, use complex, non-axisymmetric magnetic fields, often requiring higher strengths (up to 3 Tesla) to achieve similar confinement. Spherical tokamaks, a compact variant, operate at even higher fields (e.g., 1.5 Tesla in MAST-U) due to their smaller size, but face challenges in maintaining stability. Each design highlights the trade-offs between field strength, plasma performance, and engineering constraints.
For those designing or operating fusion experiments, a step-by-step approach to determining magnetic field strength needs is essential. Begin by calculating the required beta value (β = plasma pressure / magnetic pressure), which should ideally be below the stability limit for the chosen configuration. Next, estimate the necessary field strength using the relation B = (μ₀p) / (β), where μ₀ is the permeability of free space and p is the plasma pressure. Validate these calculations with numerical simulations, such as those using the MHD (magnetohydrodynamics) framework, to ensure stability and confinement. Finally, factor in material and technological limitations, such as the critical field of superconductors and the structural integrity of the confinement vessel.
Despite advancements, challenges remain in scaling magnetic confinement to commercially viable fusion reactors. One critical issue is the need for higher field strengths to achieve breakeven and beyond, which strains current superconducting materials. Innovations like high-temperature superconductors (e.g., REBCO tapes) offer promise, with critical fields exceeding 100 Tesla, but their integration into large-scale devices is still experimental. Additionally, dynamic effects, such as plasma disruptions, can temporarily require field strengths far beyond steady-state values, necessitating robust control systems. Addressing these challenges will be pivotal in realizing fusion as a sustainable energy source.
Magnetic Levitation: Can a Magnet Make a Paperclip Float?
You may want to see also
Explore related products
Energy containment duration
Magnetic confinement of fusion plasmas hinges on sustaining energy containment long enough for reactions to outweigh losses. Current tokamak designs, like ITER, aim for 300-second plasma discharges, but stability issues often limit durations to seconds or minutes. Extending this window requires balancing plasma pressure, magnetic field strength, and impurity control to minimize energy leakage.
Consider the Lawson criterion, which dictates that fusion power output is proportional to the product of plasma density, temperature, and confinement time. Achieving breakeven—where fusion energy exceeds input energy—demands confinement times of at least 1 second for deuterium-tritium plasmas. For example, the Joint European Torus (JET) achieved a 5-second discharge, producing 59 megajoules of fusion energy, but this required precise control of magnetic fields and plasma parameters.
Practical fusion reactors will need confinement times measured in hours, not seconds. This necessitates advanced magnetic configurations, such as stellarators or spherical tokamaks, which reduce plasma instabilities. For instance, the Wendelstein 7-X stellarator has demonstrated 30-minute discharges, showcasing the potential of optimized magnetic geometries. However, scaling these designs to commercial reactors remains a challenge.
To improve containment duration, researchers focus on reducing heat and particle losses. High-temperature superconducting magnets, operating at 20 tesla or higher, can confine plasmas more effectively than conventional copper coils. Additionally, real-time feedback systems, using machine learning to adjust magnetic fields, promise to stabilize plasmas for longer periods. These innovations are critical for transitioning from experimental devices to viable power plants.
Ultimately, energy containment duration is the linchpin of magnetic fusion. While current experiments fall short of reactor-scale requirements, progress in magnet technology, plasma control, and confinement physics suggests a path forward. Achieving multi-hour discharges will not only validate magnetic confinement but also pave the way for a clean, limitless energy source.
Can iPads Use Magnetic Chargers? Exploring Charging Options for Your Device
You may want to see also
Explore related products
![ARCCAPTAIN Plasma Cutter, [Large LED Display] 50Amps Cutter Machine with 110/220V Dual Voltage DC Inverter IGBT 1/2 Inch Clean Cut Post Flow and 2T/4T, for Beginners DIY](https://m.media-amazon.com/images/I/719j3oukuaL._AC_UL320_.jpg)
![ARCCAPTAIN iControl CUT55 Pro Plasma Cutter, [APP Control] 55 Amp Non-Touch Pilot Arc 120V/240V Plasma Cutter Machine, Large LED Display and 2T/4T, 3/4 inch Maximum Cut, DC Inverter IGBT](https://m.media-amazon.com/images/I/71bYF9EOuZL._AC_UL320_.jpg)
Instabilities in fusion plasmas
Magnetic confinement of fusion plasmas, while promising, is fraught with challenges, chief among them being plasma instabilities. These instabilities are spontaneous perturbations that disrupt the delicate balance required to sustain fusion reactions. Imagine a high-wire act: the plasma, akin to the performer, must remain perfectly centered and stable, but the magnetic "tightrope" is constantly threatened by forces seeking to destabilize it. Even minor deviations can lead to catastrophic loss of confinement, releasing the plasma and halting the reaction.
One of the most notorious instabilities is the kink instability, which occurs when the plasma column twists or bends within the magnetic field. This deformation can grow exponentially, causing the plasma to touch the reactor walls and terminate the fusion process. To mitigate this, researchers employ feedback control systems that detect and counteract deviations in real-time. For instance, the ITER project uses a network of sensors and magnetic coils to adjust the field configuration within milliseconds, akin to a high-speed balancing mechanism.
Another critical instability is the tearing mode, where magnetic field lines reconnect and form "islands" within the plasma. These islands disrupt the smooth flow of current, leading to energy loss and potential confinement failure. Stabilization techniques, such as applying resonant magnetic perturbations (RMPs), have proven effective in breaking up these islands. RMPs act like targeted nudges, realigning the magnetic field to suppress the growth of tearing modes. However, their implementation requires precise tuning, as excessive perturbations can introduce new instabilities.
A third challenge is the neoclassical tearing mode (NTM), which arises from the interaction between fast ions and the plasma’s magnetic structure. NTMs are particularly problematic in high-performance discharges, where the plasma carries large currents. To combat NTMs, researchers use electron cyclotron heating to increase plasma pressure locally, effectively "patching" the magnetic field. This method, while effective, demands careful calibration to avoid overheating the plasma.
In summary, instabilities in fusion plasmas are not insurmountable but require a combination of advanced diagnostics, real-time control, and innovative stabilization techniques. Each instability presents unique challenges, but ongoing research continues to refine strategies for maintaining the delicate equilibrium needed for sustainable fusion energy. As these methods evolve, the dream of clean, limitless energy moves closer to reality.
Can Outpatient Cancer Centers Achieve Magnet Status? Exploring Possibilities
You may want to see also
Frequently asked questions
Yes, magnetic fields can confine fusion reactions by controlling the motion of charged particles (ions and electrons) in a plasma, preventing them from escaping and maintaining the high temperatures required for fusion.
Magnetic fields are preferred because they do not come into direct contact with the hot plasma, avoiding material damage. They also allow for stable confinement of the plasma in various shapes, such as tokamaks or stellarators.
Challenges include plasma instability, energy losses due to turbulence, and the need for extremely strong and precisely controlled magnetic fields. Additionally, maintaining confinement long enough to achieve net energy gain remains a significant technical hurdle.
