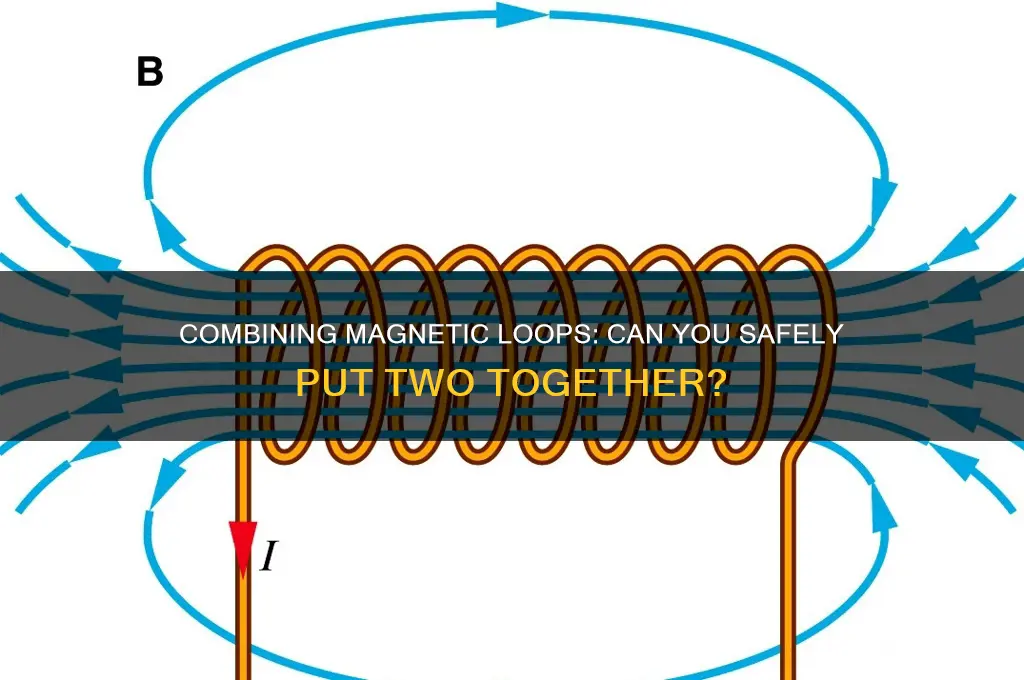

When considering whether you can put two magnetic loops together, it’s essential to understand how magnetic fields interact. Magnetic loops, also known as magnetic cores or inductors, generate magnetic fields when an electric current passes through them. When two loops are brought close together, their magnetic fields can either reinforce or cancel each other out, depending on their orientation. If the loops are aligned so that their fields point in the same direction, the fields will strengthen; if aligned in opposite directions, the fields may partially or fully cancel. This interaction can affect the inductance and overall performance of the loops. However, placing them too close together can also lead to electromagnetic coupling, which may interfere with their intended function. Therefore, careful consideration of alignment and spacing is crucial to achieve the desired outcome.
| Characteristics | Values |
|---|---|
| Feasibility | Yes, two magnetic loops can be placed together, but their interaction depends on orientation and polarity. |
| Interaction | Like poles repel, unlike poles attract. |
| Field Strength | Combined field strength depends on alignment; parallel loops with same polarity weaken the field, while opposite polarity strengthens it. |
| Inductance | Mutual inductance occurs when loops are close, affecting their behavior in circuits. |
| Coupling | Tight coupling increases energy transfer between loops; loose coupling reduces it. |
| Applications | Used in transformers, inductors, and wireless power transfer systems. |
| Orientation | Axial alignment maximizes interaction; perpendicular alignment minimizes it. |
| Distance | Closer loops have stronger interaction; farther loops have weaker interaction. |
| Material | Core material (e.g., ferrite) enhances magnetic field and efficiency when loops are together. |
| Practical Use | Commonly used in radio frequency (RF) systems and magnetic resonance imaging (MRI). |
Explore related products
![Earplug Lanyard [2 pcs] with Magnetic Tug-Resistant Safety Cord, Flexible Silicone Lanyard with Most Earplugs with Removable Tips Compatible](https://m.media-amazon.com/images/I/510-DRM7ygL._AC_UL320_.jpg)
What You'll Learn
Combining Loop Effects
Magnetic loops, when combined, can either amplify or cancel each other's effects depending on their orientation. If two loops are aligned with their magnetic fields pointing in the same direction, the field strength increases, creating a more powerful magnet. Conversely, if the fields oppose each other, they can partially or fully cancel out, resulting in a weaker or neutral magnetic effect. This principle is fundamental in applications like magnetic resonance imaging (MRI) and wireless charging systems, where precise control of magnetic fields is critical.
To combine magnetic loops effectively, start by identifying the polarity of each loop using a compass or a gaussmeter. Ensure both loops are positioned on the same plane for maximum interaction. For a stronger combined field, align the north pole of one loop with the south pole of the other, creating an attractive force. If a weaker field is desired, align like poles (north to north or south to south) to induce repulsion. Secure the loops in place using non-magnetic materials like plastic or wood to avoid interference.
A practical example of combining loop effects is in DIY wireless power transfer projects. By placing two loops in close proximity—one as a transmitter and one as a receiver—you can efficiently transfer energy over short distances. For optimal performance, use loops with a diameter ratio of 1:1.5 and maintain a separation distance of 2–3 cm. The transmitter loop should be connected to an oscillating circuit operating at the resonant frequency of the loops, typically in the range of 100–300 kHz for small-scale setups.
However, combining magnetic loops isn’t without challenges. Overlapping fields can lead to eddy currents in nearby conductive materials, causing energy loss and heating. To mitigate this, use loops made of litz wire, which reduces resistance and minimizes losses. Additionally, avoid placing loops near sensitive electronics or medical devices, as strong magnetic fields can interfere with their operation. Always test the combined setup in a controlled environment before deploying it in critical applications.
In summary, combining magnetic loops offers a versatile way to manipulate magnetic fields for various applications. By understanding alignment principles, using appropriate materials, and addressing potential challenges, you can harness the combined effects efficiently. Whether for scientific experiments, hobbyist projects, or industrial applications, this technique opens up possibilities for innovation and problem-solving in the realm of magnetism.
