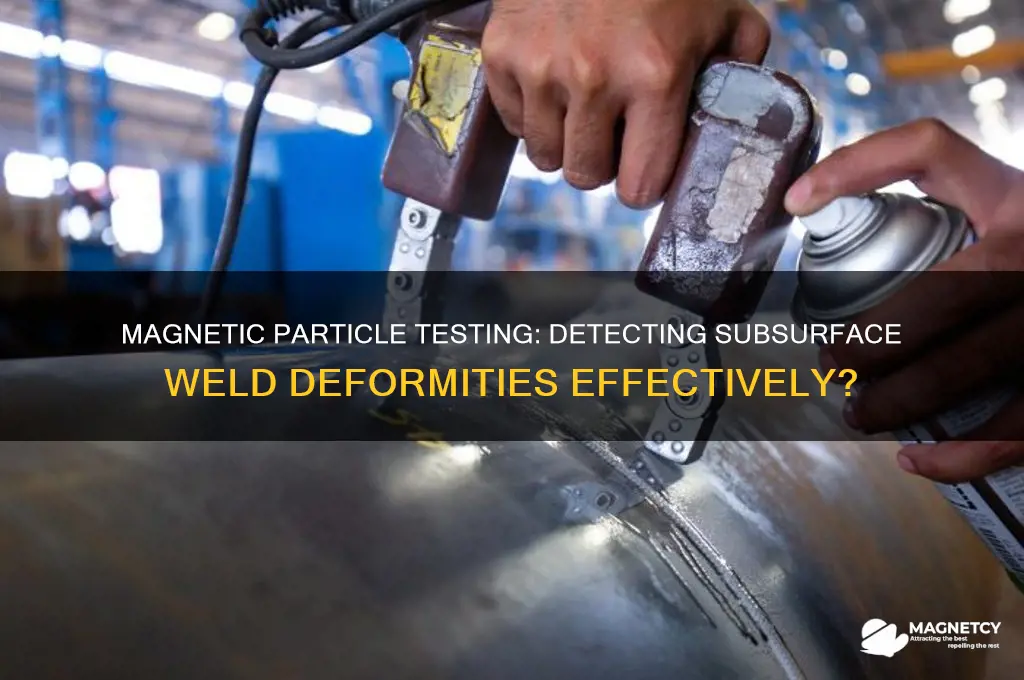

Magnetic Particle Testing (MPT) is a widely used non-destructive testing (NDT) method for detecting surface and near-surface discontinuities in ferromagnetic materials, such as welds. While MPT is highly effective at identifying cracks, porosity, and other defects on or immediately beneath the surface, its ability to detect deformities *under* the weld surface is limited. The technique relies on the magnetic field's penetration depth, which typically extends only a few millimeters into the material. Therefore, MPT may not reliably reveal subsurface deformities, such as internal voids or inclusions, that are deeper than this range. For such defects, alternative methods like ultrasonic testing or radiographic inspection are often more suitable.
Explore related products
What You'll Learn
- Detection Depth Limits: How deep can magnetic particle testing detect subsurface defects in welds
- Defect Types Identified: Which subsurface deformities (cracks, porosity) are detectable
- Material Influence: Do material properties affect subsurface defect visibility in magnetic testing
- Technique Sensitivity: Is magnetic particle testing sensitive enough for subsurface weld flaws
- Limitations and Challenges: What are the constraints in detecting subsurface defects with this method
Detection Depth Limits: How deep can magnetic particle testing detect subsurface defects in welds?
Magnetic particle testing (MPT) is a non-destructive method widely used to detect surface and near-surface defects in ferromagnetic materials, including welds. However, its effectiveness diminishes with depth, raising the critical question: how deep can MPT reliably detect subsurface defects? The answer lies in understanding the interplay between magnetic field strength, defect orientation, and material properties. Typically, MPT can detect defects up to approximately 0.5 mm (0.02 inches) below the surface, though this limit varies based on specific conditions. For instance, longitudinal defects aligned with the magnetic field are more easily detected than transverse defects, which may require stronger magnetic fields or specialized techniques.
To maximize detection depth, technicians must optimize the magnetic field strength and direction. Using higher amperage in the magnetizing equipment can enhance field penetration, but this approach has limits. Excessive current may saturate the material, reducing sensitivity to defects. Additionally, the choice of magnetic particle media—whether dry powder or wet suspension—plays a role. Wet fluorescent particles, for example, offer higher sensitivity than dry particles, allowing for better detection of shallow defects. However, even with these optimizations, MPT remains most effective within the first few millimeters of the surface.
Comparing MPT to other non-destructive testing (NDT) methods highlights its depth limitations. Techniques like ultrasonic testing (UT) or radiographic testing (RT) can detect defects much deeper—up to several centimeters—but at higher costs and with greater complexity. MPT’s strength lies in its simplicity, speed, and cost-effectiveness for near-surface inspections. For applications requiring deeper defect detection, combining MPT with other methods can provide a comprehensive assessment, leveraging the strengths of each technique.
Practical tips for improving MPT’s subsurface detection include ensuring proper surface preparation, as contaminants or rough surfaces can obscure defects. Applying the magnetic field in multiple directions increases the likelihood of detecting defects regardless of their orientation. For critical applications, such as high-pressure pipelines or aerospace components, consider using advanced MPT techniques like alternating current (AC) magnetization or circular magnetization to enhance depth penetration. While MPT cannot match the depth capabilities of UT or RT, its reliability for near-surface defects makes it an indispensable tool in weld inspection.
