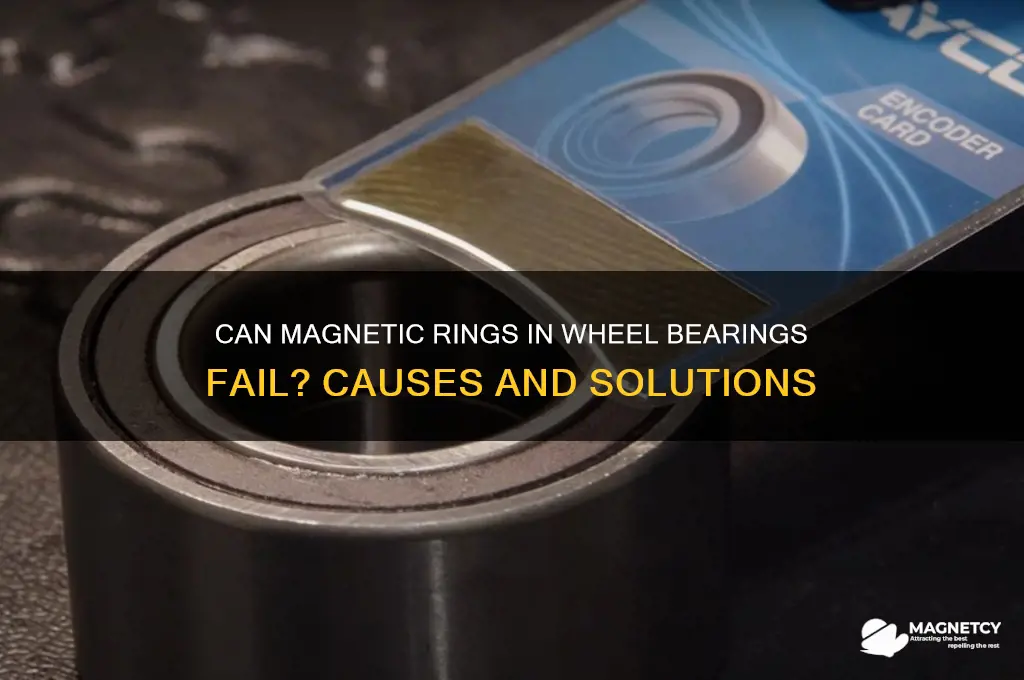

Magnetic rings in wheel bearings, often part of ABS (Anti-lock Braking System) sensors, play a crucial role in monitoring wheel speed and ensuring vehicle safety. However, these components are not immune to failure, which can occur due to factors such as corrosion, physical damage, exposure to dirt and debris, or wear over time. When a magnetic ring fails, it can lead to inaccurate wheel speed readings, triggering ABS or traction control warnings, or even causing these systems to malfunction. Understanding the causes and symptoms of magnetic ring failure is essential for timely diagnosis and repair, as neglecting such issues can compromise both vehicle performance and safety.
Explore related products
What You'll Learn
Common Causes of Magnetic Ring Failure
Magnetic rings in wheel bearings, often part of ABS (Anti-lock Braking System) sensors, are critical for vehicle safety and performance. Despite their robust design, these components can fail due to specific, preventable causes. Understanding these factors is essential for maintenance and troubleshooting.
Environmental Contamination: The Silent Saboteur
One of the primary culprits behind magnetic ring failure is environmental contamination. Dirt, debris, and moisture can infiltrate the wheel bearing assembly, corroding the magnetic ring or disrupting its interaction with the sensor. For instance, driving through salt-treated roads in winter accelerates corrosion, while off-road conditions expose the ring to abrasive particles. Regularly cleaning the wheel wells and inspecting the bearing seals can mitigate this risk. A practical tip: apply a silicone-based sealant around the sensor to create a barrier against moisture and debris.
Mechanical Stress and Misalignment: A Recipe for Disaster
Magnetic rings are not immune to mechanical stress, particularly in vehicles subjected to heavy loads or rough terrain. Over time, repeated impacts or improper wheel alignment can cause the ring to crack or become misaligned, leading to inaccurate sensor readings. This issue is common in commercial vehicles or SUVs used for towing. To prevent this, ensure wheel alignments are performed every 12,000 miles or after significant impacts. Additionally, avoid overloading your vehicle beyond its recommended capacity to reduce stress on the bearing assembly.
Electrical Interference and Wear: The Hidden Threat
Electrical interference from nearby components or worn wiring can disrupt the magnetic ring’s signal, causing ABS malfunctions. For example, damaged wires or faulty grounding can introduce noise into the system, leading to erratic sensor behavior. Inspect the wiring harness for fraying or exposed wires, and replace any damaged components immediately. A diagnostic tool can help identify electrical issues before they escalate. Proactive maintenance, such as checking the wiring during routine oil changes, can save time and money in the long run.
Manufacturing Defects and Material Fatigue: Unavoidable but Manageable
While rare, manufacturing defects or material fatigue can contribute to premature magnetic ring failure. Subpar materials or improper installation during production may lead to cracks or weakened structural integrity. Similarly, prolonged exposure to high temperatures can cause the ring’s material to degrade. If you suspect a manufacturing defect, consult the vehicle’s warranty or contact the manufacturer for a replacement. For older vehicles, consider upgrading to a higher-quality magnetic ring designed for durability in extreme conditions.
By addressing these common causes—environmental contamination, mechanical stress, electrical interference, and manufacturing defects—vehicle owners can significantly extend the lifespan of magnetic rings in wheel bearings. Regular inspections, preventive measures, and timely replacements are key to ensuring optimal performance and safety.
Magnetic Plate Interference: Why Your iPhone Might Stop Working
You may want to see also
Explore related products
Symptoms of a Failing Magnetic Ring
A failing magnetic ring in a wheel bearing can manifest through subtle yet critical symptoms that, if ignored, may lead to costly repairs or safety hazards. One of the earliest indicators is unusual noise emanating from the wheel area, such as grinding, humming, or whirring sounds. These noises often intensify during acceleration or when turning, signaling potential misalignment or wear in the magnetic ring. Unlike typical bearing failure sounds, which are more metallic, a failing magnetic ring may produce a higher-pitched, electronic-like noise due to its role in speed sensing or ABS functionality.
Another symptom to watch for is intermittent or complete loss of speedometer functionality. The magnetic ring, also known as a tone ring, is integral to the vehicle’s speed sensor. If the ring develops cracks, becomes contaminated with debris, or loses its magnetic properties, the sensor may fail to read wheel speed accurately. This can result in a speedometer that fluctuates, sticks, or stops working altogether. In modern vehicles, this issue may also trigger ABS or traction control warning lights on the dashboard, as these systems rely on precise wheel speed data to function.
Vibration in the steering wheel or chassis is a less obvious but equally important symptom. A failing magnetic ring can cause uneven wheel rotation, leading to vibrations that worsen at higher speeds. This occurs because the damaged ring disrupts the sensor’s ability to monitor wheel movement accurately, affecting the vehicle’s stability and handling. If left unaddressed, this vibration can accelerate tire wear and compromise driving safety, particularly during braking or cornering.
To diagnose a failing magnetic ring, start by inspecting the wheel bearing assembly for visible damage, such as cracks or corrosion on the ring itself. Use a multimeter to test the sensor’s output for irregularities, ensuring it aligns with manufacturer specifications. If symptoms persist, replace the magnetic ring or the entire wheel bearing unit, depending on the vehicle’s design. Pro tip: Always clean the surrounding area thoroughly before inspection to avoid misdiagnosing debris buildup as ring failure. Regular maintenance, including wheel bearing checks during tire rotations, can prevent premature magnetic ring failure and extend the life of your vehicle’s drivetrain.
Printing with ABS on a Magnetic Bed: Tips and Best Practices
You may want to see also
Explore related products
Impact on Wheel Bearing Performance
Magnetic rings in wheel bearings, often part of sealed bearing assemblies, play a critical role in retaining lubrication and preventing contaminants from entering the bearing cavity. However, their failure can significantly compromise wheel bearing performance, leading to premature wear, noise, and potential safety hazards. Understanding the impact of magnetic ring failure is essential for diagnosing and addressing wheel bearing issues effectively.
One of the primary consequences of a failed magnetic ring is the loss of lubrication integrity. Magnetic rings are designed to hold lubricating grease within the bearing, ensuring smooth operation and reducing friction between moving components. When the magnetic ring fails, grease can leak out, leaving the bearing susceptible to dry running. This condition accelerates wear on the bearing surfaces, increases heat generation, and can lead to complete bearing failure within a short period. For instance, a study on automotive wheel bearings found that grease loss due to seal failure reduced bearing life by up to 40% under normal driving conditions.
Another critical impact of magnetic ring failure is the ingress of contaminants, such as dirt, water, and debris, into the bearing assembly. Magnetic rings act as a barrier, preventing external particles from entering the bearing cavity. Once compromised, these contaminants can cause abrasive wear, corrosion, and pitting on the bearing surfaces. For example, water intrusion can lead to rust formation, while dirt particles can create micro-fractures, both of which degrade bearing performance. In heavy-duty applications, such as trucks or construction equipment, contaminated bearings often exhibit symptoms like grinding noises or uneven tire wear within 5,000 to 10,000 miles post-failure.
To mitigate the impact of magnetic ring failure, regular inspection and maintenance are crucial. Drivers and mechanics should look for signs of grease leakage, unusual noises, or vibration during operation. If a magnetic ring failure is suspected, immediate replacement of the bearing assembly is recommended, as repairing the seal alone may not restore full functionality. Additionally, using high-quality bearings with robust sealing mechanisms, such as double-lip seals or integrated magnetic rings, can enhance durability and reduce the likelihood of failure.
In summary, a failed magnetic ring in a wheel bearing can severely impair performance by causing lubrication loss and contaminant ingress. These issues lead to accelerated wear, increased heat, and potential safety risks. Proactive maintenance, timely inspections, and the use of superior-quality bearings are essential strategies to minimize the impact of magnetic ring failure and ensure optimal wheel bearing operation.
Can Steelie Magnets Damage Your Key Fob? Important Facts Revealed
You may want to see also
Explore related products
![KUSATEC 513296 [2 Pack] Front Wheel Hub and Bearing Assembly Fit for Nissan Altima 2007-2018, Maxima 2009-2019, Murano 2009-2018, Pathfinder 2013-2019, Infiniti JX35 2013, QX60 2014-2019, 5 Lug](https://m.media-amazon.com/images/I/71If9PwcEAL._AC_UY218_.jpg)
Diagnosing Magnetic Ring Issues
Magnetic rings in wheel bearings, often part of ABS (Anti-lock Braking System) sensors, can fail due to corrosion, physical damage, or debris accumulation. Diagnosing these issues requires a systematic approach to identify symptoms and confirm the root cause. Start by observing common indicators such as ABS warning lights, inconsistent wheel speed readings, or unusual noises during driving. These symptoms often point to a malfunctioning magnetic ring, but they can also overlap with other wheel bearing or sensor problems, making precise diagnosis critical.
To diagnose magnetic ring issues, begin with a visual inspection. Remove the wheel and examine the magnetic ring for cracks, chips, or signs of corrosion. Use a multimeter to test the continuity of the sensor wiring harness, ensuring there are no breaks or shorts. If the ring appears intact, clean the surrounding area to remove dirt or metal particles that might interfere with its operation. A simple yet effective method is to use a magnetic brush to clear debris without disassembling the entire bearing assembly, saving time and effort.
Advanced diagnosis involves testing the magnetic ring’s functionality. Connect an oscilloscope to the ABS sensor to monitor the signal pattern while rotating the wheel. A healthy magnetic ring produces a consistent, alternating voltage pattern, while a faulty one may show erratic signals or none at all. Compare readings with manufacturer specifications to confirm the issue. If the ring is confirmed defective, replacement is typically necessary, as repairs are rarely feasible due to the precision required in its construction.
Preventive measures can reduce the likelihood of magnetic ring failure. Regularly inspect wheel bearings and sensors during routine maintenance, especially in vehicles exposed to harsh environments like salted roads or off-road conditions. Applying dielectric grease to the sensor connector can protect against moisture and corrosion. Additionally, avoid using impact tools near the sensor area during wheel or brake work, as physical damage is a common cause of failure. Early detection and proactive care can extend the life of the magnetic ring and maintain ABS system reliability.
Can Magnets Revive Dead Pixels? Exploring the Myth and Reality
You may want to see also
Explore related products
Prevention and Maintenance Tips
Magnetic rings in wheel bearings, often part of ABS (Anti-lock Braking System) sensors, are critical for vehicle safety and performance. While they are designed to be durable, they can fail due to contamination, corrosion, or physical damage. Preventive measures and regular maintenance are key to ensuring their longevity and reliability.
Routine Inspection and Cleaning: Begin by incorporating magnetic ring inspections into your regular vehicle maintenance schedule. Every 12,000 miles or during tire rotations, visually inspect the wheel bearing area for signs of dirt, debris, or corrosion. Use a soft brush and compressed air to gently clean the magnetic ring and its surroundings. Avoid harsh chemicals or high-pressure water, as these can damage the sensor or dislodge the ring. If you notice any cracks, chips, or unusual wear, consult a professional mechanic immediately.
Corrosion Prevention: Moisture and road salts are common culprits behind magnetic ring corrosion. To combat this, apply a thin coat of dielectric grease to the ring and sensor during inspections. This grease acts as a barrier against moisture and contaminants without interfering with the magnetic signal. For vehicles frequently driven in harsh winter conditions, consider using rust inhibitors or undercoating treatments on the wheel bearing assembly. These measures can significantly extend the life of the magnetic ring.
Proper Installation and Handling: If replacing a wheel bearing or magnetic ring, ensure the installation is performed by a qualified technician. Improper alignment or excessive force during installation can damage the ring. Always use manufacturer-recommended tools and torque specifications. When handling the magnetic ring, avoid dropping or striking it, as even minor impacts can alter its magnetic properties. Store replacement parts in a clean, dry environment to prevent contamination before installation.
Monitoring and Diagnostic Tools: Invest in an OBD-II scanner or ABS diagnostic tool to monitor the health of your wheel bearing sensors. These devices can detect early signs of magnetic ring failure, such as intermittent signal loss or erratic ABS behavior. If your vehicle’s ABS warning light illuminates, address the issue promptly. Ignoring such warnings can lead to complete sensor failure, compromising braking performance and safety. Regularly updating your vehicle’s ABS software can also help optimize sensor functionality and prevent false readings.
Driving Habits and Environmental Considerations: Your driving habits play a role in magnetic ring durability. Avoid driving through deep water or mud, as these conditions increase the risk of contamination. When driving on rough or unpaved roads, reduce speed to minimize impact on the wheel bearings. In coastal or high-humidity areas, more frequent inspections and corrosion prevention measures are advisable. By adapting your driving and maintenance practices to your environment, you can significantly reduce the likelihood of magnetic ring failure.
Can Iron Become Magnetic? Exploring the Science Behind Magnetism
You may want to see also
Frequently asked questions
Yes, a magnetic ring (also known as an encoder ring or ABS sensor ring) in a wheel bearing can fail due to corrosion, physical damage, or wear over time.
Symptoms include an ABS warning light on the dashboard, erratic or non-functional ABS system, and potential speedometer or traction control malfunctions.
Repair typically involves replacing the entire wheel bearing assembly, as the magnetic ring is often integrated into the bearing and cannot be replaced separately.
