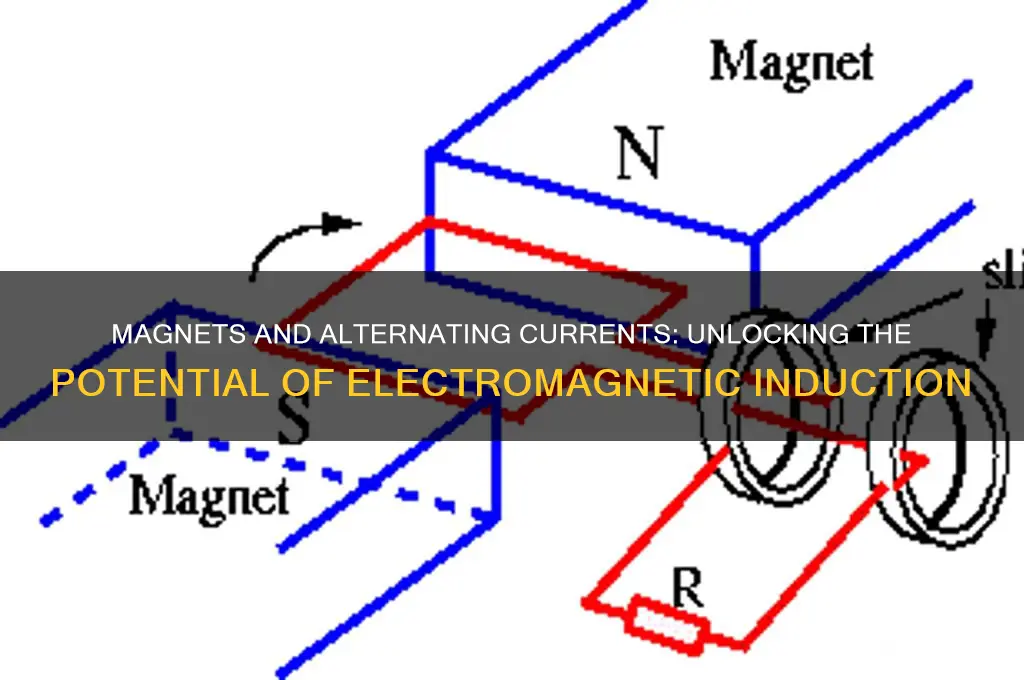

Magnets play a crucial role in generating alternate currents (AC) through the principle of electromagnetic induction, as discovered by Michael Faraday. When a magnet is moved relative to a coil of wire or vice versa, it induces an electromotive force (EMF) in the wire, creating a flow of electric current. This process, known as magnetic induction, is the foundation of AC generation in devices like alternators and generators. By continuously rotating a magnet within a coil or altering the magnetic field, the direction of the induced current alternates, producing the oscillating flow characteristic of AC. This phenomenon is widely utilized in power generation, transformers, and various electrical applications, highlighting the integral relationship between magnets and the creation of alternate currents.
| Characteristics | Values |
|---|---|
| Can magnets directly generate alternating current (AC)? | No, magnets alone cannot directly generate AC. They can induce voltage through electromagnetic induction, but this requires movement or changing magnetic fields. |
| Principle involved | Electromagnetic induction (Faraday's Law of Induction) |
| Required components | Magnet, conductor (coil of wire), relative motion between magnet and conductor |
| Types of motion | Linear motion, rotational motion |
| Applications | Generators, alternators, transformers, induction coils |
| Frequency of AC | Depends on the speed of relative motion and number of magnetic poles |
| Magnet type | Permanent magnets or electromagnets |
| Efficiency | Depends on design, material quality, and energy losses (e.g., friction, resistance) |
| Common examples | Bicycle dynamo, hand-crank generators, wind turbines (using magnets in generators) |
| Limitations | Requires continuous motion or changing magnetic fields to sustain AC generation |
Explore related products
What You'll Learn
- Magnetic Induction Basics: How moving magnets through coils generate alternating current via electromagnetic induction
- Generator Mechanics: Role of rotating magnets in AC generators to produce oscillating currents
- Transformer Functionality: Using magnets to induce AC in secondary coils via mutual induction
- Eddy Currents: Alternating currents created in conductors by changing magnetic fields
- Magnetic Hysteresis: Impact of magnet material properties on AC generation efficiency
Magnetic Induction Basics: How moving magnets through coils generate alternating current via electromagnetic induction
Moving a magnet through a coil of wire induces an electric current—a principle known as electromagnetic induction. This phenomenon, discovered by Michael Faraday in 1831, forms the basis of how magnets can generate alternating current (AC). The key lies in the relative motion between the magnet and the coil. As the magnet approaches the coil, it creates a changing magnetic field, which in turn induces an electromotive force (EMF) across the wire. This EMF drives electrons to flow, creating an electric current. The direction of this current reverses when the magnet moves away from the coil, resulting in an alternating current.
To visualize this process, imagine a simple setup: a bar magnet and a coil of copper wire connected to a galvanometer. When the magnet is stationary, no current flows. However, as you move the magnet toward the coil, the galvanometer needle deflects, indicating current flow. The faster the magnet moves, the greater the induced current. Reversing the motion—pulling the magnet away—causes the current to flow in the opposite direction. This back-and-forth motion generates a sinusoidal AC waveform, mimicking the power supplied to homes and businesses.
Practical applications of this principle abound. For instance, electrical generators in power plants operate on this concept, using turbines to rotate magnets within massive coils. On a smaller scale, handheld generators, like those in flashlights powered by shaking, rely on the same mechanism. Even in renewable energy, wind turbines and hydroelectric generators harness kinetic energy to move magnets through coils, producing AC electricity. The efficiency of this process depends on factors like the number of coil turns, the strength of the magnet, and the speed of motion.
One critical aspect to consider is the orientation of the magnet’s motion. The induced current is maximized when the magnet moves perpendicular to the coil’s plane. Tilting the magnet reduces the effective magnetic flux, decreasing the induced EMF. Additionally, the material of the coil matters—copper, with its high conductivity, is ideal for minimizing energy loss. For DIY enthusiasts, experimenting with this setup can be both educational and practical. Start with a neodymium magnet and a coil of 100–200 turns of 22-gauge copper wire to observe noticeable results.
In conclusion, magnetic induction through moving magnets and coils is a fundamental yet powerful method for generating alternating current. Its simplicity and scalability make it a cornerstone of modern electricity generation. By understanding the mechanics and optimizing variables like motion speed and coil design, anyone can harness this principle for both educational experiments and real-world applications. Whether powering a small device or contributing to the grid, this technique underscores the elegance of electromagnetic principles in action.
