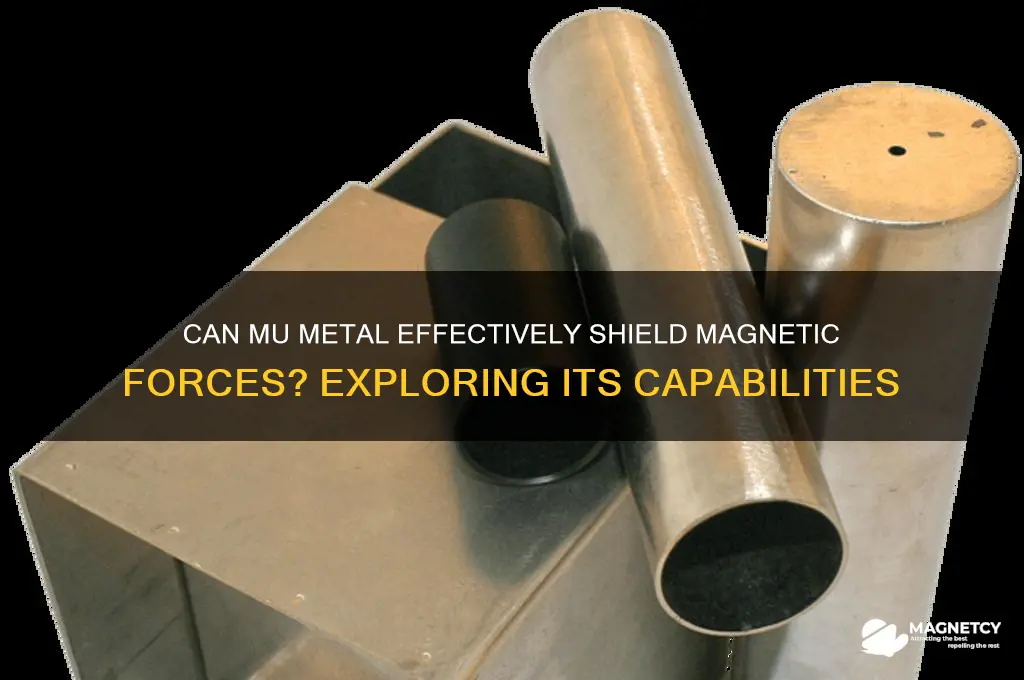

Mu metal, a nickel-iron alloy known for its high magnetic permeability, is often utilized in shielding applications due to its ability to redirect and absorb magnetic fields. When considering whether mu metal can shield a magnetic force, it is essential to understand that while it cannot completely eliminate the magnetic field, it can significantly reduce its strength and influence within a specific area. By redirecting magnetic flux lines around the shielded space, mu metal effectively minimizes the penetration of external magnetic forces, making it a valuable material in sensitive electronic devices, medical equipment, and scientific instruments where magnetic interference must be controlled. However, the effectiveness of mu metal shielding depends on factors such as the thickness of the material, the strength of the magnetic field, and the geometry of the shield.
| Characteristics | Values |
|---|---|
| Material | Mu-Metal (Nickel-Iron alloy, typically 75% Nickel, 15% Iron, 5% Copper) |
| Magnetic Permeability (μ) | ~80,000 - 100,000 (compared to free space permeability of 1.257 × 10⁻⁶ H/m) |
| Shielding Effectiveness | Can reduce magnetic fields by up to 99.9% depending on thickness and configuration |
| Thickness Required | Typically 0.5mm to 2mm for effective shielding |
| Frequency Range | Effective from DC to low kHz frequencies |
| Saturation Point | ~0.8 Tesla (beyond which shielding effectiveness decreases) |
| Temperature Stability | Effective up to ~100°C; permeability decreases at higher temperatures |
| Applications | MRI rooms, transformers, sensitive electronic devices, magnetic sensors |
| Cost | High compared to other materials due to Nickel content |
| Corrosion Resistance | Moderate; often requires additional coating for harsh environments |
| Mechanical Properties | Soft and ductile, allowing for easy shaping and fabrication |
| Limitations | Ineffective for high-frequency AC fields (above kHz range) |
| Alternative Materials | Permalloy, Silicon Steel, Ferrite (for different frequency ranges) |
Explore related products
What You'll Learn
Mu Metal's Permeability and Shielding Effectiveness
Mu metal, a nickel-iron alloy, is renowned for its high magnetic permeability, which is the measure of a material's ability to support the formation of a magnetic field within itself. This property is crucial for its effectiveness in shielding against magnetic forces. When a magnetic field encounters mu metal, the material's high permeability allows it to redirect and contain the magnetic flux lines, significantly reducing the field's strength on the opposite side of the shield. For instance, mu metal can attenuate magnetic fields by up to 99% or more, depending on the thickness and configuration of the shield. This makes it an ideal material for applications where magnetic interference must be minimized, such as in MRI rooms, electronic devices, and scientific instruments.
To understand the shielding effectiveness of mu metal, consider its relative permeability, which can exceed 80,000. This value is several orders of magnitude higher than that of free space (μ₀ ≈ 4π × 10⁻⁷ H/m). The higher the permeability, the more efficiently the material can draw in magnetic field lines, thereby reducing the field's external influence. However, permeability alone does not guarantee optimal shielding. The geometry of the shield, its thickness, and the frequency of the magnetic field also play critical roles. For low-frequency fields, such as those from permanent magnets or DC currents, a thicker shield is generally more effective. For high-frequency fields, like those from AC power lines or wireless devices, the skin effect must be considered, and thinner, multi-layered shields may perform better.
When designing a mu metal shield, follow these steps to maximize effectiveness: first, assess the frequency and strength of the magnetic field you need to block. For static or low-frequency fields, aim for a shield thickness of at least 1 mm, as this provides sufficient material to redirect the magnetic flux. For higher frequencies, consider using multiple layers of thinner mu metal (e.g., 0.1–0.2 mm) separated by non-conductive spacers to combat skin effect and eddy currents. Second, ensure the shield is fully enclosed around the area to be protected, as gaps or seams can allow magnetic fields to penetrate. Finally, ground the shield to prevent it from becoming a secondary source of magnetic interference.
Despite its advantages, mu metal has limitations. Its permeability decreases at very high frequencies (above 1 MHz), making it less effective for shielding against radiofrequency interference. Additionally, mu metal is susceptible to saturation when exposed to extremely strong magnetic fields, which can reduce its shielding capability. To mitigate this, combine mu metal with other materials, such as aluminum or copper, which can provide additional shielding through reflection and absorption. For example, a hybrid shield consisting of a mu metal inner layer and an aluminum outer layer can offer both high permeability and low conductivity, effectively blocking both low- and high-frequency magnetic fields.
In practical applications, mu metal’s shielding effectiveness is often quantified using the shielding factor (SF), defined as the ratio of the magnetic field strength outside the shield to that inside. A typical mu metal shield can achieve an SF of 1000 or more for low-frequency fields. For instance, in an MRI suite, a 1-mm thick mu metal shield can reduce a 1-tesla magnetic field to 1 millitesla or less, ensuring sensitive electronic equipment outside the room remains unaffected. However, achieving such results requires careful installation and maintenance, including periodic checks for cracks or deformations in the shield. By understanding and optimizing mu metal’s permeability and shielding properties, engineers can design robust solutions to magnetic interference challenges.
Is Lead Magnetic? Unveiling the Truth About Lead and Magnets
You may want to see also
Explore related products
Magnetic Field Reduction Mechanisms in Mu Metal
Mu metal, a nickel-iron alloy, is renowned for its ability to shield magnetic fields, but understanding the mechanisms behind this capability is crucial for effective application. The primary mechanism involves magnetic permeability, a property that quantifies how easily a material can be magnetized. Mu metal’s permeability is exceptionally high, often exceeding 80,000 times that of free space. This high permeability allows it to redirect magnetic field lines through itself, effectively "soaking up" the magnetic flux and preventing it from penetrating the shielded area. For instance, in MRI rooms, mu metal enclosures ensure that external magnetic fields do not interfere with the sensitive imaging equipment.
Another key mechanism is magnetic saturation resistance. Unlike materials that saturate quickly under strong magnetic fields, mu metal maintains its high permeability even in the presence of intense fields. This is due to its crystalline structure and the careful balance of nickel and iron in its composition. For practical applications, such as shielding sensitive electronics in aerospace or medical devices, ensuring the material is not driven into saturation is critical. A rule of thumb is to keep the operating magnetic field strength below 0.1 Tesla to avoid saturation, though this can vary based on the specific alloy composition.
The eddy current effect also plays a role in mu metal’s shielding capability, though it is secondary to permeability. When a magnetic field changes, it induces circulating electric currents (eddy currents) within the material. These currents generate their own magnetic fields that oppose the original field, further reducing its penetration. However, this effect is more pronounced in materials with higher conductivity, such as copper or aluminum. Mu metal’s conductivity is moderate, so while eddy currents contribute, they are not the dominant mechanism. To maximize this effect, the material should be used in thin layers, as thicker sheets can lead to excessive heating due to eddy current losses.
Finally, geometric considerations are essential for optimizing mu metal’s shielding performance. The shape and thickness of the shield, as well as the orientation of the magnetic field, influence its effectiveness. For example, a cylindrical enclosure provides better shielding than a flat sheet for uniform field reduction. Practical tips include ensuring tight seams in enclosures to prevent field leakage and using multiple layers of mu metal separated by non-conductive spacers to enhance shielding without increasing eddy current losses. For DIY enthusiasts, a single layer of 0.5 mm thick mu metal can reduce a 100 μT field to less than 1 μT, making it a viable option for small-scale projects like protecting audio equipment from electromagnetic interference.
Can Magnets Attract Nickel? Unveiling the Magnetic Properties of Nickel
You may want to see also
Explore related products
Mu Metal vs. Other Shielding Materials
Mu metal, a nickel-iron alloy, is renowned for its high magnetic permeability, making it a top choice for shielding against magnetic fields. However, it’s not the only material available for this purpose. When comparing mu metal to other shielding materials like ferrite, silicon steel, and aluminum, the decision hinges on specific application requirements, cost, and environmental factors. For instance, while mu metal excels in shielding low-frequency magnetic fields, ferrite is more effective at higher frequencies, often used in electronic devices to mitigate electromagnetic interference (EMI).
Consider the practical implications of material thickness and weight. Mu metal is denser than aluminum, which, while lighter, offers significantly less magnetic shielding capability. In applications like MRI rooms, where both efficacy and structural integrity are critical, mu metal’s superior shielding properties justify its higher cost and weight. Conversely, aluminum might suffice for less demanding scenarios, such as shielding cables in consumer electronics, where cost and ease of fabrication are prioritized.
Cost-effectiveness is a pivotal factor in material selection. Mu metal is expensive due to its nickel content and specialized manufacturing process. Silicon steel, another high-permeability material, is cheaper but less effective at attenuating magnetic fields compared to mu metal. For large-scale projects, such as transformer enclosures, silicon steel may be a viable alternative, provided the required shielding level is not compromised. Always assess the trade-off between material cost and performance to ensure the solution aligns with project goals.
Environmental conditions also dictate material choice. Mu metal’s corrosion resistance makes it ideal for harsh environments, such as marine or industrial settings, where moisture and chemicals could degrade less resilient materials. Ferrite, while effective, is brittle and prone to cracking, limiting its use in applications requiring mechanical durability. For outdoor installations, mu metal’s longevity often outweighs its initial expense, reducing long-term maintenance costs.
In summary, while mu metal stands out for its exceptional magnetic shielding properties, it’s not a one-size-fits-all solution. Evaluate factors like frequency range, weight constraints, budget, and environmental exposure to determine the most suitable material. For critical applications requiring maximum shielding efficiency, mu metal remains unmatched. However, for less stringent needs, alternatives like ferrite, silicon steel, or aluminum may offer a more balanced combination of cost and performance. Always consult material specifications and conduct testing to ensure the chosen material meets the specific demands of your project.
Can Constant Magnetic Fields Influence Proton Spin Dynamics?
You may want to see also
Explore related products
Practical Applications of Mu Metal Shielding
Mu metal, a nickel-iron alloy with exceptional magnetic permeability, is a powerhouse for shielding against magnetic fields. Its ability to redirect magnetic field lines away from sensitive components makes it invaluable in numerous industries.
Medical Imaging: Precision in Diagnostics
In MRI machines, mu metal shielding is critical to maintaining image clarity. The strong magnetic fields generated during scans can interfere with nearby electronic devices, distorting results. By encasing the MRI room with mu metal sheets (typically 1-2 mm thick), external magnetic noise is reduced by up to 99%, ensuring accurate diagnostics. Hospitals often combine mu metal with active shielding systems for optimal performance, especially in urban areas with high electromagnetic interference.
Electronics Manufacturing: Protecting Delicate Components
Modern electronics, from smartphones to hard drives, contain magnetically sensitive parts like Hall effect sensors and magnetic storage media. During manufacturing, mu metal enclosures are used to create controlled environments, shielding components from external magnetic fields that could cause data corruption or malfunction. For instance, hard drive read/write heads are tested in mu metal chambers to ensure they operate flawlessly in real-world conditions.
Aerospace: Reliability at High Altitudes
In aircraft and spacecraft, mu metal shields critical navigation systems, such as compasses and gyroscopes, from magnetic interference. At high altitudes, Earth’s magnetic field interacts with onboard electronics, potentially leading to navigation errors. Mu metal casings, often layered with other materials like aluminum for added protection, ensure these systems remain accurate. NASA’s spacecraft, for example, use mu metal to safeguard instruments from both Earth’s and cosmic magnetic fields.
Consumer Electronics: Enhancing Everyday Devices
Even everyday gadgets benefit from mu metal shielding. Wireless chargers, for instance, rely on mu metal to focus magnetic fields efficiently, reducing energy loss and improving charging speeds. Similarly, high-end headphones use mu metal to isolate drivers from external magnetic interference, delivering clearer sound. While mu metal is more expensive than alternatives like ferrite, its superior permeability justifies the cost in premium applications.
Industrial Applications: Safeguarding Precision Tools
In manufacturing, mu metal shields sensitive equipment like electron microscopes and CNC machines from magnetic disturbances. These tools require extreme precision, and even minor magnetic interference can compromise their functionality. Mu metal enclosures, often custom-designed for specific machinery, provide a reliable solution. For example, a 3 mm thick mu metal shield can reduce magnetic field strength by 90%, ensuring uninterrupted operation in high-magnetic environments like those near transformers or motors.
Mu metal’s unique properties make it indispensable across industries, from healthcare to aerospace, where magnetic shielding is non-negotiable. Its ability to redirect magnetic fields with minimal thickness and weight ensures it remains the material of choice for protecting sensitive technology.
Magnets and Phones: Can They Damage Your Screen?
You may want to see also
Explore related products
Limitations of Mu Metal in Magnetic Shielding
Mu metal, a nickel-iron alloy renowned for its high magnetic permeability, is often the go-to material for shielding sensitive equipment from magnetic interference. However, its effectiveness is not without boundaries. One critical limitation lies in its susceptibility to saturation. When exposed to strong magnetic fields, mu metal can reach a point where it can no longer redirect additional magnetic flux, rendering it ineffective as a shield. For instance, in MRI rooms, where magnetic fields can exceed 3 Tesla, mu metal shields may saturate, allowing magnetic forces to penetrate through. This saturation threshold underscores the importance of matching the shielding material to the specific magnetic field strength of the application.
Another constraint of mu metal is its vulnerability to mechanical stress and temperature changes. Mu metal’s magnetic properties degrade when subjected to physical deformation or elevated temperatures. For example, in industrial settings where machinery vibrates or operates in high-heat environments, the shielding efficacy of mu metal can diminish significantly. Manufacturers must account for these factors by incorporating stress-relief measures or selecting alternative materials like permalloy, which offer better resilience under such conditions. This highlights the need for a nuanced approach when deploying mu metal in dynamic or harsh environments.
Cost and fabrication challenges further limit the practicality of mu metal in magnetic shielding applications. Mu metal is expensive compared to other materials, and its manufacturing process requires precise annealing to achieve optimal magnetic properties. Small-scale projects or budget-constrained applications may find mu metal prohibitively costly. Additionally, its softness makes it difficult to machine, often necessitating protective coatings or enclosures, which add complexity and expense. These economic and technical hurdles make mu metal less accessible for widespread use, particularly in consumer electronics or large-scale infrastructure projects.
Finally, mu metal’s effectiveness diminishes in the presence of alternating magnetic fields, such as those generated by power lines or electronic devices. While it excels at shielding static or low-frequency fields, its performance wanes at higher frequencies due to eddy current losses. For applications requiring protection against rapidly changing magnetic fields, such as in telecommunications or high-frequency medical devices, mu metal may need to be supplemented with additional materials like ferrites or conductive polymers. This limitation emphasizes the importance of tailoring shielding solutions to the specific frequency characteristics of the magnetic interference.
In summary, while mu metal is a powerful tool for magnetic shielding, its limitations in saturation, mechanical resilience, cost, and frequency response necessitate careful consideration in its application. Engineers and designers must weigh these constraints against the specific demands of their projects to ensure effective and efficient shielding solutions.
Magnetism's Melting Power: Unraveling the Science Behind Object Fusion
You may want to see also
Frequently asked questions
Yes, mu metal is highly effective at shielding magnetic fields due to its high magnetic permeability, which redirects magnetic flux away from the protected area.
The thickness depends on the strength of the magnetic field and the desired level of attenuation, but typically, a few millimeters of mu metal can provide significant shielding.
Mu metal reduces magnetic forces rather than completely eliminating them. The degree of reduction depends on the shield’s design, thickness, and the magnetic field’s strength.
Yes, mu metal is effective for shielding both static and low-frequency alternating magnetic fields, though its performance may decrease at very high frequencies.
