Using a magnet to hold materials in place during welding can be a practical and efficient technique, especially when dealing with ferromagnetic metals like steel or iron. Magnets provide a strong, stable grip, allowing welders to secure pieces together without the need for clamps or additional fixtures, which can sometimes obstruct the welding area. This method is particularly useful for aligning and holding components at precise angles or positions, ensuring a more accurate and consistent weld. However, it’s important to consider the type of magnet, its strength, and the potential effects of heat on the magnet itself, as excessive temperatures can demagnetize or damage it. When used correctly, magnets can streamline the welding process, enhance precision, and reduce setup time, making them a valuable tool in certain welding applications.
| Characteristics | Values |
|---|---|
| Feasibility | Yes, magnets can be used to hold metal parts in place during welding, especially for ferromagnetic materials like iron and steel. |
| Types of Magnets | Permanent magnets (e.g., rare-earth magnets like neodymium) and electromagnetic clamps are commonly used. |
| Advantages | Provides hands-free holding, improves precision, reduces setup time, and minimizes distortion in thin materials. |
| Limitations | Only works with ferromagnetic materials; may lose strength at high temperatures; not suitable for thick or heavy pieces without proper support. |
| Safety Concerns | Magnets can interfere with welding arcs if too close; ensure proper distance and use heat-resistant magnets. |
| Applications | Ideal for light-gauge welding, sheet metal fabrication, and small-scale projects. |
| Temperature Resistance | Some magnets (e.g., neodymium) can withstand temperatures up to 80-200°C (176-392°F), but performance degrades at higher temperatures. |
| Magnetic Field Strength | Stronger magnets (e.g., rare-earth) provide better holding power but are more expensive. |
| Portability | Compact and easy to reposition, making them suitable for mobile welding tasks. |
| Cost | Varies; permanent magnets are cost-effective for long-term use, while electromagnetic clamps require power but offer adjustable strength. |
Explore related products
What You'll Learn

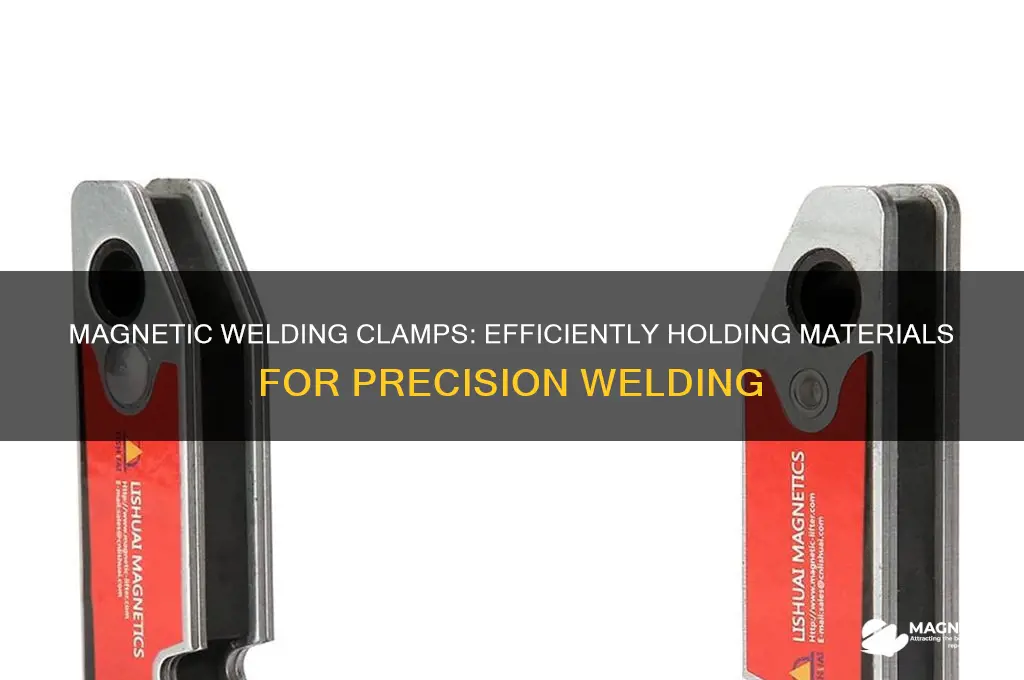

Magnetic Holders for Welding
Magnetic holders are a game-changer for welders seeking precision and efficiency. By leveraging the power of magnetism, these tools securely clamp metal pieces in place, freeing up both hands for the welding task at hand. This not only improves accuracy but also significantly reduces setup time, making them indispensable in both professional and DIY welding projects.
Consider the scenario of welding a 90-degree joint between two steel plates. Without a magnetic holder, you’d need clamps, vices, or an assistant to hold the pieces steady. A magnetic holder, however, can be positioned in seconds, ensuring the joint remains perfectly aligned throughout the welding process. For instance, the Welders Magnet series offers adjustable angles, allowing you to set up joints at 45, 90, or even 135 degrees with ease. This versatility eliminates the need for complex jig setups, saving both time and effort.
While magnetic holders are incredibly useful, they’re not without limitations. Ferromagnetic materials like iron and steel work best, while non-magnetic metals such as aluminum or stainless steel may require additional fixtures. Additionally, extreme temperatures near the welding arc can temporarily demagnetize the holder, so it’s crucial to position it at a safe distance from the heat source. Always test the magnet’s strength before starting to ensure a secure hold.
For optimal results, pair magnetic holders with anti-spatter spray to prevent weld splatter from adhering to the magnet’s surface. This not only prolongs the tool’s lifespan but also maintains its holding power. When working on larger projects, combine multiple magnetic holders for added stability. For example, using two Magnetic Welding Clamps on opposite sides of a joint ensures even pressure distribution, reducing the risk of warping or misalignment.
In conclusion, magnetic holders are a practical and efficient solution for holding materials during welding. Their ease of use, precision, and time-saving benefits make them a valuable addition to any welder’s toolkit. By understanding their capabilities and limitations, you can maximize their potential and elevate the quality of your welding projects.
Mastering Magnetic Gel Polish: Tips for Stunning Nail Art Effects
You may want to see also
Explore related products
Types of Magnetic Welding Tools
Magnets are indispensable in welding for securing workpieces, ensuring precision, and freeing up hands. Among the specialized tools in this category, magnetic welding holders stand out for their versatility. These come in two primary types: permanent magnet holders and electromagnetic holders. Permanent magnet holders, often made from neodymium or ceramic magnets, are ideal for smaller projects due to their portability and ease of use. They can hold up to 50 pounds, depending on size, and are best for flat or round surfaces. Electromagnetic holders, powered by electricity, offer adjustable strength and are suited for heavier materials, often handling loads exceeding 100 pounds. Both types ensure stability, but the choice depends on the scale and complexity of the welding task.
For cylindrical objects like pipes or tubes, magnetic welding clamps are a game-changer. These U-shaped or V-shaped tools feature embedded magnets that securely grip rounded surfaces, preventing slippage during welding. They are particularly useful in TIG or MIG welding, where precision is critical. When using these clamps, ensure the magnetic surface is clean and free of debris to maximize holding power. A practical tip: pair magnetic clamps with anti-spatter spray to protect the magnet from weld splatter, extending the tool’s lifespan.
Magnetic angle holders are another specialized tool, designed to hold workpieces at precise angles (45°, 90°, or custom degrees). These are essential for projects requiring consistent joints or corners. For example, when welding a frame, a magnetic angle holder ensures each corner aligns perfectly without manual adjustment. These tools often feature adjustable arms and strong magnets to accommodate various material thicknesses. However, they are less effective on non-ferrous metals like aluminum, as magnets do not adhere to these materials.
Lastly, magnetic welding tables combine the functionality of a workbench with the precision of magnets. These tables have embedded steel plates or grids that allow for the placement of magnetic fixtures, enabling multi-axis positioning of workpieces. They are ideal for complex projects requiring frequent repositioning. For instance, a welder fabricating a gate can use a magnetic table to hold the frame, rails, and decorative elements simultaneously. While these tables are an investment, they save time and reduce errors, making them a staple in professional workshops.
In summary, magnetic welding tools vary widely in design and application, each addressing specific challenges in welding. From portable holders to heavy-duty tables, these tools enhance accuracy, safety, and efficiency. When selecting a magnetic tool, consider the material, weight, and geometry of the workpiece to ensure optimal performance. Proper maintenance, such as cleaning and protecting magnets from heat, will further extend their utility in the welding process.
Is It Safe to Use Magnets Near Your iPhone X?
You may want to see also
Explore related products
$15.99 $19.99
Safety Tips for Magnetic Welding
Magnetic welding fixtures can significantly enhance precision and efficiency, but their misuse poses serious risks. Always ensure magnets are rated for the temperature and weight of your welding project. Neodymium magnets, for instance, can lose strength above 176°F (80°C), while ceramic magnets may withstand up to 482°F (250°C). Exceeding these limits risks demagnetization or shattering, potentially launching fragments at high speeds. Verify compatibility before use.
When positioning magnets, maintain a safe distance from the weld zone to prevent heat damage. A minimum gap of 2 inches (5 cm) is recommended, though this varies based on magnet type and welding intensity. Shield magnets with heat-resistant barriers like ceramic plates or aluminum foil for added protection. Never place magnets directly in the weld puddle, as rapid heating can cause them to crack or explode, creating hazardous projectiles.
Personal protective equipment (PPE) is non-negotiable when using magnets in welding. Wear impact-resistant face shields and gloves to guard against flying debris. Magnetic fields can interfere with pacemakers and other medical devices, so warn nearby individuals with such implants. Additionally, secure all tools and loose objects in the workspace, as magnets can attract ferrous materials unexpectedly, leading to accidents.
Finally, inspect magnets before and after each use for cracks, chips, or reduced strength. Dispose of damaged magnets immediately, as they are more prone to failure under heat or stress. Store magnets separately in a cool, dry place, using non-ferrous spacers to prevent unintended attraction. By adhering to these precautions, you can harness the benefits of magnetic welding fixtures while minimizing risks to yourself and your workspace.
Exploring Navigation: Magnetic Compass Uses and Applications Revealed
You may want to see also
Explore related products
Materials Compatible with Magnetic Holders
Magnetic holders are a game-changer for welders, offering a hands-free, stable solution for holding metal pieces in place. However, not all materials are created equal when it comes to magnetic compatibility. Ferromagnetic materials, such as iron, nickel, cobalt, and certain alloys like steel, are the most suitable for magnetic holders. These materials have a high magnetic permeability, allowing them to be easily attracted to magnets and maintain a strong hold during welding. For instance, mild steel and stainless steel (grades 410, 430, and some 300 series) are commonly used in welding projects and work exceptionally well with magnetic holders.
When selecting materials for magnetic holders, it’s crucial to avoid non-ferromagnetic substances like aluminum, copper, brass, and most types of stainless steel (e.g., 304 and 316 grades), as they are not magnetic and will not adhere to the holder. Additionally, while austenitic stainless steels are popular in welding, their low magnetic response makes them incompatible with this method. For projects requiring these materials, alternative holding methods such as clamps or jigs should be considered. Always verify the magnetic properties of your material before relying on a magnetic holder to ensure a secure setup.
For welders working with thinner materials, the strength of the magnet becomes a critical factor. Neodymium magnets, known for their exceptional strength, are ideal for holding thinner ferromagnetic sheets securely. However, when dealing with thicker pieces, the magnetic force must penetrate deeper, which may require larger or more powerful magnets. A practical tip is to test the magnet’s holding strength on your material before starting the weld to avoid slippage or misalignment. This simple step can save time and prevent errors during the welding process.
Instructively, when using magnetic holders, ensure the surface of the material is clean and free of debris, as contaminants can reduce magnetic adhesion. Applying a light coat of oil or using a protective barrier between the magnet and the material can prevent scratching or damage, especially when working with finished surfaces. For complex welds requiring multiple angles, consider using adjustable magnetic holders that allow for precise positioning. These holders often feature swivel bases or articulated arms, providing flexibility while maintaining a strong magnetic grip.
Comparatively, while magnetic holders offer convenience, they are not a one-size-fits-all solution. For example, in TIG welding, where precision is paramount, magnetic holders can be invaluable for holding small, intricate pieces. However, in MIG or stick welding, where spatter and heat are more significant concerns, the magnet’s proximity to the weld zone may require additional shielding to prevent damage. Understanding these nuances ensures that magnetic holders are used effectively, maximizing their benefits while minimizing potential drawbacks.
Are Magnetic Tapes Still Relevant in Today's Digital Age?
You may want to see also
Explore related products
Pros and Cons of Magnetic Welding Aids
Magnetic welding aids offer a hands-free solution for holding metal pieces in place during welding, but their effectiveness depends on careful application. Neodymium magnets, for instance, can withstand temperatures up to 80°C (176°F) before losing their magnetic properties, making them suitable for many welding scenarios. However, exceeding this threshold or using weaker magnets like ceramic types (max 250°C/482°F but lower strength) risks failure. Always check the magnet’s temperature rating and material compatibility before use.
One significant advantage of magnetic welding aids is their ability to maintain consistent alignment without clamps or jigs. This is particularly useful for thin or delicate materials prone to warping under traditional clamping pressure. For example, when welding stainless steel sheets, strategically placed magnets can hold the pieces flush without marring the surface. However, this method requires a flat, ferromagnetic base; non-magnetic materials like aluminum or austenitic stainless steel will not work without additional adapters.
Despite their convenience, magnetic aids introduce challenges. Magnetic fields can interfere with the welding arc, especially in TIG welding, causing instability or deflection. To mitigate this, position magnets at least 6 inches away from the weld zone and use smaller, localized magnets rather than large ones. Additionally, magnets can attract slag or metal shavings, contaminating the weld area. Regularly clean the magnets and surrounding surfaces to prevent this issue.
For those considering magnetic welding aids, start with a trial run on scrap material to assess alignment and magnetic strength. Use adjustable magnetic holders for complex angles, and pair them with non-magnetic clamps for added stability. While magnets excel in holding flat or perpendicular joints, they are less effective for curved or irregular shapes. Always prioritize safety by wearing gloves when handling strong magnets to avoid pinching or snapping hazards. When applied thoughtfully, magnetic aids can streamline welding tasks, but their limitations demand careful planning and adaptation.
How Magnets Power Modern Computers: Essential Components Explained
You may want to see also
Frequently asked questions
Yes, magnets can be used to hold metal parts in place for welding, especially ferromagnetic materials like steel or iron. They provide a secure, hands-free clamping solution.
Strong rare-earth magnets, such as neodymium magnets, are ideal due to their high magnetic strength and ability to hold heavy metal pieces securely.
Yes, ensure magnets are heat-resistant and kept away from the direct welding arc to prevent damage. Also, avoid using magnets near sensitive electronics or pacemakers.
Magnets can supplement traditional clamps but may not replace them entirely, especially for non-ferromagnetic materials or complex joint alignments. Use them as an additional tool for convenience.
