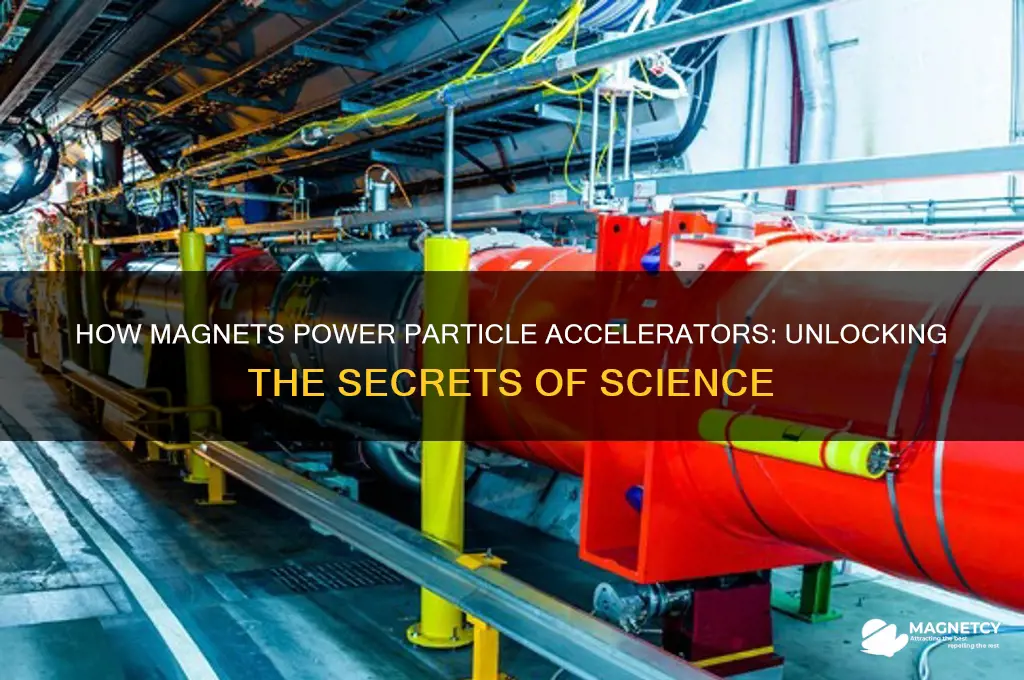

Particle accelerators, such as the Large Hadron Collider (LHC), rely heavily on powerful magnets to function effectively. These magnets play a crucial role in steering, focusing, and stabilizing the beams of charged particles as they travel at nearly the speed of light. The primary types of magnets used include dipole magnets, which bend the particle paths in circular or spiral trajectories, and quadrupole magnets, which focus the beams to maintain their precision and intensity. Additionally, superconducting magnets are often employed due to their ability to generate strong magnetic fields with minimal energy loss. Without these sophisticated magnetic systems, particle accelerators would be unable to achieve the high-energy collisions necessary for groundbreaking scientific research in fields like particle physics and cosmology.
| Characteristics | Values |
|---|---|
| Magnet Usage | Yes, particle accelerators extensively use magnets. |
| Types of Magnets | Dipole magnets, quadrupole magnets, sextupole magnets, and higher-order multipole magnets. |
| Primary Function | To steer, focus, and stabilize particle beams along their intended paths. |
| Magnetic Field Strength | Typically ranges from a few Tesla (T) to several Tesla, depending on the accelerator type. |
| Magnet Materials | Often made of superconducting materials (e.g., niobium-titanium or niobium-tin) for high-field strength and efficiency. |
| Cooling Requirements | Superconducting magnets require cryogenic cooling (e.g., liquid helium) to maintain superconductivity. |
| Beam Steering | Dipole magnets bend the particle beam, while quadrupole magnets focus the beam to prevent spreading. |
| Energy Range | Used in accelerators ranging from low-energy (e.g., cyclotrons) to high-energy (e.g., Large Hadron Collider, LHC). |
| Precision | Magnets must operate with extremely high precision to maintain beam stability and collision accuracy. |
| Size and Complexity | Magnets can range from small, compact designs to large, complex structures like those in the LHC. |
| Power Consumption | Superconducting magnets are energy-efficient once cooled, but initial cooling and operation require significant power. |
| Applications | Essential for medical (e.g., cancer treatment), industrial (e.g., material science), and research (e.g., particle physics) accelerators. |
| Challenges | Maintaining magnetic field uniformity, managing heat dissipation, and ensuring long-term stability. |
Explore related products
What You'll Learn
- Magnetic Fields for Particle Steering: Magnets guide particles along precise paths in accelerators
- Focusing Particles with Quadrupole Magnets: Quadrupole magnets keep particle beams tightly focused
- Bending Particles in Circular Accelerators: Strong magnets curve particle paths in circular designs
- Solenoid Magnets for Beam Stability: Solenoids stabilize and confine particle beams effectively
- Superconducting Magnets for Efficiency: Superconducting magnets reduce energy loss in accelerators
Magnetic Fields for Particle Steering: Magnets guide particles along precise paths in accelerators
Particle accelerators, such as the Large Hadron Collider (LHC) at CERN, rely heavily on magnetic fields to steer and focus beams of charged particles along precise trajectories. These particles, traveling at speeds close to the speed of light, require meticulous control to ensure they remain on course through kilometers of tubing. Magnets, specifically electromagnets, generate the necessary magnetic fields that exert Lorentz forces on the moving particles, bending their paths without causing energy loss. This principle is fundamental to the operation of both circular and linear accelerators, enabling experiments that probe the fundamental nature of matter.
To understand how magnets achieve this, consider the mechanics of particle steering. When a charged particle enters a magnetic field perpendicular to its velocity, it experiences a force that acts at a right angle to both its direction of motion and the magnetic field lines. This force causes the particle to follow a circular or helical path, depending on the accelerator’s design. In circular accelerators like the LHC, a series of dipole magnets creates a closed loop, while quadrupole and higher-order multipole magnets focus the beam, correcting for deviations and maintaining a tight, stable trajectory. The precision of these magnetic fields is critical; even minor fluctuations can cause beam loss or reduce experimental accuracy.
Designing and implementing these magnetic systems involves significant engineering challenges. For instance, the LHC’s dipole magnets operate at superconducting temperatures (1.9 Kelvin) to achieve the high magnetic fields required (up to 8.3 Tesla) without energy dissipation. This necessitates the use of niobium-titanium alloys and liquid helium cooling systems. Additionally, the magnets must be aligned with micron-level precision to ensure particles remain within the beam pipe. Practical tips for engineers include rigorous testing of magnetic field uniformity and implementing feedback systems to correct for field drift over time.
A comparative analysis highlights the versatility of magnetic steering in different accelerator types. While circular accelerators use magnets to maintain particles in a fixed orbit, linear accelerators employ alternating gradient focusing, where quadrupole magnets alternately focus and defocus the beam in two perpendicular planes. This approach minimizes beam spread over long distances. For example, the Stanford Linear Accelerator Center (SLAC) uses over 100 quadrupole magnets to keep particles on track over a 3.2-kilometer linear path. This contrast underscores the adaptability of magnetic fields to diverse accelerator architectures.
In conclusion, magnetic fields are indispensable for steering particles in accelerators, enabling groundbreaking scientific discoveries. Their application requires a blend of advanced physics, precision engineering, and innovative materials science. Whether in circular or linear designs, magnets provide the control needed to manipulate particles at extreme energies and speeds. For researchers and engineers, mastering these systems opens the door to exploring the subatomic world with unparalleled precision.
Mastering Magnetic Eyelashes: A Beginner's Guide to Easy Application
You may want to see also
Explore related products
Focusing Particles with Quadrupole Magnets: Quadrupole magnets keep particle beams tightly focused
Particle accelerators rely heavily on magnets to manipulate and control particle beams, and among these, quadrupole magnets play a critical role in maintaining beam focus. Unlike dipole magnets, which primarily steer particles along a curved path, quadrupole magnets are designed to correct the natural divergence of particle beams. This divergence occurs because particles in a beam have slight variations in their positions and momenta, causing the beam to spread over time. Quadrupole magnets counteract this by applying a focusing force that varies with the distance from the magnet's center, effectively squeezing the beam back together. This precision is essential for ensuring that particles remain on a tight, controlled trajectory, maximizing the efficiency of experiments in accelerators like the Large Hadron Collider (LHC).
To understand how quadrupole magnets work, imagine a beam of particles passing through a series of these magnets. Each quadrupole magnet has four poles arranged in a square, with alternating magnetic fields. As particles move through the magnet, those closer to the center experience a weaker focusing force, while those farther away experience a stronger one. This creates a lens-like effect, similar to how an optical lens focuses light. The strength and arrangement of quadrupole magnets are carefully calculated to balance focusing and defocusing forces, ensuring the beam remains stable over long distances. For instance, in the LHC, quadrupole magnets are spaced at precise intervals to maintain beam focus over its 27-kilometer circumference.
One practical challenge in using quadrupole magnets is managing the trade-off between focusing strength and beam stability. Too much focusing can lead to beam oscillations or even loss of particles, while too little can result in beam spread. Engineers and physicists address this by adjusting the magnetic field gradients and the spacing between magnets. For example, in the Fermilab Tevatron, quadrupole magnets were tuned to operate at field gradients of up to 2 Tesla per meter, ensuring optimal beam focus without compromising stability. This delicate balance requires advanced modeling and real-time monitoring systems to make adjustments during operation.
Quadrupole magnets are not only crucial for circular accelerators but also for linear accelerators, where they help maintain beam quality over shorter distances. In linear accelerators like SLAC’s Linac Coherent Light Source (LCLS), quadrupole magnets are used in conjunction with other elements to deliver ultra-focused electron beams for producing X-ray laser pulses. Here, the precision of quadrupole focusing directly impacts the brightness and coherence of the X-rays, which are essential for high-resolution imaging and material science studies. This versatility underscores the importance of quadrupole magnets across different types of accelerators.
In conclusion, quadrupole magnets are indispensable tools in particle accelerators, providing the precise focusing needed to keep particle beams tightly controlled. Their design and operation require a deep understanding of electromagnetic principles and careful engineering to balance focusing forces. Whether in circular or linear accelerators, quadrupole magnets enable the high-energy, high-precision experiments that drive advancements in physics, medicine, and materials science. By mastering the art of particle focusing, scientists can unlock new frontiers in our understanding of the universe.
Magnetic Rollers for Perms: Effective Technique or Hair Myth?
You may want to see also
Explore related products
Bending Particles in Circular Accelerators: Strong magnets curve particle paths in circular designs
Particle accelerators, particularly circular designs like the Large Hadron Collider (LHC), rely on powerful magnets to bend the paths of charged particles, keeping them on track as they accelerate to near-light speeds. These magnets, known as dipole magnets, generate strong magnetic fields that exert a Lorentz force perpendicular to the particles' velocity, causing them to follow a curved trajectory. Without these magnets, particles would move in straight lines, escaping the accelerator and rendering the entire system ineffective. The precision required is immense: the LHC's dipole magnets operate at 8.3 tesla, a field strength over 100,000 times greater than Earth’s magnetic field, ensuring particles remain in their circular path.
To understand the mechanics, consider the relationship between a particle's velocity, charge, and the magnetic field. The radius of curvature (*r*) of a particle's path in a magnetic field (*B*) is given by the formula *r = (mv) / (qB)*, where *m* is the particle's mass, *v* its velocity, and *q* its charge. This equation highlights the critical role of magnets: stronger magnetic fields (*B*) result in tighter curves, allowing accelerators to maintain compact designs despite particles traveling vast distances. For instance, in the LHC, protons complete 11,245 circuits per second, traveling a total distance of approximately 450 million kilometers—equivalent to circling the Earth 11,000 times—all within a 27-kilometer circumference.
Designing and maintaining these magnets presents unique challenges. Superconducting magnets, made from niobium-titanium alloys cooled to -271°C (2 kelvin), are used to achieve the necessary field strengths while minimizing energy loss. However, even small deviations in the magnetic field can destabilize particle beams. Engineers must account for factors like thermal expansion, mechanical stress, and the "training" of superconducting magnets to reduce quenches (abrupt losses of superconductivity). For home enthusiasts or students experimenting with smaller-scale accelerators, neodymium magnets (up to 1.4 tesla) can demonstrate basic particle deflection, though their strength pales in comparison to industrial-grade accelerators.
The practical implications of magnet-driven particle bending extend beyond fundamental physics. Medical cyclotrons, for example, use magnets to accelerate protons for cancer treatment, delivering precise radiation doses to tumors while sparing surrounding tissue. In these systems, magnets not only curve particle paths but also extract beams at specific energies, tailored to the depth of the tumor. For operators, ensuring magnet stability is critical: fluctuations of even 0.1% in field strength can alter beam energy by 1%, compromising treatment efficacy. Regular calibration and monitoring are essential, underscoring the interplay between magnet technology and real-world applications.
In summary, bending particles in circular accelerators is a testament to the power of magnetic fields in modern science. From the colossal LHC to compact medical cyclotrons, magnets are indispensable for controlling particle trajectories with unparalleled precision. Whether you're a physicist, engineer, or curious learner, understanding the role of magnets in accelerators offers insights into both the elegance of electromagnetic principles and their transformative impact on technology and medicine. For hands-on exploration, start with simple magnet-based experiments, gradually scaling up to appreciate the complexity of industrial systems—a journey that bridges theory and practice.
Do iPads Use Planar Magnetic Drivers? Exploring Audio Technology
You may want to see also
Explore related products
Solenoid Magnets for Beam Stability: Solenoids stabilize and confine particle beams effectively
Particle accelerators rely heavily on magnetic fields to manipulate and control particle beams, and solenoid magnets play a pivotal role in this process. These cylindrical coils of wire, when energized, generate a uniform magnetic field along their axis, providing the precise conditions needed to stabilize and confine high-energy particles. Unlike dipole magnets, which primarily bend particle trajectories, solenoids focus on maintaining beam integrity by counteracting natural dispersion and ensuring particles remain tightly grouped. This is critical in accelerators like the Large Hadron Collider (LHC), where even minor deviations can lead to beam loss or experimental inaccuracies.
To understand how solenoids achieve this, consider their operational principle. When current flows through the solenoid coil, it creates a magnetic field that exerts a Lorentz force on the moving particles. For charged particles traveling parallel to the solenoid’s axis, this force acts radially inward, compressing the beam and preventing it from spreading. The strength of the magnetic field, measured in Tesla (T), is directly proportional to the current and the number of coil turns. For instance, the solenoids in the LHC’s injection system operate at fields up to 2 T, ensuring beams remain stable as they accelerate to nearly the speed of light.
Practical implementation of solenoids in accelerators involves careful design and placement. Engineers must account for factors like beam energy, particle type, and desired focal length. For example, in medical cyclotrons used for isotope production, solenoids are positioned at critical points to maintain beam quality during acceleration. Similarly, in linear accelerators (linacs), solenoids are often combined with quadrupole magnets to achieve both focusing and steering. A key challenge is managing heat dissipation, as high currents can cause the coils to overheat, necessitating advanced cooling systems like liquid helium or forced air.
One of the most compelling applications of solenoids is in muon colliders, a next-generation accelerator concept. Muons, being 200 times heavier than electrons, require extremely precise beam control due to their short lifespan. Solenoids here not only stabilize the beam but also help compress it to densities sufficient for collisions. This dual functionality highlights the versatility of solenoids in addressing the unique demands of different particle types and experimental goals.
In conclusion, solenoid magnets are indispensable tools in particle accelerators, offering unparalleled control over beam stability and confinement. Their ability to generate uniform magnetic fields makes them ideal for maintaining beam integrity across various accelerator types and applications. As accelerator technology advances, the role of solenoids will only grow, enabling experiments that push the boundaries of physics. Whether in cutting-edge research or medical isotope production, solenoids exemplify the synergy between magnetism and particle physics, turning theoretical concepts into tangible discoveries.
Magnetic Mounts on iPhone XR: Compatibility, Safety, and Best Practices
You may want to see also
Explore related products
Superconducting Magnets for Efficiency: Superconducting magnets reduce energy loss in accelerators
Particle accelerators, the colossal machines that propel particles to near-light speeds, rely heavily on magnets to steer and focus these beams. However, traditional magnets suffer from energy loss due to electrical resistance, which can significantly impact the efficiency of the accelerator. This is where superconducting magnets step in as a game-changer. By utilizing materials that conduct electricity with zero resistance at extremely low temperatures, superconducting magnets minimize energy loss, allowing accelerators to operate more efficiently and sustainably.
The Science Behind Superconducting Magnets
Superconductivity occurs in certain materials, such as niobium-titanium alloys, when cooled to cryogenic temperatures (typically around 4.2 Kelvin, or -269°C, using liquid helium). At these temperatures, the material’s electrical resistance drops to zero, enabling the flow of current without energy dissipation. In particle accelerators, this property is harnessed to create powerful magnetic fields essential for bending and focusing particle beams. For instance, the Large Hadron Collider (LHC) at CERN employs over 1,200 superconducting dipole magnets, each generating a field of 8.3 tesla, to steer protons around its 27-kilometer circumference.
Efficiency Gains and Practical Benefits
The primary advantage of superconducting magnets is their ability to reduce energy loss, which translates to substantial cost savings and environmental benefits. Traditional resistive magnets dissipate energy as heat, requiring continuous power input to maintain their magnetic fields. In contrast, superconducting magnets, once energized, can sustain their fields indefinitely with minimal power consumption. This efficiency is critical for large-scale accelerators, where even small improvements in energy use can lead to significant operational cost reductions. For example, the LHC’s superconducting magnets consume approximately 20 megawatts of power, a fraction of what would be required with resistive magnets.
Challenges and Considerations
While superconducting magnets offer unparalleled efficiency, their implementation is not without challenges. Maintaining cryogenic temperatures is technically demanding and expensive, requiring robust cooling systems and specialized infrastructure. Additionally, quenches—sudden losses of superconductivity due to overheating—can damage the magnets and disrupt accelerator operations. Engineers must carefully design and monitor these systems to ensure reliability. Despite these hurdles, ongoing advancements in superconducting materials, such as the development of high-temperature superconductors (e.g., yttrium barium copper oxide), promise to further enhance efficiency and reduce operational complexities.
The Future of Superconducting Magnets in Accelerators
As particle accelerators push the boundaries of energy and luminosity, superconducting magnets will play an increasingly vital role in achieving these goals sustainably. Future projects, such as the proposed Future Circular Collider (FCC), aim to leverage next-generation superconducting materials to create even stronger magnetic fields while minimizing energy consumption. By addressing current limitations and harnessing emerging technologies, superconducting magnets will continue to drive innovation in accelerator science, enabling groundbreaking discoveries in physics while reducing their environmental footprint.
How Magnets Power Modern Computers: Essential Components Explained
You may want to see also
Frequently asked questions
Yes, particle accelerators extensively use magnets to steer, focus, and accelerate charged particles along their intended paths.
Particle accelerators use both electromagnets and permanent magnets. Electromagnets are more common due to their adjustable strength, which is crucial for controlling particle beams.
Magnets are used in combination with electric fields to accelerate particles. In accelerators like cyclotrons and synchrotrons, magnetic fields keep particles in a circular path while electric fields increase their energy.
Superconducting magnets are used because they can produce stronger magnetic fields with less energy loss compared to conventional electromagnets, making them ideal for high-energy accelerators like the Large Hadron Collider (LHC).
No, particle accelerators cannot function without magnets. Magnets are essential for guiding, focusing, and maintaining the stability of the particle beam throughout the acceleration process.
