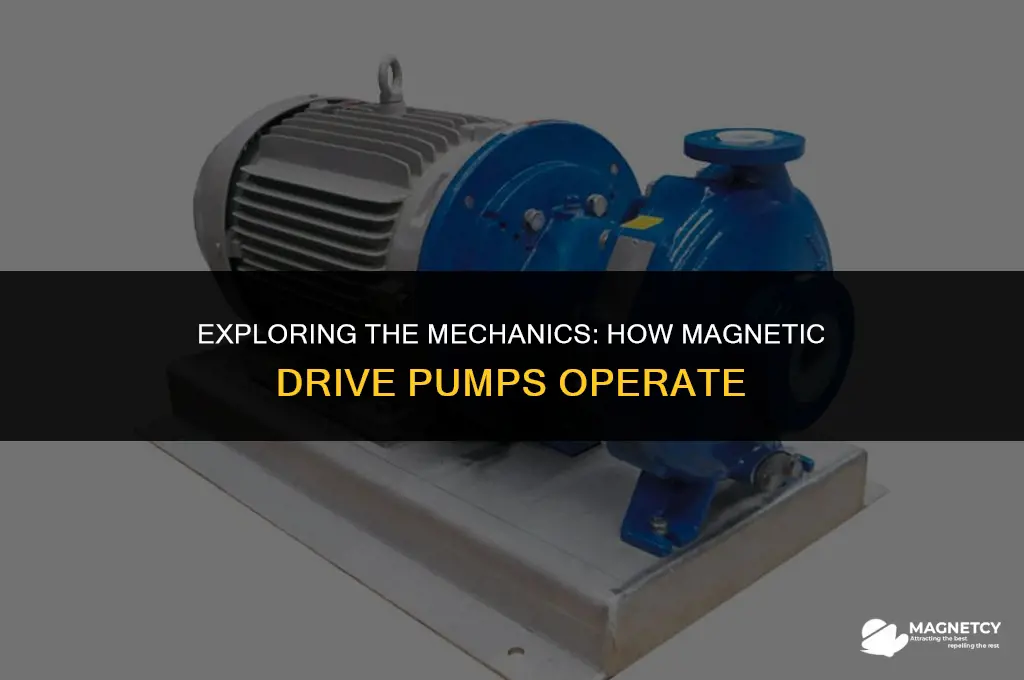

A magnetic drive pump, also known as a mag-drive pump, is a type of centrifugal pump that uses a magnetic field to transmit power from the motor to the impeller without any physical contact. This innovative design eliminates the need for a mechanical seal, which is a common failure point in traditional pumps. The pump consists of two main components: the stationary outer casing, which houses the motor and magnets, and the rotating inner assembly, which includes the impeller and a magnetic coupling. When the motor is activated, it generates a magnetic field that attracts and repels the magnets in the inner assembly, causing the impeller to spin and move fluid through the pump. This contactless power transmission results in a more reliable and efficient pumping system, with reduced maintenance requirements and increased longevity.
Explore related products
What You'll Learn
- Magnetic Drive Assembly: The magnetic drive assembly transfers torque from the motor to the impeller without physical contact
- Impeller Design: The impeller's unique design allows it to move fluid efficiently, utilizing centrifugal force to create flow
- Fluid Dynamics: The pump's internal design optimizes fluid movement, reducing turbulence and increasing overall efficiency
- Motor and Power Supply: The motor provides the necessary power to the magnetic drive, converting electrical energy into mechanical energy
- Pump Housing and Seals: The pump housing contains the internal components, while seals prevent fluid leaks, ensuring safe and efficient operation
Magnetic Drive Assembly: The magnetic drive assembly transfers torque from the motor to the impeller without physical contact
The magnetic drive assembly is a critical component in the operation of a magnetic drive pump. It serves as the intermediary between the motor and the impeller, enabling the transfer of torque without any physical contact. This non-contact transfer is achieved through the use of magnetic forces, which offer several advantages over traditional mechanical couplings.
One of the primary benefits of a magnetic drive assembly is the elimination of wear and tear that typically results from physical contact between moving parts. Since there is no direct contact between the motor shaft and the impeller, the risk of mechanical failure due to friction or misalignment is significantly reduced. This results in increased reliability and longevity of the pump system.
The magnetic drive assembly operates on the principle of magnetic attraction and repulsion. The assembly consists of two main parts: the drive magnet, which is connected to the motor shaft, and the driven magnet, which is attached to the impeller. The drive magnet generates a magnetic field that interacts with the driven magnet, causing it to rotate. This rotation is then transferred to the impeller, which in turn moves the fluid within the pump.
In order to ensure efficient operation, the magnetic drive assembly must be properly aligned and maintained. Misalignment can lead to reduced torque transfer and increased energy consumption. Regular maintenance, including cleaning and inspection of the magnets, is essential to prevent any degradation in performance.
The use of magnetic drive assemblies in pumps is particularly advantageous in applications where contamination or leakage must be minimized. Since there is no physical contact between the motor and the impeller, the risk of fluid leakage through the coupling is eliminated. This makes magnetic drive pumps ideal for use in industries such as pharmaceuticals, chemicals, and food processing, where maintaining a sterile or contamination-free environment is crucial.
In summary, the magnetic drive assembly is a key component in the operation of a magnetic drive pump, enabling the efficient and reliable transfer of torque from the motor to the impeller without physical contact. Its use offers several advantages, including reduced wear and tear, increased reliability, and the prevention of fluid leakage, making it a valuable choice for a variety of industrial applications.
