Electromagnets play a crucial role in the operation of magnetic locks, commonly used in access control systems for doors. These locks utilize the principle of electromagnetism, where an electric current passing through a coil generates a magnetic field. When the electromagnet is energized, it creates a strong magnetic force that binds the lock’s armature plate to the magnet, securely holding the door closed. Unlike traditional mechanical locks, magnetic locks rely on this electromagnetic force to provide a fail-safe or fail-secure mechanism, depending on the system’s design. They are widely employed in commercial and high-security settings due to their reliability, ease of integration with electronic access systems, and ability to handle heavy-duty applications. By harnessing the power of electromagnets, magnetic locks offer a modern, efficient solution for controlling entry and exit points.
| Characteristics | Values |
|---|---|
| Operating Principle | Electromagnets in magnetic locks (maglocks) utilize the principle of electromagnetism. When an electric current passes through a coil of wire wrapped around a ferromagnetic core, it generates a magnetic field. This field attracts the armature plate, creating a strong holding force. |
| Power Source | Typically powered by 12V or 24V DC, supplied by an access control system or dedicated power supply. |
| Holding Force | Varies by model, ranging from 200 lbs (90 kg) to over 1200 lbs (544 kg). Determined by the size of the electromagnet, coil turns, and current. |
| Activation Method | Activated by an electric signal from an access control system, card reader, keypad, or biometric device. Deactivated by cutting power, allowing the door to open. |
| Fail-Safe/Fail-Secure | Fail-Safe: Maglock releases during power loss (e.g., fire safety). Fail-Secure: Maglock remains locked during power loss (requires backup power or mechanical override). |
| Installation | Mounted on the door frame (electromagnet) and door (armature plate). Requires precise alignment for optimal performance. |
| Applications | Widely used in commercial and industrial settings for access control, emergency exits, and high-security doors. |
| Advantages | High holding force, fast operation, low maintenance, and compatibility with various access control systems. |
| Disadvantages | Requires continuous power for fail-secure operation, potential noise during activation, and vulnerability to power outages without backup. |
| Standards Compliance | Must meet safety and fire regulations (e.g., UL, CE) for fail-safe operation in emergency exits. |
| Maintenance | Periodic cleaning of contacts, checking alignment, and ensuring power supply stability. |
Explore related products
What You'll Learn
- Electromagnet Principles: How current-carrying coils create magnetic fields for locking mechanisms
- Power Requirements: Optimal voltage and amperage needed for reliable magnetic lock operation
- Fail-Safe vs. Fail-Secure: Electromagnet behavior during power loss in security systems
- Material Compatibility: Ferromagnetic materials used to enhance magnetic lock efficiency
- Applications: Use in access control systems, doors, and high-security installations
Electromagnet Principles: How current-carrying coils create magnetic fields for locking mechanisms
Electromagnets are the silent guardians of modern security systems, particularly in magnetic locks, where their ability to generate controllable magnetic fields ensures safety and access control. At the heart of these devices lies a simple yet powerful principle: when an electric current passes through a coil of wire, it creates a magnetic field. This phenomenon, discovered by Hans Christian Ørsted in 1820, forms the basis of electromagnetism. In magnetic locks, this principle is harnessed to produce a force strong enough to secure doors, gates, and other entry points. By wrapping a conductive wire around a core material, such as iron, and passing current through it, the coil becomes a temporary magnet, capable of attracting or repelling other magnetic materials.

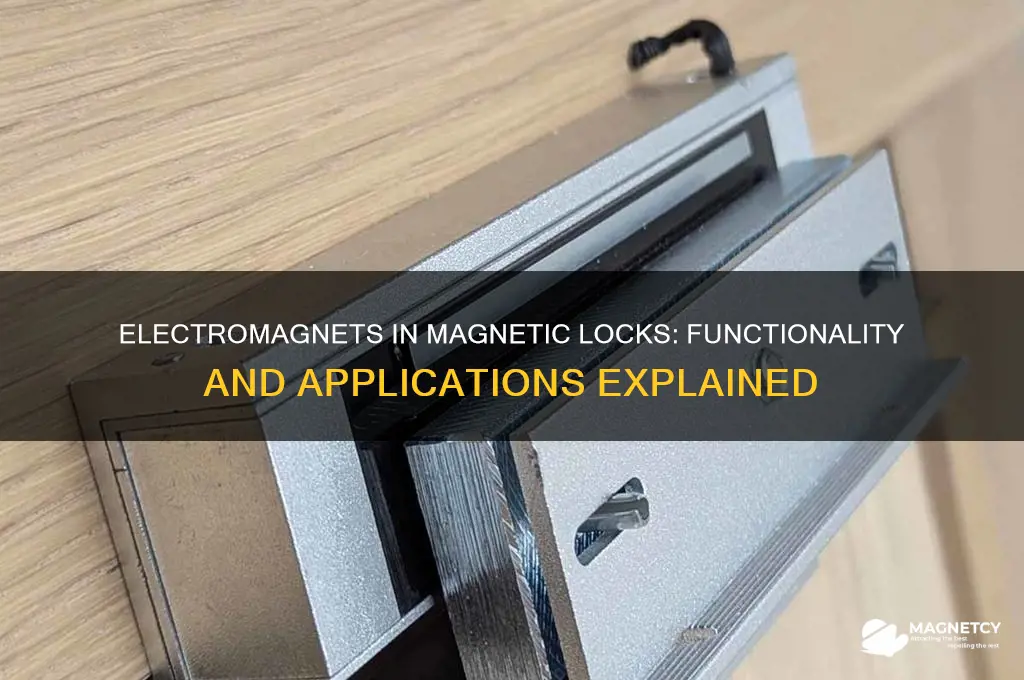

To understand how this works in practice, consider the anatomy of a magnetic lock. Typically, it consists of an electromagnet mounted on the door frame and an armature plate attached to the door. When current flows through the coil in the electromagnet, it generates a magnetic field that pulls the armature plate toward it, holding the door securely closed. The strength of this magnetic force depends on three key factors: the number of turns in the coil, the current passing through it, and the permeability of the core material. For instance, increasing the current from 1 ampere to 2 amperes can double the magnetic force, provided the coil and core can handle the additional heat generated. This adjustability makes electromagnets ideal for applications requiring precise control over locking mechanisms.
One of the most practical advantages of electromagnets in magnetic locks is their reversibility. Unlike permanent magnets, which maintain their magnetic properties indefinitely, electromagnets can be turned on and off by simply controlling the current flow. This feature is crucial for access control systems, where doors need to be unlocked remotely or automatically. For example, in emergency exit systems, cutting the power to the electromagnet immediately releases the lock, allowing for quick evacuation. Similarly, in smart security systems, the lock can be activated or deactivated via a keypad, card reader, or smartphone app, all by modulating the current through the coil.
However, designing an electromagnet for a magnetic lock requires careful consideration of energy efficiency and heat dissipation. Continuous operation of high-current coils can lead to overheating, reducing the lifespan of the lock. To mitigate this, engineers often incorporate heat sinks or use pulse width modulation (PWM) to regulate the current. For instance, a lock drawing 500 mA continuously might be redesigned to operate at 1 A for only 50% of the time, achieving the same magnetic force while reducing heat buildup. Additionally, selecting a core material with high magnetic permeability, such as laminated silicon steel, minimizes energy loss and enhances efficiency.
In conclusion, the use of electromagnets in magnetic locks exemplifies the practical application of fundamental electromagnetic principles. By manipulating current-carrying coils, these devices create magnetic fields that provide secure, controllable, and reversible locking mechanisms. Whether in commercial buildings, residential complexes, or high-security facilities, electromagnets offer a versatile solution tailored to modern access control needs. Understanding the interplay between coil design, current flow, and core materials empowers engineers and users alike to optimize these systems for safety, efficiency, and reliability.
Furniture Screws and Earth's Magnetic Field: Unseen Forces at Work
You may want to see also
Explore related products
Power Requirements: Optimal voltage and amperage needed for reliable magnetic lock operation
Electromagnets in magnetic locks rely on precise power delivery to ensure consistent holding force and operational reliability. The optimal voltage typically ranges from 12V DC to 24V DC, aligning with standard security system power supplies. Operating within this range ensures the electromagnet generates sufficient magnetic flux without overheating or causing premature wear. Exceeding 24V DC can lead to excessive current draw, while dropping below 12V DC may result in inadequate holding force, compromising security.
Amperage requirements vary based on the lock’s design and intended holding force, typically ranging from 0.5A to 1.5A. High-security locks often demand closer to 1.5A to maintain a robust magnetic bond, especially in commercial or industrial settings. Lower-current locks (around 0.5A) are suitable for residential or light-duty applications. To calculate power consumption, multiply voltage by amperage—for example, a 12V DC lock drawing 1A consumes 12 watts, a manageable load for most power supplies.
Selecting the right power supply involves balancing voltage stability and current capacity. A regulated power supply ensures consistent voltage delivery, critical for maintaining the electromagnet’s performance during fluctuations. Overloading the power supply can lead to failure, so always choose a unit rated for at least 20% more than the lock’s maximum current draw. For instance, a 1A lock should pair with a supply rated for 1.2A or higher.
Practical tips include using in-line fuses to protect against short circuits and testing the lock’s holding force at both ends of the voltage range to ensure reliability. For outdoor installations, consider environmental factors like temperature, which can affect resistance and current draw. Regularly inspect wiring for damage, as degraded connections can increase resistance and reduce efficiency.
In summary, optimal magnetic lock operation hinges on matching voltage and amperage to the lock’s specifications. A 12V to 24V DC supply with adequate current capacity, paired with a regulated power source and protective measures, ensures longevity and performance. Ignoring these requirements risks security breaches or hardware failure, making precise power management non-negotiable.
Magnetic Levitation: Mastering the Art of Floating Objects with Magnets
You may want to see also
Explore related products
Fail-Safe vs. Fail-Secure: Electromagnet behavior during power loss in security systems
Electromagnets in magnetic locks operate on a simple principle: when energized, they create a magnetic field that securely holds a door locked. But what happens during a power outage? This is where the critical distinction between fail-safe and fail-secure systems emerges, shaping their reliability in security applications.
Fail-safe systems prioritize safety, ensuring the electromagnet releases the lock during power loss. This is achieved by designing the electromagnet to engage the lock only when powered. For instance, in emergency exit doors, fail-safe magnetic locks are essential. During a blackout, the door automatically unlocks, allowing uninhibited egress—a life-saving feature in emergencies. These systems are often paired with backup batteries or uninterruptible power supplies (UPS) to maintain functionality temporarily, but their core design ensures immediate release upon power failure.
Conversely, fail-secure systems prioritize security, keeping the electromagnet engaged even without power. This is accomplished by using permanent magnets or spring-loaded mechanisms that lock the door by default. Fail-secure magnetic locks are common in high-security areas like server rooms or vaults, where unauthorized access is a greater concern than rapid evacuation. However, this design requires careful consideration of emergency protocols, as occupants could become trapped during a power outage unless manual overrides or emergency release mechanisms are in place.
Choosing between fail-safe and fail-secure systems depends on the specific security needs of the environment. For public buildings like schools or hospitals, fail-safe locks align with safety regulations, ensuring compliance with fire codes. In contrast, fail-secure locks are ideal for facilities where asset protection outweighs evacuation speed. Practical tips include conducting regular power failure drills to test both systems and ensuring all personnel are trained to operate manual overrides. Additionally, integrating access control systems with alarms can provide real-time alerts during power outages, enhancing overall security preparedness.
In summary, the behavior of electromagnets in magnetic locks during power loss is a defining factor in their application. Fail-safe systems guarantee safety by unlocking doors, while fail-secure systems prioritize security by maintaining the lock. Understanding these differences allows for informed decision-making, ensuring the chosen system aligns with the specific demands of the environment. Whether safeguarding lives or assets, the right choice hinges on this critical distinction.
Does Testa Use Permanent Magnets in Their Motors? Explained
You may want to see also
Explore related products
Material Compatibility: Ferromagnetic materials used to enhance magnetic lock efficiency
Electromagnets in magnetic locks rely on the interaction between magnetic fields and ferromagnetic materials to secure doors. The efficiency of these locks hinges on the careful selection of ferromagnetic materials, which directly influences the strength and reliability of the magnetic bond.
Ferromagnetic materials, such as iron, nickel, and cobalt, exhibit strong magnetic properties when exposed to an external magnetic field. In magnetic locks, these materials are strategically placed to enhance the magnetic flux density, ensuring a robust and secure connection. For instance, a common design involves an electromagnet mounted on the door frame and a ferromagnetic plate on the door itself. When the electromagnet is energized, it creates a magnetic field that attracts the ferromagnetic plate, effectively locking the door.
Material Selection and Performance
The choice of ferromagnetic material significantly impacts the performance of magnetic locks. Iron, with its high magnetic permeability, is a popular option due to its ability to concentrate magnetic flux. However, it is prone to corrosion, which can weaken the magnetic bond over time. To mitigate this, manufacturers often use stainless steel, a corrosion-resistant alloy containing iron, chromium, and nickel. This material not only provides excellent magnetic properties but also ensures longevity in various environmental conditions. For applications requiring even higher corrosion resistance, such as outdoor installations, specialized alloys like mu-metal (a nickel-iron alloy) can be employed.
Optimizing Lock Efficiency
To maximize the efficiency of magnetic locks, consider the following guidelines when selecting ferromagnetic materials:
- Magnetic Permeability: Choose materials with high magnetic permeability, such as silicon steel (a type of steel with added silicon), to enhance magnetic flux density.
- Corrosion Resistance: Opt for corrosion-resistant alloys, especially in humid or outdoor environments, to prevent degradation of magnetic properties.
- Thickness and Shape: Ensure the ferromagnetic plate is thick enough to provide adequate magnetic attraction, typically ranging from 3-6 mm, and shaped to match the electromagnet's design.
Practical Considerations
When installing or maintaining magnetic locks, keep these practical tips in mind:
- Cleanliness: Regularly clean the contact surfaces between the electromagnet and ferromagnetic plate to remove debris and ensure optimal magnetic contact.
- Alignment: Properly align the electromagnet and ferromagnetic plate to minimize air gaps, which can weaken the magnetic bond.
- Power Supply: Verify that the power supply to the electromagnet is stable and sufficient, typically ranging from 12-24 VDC, to maintain consistent magnetic force.
By carefully selecting and utilizing ferromagnetic materials, magnetic lock efficiency can be significantly enhanced, providing reliable and secure access control in various applications, from residential doors to high-security facilities. This attention to material compatibility ensures that magnetic locks perform optimally, offering both convenience and peace of mind.
Magnetic Holder Compatibility: Can You Use One on Your Garmin GPS?
You may want to see also
Explore related products
Applications: Use in access control systems, doors, and high-security installations
Electromagnets are the backbone of magnetic locks, or maglocks, which have become a staple in modern access control systems. These locks operate on a simple principle: when an electric current passes through a coil, it generates a magnetic field that attracts a metal plate, securing the door. This mechanism is not only reliable but also offers a level of security that traditional locks often struggle to match. In access control systems, maglocks are integrated with keypads, card readers, or biometric scanners to ensure that only authorized individuals can enter restricted areas. For instance, in a corporate office, employees might use RFID cards to deactivate the electromagnet temporarily, allowing the door to open.
In high-security installations, such as government facilities or data centers, maglocks are often paired with additional security features like alarm systems and surveillance cameras. Their fail-safe or fail-secure configurations make them adaptable to different security needs. Fail-safe maglocks release the door when power is cut, ensuring safe evacuation during emergencies, while fail-secure locks remain locked without power, preventing unauthorized access during outages. The holding force of these electromagnets, typically ranging from 600 to 1200 pounds, ensures that even forceful entry attempts are thwarted. This makes them ideal for exterior doors in high-risk environments where physical security is paramount.
For residential and commercial doors, maglocks offer a sleek, keyless alternative to traditional locking mechanisms. Installation requires mounting the electromagnet on the door frame and the armature plate on the door itself, ensuring precise alignment for maximum efficiency. One practical tip is to use a template during installation to avoid misalignment, which can reduce the lock’s effectiveness. Additionally, regular maintenance, such as cleaning the contact surfaces and checking the wiring, ensures longevity and consistent performance. For sliding doors, specialized maglocks with adjustable brackets are available to accommodate varying door thicknesses and materials.
When comparing maglocks to other access control solutions, their cost-effectiveness and ease of integration stand out. Unlike mechanical locks, which can be picked or tampered with, maglocks have no moving parts, reducing wear and tear. They are also compatible with most access control software, allowing for centralized monitoring and logging of entry and exit events. For example, in a multi-tenant building, the system can track which tenants access shared spaces and at what times, enhancing accountability and security. This level of control is particularly valuable in environments where access needs to be tightly regulated.
In conclusion, electromagnets in magnetic locks have revolutionized access control systems, offering versatility, security, and ease of use across various applications. Whether securing a high-security facility or simplifying entry to a commercial building, maglocks provide a robust solution tailored to specific needs. By understanding their functionality and proper installation, users can maximize their benefits while minimizing potential vulnerabilities. As technology advances, the role of electromagnets in magnetic locks will only continue to grow, solidifying their place in the future of security systems.
Using Car Sign Magnets in Alachua County: Legal Guidelines Explained
You may want to see also
Frequently asked questions
A magnetic lock, or maglock, is a type of locking mechanism that uses electromagnets to secure doors. When an electric current is applied, the electromagnet generates a magnetic field that binds to an armature plate, holding the door locked. Removing the current releases the lock.
Electromagnets in magnetic locks are powered by an electrical current, typically supplied by a low-voltage source (e.g., 12V or 24V). This current is controlled by an access control system, such as a keypad, card reader, or remote switch, which activates or deactivates the lock as needed.
Electromagnets in magnetic locks offer several advantages, including faster operation, higher security, and ease of integration with electronic access control systems. They also lack moving parts, reducing wear and tear, and can be easily monitored for status (locked/unlocked) via the electrical signal.
