Magnets play a crucial role in the operation of particle accelerators, serving as the backbone for steering, focusing, and accelerating charged particles to near-light speeds. In these complex machines, powerful electromagnets are strategically arranged to create precise magnetic fields that guide particle beams along their designated paths. Dipole magnets, for instance, are used to bend the trajectory of particles, while quadrupole magnets focus the beam, ensuring it remains tightly packed. Additionally, specialized magnets like wigglers and undulators are employed to induce particle oscillations, generating intense radiation for research purposes. The precise control and manipulation of these magnetic fields are essential for maintaining beam stability, achieving high-energy collisions, and enabling groundbreaking scientific discoveries in fields such as particle physics and materials science.
| Characteristics | Values |
|---|---|
| Magnet Type | Electromagnets (dipole, quadrupole, sextupole, etc.) |
| Primary Function | Steering, focusing, and accelerating charged particles |
| Steering Magnets | Dipole magnets bend particle beams along a circular or linear path |
| Focusing Magnets | Quadrupole magnets focus the beam by alternating focusing and defocusing forces |
| Higher-Order Magnets | Sextupole and higher-order multipole magnets correct chromatic aberrations and other beam imperfections |
| Superconducting Magnets | Used in modern accelerators for stronger magnetic fields with lower energy consumption (e.g., LHC uses niobium-titanium and niobium-tin alloys) |
| Magnetic Field Strength | Up to 8-10 Tesla in superconducting magnets (e.g., LHC), 1-2 Tesla in conventional electromagnets |
| Cooling Requirements | Superconducting magnets require cryogenic cooling (e.g., liquid helium at ~1.9 K for LHC magnets) |
| Beam Stability | Magnets maintain beam stability by correcting for energy spread, emittance growth, and other factors |
| Precision Alignment | Magnets must be aligned with micron-level precision to ensure beam stability and prevent particle loss |
| Energy Efficiency | Superconducting magnets are more energy-efficient than resistive magnets, reducing operational costs |
| Applications | Used in synchrotrons, cyclotrons, linear accelerators (linacs), and colliders like the Large Hadron Collider (LHC) |
| Material Challenges | Superconducting magnets face challenges like quenching (sudden loss of superconductivity) and material fatigue |
| Magnetic Field Homogeneity | High homogeneity is required to prevent beam distortions; achieved through precise coil winding and correction coils |
| Size and Weight | Large and heavy, especially superconducting magnets (e.g., LHC dipole magnets weigh ~35 tons each) |
| Cost | Significant capital investment, with superconducting magnets being more expensive than conventional ones |
| Research and Development | Ongoing R&D focuses on higher-field magnets (e.g., using high-temperature superconductors like REBCO) for future accelerators |
Explore related products
What You'll Learn
Magnetic fields for beam focusing and stability
Magnetic fields are indispensable in particle accelerators, serving as the invisible hands that shape and stabilize particle beams. Without these fields, particles would scatter uncontrollably, rendering the accelerator ineffective. The principle relies on the Lorentz force, where charged particles moving through a magnetic field experience a force perpendicular to both their velocity and the field direction. This force is harnessed to bend and focus beams, ensuring they remain coherent and aligned over vast distances.

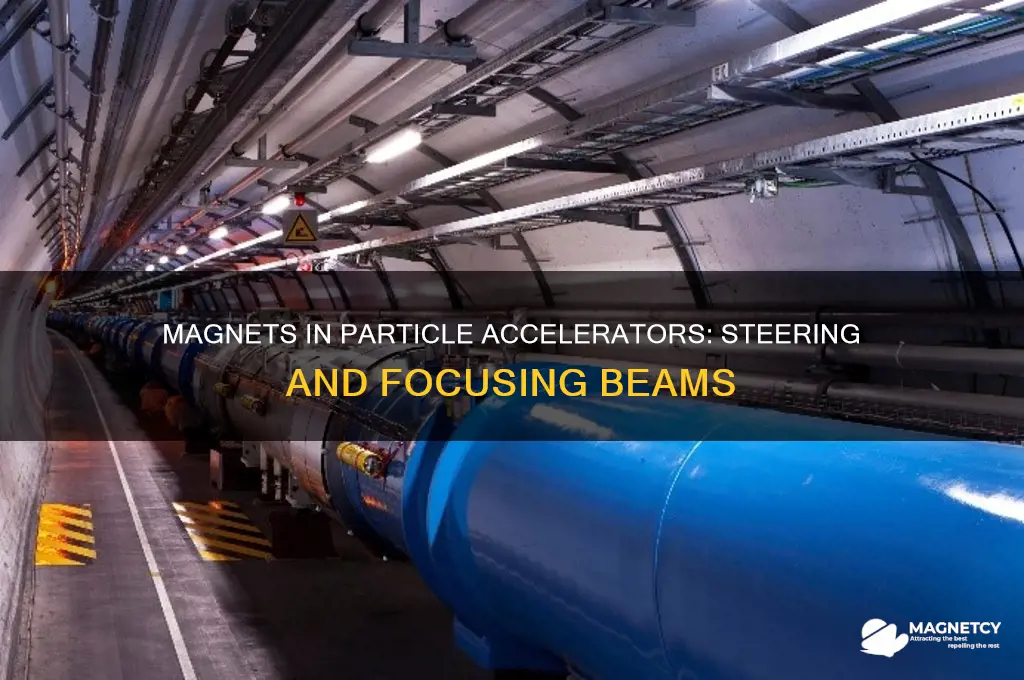

Consider the Large Hadron Collider (LHC) at CERN, where superconducting dipole magnets generate fields of up to 8.3 tesla to steer protons around a 27-kilometer circumference. These magnets are not just for bending; they also incorporate quadrupole magnets for beam focusing. Quadrupoles create a field gradient that acts like a lens, compressing the beam in one plane while allowing it to expand in another, then alternating to keep the beam tightly focused. This dynamic focusing is critical for maintaining beam stability over millions of revolutions.
To achieve optimal focusing, engineers must balance magnetic field strength and particle energy. For instance, in a linear accelerator, quadrupole magnets are spaced at precise intervals to counteract natural beam divergence. The strength of these magnets is calibrated to match the particle’s velocity, ensuring the beam remains within a few millimeters of its intended path. Misalignment or miscalibration can lead to beam loss, reducing the accelerator’s efficiency.
Practical implementation requires meticulous design and monitoring. Magnetic fields must be uniform and stable to prevent beam distortions. Active feedback systems continuously adjust field strengths to compensate for fluctuations, such as those caused by temperature changes or power supply variations. For example, the LHC’s magnets are cooled to 1.9 Kelvin using liquid helium to maintain superconductivity, with sensors detecting deviations as small as 0.01 tesla.
In summary, magnetic fields are the backbone of beam focusing and stability in particle accelerators. Their precise application ensures particles remain on track, enabling groundbreaking scientific discoveries. From bending beams around colossal rings to focusing them to microscopic dimensions, magnets transform chaos into precision, proving their unparalleled utility in modern physics.
Can Home Scanners Harm Magnetic Media? Facts and Safety Tips
You may want to see also
Explore related products
Steering particles using dipole magnets in accelerators
Dipole magnets are the unsung heroes of particle steering in accelerators, acting as the invisible hands that guide charged particles along precise paths at near-light speeds. These magnets generate uniform magnetic fields that exert a Lorentz force perpendicular to both the particle’s velocity and the field direction, causing the particles to curve in a circular or helical trajectory. This principle is fundamental to circular accelerators like the Large Hadron Collider (LHC), where dipole magnets ensure particles remain on track despite their immense energy—up to 6.5 TeV per proton. Without these magnets, particles would collide with the accelerator walls, rendering experiments impossible.
Consider the LHC’s main dipole magnets, each a 15-meter-long superconducting behemoth weighing 35 metric tons. Cooled to -271°C (2 Kelvin) with liquid helium, they operate at 8.33 Tesla, a field strength 100,000 times Earth’s magnetic field. These magnets are arranged in a ring, forming a closed loop that keeps particles circulating for hours. The precision required is staggering: misalignment by even a fraction of a millimeter could destabilize the beam. Engineers achieve this by actively monitoring and adjusting the magnetic field strength in real-time, ensuring particles stay within a beam pipe just a few centimeters wide.
Steering particles with dipole magnets isn’t just about brute force; it’s a delicate balance of physics and engineering. For linear accelerators, dipoles are used in alternating gradients to focus and steer particles along a straight path. Here, the challenge lies in minimizing energy loss and beam divergence. Quadrupole and sextupole magnets often accompany dipoles to correct for chromatic aberrations and other distortions, but the dipoles remain the primary steering mechanism. In both circular and linear designs, the magnetic field’s uniformity is critical—a 0.1% deviation can cause significant beam loss.
Practical implementation requires careful consideration of materials and cooling systems. Superconducting magnets, made from niobium-titanium alloys, offer higher field strengths and efficiency compared to resistive magnets, but they demand cryogenic temperatures. For smaller-scale accelerators, such as those used in medical proton therapy, compact dipole magnets with lower field strengths (1-2 Tesla) are employed. These systems must be precisely calibrated to steer protons to tumor sites with sub-millimeter accuracy, sparing healthy tissue. Regular maintenance, including vacuum checks and field mapping, is essential to ensure long-term reliability.
In conclusion, dipole magnets are indispensable for steering particles in accelerators, combining raw power with precision engineering. Whether in a massive collider or a compact medical device, their role is to control the chaotic energy of charged particles, transforming them into tools for scientific discovery and medical treatment. Understanding their operation and limitations is key to advancing accelerator technology and unlocking new frontiers in physics and healthcare.
Exploring Alternative Bones for Enhancing Animal Magnetism: Myths vs. Facts
You may want to see also
Explore related products
Quadrupole magnets for precise beam shaping
Quadrupole magnets are essential components in particle accelerators, serving the critical function of focusing and defocusing particle beams to maintain their stability and precision. Unlike dipole magnets, which primarily bend beams along a circular path, quadrupole magnets act transversely, influencing the beam's shape in two perpendicular directions simultaneously. This capability is crucial for correcting beam aberrations and ensuring that particles remain tightly bunched as they travel through the accelerator. By alternating focusing and defocusing fields, quadrupoles create a self-correcting mechanism that prevents beam divergence, a phenomenon that could otherwise lead to particle loss and reduced accelerator efficiency.
Consider the Large Hadron Collider (LHC) at CERN, where quadrupole magnets are strategically placed along the 27-kilometer circumference. These magnets operate at a magnetic field gradient of approximately 35 tesla per meter, a value meticulously calibrated to match the LHC's 7 TeV proton beams. The design involves a hyperbolic pole shape, which generates a field that varies linearly with distance from the center. This linearity is key to the quadrupole's focusing action: particles closer to the center experience a weaker field, while those farther away are pulled back toward the beam axis. The result is a beam cross-section that remains consistently small, optimizing collision probabilities in experiments.
Implementing quadrupole magnets requires careful consideration of their placement and strength. For instance, in a linear accelerator, quadrupoles are often grouped into "quadruplet" sets, with each magnet tuned to a specific field strength to progressively shape the beam. Engineers must account for factors like beam energy, particle type, and desired focal length when configuring these magnets. A common challenge is balancing the need for strong focusing with the risk of introducing nonlinear effects, which can cause beam emittance growth. Advanced simulation tools, such as those based on the MAD-X software, are used to model these interactions and optimize magnet settings before physical implementation.
One practical tip for accelerator operators is to monitor beam diagnostics closely when adjusting quadrupole fields. Even small deviations in magnet performance can lead to significant beam degradation. Regular calibration and the use of active feedback systems, which adjust magnet currents in real time, are essential for maintaining beam quality. Additionally, cryogenic cooling systems are often employed to keep quadrupole magnets at superconducting temperatures (around 1.9 Kelvin), minimizing energy loss and maximizing field stability. This combination of precision engineering and operational vigilance ensures that quadrupoles fulfill their role in shaping beams with micron-level accuracy.
In summary, quadrupole magnets are indispensable for precise beam shaping in particle accelerators, offering a dynamic solution to the challenge of maintaining beam integrity over vast distances and energies. Their ability to focus and defocus beams in two dimensions simultaneously makes them uniquely suited for correcting aberrations and optimizing particle trajectories. By understanding their principles, design considerations, and operational requirements, accelerator scientists can harness the full potential of quadrupoles to advance high-energy physics research. Whether in circular colliders or linear accelerators, these magnets exemplify the intersection of theoretical physics and practical engineering, driving discoveries at the smallest scales of matter.
Using Stationary Magnets in Wind Turbines: Feasibility and Benefits Explored
You may want to see also
Explore related products
Magnetic systems in particle collision experiments
Magnetic systems are the unsung heroes of particle collision experiments, orchestrating the precise control and manipulation of charged particles at speeds approaching the speed of light. In facilities like the Large Hadron Collider (LHC), superconducting dipole magnets, cooled to near-absolute zero temperatures, generate magnetic fields of up to 8.3 tesla. These fields bend the paths of particles like protons or electrons, keeping them in stable orbits within the accelerator ring. Without these magnets, particles would spiral outward, colliding with the walls of the accelerator instead of each other. This fundamental function is the cornerstone of modern particle physics, enabling experiments that probe the fundamental building blocks of the universe.
Consider the role of quadrupole magnets, which focus particle beams into tight, precise streams. Unlike dipole magnets that bend particles, quadrupoles act as lenses, correcting beam divergence caused by natural spread or accelerator imperfections. In the LHC, thousands of quadrupole magnets are strategically placed to ensure that particle beams, just a few millimeters in diameter, remain aligned over a 27-kilometer circumference. This precision is critical for maximizing collision rates, as even a slight misalignment can reduce the likelihood of meaningful particle interactions. Quadrupoles, often paired with higher-order multipole magnets, form a complex system that balances focusing and defocusing forces, creating a stable, high-intensity beam.
One of the most challenging aspects of magnetic systems in particle accelerators is maintaining field uniformity. Even tiny deviations in magnetic fields can cause particles to deviate from their intended paths, leading to beam loss or reduced collision efficiency. To address this, accelerator engineers employ corrector magnets, which fine-tune the magnetic field to compensate for imperfections. For instance, the LHC uses hundreds of corrector magnets to adjust for field errors caused by manufacturing tolerances, thermal expansion, or mechanical misalignments. These corrections are often performed in real-time, using feedback systems that monitor beam position and adjust magnet currents accordingly. Such meticulous control ensures that particles remain on track, even as they accelerate to energies of 6.5 TeV per beam.
A lesser-known but equally vital application of magnets in particle collision experiments is their use in particle identification and analysis. After collisions occur, the resulting debris—a mix of particles like muons, pions, and kaons—must be sorted and studied. Magnetic spectrometers, such as those in the ALICE detector at the LHC, use large solenoid magnets to bend the paths of charged particles. The radius of curvature of these paths is directly proportional to a particle’s momentum and charge-to-mass ratio, allowing scientists to identify particles with high precision. For example, a muon with a momentum of 100 GeV/c in a 4-tesla magnetic field will follow a distinct trajectory compared to a pion of the same momentum. This technique is essential for reconstructing collision events and uncovering the properties of exotic particles.
In conclusion, magnetic systems are not just components but the backbone of particle collision experiments, enabling everything from beam steering to particle detection. Their design and operation require a delicate balance of physics, engineering, and technology, pushing the boundaries of what is achievable in accelerator science. As experiments strive for higher energies and greater precision, the role of magnets will only grow, driving innovations in materials, cooling techniques, and control systems. For researchers and engineers alike, mastering these magnetic systems is key to unlocking the next frontier of particle physics.
X-Rays vs. Magnets: Unraveling the Technology Behind Medical Imaging
You may want to see also
Explore related products
Superconducting magnets for high-energy acceleration efficiency
Superconducting magnets are the unsung heroes of modern particle accelerators, enabling the precise control and manipulation of particle beams at unprecedented energies. These magnets operate at temperatures near absolute zero, leveraging superconducting materials like niobium-titanium alloys to eliminate electrical resistance. This property allows them to generate powerful magnetic fields without energy loss, a critical requirement for accelerating particles to near-light speeds. For instance, the Large Hadron Collider (LHC) at CERN relies on over 1,200 superconducting dipole magnets, each producing a field of 8.3 tesla, to steer protons around a 27-kilometer ring. Without superconductivity, the energy consumption and heat dissipation would render such accelerators impractical.
The efficiency of superconducting magnets hinges on their ability to maintain stable, high-field strengths over extended periods. To achieve this, they are cooled using liquid helium, which maintains the magnet coils at around 1.9 Kelvin. This cryogenic environment is not without challenges; even minor temperature fluctuations can cause the material to lose its superconducting state, a phenomenon known as "quenching." Engineers mitigate this risk through careful design and the inclusion of quench protection systems, which rapidly dissipate energy to prevent damage. For example, the LHC’s magnets are equipped with heaters and energy extraction systems to handle quenches safely, ensuring the accelerator’s longevity.
One of the most significant advantages of superconducting magnets is their role in enhancing beam focusing and stability. Quadrupole and sextupole magnets, also superconducting, are used to compress and shape particle beams, reducing their size and divergence. This is essential for maximizing collision rates in experiments. At the Fermilab’s PIP-II accelerator, superconducting magnets will focus proton beams to a mere fraction of a millimeter, enabling higher luminosity and more precise measurements. This level of control is unattainable with conventional magnets, which would generate excessive heat under similar conditions.
Despite their efficiency, superconducting magnets are not without limitations. The cost of manufacturing and maintaining cryogenic systems is substantial, often exceeding the expense of the magnets themselves. Additionally, the development of high-field superconducting materials remains an active area of research, with scientists exploring alternatives like niobium-tin (Nb3Sn) to push field strengths beyond current limits. For particle accelerators aiming for even higher energies, such as the proposed Future Circular Collider (FCC), these advancements are crucial. The FCC, for instance, would require magnets capable of 16 tesla or more, a feat only achievable through next-generation superconductors.
In practical terms, the integration of superconducting magnets into particle accelerators demands meticulous planning and execution. Engineers must account for thermal contraction, magnetic forces, and alignment tolerances to ensure optimal performance. For example, the alignment of the LHC’s magnets is precise to within a fraction of a millimeter, a task accomplished using laser-based surveying techniques. Operators also employ advanced monitoring systems to track magnet performance in real time, allowing for proactive maintenance and adjustments. As accelerators grow in size and complexity, these practices will become even more critical, ensuring that superconducting magnets continue to drive the frontier of high-energy physics.
Ford's Magnetic Oil Drain Plugs: Fact or Fiction?
You may want to see also
Frequently asked questions
Magnets are used to steer, focus, and accelerate charged particles along a precise path in a particle accelerator. They create electromagnetic fields that guide particles, ensuring they remain stable and on track.
Particle accelerators use both electromagnets and permanent magnets. Electromagnets, powered by electric currents, are commonly used for their adjustable strength, while permanent magnets are used in specific applications where field stability is critical.
Magnets are not directly responsible for accelerating particles; that task is handled by electric fields. However, magnets ensure particles follow the correct trajectory through the accelerator, allowing them to receive energy from the electric fields efficiently.
Superconducting magnets are used in large accelerators because they can produce extremely strong magnetic fields with minimal energy loss. Superconductivity allows for higher field strengths and greater stability, which are essential for high-energy particle experiments.
Magnets focus particle beams by creating alternating magnetic fields that act as lenses. These fields converge or diverge the beam, correcting its shape and preventing particles from spreading out, ensuring a tight, focused beam for collisions or experiments.
