Magnets play a crucial role in confining plasma, the fourth state of matter, which is essential for applications like nuclear fusion. Plasma, being a highly ionized gas, is inherently unstable and tends to expand and cool rapidly when in contact with solid materials. To overcome this, magnetic confinement techniques, such as those used in tokamaks and stellarators, employ powerful magnetic fields to trap and control the plasma. These fields create a complex, twisted path that prevents the plasma from touching the walls of the containment vessel, allowing it to be heated to the extreme temperatures required for fusion reactions. The magnetic fields also help to stabilize the plasma, reducing turbulence and improving its overall stability, making it a promising approach for harnessing clean and virtually limitless energy through controlled nuclear fusion.
| Characteristics | Values |
|---|---|
| Magnetic Confinement Principle | Uses magnetic fields to control and stabilize plasma by exploiting its charged particle behavior. |
| Magnetic Field Configuration | Toroidal (donut-shaped) or helical fields are commonly used (e.g., tokamaks, stellarators). |
| Plasma Confinement Devices | Tokamak, Stellarator, Spheromak, Reversed Field Pinch, and Magnetic Mirror. |
| Magnetic Field Strength | Typically ranges from 1 to 10 Tesla in modern fusion devices like ITER. |
| Plasma Temperature | Confined plasma can reach temperatures of 150-300 million °C (10-20 keV). |
| Plasma Density | Confined plasma density ranges from 1019 to 1021 particles per cubic meter. |
| Energy Confinement Time | Time plasma retains thermal energy, typically 0.1-1 second in current devices. |
| Magnetic Field Generation | Produced by superconducting or conventional electromagnets. |
| Plasma Stability | Achieved by balancing magnetic pressure and plasma pressure (e.g., via MHD stability criteria). |
| Applications | Primarily used in nuclear fusion research for clean energy production. |
| Challenges | Maintaining stability, preventing plasma disruptions, and managing heat exhaust. |
| Latest Advancements | Improved superconducting materials, advanced control algorithms, and AI-driven plasma modeling. |
| Example Devices | ITER (International Thermonuclear Experimental Reactor), JET (Joint European Torus). |
Explore related products
What You'll Learn
- Magnetic Mirrors: Reflecting particles back into the plasma using magnetic fields to prevent escape
- Tokamak Design: Toroidal chambers with magnetic coils to stabilize and contain plasma
- Stellarators: Twisted magnetic fields for plasma confinement without current drive
- Magnetic Islands: Localized disruptions in confinement fields and mitigation strategies
- Magnetic Field Strength: Optimizing field intensity to balance plasma pressure and stability

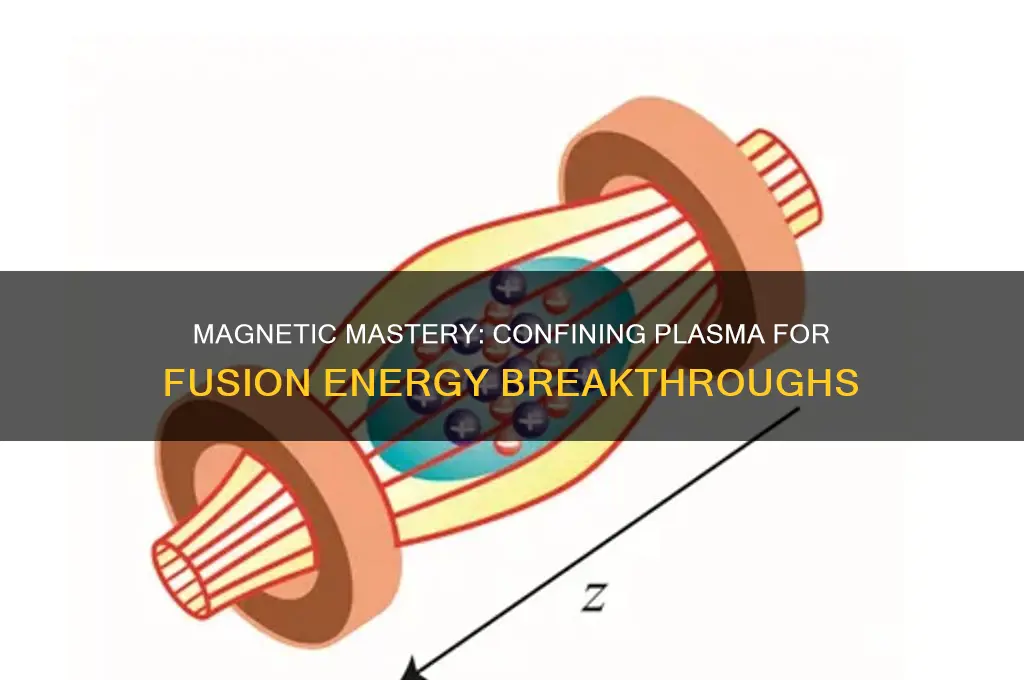

Magnetic Mirrors: Reflecting particles back into the plasma using magnetic fields to prevent escape
Magnetic mirrors exploit the principle that charged particles in a magnetic field follow curved paths, allowing strategic field configurations to reflect particles back into the plasma core. This technique hinges on creating a region where the magnetic field strength increases sharply, causing particles moving towards the edge to reverse direction due to the conservation of magnetic moment. For instance, in a simple mirror machine, the field lines converge at the ends, forming "mirrors" that bounce particles back toward the center. This mechanism prevents particle loss and maintains plasma confinement, a critical requirement for sustaining fusion reactions.
To implement magnetic mirrors effectively, engineers must carefully design the field gradient to ensure particles are reflected before escaping. The mirror ratio, defined as the ratio of the magnetic field strength at the mirror to that at the center, typically needs to exceed a threshold value (around 5–10) for effective confinement. However, achieving high mirror ratios without destabilizing the plasma is challenging. Practical designs often incorporate additional stabilizing techniques, such as end plugs or I-coil configurations, to enhance confinement while minimizing energy losses.
One of the key advantages of magnetic mirrors is their simplicity compared to other confinement methods like tokamaks or stellarators. They require fewer coils and less complex magnetic geometries, making them potentially more cost-effective and easier to construct. However, this simplicity comes with a trade-off: magnetic mirrors historically struggle with end losses, where particles escape through the mirror gaps. Modern research focuses on mitigating these losses through advanced field shaping and the use of tandem mirrors, which employ two mirrors in series to reduce particle leakage.
Despite their challenges, magnetic mirrors remain a promising avenue for plasma confinement, particularly in hybrid fusion systems. For example, the Gas Dynamic Trap (GDT) in Russia combines mirror confinement with a thermal barrier to achieve high plasma densities and temperatures. Such innovations demonstrate that magnetic mirrors, when optimized, can play a vital role in the pursuit of sustainable fusion energy. Researchers and engineers must continue refining mirror designs to balance simplicity with performance, ensuring these systems can contribute meaningfully to future energy solutions.
