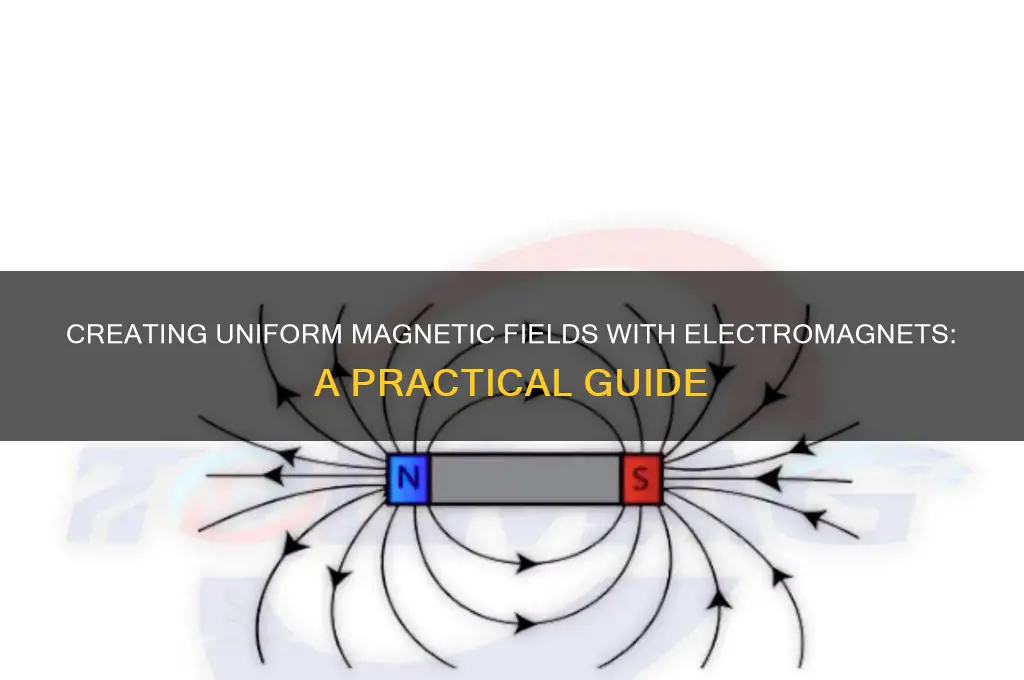

Creating a uniform magnetic field using an electromagnet involves careful design and arrangement of the electromagnetic components. The key is to ensure that the magnetic field lines are consistent and evenly distributed across the desired area. This can be achieved by using a solenoid, which is a coil of wire wound in a helical shape, often around a cylindrical core. When an electric current passes through the solenoid, it generates a magnetic field inside and around the coil. To enhance uniformity, the solenoid should be long compared to its diameter, and the current should be evenly distributed throughout the wire. Additionally, using a ferromagnetic core, such as iron, can significantly strengthen the magnetic field. For even greater uniformity, multiple solenoids or Helmholtz coils, which consist of two identical coils placed symmetrically along a common axis, can be employed. Precise control of the current and careful alignment of the coils are essential to minimize variations in the magnetic field strength, ensuring a highly uniform field suitable for scientific experiments, medical applications, or industrial processes.
| Characteristics | Values |
|---|---|
| Method | Using Helmholtz Coils or Solenoids with specific design parameters. |
| Helmholtz Coil Configuration | Two identical coils placed parallel, separated by a distance equal to their radius. |
| Solenoid Design | Long, tightly wound coil with length much greater than its diameter. |
| Current Requirement | Uniform current distribution through the coils. |
| Field Uniformity Region | Central region between Helmholtz coils or inside the solenoid. |
| Field Strength Formula (Helmholtz) | ( B = \left( \frac{4}{5} \right)^{3/2} \frac{\mu_0 n I}{\sqrt{125}} ), where ( \mu_0 ) is permeability of free space, ( n ) is turns per unit length, and ( I ) is current. |
| Field Strength Formula (Solenoid) | ( B = \mu_0 n I ), where ( \mu_0 ) is permeability of free space, ( n ) is turns per unit length, and ( I ) is current. |
| Uniformity Tolerance | Typically ±1% within the central region for high-precision designs. |
| Applications | Magnetic resonance imaging (MRI), particle accelerators, and scientific experiments. |
| Material Considerations | Low-resistance wire (e.g., copper) for efficient current flow. |
| Power Supply | Stable, regulated DC power supply to maintain constant current. |
| Cooling Mechanism | Required for high-current applications to prevent overheating. |
| Size Scalability | Adjustable based on coil diameter and number of turns. |
Explore related products
What You'll Learn
- Helmholtz Coil Configuration: Two identical coils placed at a specific distance to create a uniform field
- Solenoid Design: Long, tightly wound coil with current to generate a uniform field inside
- Current Optimization: Adjusting current to minimize field variations and ensure uniformity
- Core Material Selection: Using ferromagnetic cores to enhance and stabilize the magnetic field
- Field Mapping Techniques: Measuring and correcting field inhomogeneities for precise uniformity
Helmholtz Coil Configuration: Two identical coils placed at a specific distance to create a uniform field
One of the most effective methods for generating a uniform magnetic field using electromagnets is the Helmholtz coil configuration. This setup involves two identical circular coils positioned parallel to each other, separated by a specific distance equal to the radius of the coils. When an electric current flows through both coils in the same direction, the resulting magnetic fields combine to produce a highly uniform field in the region between the coils. This configuration is widely used in scientific experiments, calibration of magnetic sensors, and medical applications due to its simplicity and precision.
To construct a Helmholtz coil, start by selecting two identical coils with the same radius (R) and number of turns (N). The separation distance (d) between the coils should be precisely equal to the radius (R), ensuring optimal field uniformity. The coils must be aligned perfectly parallel to each other to avoid distortions. The current (I) passing through each coil should be identical and can be calculated using the formula for the magnetic field at the center of a single coil, adjusted for the Helmholtz configuration. Practical tips include using a rigid frame to maintain coil alignment and employing a high-precision power supply to ensure stable current flow.
The uniformity of the magnetic field in a Helmholtz coil is most pronounced along the axis connecting the centers of the two coils, specifically within a region extending from the midpoint between the coils to a distance of approximately 0.2R on either side. Beyond this region, the field begins to deviate significantly from uniformity. For applications requiring a larger uniform area, increasing the coil radius or using multiple layers of wire can improve performance. However, this comes at the cost of increased power consumption and complexity.
A key advantage of the Helmholtz coil configuration is its scalability. Whether you need a small setup for tabletop experiments or a large system for industrial applications, the design principles remain consistent. For instance, a small Helmholtz coil with a radius of 10 cm and 100 turns per coil can produce a uniform field of approximately 1 mT with a current of 1 A. In contrast, larger systems might require currents in the range of 10–100 A, depending on the desired field strength and coil dimensions. Always ensure proper cooling mechanisms for high-current applications to prevent overheating.
Despite its effectiveness, the Helmholtz coil configuration has limitations. Achieving perfect uniformity is theoretically impossible, and practical implementations always exhibit some degree of deviation. Additionally, the field strength decreases rapidly outside the central uniform region, limiting the usable space. For applications requiring extremely high field uniformity over a large area, alternative configurations like the Maxwell coil or active field compensation techniques may be more suitable. Nonetheless, for most laboratory and calibration purposes, the Helmholtz coil remains a reliable and cost-effective solution.
