Measuring the strength of a magnet is a fundamental aspect of understanding its capabilities and applications, whether in scientific research, industrial use, or everyday devices. The strength of a magnet, often referred to as its magnetic field strength, is typically quantified in units such as Tesla (T) or Gauss (G), with 1 T equaling 10,000 G. Various methods can be employed to measure this strength, including the use of a magnetometer, which directly measures the magnetic field, or indirect methods like observing the force exerted on a known mass or the deflection of a compass needle. Additionally, the pull force, which measures the magnet's ability to attract ferromagnetic materials, is another practical way to assess its strength. Understanding these measurement techniques is crucial for selecting the right magnet for specific tasks and ensuring optimal performance in various applications.
| Characteristics | Values |
|---|---|
| Magnetic Field Strength (B) | Measured in Tesla (T) or Gauss (G), where 1 T = 10,000 G. |
| Magnetic Flux Density | Represents the concentration of magnetic field lines, measured in T or G. |
| Pull Force | Measured in Newtons (N) or kilograms-force (kgf), indicates the force a magnet can exert. |
| Residual Magnetism (Br) | Measured in Tesla (T), represents the magnetic induction remaining after magnetization. |
| Coercivity (Hc) | Measured in Oersteds (Oe) or kA/m, indicates resistance to demagnetization. |
| Energy Product (BHmax) | Measured in kJ/m³ or MGOe, represents maximum magnetic energy storage. |
| Permeability (μ) | Measured in Henry per meter (H/m), indicates how easily a material can be magnetized. |
| Reluctance | Measured in Ampere-turns per Weber (AT/Wb), opposes magnetic flux flow. |
| Magnetic Moment | Measured in Ampere-square meters (A·m²), represents the strength and orientation of a magnet. |
| Curie Temperature | Temperature (in °C or K) at which a magnet loses its magnetic properties. |
| Magnetic Hysteresis | Measured by plotting B vs. H, shows energy loss during magnetization cycles. |
| Gaussmeter/Tesla Meter | Instruments used to directly measure magnetic field strength in G or T. |
| Hall Effect Sensor | Measures magnetic field strength by detecting voltage differences in a conductor. |
| Magnetic Force Between Magnets | Calculated using Coulomb’s Law for magnetic poles, measured in Newtons (N). |
| Magnetic Saturation | Maximum magnetic flux density a material can achieve, measured in T or G. |
| Temperature Coefficient | Indicates how magnetic strength changes with temperature, measured in %/°C. |
| Demagnetization Curve | Graphical representation of how a magnet loses strength under external fields. |
Explore related products
What You'll Learn
Magnetic Field Strength (B)
Magnetic field strength, denoted as B, is a fundamental metric for quantifying the intensity of a magnet's influence at a specific point in space. Measured in teslas (T) or gauss (G), where 1 T equals 10,000 G, B represents the force a magnet exerts on moving charges or magnetic materials. For context, the Earth’s magnetic field strength ranges from 25 to 65 microteslas (μT), while a neodymium magnet can produce fields exceeding 1.4 T. Understanding B is crucial for applications like MRI machines, electric motors, and magnetic levitation systems, where precise field strength directly impacts performance.
To measure B, you can use a Hall effect probe, a device that exploits the Hall effect—a voltage difference created when a conductor carrying current is exposed to a magnetic field. By placing the probe near the magnet and recording the output voltage, you can calculate B using the probe’s calibration data. Another method involves search coils, which detect changes in magnetic flux over time. These coils are particularly useful for measuring dynamic magnetic fields, such as those in alternating current (AC) systems. Both tools provide accurate, real-time measurements, but the choice depends on whether you’re analyzing static or changing fields.
A comparative analysis of B reveals its significance across scales. For instance, a refrigerator magnet’s B might be around 0.01 T, sufficient for holding lightweight objects, while a high-field MRI magnet operates at 3 T or higher, enabling detailed imaging of soft tissues. In industrial settings, magnets with B values above 1 T are used in particle accelerators and magnetic separators. This disparity highlights the versatility of B as a metric, adapting to diverse needs from everyday convenience to cutting-edge technology.
Practical tips for measuring B include ensuring the probe or coil is perpendicular to the magnetic field lines for maximum accuracy. Calibrate your instrument regularly, as environmental factors like temperature can affect readings. For hobbyists, affordable Hall effect sensors or smartphone apps with magnetometer functions offer accessible options, though their precision may be limited compared to professional-grade equipment. Always account for external magnetic interference, such as nearby electronics or the Earth’s magnetic field, by taking baseline measurements in the absence of the magnet.
In conclusion, B is more than just a number—it’s a gateway to understanding and harnessing magnetic phenomena. Whether you’re designing a magnetic system or simply curious about a magnet’s power, measuring B provides actionable insights. By selecting the right tools and following best practices, you can accurately quantify magnetic field strength, unlocking possibilities in science, engineering, and beyond.
Can Magnets Trigger Metal Detectors? Unveiling the Magnetic Mystery
You may want to see also
Explore related products
Pull Force Testing Methods
Pull force testing is a direct and practical method to quantify a magnet's strength by measuring the force required to separate it from a ferromagnetic surface or another magnet. This method is widely used in industries such as automotive, electronics, and manufacturing to ensure magnets meet specific performance requirements. The test involves attaching a magnet to a test piece and gradually increasing the force until separation occurs, with the maximum force recorded as the pull strength. This value is typically measured in units like pounds, kilograms, or newtons, depending on the scale used.
To perform a pull force test, you’ll need a force gauge or tensile testing machine equipped with a ferromagnetic test block or a second magnet. The magnet being tested is securely attached to the testing apparatus, ensuring full contact with the surface. The force is applied perpendicular to the surface, and the gauge records the peak force just before separation. For accurate results, the test surface must be clean, flat, and made of a material with high magnetic permeability, such as low-carbon steel. Variations in surface quality or alignment can significantly affect the measured force, so consistency is key.
One critical aspect of pull force testing is understanding its limitations. The measured force depends on factors like the size and shape of the magnet, the material and thickness of the test surface, and the temperature during testing. For example, a neodymium magnet tested on a 1/2-inch thick steel plate at room temperature will yield different results compared to testing on a thinner or non-ferromagnetic surface. Additionally, the force decreases as the gap between the magnet and surface increases, following an inverse square law. This makes standardization essential for meaningful comparisons.
Practical applications of pull force testing include quality control in magnet production, selecting magnets for specific applications, and verifying performance in real-world conditions. For instance, a magnet used in a magnetic latch must have sufficient pull force to hold a door closed under expected loads. Engineers often use pull force data to model magnetic systems, ensuring designs meet functional requirements. When testing, it’s advisable to perform multiple trials to account for variability and report the average value. This method, while straightforward, provides actionable data that directly correlates with a magnet’s effectiveness in practical use.
Can Magnets Attract Silver? Unveiling the Truth Behind the Myth
You may want to see also
Explore related products
Gaussmeter Usage and Accuracy

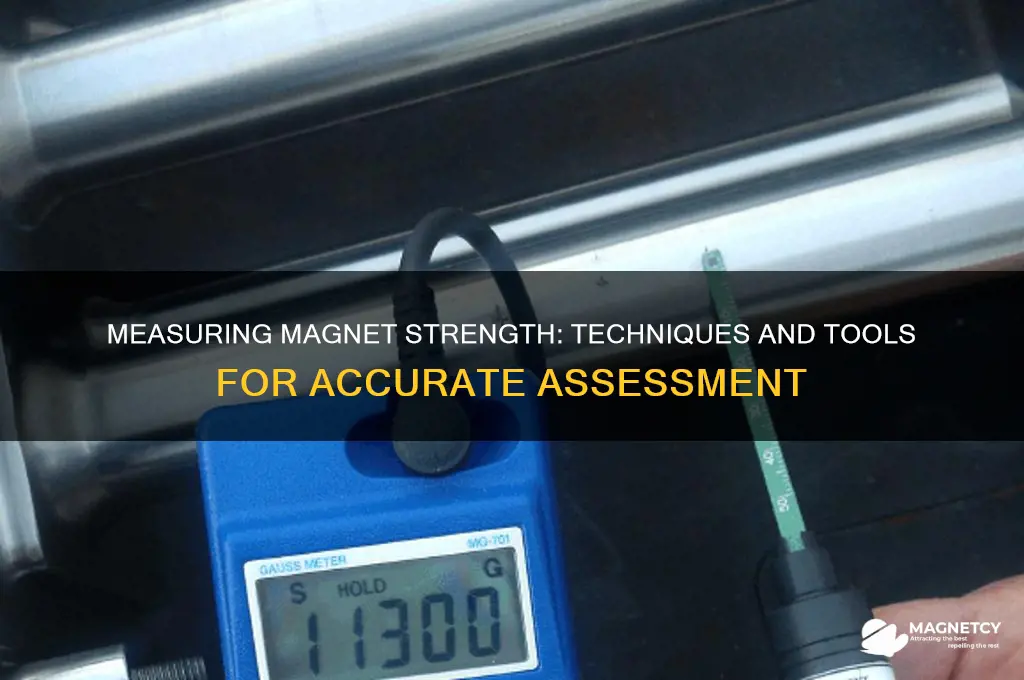

A gaussmeter, also known as a magnetometer, is a device specifically designed to measure the strength of a magnetic field, typically in units of gauss (G) or tesla (T). Its usage is straightforward: place the probe near the magnet, ensure proper alignment with the field lines, and read the displayed value. However, achieving accurate measurements requires attention to detail. For instance, the probe’s position must be consistent, as even slight deviations can skew results. Similarly, environmental factors like nearby metal objects or other magnets can interfere with readings, necessitating a controlled testing environment.
Accuracy in gaussmeter measurements hinges on both the device’s calibration and the user’s technique. High-quality gaussmeters often come with calibration certificates, ensuring they meet industry standards. For example, a device calibrated to ±1% accuracy can reliably measure a 1,000 G field within a 10 G margin of error. Users should recalibrate their gaussmeters periodically, especially if used in demanding applications like medical device testing or industrial quality control. Additionally, selecting the appropriate range setting on the device is critical; measuring a strong magnet on a low-range setting (e.g., 0–200 G) will yield inaccurate results, while using a high-range setting (e.g., 0–20,000 G) for weak magnets reduces resolution.
Comparing gaussmeters to alternative methods, such as the pull-test or using a compass, highlights their superiority in precision. While a compass can indicate the presence of a magnetic field, it cannot quantify its strength. Similarly, the pull-test, which measures the force between two magnets, is highly variable and depends on factors like magnet size and shape. Gaussmeters, in contrast, provide direct, numerical measurements, making them indispensable in scientific and engineering contexts. For example, in designing magnetic resonance imaging (MRI) machines, a gaussmeter ensures the magnetic field strength remains within the required 1.5–3.0 T range for optimal imaging.
Practical tips for maximizing gaussmeter accuracy include testing at room temperature, as extreme heat or cold can affect both the magnet and the device. For surface measurements, ensure the probe is in direct contact with the magnet without applying excessive pressure, which could distort the field. When measuring larger magnets, take multiple readings at different points to account for field inhomogeneity. Finally, always refer to the gaussmeter’s manual for specific instructions, as features and limitations vary by model. By combining proper technique with a calibrated device, users can achieve reliable, repeatable measurements essential for applications ranging from electronics manufacturing to geophysical surveys.
Recycling Magnets: Eco-Friendly Disposal and Reuse Options Explained
You may want to see also
Explore related products
Magnetic Flux Density Measurement
Magnetic flux density, often denoted as B, is a fundamental metric for quantifying the strength of a magnetic field. Unlike magnetic field strength (H), which depends on the material and magnetizing force, B directly measures the magnetic field’s effect on a material or space. It is expressed in teslas (T) or gauss (G), with 1 T equaling 10,000 G. Understanding B is crucial for applications ranging from designing electric motors to optimizing MRI machines, as it reveals how densely magnetic field lines are packed within a given area.
To measure magnetic flux density, one of the most reliable methods involves using a Hall effect probe. This device exploits the Hall effect, where a current-carrying conductor in a magnetic field experiences a voltage perpendicular to both the current and the field. By placing the probe in the magnetic field and measuring the induced voltage, the B value can be calculated. Modern Hall probes are compact, accurate, and can measure fields from fractions of a mT to several T. For instance, a neodymium magnet might produce a B of 1.2 T, while the Earth’s magnetic field measures around 25–65 μT. Calibration is essential, as temperature and external fields can affect readings.
Another approach is the search coil method, which is particularly useful for measuring alternating magnetic fields. A coil of wire is placed in the field, and as the magnetic flux changes, it induces a voltage in the coil. The induced voltage is proportional to the rate of change of B. This method is less direct than the Hall probe but excels in dynamic measurements, such as analyzing the magnetic field of a transformer. However, it requires careful consideration of coil size, number of turns, and frequency response to ensure accuracy.
For practical applications, magnetometers offer a versatile solution. These devices, ranging from handheld units to sophisticated lab instruments, can measure B across various scales. For example, a handheld magnetometer might be used to assess the strength of permanent magnets in industrial settings, while a superconducting quantum interference device (SQUID) magnetometer can detect B values as low as 1 fT, making it ideal for biomedical or geological research. Regardless of the tool, shielding from external magnetic interference and maintaining consistent environmental conditions are critical for precise measurements.
In summary, magnetic flux density measurement is a nuanced process that demands the right tools and techniques. Whether using a Hall probe for static fields, a search coil for dynamic analysis, or a magnetometer for versatility, the goal is to capture B with precision. By understanding these methods and their limitations, engineers, scientists, and hobbyists can effectively quantify magnetic strength, enabling advancements in technology and research.
Magnetizable Metals: Exploring Which Materials Can Be Magnetized
You may want to see also
Explore related products
Comparing Magnet Grades (N35, N52)
Magnet grades like N35 and N52 are shorthand for a magnet's maximum energy product, measured in Mega Gauss Oersteds (MGOe). This value indicates the magnet's strength and performance, with higher numbers denoting stronger magnets. For instance, N52 magnets have a maximum energy product of 52 MGOe, while N35 magnets offer 35 MGOe. This fundamental difference in strength affects their applications, cost, and suitability for specific tasks.
Analyzing Performance Differences
N52 magnets, being the stronger of the two, provide a more powerful magnetic field in the same physical size as an N35 magnet. This makes them ideal for applications requiring compact designs with high performance, such as high-end electric motors, magnetic resonance imaging (MRI) machines, or advanced electronics. However, this strength comes at a cost—literally. N52 magnets are more expensive due to the higher-grade materials and manufacturing precision required. N35 magnets, while less powerful, are more cost-effective and sufficient for applications like simple magnetic closures, crafting, or basic industrial uses where extreme strength isn't necessary.
Practical Considerations for Selection
When choosing between N35 and N52, consider the application's requirements. For projects where size constraints are critical, N52’s higher strength allows for smaller magnets without sacrificing performance. For example, a small N52 magnet can replace a larger N35 magnet in a compact device, saving space. Conversely, if budget is a priority and the application doesn’t demand maximum strength, N35 is a more economical choice. Additionally, N35 magnets are easier to handle due to their lower brittleness compared to N52, which can chip or crack under stress.
Measuring Strength in Real-World Scenarios
To compare these grades directly, use a gaussmeter to measure the surface field strength. For instance, a 1-inch diameter N52 magnet might register around 6,000 gauss, while an N35 magnet of the same size could measure around 4,000 gauss. This difference highlights N52’s superior strength but also underscores why it’s overkill for simpler tasks. Another method is the pull force test, where N52 magnets will exhibit significantly higher resistance to separation from a steel surface compared to N35 magnets of identical dimensions.
Takeaway: Balancing Strength and Practicality
While N52 magnets offer unparalleled strength for specialized applications, N35 magnets provide a practical, cost-effective solution for everyday uses. The choice depends on the specific demands of your project—whether it’s maximizing performance in a tight space or minimizing costs without compromising functionality. Understanding these grades allows you to make informed decisions, ensuring the magnet’s strength aligns with your needs without overspending or underperforming.
Can Magnets Drain Batteries? Unraveling the Myth and Science
You may want to see also
Frequently asked questions
The most common unit is the Tesla (T), which measures magnetic flux density. Smaller magnets are often measured in Gauss (G), where 1 T = 10,000 G.
You can use a magnetometer or a gaussmeter, which are handheld devices designed to measure magnetic field strength. Some smartphones also have magnetometer apps that can provide basic measurements.
The strength of a magnet depends on its material, size, shape, and temperature. Stronger materials like neodymium produce more powerful magnets, while higher temperatures can reduce magnetic strength.
Yes, you can perform qualitative tests, such as lifting ferromagnetic objects (e.g., paperclips or nails) to compare relative strength. However, this method does not provide precise measurements.
The strength of a magnet decreases with distance from its source. The magnetic field follows an inverse square law, meaning it weakens rapidly as you move away from the magnet. Measurements should be taken at a consistent distance for accuracy.
