Magnetic chucks are essential tools in machining and metalworking, designed to securely hold workpieces in place during operations such as drilling, milling, or grinding. They function by utilizing a strong magnetic field to clamp the workpiece onto a flat surface. This magnetic field is typically generated by a series of permanent magnets or electromagnets arranged in a specific pattern within the chuck. When the magnetic field is activated, it creates a powerful attraction that holds the metal workpiece firmly against the chuck's surface, ensuring stability and precision during machining processes. The ability to quickly and easily secure and release workpieces makes magnetic chucks highly efficient and versatile in various industrial applications.
| Characteristics | Values |
|---|---|
| Principle of Operation | Magnetic chucks work by using a strong magnetic field to hold ferrous materials in place. |
| Components | They typically consist of a base, a chuck body, and one or more magnetic poles. |
| Magnetic Field Source | The magnetic field is usually generated by permanent magnets or electromagnets. |
| Holding Force | The holding force can vary widely, from a few pounds to several tons, depending on the size and strength of the chuck. |
| Applications | Magnetic chucks are commonly used in machining, welding, and assembly operations to securely hold metal parts. |
| Advantages | They offer quick and easy setup, strong holding power, and the ability to hold irregularly shaped parts. |
| Limitations | They are only effective with ferrous materials and can be sensitive to temperature changes and magnetic interference. |
| Maintenance | Regular cleaning and inspection are necessary to ensure optimal performance and longevity. |
| Safety Considerations | Operators should be cautious of the strong magnetic fields and potential for flying metal debris when using magnetic chucks. |
| Cost | The cost of magnetic chucks can range from relatively inexpensive for small, manual models to quite costly for large, automated systems. |
| Efficiency | Magnetic chucks can significantly improve efficiency in manufacturing processes by reducing setup time and increasing part throughput. |
| Precision | They can provide high precision in holding parts, which is critical for many machining and assembly applications. |
| Versatility | Magnetic chucks are available in various sizes and configurations to suit different applications and part sizes. |
| Environmental Impact | The use of magnetic chucks can reduce the need for chemical adhesives and other holding methods, potentially lowering environmental impact. |
| Innovations | Recent innovations include the development of more powerful magnets and automated systems for improved performance and ease of use. |
Explore related products
What You'll Learn
- Magnetic Chuck Basics: Understand the fundamental components and working principle of magnetic chucks
- Types of Magnetic Chucks: Explore various types, such as permanent magnet and electromagnet chucks
- Applications in Machining: Discover how magnetic chucks are used in different machining operations
- Advantages and Limitations: Evaluate the benefits and drawbacks of using magnetic chucks in industrial settings
- Maintenance and Troubleshooting: Learn essential tips for maintaining magnetic chucks and solving common issues

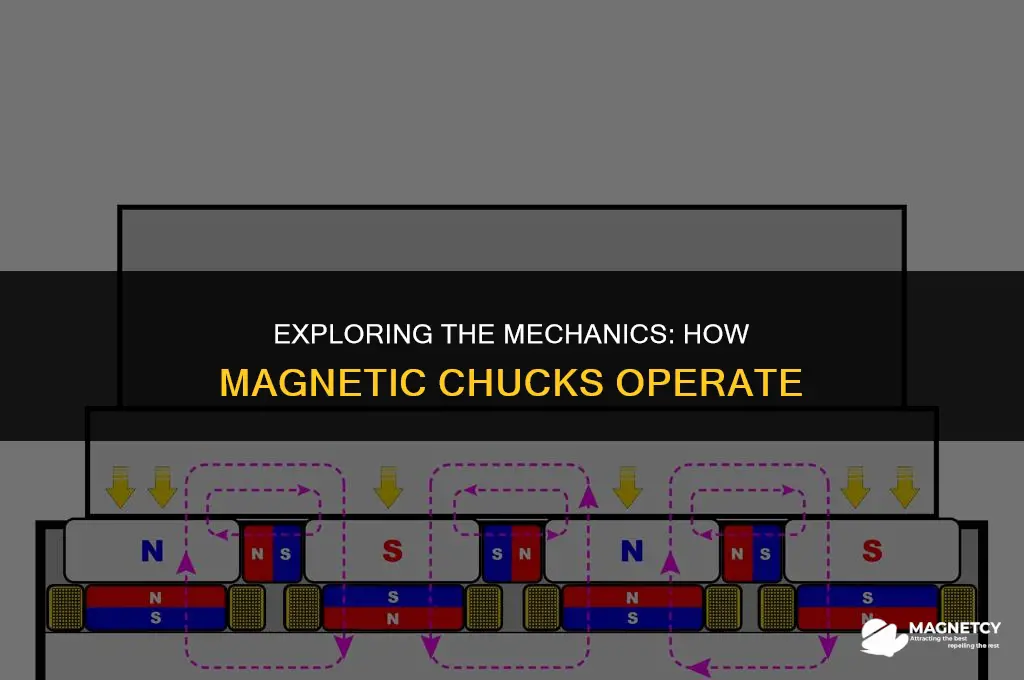

Magnetic Chuck Basics: Understand the fundamental components and working principle of magnetic chucks
Magnetic chucks are essential tools in machining and metalworking, providing a secure and efficient way to hold workpieces in place. At the heart of a magnetic chuck is the magnet itself, which can be either a permanent magnet or an electromagnet. Permanent magnets are typically made from materials like neodymium, samarium-cobalt, or ferrite, and they retain their magnetic properties without the need for an external power source. Electromagnets, on the other hand, require an electrical current to generate a magnetic field and can be turned on and off as needed.
The working principle of a magnetic chuck involves creating a strong magnetic field that attracts and holds the workpiece in place. In the case of an electromagnet, when an electrical current is passed through the coil, it generates a magnetic field that permeates the chuck's body. This field then attracts the workpiece, which is typically made of a ferrous metal like steel or iron. The strength of the magnetic field can be adjusted by varying the current, allowing for precise control over the holding force.
One of the key components of a magnetic chuck is the chuck body, which is designed to house the magnet and provide a stable base for the workpiece. The chuck body is often made from a non-ferrous metal like aluminum or copper, which helps to minimize interference with the magnetic field. The surface of the chuck body that contacts the workpiece is usually flat and smooth, ensuring a secure and even grip.
Another important component is the actuator, which is used to engage and disengage the magnetic field. In the case of an electromagnet, the actuator is typically a switch or relay that controls the flow of electrical current. For permanent magnets, the actuator may be a mechanical device that moves the magnet into and out of contact with the workpiece.
Magnetic chucks come in a variety of shapes and sizes, each designed for specific applications. Some common types include round magnetic chucks, rectangular magnetic chucks, and V-shaped magnetic chucks. The choice of chuck depends on factors like the size and shape of the workpiece, the required holding force, and the type of machining operation being performed.
In summary, magnetic chucks are versatile and efficient tools that use magnetic fields to securely hold workpieces in place. They consist of a magnet, a chuck body, and an actuator, and are available in a range of sizes and shapes to suit different applications. Understanding the fundamental components and working principle of magnetic chucks is essential for anyone involved in machining or metalworking.
