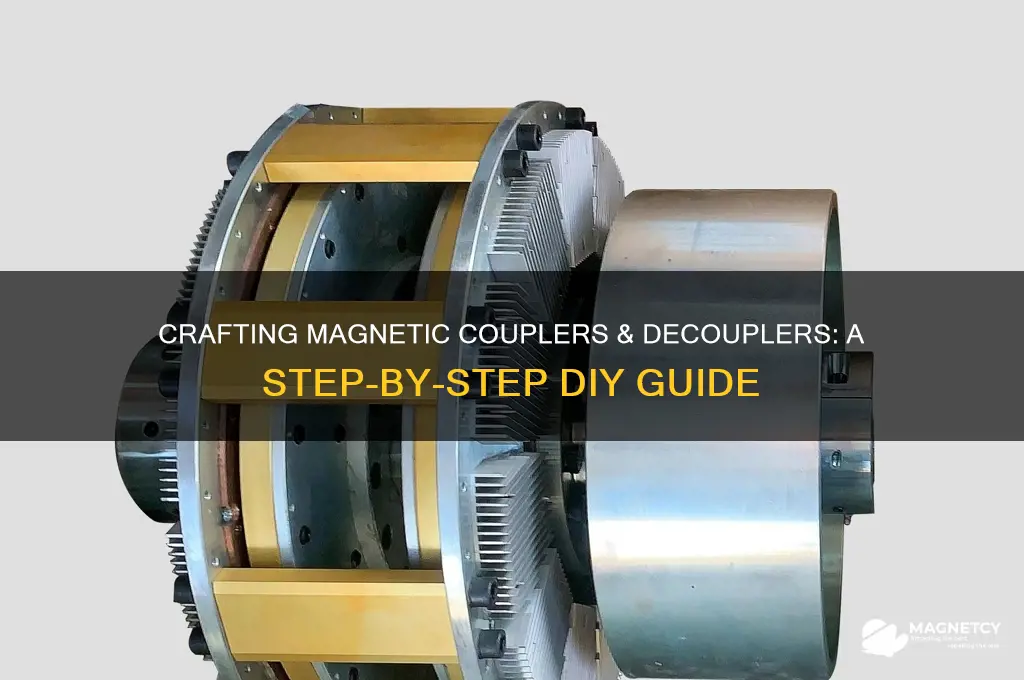

A magnetic coupler and decoupler are essential components in various applications, such as fluid systems, rotary devices, and torque transmission, where non-contact power or motion transfer is required. To create a magnetic coupler, you typically use two sets of magnets or magnetic materials arranged in a way that allows them to transmit torque or motion without physical contact, often separated by a barrier like a wall or fluid. The magnets are positioned with opposite poles facing each other to ensure attraction or repulsion, enabling efficient energy transfer. A magnetic decoupler, on the other hand, is designed to separate or disconnect the magnetic interaction when needed, often by introducing a non-magnetic material or adjusting the alignment of the magnets. Understanding the principles of magnetism, material selection, and precise alignment is crucial for designing and using these devices effectively in applications like pumps, mixers, or rotary systems.
| Characteristics | Values |
|---|---|
| Purpose | To transmit torque or motion between two rotating shafts without physical contact, using magnetic fields. |
| Components | Two rotors (driver and driven) made of permanent magnets or magnetizable materials, separated by a non-magnetic gap. |
| Working Principle | Magnetic attraction and repulsion between the rotors transfer torque across the gap. |
| Coupling Types | Permanent Magnet Coupler: Uses permanent magnets in both rotors. Electromagnetic Coupler: Uses electromagnets, allowing for adjustable coupling strength. |
| Decoupling Mechanism | Sliding/Axial Movement: Physically separating the rotors along the shaft axis. < Rotational Misalignment: Rotating one rotor relative to the other to disrupt magnetic alignment. Magnetic Shielding: Introducing a magnetic shield between the rotors. |
| Advantages | No wear and tear due to contactless operation, overload protection, vibration damping, easy maintenance. |
| Disadvantages | Lower efficiency compared to mechanical couplings, limited torque capacity, sensitivity to temperature and magnetic interference. |
| Applications | Pumps, mixers, agitators, conveyor systems, medical devices, robotics, where contactless torque transmission is required. |
| Design Considerations | Magnet strength and arrangement, gap size, rotor material, operating speed, torque requirements, environmental conditions. |
| Materials | Permanent magnets (Neodymium, Samarium-Cobalt), magnetizable materials (Iron, Steel), non-magnetic spacers (Aluminum, Plastic). |
Explore related products
What You'll Learn
- Materials Needed: Ferrite cores, insulated copper wire, soldering tools, connectors, and a power source
- Winding Coils: Wrap wire around cores precisely, ensuring consistent turns for efficient coupling
- Assembly Steps: Connect coils, secure cores, and insulate to prevent short circuits
- Testing Coupling: Measure inductance, verify signal transfer, and adjust turns for optimal performance
- Decoupling Mechanism: Add switches or relays to disconnect coils when decoupling is required
Materials Needed: Ferrite cores, insulated copper wire, soldering tools, connectors, and a power source
Ferrite cores serve as the backbone of any magnetic coupler or decoupler, providing the necessary magnetic permeability to enhance inductive coupling. These cores, typically toroidal or cylindrical in shape, are made from a ceramic compound mixed with iron oxide, optimized for high-frequency applications. When selecting a ferrite core, consider its size, shape, and material grade, as these factors directly influence the efficiency of energy transfer. For instance, a smaller core may suffice for low-power applications, while larger cores are essential for high-power systems. Always ensure the core’s frequency range aligns with your project’s operating frequency to avoid signal loss or distortion.
Insulated copper wire is the lifeblood of your magnetic coupler or decoupler, forming the coils that generate the magnetic field. The gauge of the wire determines the number of turns you can achieve around the ferrite core, which in turn affects inductance. For most DIY projects, 22 to 28 AWG (American Wire Gauge) wire is ideal, striking a balance between flexibility and conductivity. Insulation is critical to prevent short circuits, especially when winding tight coils. Use enamel-coated wire for added durability, and ensure the insulation can withstand the temperature of your soldering iron during assembly.
Soldering tools are indispensable for creating secure, low-resistance connections between the wire coils and connectors. A temperature-controlled soldering iron (set between 300°C and 350°C) ensures clean joints without damaging the wire insulation. Flux-core solder is recommended to improve adhesion and reduce oxidation. When soldering, apply heat to the connector or terminal, not the wire directly, to avoid melting the insulation. Practice on scrap wire to perfect your technique before working on your final assembly.
Connectors act as the interface between your magnetic coupler or decoupler and the external circuit, ensuring reliable signal or power transmission. Choose connectors that match the current and voltage requirements of your project—for example, RCA connectors for audio applications or screw terminals for high-power systems. Ensure the connectors are rated for the environmental conditions (e.g., temperature, humidity) in which your device will operate. Properly securing the wire to the connector with solder and heat shrink tubing prevents mechanical stress from causing failures over time.
A power source completes the setup, providing the energy needed to drive the magnetic field. Whether it’s a battery, AC adapter, or signal generator, ensure the voltage and current ratings align with your design. For safety, incorporate a fuse or current-limiting resistor to protect against overloads. If working with AC power, verify the polarity and phase compatibility of your components. Always test your power source under load conditions to confirm stability and efficiency before integrating it into your magnetic coupler or decoupler system.
Magnetic Marvels: How Shinkansen Leverages Magnets for Speed and Efficiency
You may want to see also
Explore related products
Winding Coils: Wrap wire around cores precisely, ensuring consistent turns for efficient coupling
The precision of coil winding is a critical factor in the performance of magnetic couplers and decouplers. Each turn of wire around the core contributes to the overall magnetic field strength and uniformity. Inconsistent turns can lead to energy loss, reduced efficiency, and even failure of the device. To achieve optimal results, start by selecting a wire gauge suitable for your application—typically 24 to 30 AWG for small-scale projects. Use a mandrel or jig to maintain consistent spacing and tension as you wind the wire, ensuring each layer adheres tightly to the core without overlapping or gaps. Aim for a uniform number of turns per layer, as this directly impacts the inductance and coupling efficiency.
Consider the core material when winding coils, as it influences the magnetic permeability and overall performance. Ferrite cores, for example, are ideal for high-frequency applications due to their low conductivity and high permeability. Laminated iron cores, on the other hand, are better suited for low-frequency applications but require careful insulation between layers to prevent eddy currents. Regardless of the core type, ensure the wire is insulated to avoid short circuits. Enamel-coated magnet wire is a popular choice, but additional insulation, such as tape or varnish, may be necessary for high-voltage applications.
A practical tip for achieving consistent turns is to use a coil-winding machine, especially for projects requiring hundreds or thousands of turns. For DIY enthusiasts, a handheld jig with a tensioning mechanism can suffice. Begin by securing one end of the wire to the core and gradually wind it in a tight, orderly pattern. Count the turns as you go, or mark layers with a non-conductive marker to maintain accuracy. After winding, inspect the coil for defects such as loose turns or damaged insulation, as these can compromise performance.
Analyzing the relationship between coil geometry and coupling efficiency reveals that the number of turns, wire gauge, and core dimensions must be carefully balanced. For instance, increasing the number of turns enhances inductance but also increases resistance, which can lead to energy dissipation. Similarly, a smaller wire gauge allows for more turns in a given space but increases resistance. Use online calculators or software tools to determine the optimal parameters for your specific application, ensuring the coil meets the required inductance and frequency response.
In conclusion, winding coils with precision is an art that combines technical knowledge with meticulous execution. By selecting the right materials, using appropriate tools, and adhering to best practices, you can create magnetic couplers and decouplers that operate efficiently and reliably. Whether for a hobby project or professional application, the consistency of your coil winding will directly impact the device’s performance, making it a skill worth mastering.
Do Police Use EMP Devices? Exploring Law Enforcement Technology
You may want to see also
Explore related products
Assembly Steps: Connect coils, secure cores, and insulate to prevent short circuits
Connecting the coils is the first critical step in assembling a magnetic coupler or decoupler. Begin by selecting the appropriate gauge of wire for your application, typically enamelled copper wire, and winding it into coils around a non-magnetic form. For a coupler, ensure the coils are wound in the same direction to enhance magnetic coupling. For a decoupler, consider winding them in opposite directions to minimize interaction. Use a coil winder or manual technique to achieve consistent turns, aiming for 100 to 500 turns per coil depending on the desired magnetic field strength. Solder the coil ends securely, ensuring no loose wires that could cause short circuits.
Securing the cores is next, and this step demands precision. Choose ferrite or iron cores based on your frequency requirements—ferrite for high-frequency applications and iron for low-frequency or high-power scenarios. Slide the wound coils onto the cores, ensuring they fit snugly without gaps. Use epoxy or high-temperature adhesive to fix the coils in place, applying a thin, even layer to avoid excess material that could interfere with magnetic flux. Allow the adhesive to cure fully, following manufacturer guidelines, typically 24 hours at room temperature. For added stability, consider using heat-shrink tubing to encapsulate the coil and core assembly.
Insulation is the final, non-negotiable step to prevent short circuits. Coat the entire coil assembly with a layer of electrical insulation tape or apply a conformal coating spray, ensuring all exposed wire and solder joints are covered. For high-voltage applications, use multiple layers of insulation or a thicker insulating material like silicone rubber. Test the assembly with a multimeter to confirm no continuity exists between the coil windings and the core. If using a decoupler, repeat the insulation process for both coils, ensuring they are electrically isolated from each other and the environment.
A practical tip: When working with high-power systems, incorporate a thermal management solution, such as a heat sink or thermal paste, to dissipate heat generated by the coils. Overheating can degrade insulation and reduce efficiency. For couplers in rotating systems, ensure the assembly is balanced to prevent vibration, which can lead to mechanical failure. Always follow safety protocols, such as wearing gloves and safety glasses, when handling adhesives or soldering. With these steps meticulously executed, your magnetic coupler or decoupler will function reliably, efficiently transferring or isolating magnetic fields as intended.
Magnetic Locks on Glass Doors: Installation, Benefits, and Compatibility Guide
You may want to see also
Explore related products
Testing Coupling: Measure inductance, verify signal transfer, and adjust turns for optimal performance
Magnetic couplers and decouplers rely on precise inductance values for efficient energy transfer, making measurement a critical first step in testing coupling. Use an LCR meter or bridge circuit to quantify the inductance of both primary and secondary coils. Aim for a target inductance range, typically between 10 μH and 1 mH, depending on your application. Discrepancies between measured and expected values indicate issues like inconsistent wire spacing, misaligned cores, or incorrect coil dimensions. Document these readings for baseline comparison during adjustments.
Signal transfer verification ensures the coupler effectively transmits power or data. Inject a known frequency (e.g., 1 MHz for high-frequency applications) into the primary coil and measure the output voltage or current on the secondary side. A signal analyzer or oscilloscope can quantify amplitude, phase shift, and distortion. For optimal performance, the secondary signal should retain at least 70-80% of the primary’s amplitude with minimal phase deviation. If the signal degrades significantly, inspect for core saturation, air gaps, or insufficient coupling coefficient.
Adjusting the number of turns in either coil is a practical method to fine-tune performance. Increasing turns raises inductance and strengthens coupling but may introduce losses due to increased resistance. Decreasing turns reduces inductance, improving efficiency at the cost of weaker coupling. Experiment in increments of 5-10 turns, retesting inductance and signal transfer after each adjustment. For example, a 20-turn primary coil paired with a 40-turn secondary might yield better results than a 1:1 ratio, depending on the load and frequency.
Practical tips include maintaining consistent wire tension during winding to avoid uneven turns and using a non-conductive bobbin to prevent short circuits. For decouplers, ensure the secondary coil is shielded to minimize unwanted electromagnetic interference. Always operate within the core material’s saturation limits, typically below 0.5 Tesla for ferrite cores. Regularly recalibrate your testing equipment to ensure accuracy, and log all adjustments for future reference. This iterative process of measurement, verification, and adjustment ensures your magnetic coupler or decoupler meets performance requirements reliably.
Levitating Objects with Magnetism: Exploring the Science Behind the Magic
You may want to see also
Explore related products
Decoupling Mechanism: Add switches or relays to disconnect coils when decoupling is required
Magnetic couplers and decouplers are essential in systems where non-contact torque transmission or signal isolation is required. However, the ability to decouple on demand is equally critical for applications like precision machinery, medical devices, or robotics. One effective method to achieve this is by integrating switches or relays into the system to disconnect the coils when decoupling is necessary. This approach ensures immediate and reliable separation without physical contact, preserving the integrity of the system while maintaining control over the coupling process.
Steps to Implement a Decoupling Mechanism Using Switches or Relays:
- Identify Coil Configuration: Determine the number and arrangement of coils in your magnetic coupler. Typically, a pair of coils (one on the driver side and one on the follower side) generates the magnetic field for coupling.
- Select Switch or Relay Type: Choose between mechanical relays or solid-state switches based on your system’s requirements. Relays are robust and handle higher currents, while solid-state switches offer faster response times and longer lifespans.
- Integrate Switches into the Circuit: Connect the switches or relays in series with the power supply to each coil. Ensure the switches are rated to handle the current and voltage of your system.
- Control Mechanism: Use a microcontroller, PLC, or manual switch to activate the decoupling mechanism. When triggered, the switches disconnect power to the coils, collapsing the magnetic field and decoupling the system.
Cautions and Considerations:
- Power Dissipation: Ensure the switches or relays can handle the power dissipation of your coils to avoid overheating or damage.
- Response Time: Test the decoupling speed to ensure it meets your application’s requirements. Relays may introduce slight delays due to mechanical operation.
- Electromagnetic Interference (EMI): Use EMI suppression components like snubber circuits if the switching causes interference in sensitive systems.
Practical Example:
In a medical infusion pump, a magnetic coupler drives the fluid delivery mechanism. To stop the pump instantly in case of an emergency, a relay-based decoupling mechanism is employed. When activated, the relay disconnects power to the coils, immediately halting the magnetic coupling and stopping fluid delivery. This ensures patient safety without mechanical wear or physical contact.
Adding switches or relays to disconnect coils is a straightforward yet powerful method for achieving on-demand decoupling in magnetic systems. By carefully selecting components and integrating them into your circuit, you can enhance system control, safety, and reliability. This approach is particularly valuable in applications where precision, responsiveness, and non-contact operation are paramount.
Magnets' Essential Role: Enhancing Technology, Health, and Daily Human Life
You may want to see also
Frequently asked questions
A magnetic coupler and decoupler is a non-contact mechanism that transfers torque or motion between two components using magnetic fields. The coupler connects two rotating shafts without physical contact, while the decoupler allows for controlled separation or disengagement. It works by aligning magnets with opposite poles to create attraction or repulsion, enabling smooth power transmission or disconnection.
To build a magnetic coupler and decoupler, you’ll need strong permanent magnets (e.g., neodymium), a non-magnetic housing material (e.g., plastic or aluminum), and two rotating components (e.g., shafts or disks). Additional materials include bearings for smooth rotation and a spacer to maintain the air gap between the magnets.
Assemble by placing magnets on each rotating component, ensuring opposite poles face each other to create attraction. Enclose the magnets in a non-magnetic housing to maintain alignment and protect them. Ensure the air gap between the magnets is consistent for optimal performance. Test the setup to verify smooth torque transmission and decoupling.
Magnetic couplers and decouplers are used in applications requiring hermetic sealing, such as pumps, mixers, and agitators, to prevent fluid leakage. They are also used in precision machinery, robotics, and medical devices where non-contact torque transmission is essential. Decouplers are useful in systems requiring controlled disengagement, like safety mechanisms or modular designs.
