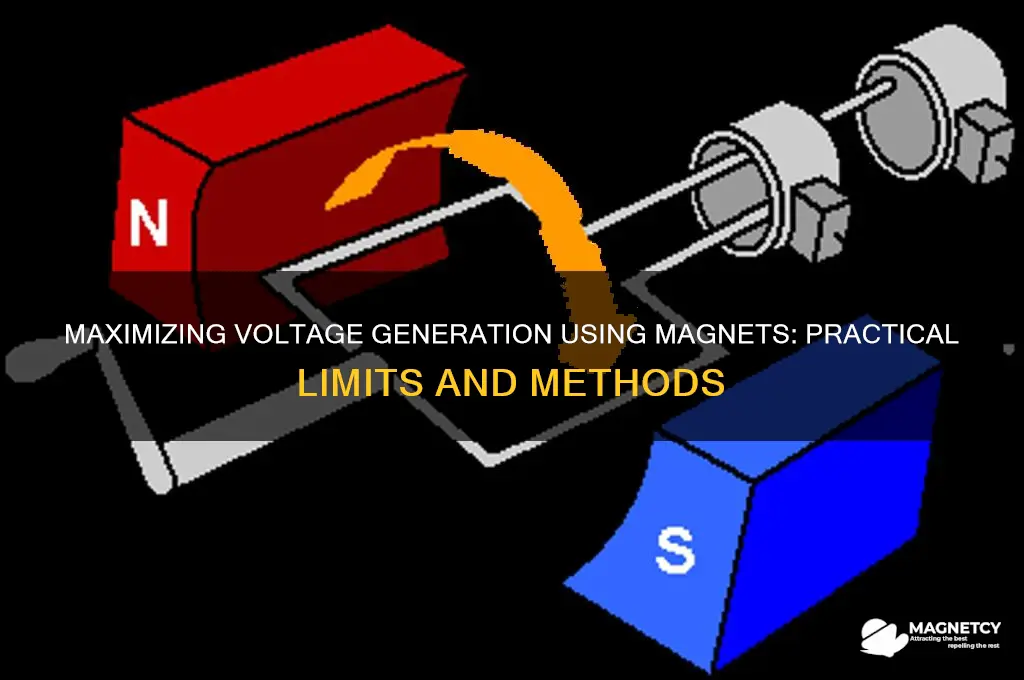

The concept of generating voltage using magnets is rooted in the principles of electromagnetic induction, as described by Faraday's law. By moving a magnet near a coil of wire or vice versa, a change in magnetic flux induces an electromotive force (EMF), producing voltage. The amount of voltage generated depends on factors such as the strength of the magnet, the speed of movement, the number of coil turns, and the coil's design. While simple setups can yield low voltages (e.g., a few millivolts), more complex systems, like those in generators, can produce higher voltages (e.g., several volts or more). However, practical applications often require additional components like transformers or rectifiers to increase and stabilize the output. Understanding these factors is key to harnessing magnetism for electrical energy generation.
| Characteristics | Values |
|---|---|
| Maximum Voltage from Magnets | Typically a few millivolts (mV) to a few volts (V) |
| Method | Electromagnetic induction (moving magnets near coils of wire) |
| Factors Affecting Voltage | - Speed of magnet movement - Strength of magnet - Number of coil turns - Coil material |
| Practical Applications | Small-scale energy harvesting, educational experiments, low-power devices |
| Theoretical Limit | Depends on the magnetic field strength and system efficiency |
| Common Setup | Neodymium magnets and copper wire coils |
| Efficiency | Generally low due to energy losses in movement and resistance |
| Power Output | Typically in the range of milliwatts (mW) to a few watts (W) |
| Feasibility for Large-Scale Use | Not practical for significant power generation due to low efficiency |
| Example Voltage Range | 0.1 mV to 10 V (depending on setup and conditions) |
Explore related products
What You'll Learn
- Magnet Strength and Voltage: Stronger magnets generate higher voltage due to increased magnetic flux density
- Coil Configuration: More coil turns or larger coils enhance voltage output from magnetic induction
- Speed of Motion: Faster movement of magnets through coils increases generated voltage
- Core Material: Ferromagnetic cores amplify voltage by concentrating magnetic field lines
- Load Resistance: Voltage drops under load; higher resistance yields higher open-circuit voltage
Magnet Strength and Voltage: Stronger magnets generate higher voltage due to increased magnetic flux density
The relationship between magnet strength and voltage is rooted in the principle of magnetic flux density. When a magnet moves relative to a conductor, such as a coil of wire, it induces an electromotive force (EMF) according to Faraday’s law of electromagnetic induction. Stronger magnets, characterized by higher magnetic flux density (measured in teslas, T), produce a greater change in magnetic field, resulting in higher induced voltage. For instance, a neodymium magnet with a flux density of 1.2 T will generate significantly more voltage than a ceramic magnet with 0.5 T when used in the same setup. This direct correlation means that upgrading to a stronger magnet is a straightforward way to increase voltage output in magnet-based generators.
To harness this principle effectively, consider the practical steps involved in building a magnet-based voltage generator. Start by selecting a high-strength magnet, such as a neodymium or samarium-cobalt type, and pair it with a coil of copper wire with a high number of turns (e.g., 100–500 turns). The voltage generated can be calculated using the formula *V = N * (ΔΦ / Δt)*, where *V* is the voltage, *N* is the number of coil turns, and *ΔΦ / Δt* is the rate of change of magnetic flux. For example, rotating a 1.2 T neodymium magnet through a coil at 100 revolutions per minute (RPM) could yield 1–5 volts, depending on coil design. However, caution is necessary: stronger magnets require careful handling to avoid injury and can demagnetize at high temperatures (above 80°C for neodymium).
From a comparative perspective, weaker magnets like ferrite (0.3–0.4 T) are less expensive but produce lower voltage, making them suitable for low-power applications like small LED lights. In contrast, high-strength magnets are ideal for more demanding projects, such as charging batteries or powering small motors. For instance, a DIY wind turbine using a 1.4 T neodymium magnet and a 200-turn coil can generate up to 12 volts in moderate wind conditions. This highlights the trade-off between cost and performance: stronger magnets deliver higher voltage but come at a premium.
Finally, the takeaway is clear: if your goal is to maximize voltage using magnets, prioritize magnetic flux density. Experiment with different magnet types and coil configurations to optimize output, but always balance strength with practicality. For hobbyists, a mid-range neodymium magnet (1.0–1.2 T) paired with a well-designed coil offers a cost-effective solution for generating usable voltage. For advanced applications, such as regenerative braking systems in vehicles, high-strength magnets are indispensable, demonstrating their versatility across scales. Understanding this relationship empowers you to tailor magnet-based projects to specific voltage requirements efficiently.
Magnetic Marvels: How Birds Navigate Earth's Invisible Migration Paths
You may want to see also
Explore related products
Coil Configuration: More coil turns or larger coils enhance voltage output from magnetic induction
The voltage generated through magnetic induction is directly influenced by coil configuration. Increasing the number of turns in a coil or enlarging its diameter amplifies the magnetic flux linkage, resulting in higher voltage output. This principle, rooted in Faraday’s law of electromagnetic induction, is fundamental to optimizing energy harvesting from magnets. For instance, a coil with 100 turns will produce significantly more voltage than one with 50 turns when exposed to the same magnetic field change.
To maximize voltage, consider the trade-offs between coil turns and size. Adding more turns increases resistance, which can reduce current flow and overall efficiency if not managed properly. Conversely, larger coils capture more magnetic flux but require more material and space. Practical applications, such as in generators or transformers, often balance these factors by using high-turn, compact coils for voltage and larger, fewer-turn coils for current. Experimenting with wire gauge and core materials can further refine performance, ensuring the coil configuration aligns with the desired voltage output.
A step-by-step approach to enhancing voltage through coil configuration begins with selecting the appropriate wire gauge—thinner wire allows for more turns but increases resistance. Next, calculate the optimal number of turns based on the magnetic field strength and desired voltage, using the formula *V = N * (ΔΦ/Δt)*, where *V* is voltage, *N* is the number of turns, and *ΔΦ/Δt* is the rate of magnetic flux change. Finally, ensure the coil diameter is sufficient to encompass the magnetic field effectively without unnecessary material waste.
Caution must be exercised when scaling up coil configurations. Overloading a coil with excessive turns or size can lead to overheating or mechanical instability. For example, a coil with 500 turns using 30 AWG wire may generate high voltage but could burn out under prolonged use due to increased resistance. Similarly, oversized coils in small devices can introduce inefficiencies by capturing irrelevant magnetic fields. Always test configurations incrementally, monitoring temperature and output to ensure sustainability and safety.
In conclusion, optimizing coil configuration for voltage output requires a strategic balance between turns, size, and material properties. Whether building a DIY generator or refining industrial equipment, understanding these dynamics allows for precise control over voltage generation. By applying analytical calculations, practical experimentation, and cautious scaling, one can harness the full potential of magnetic induction to achieve desired voltage levels efficiently.
Magnetic Charging Without MagSafe Case: Compatibility and Alternatives Explained
You may want to see also
Explore related products
](https://m.media-amazon.com/images/I/61rrMMcrQZL._AC_UY218_.jpg)
Speed of Motion: Faster movement of magnets through coils increases generated voltage
The speed at which a magnet moves through a coil directly influences the voltage generated, a principle rooted in Faraday's law of electromagnetic induction. This law states that the electromotive force (EMF) induced in a coil is proportional to the rate of change of magnetic flux. In simpler terms, the faster the magnet moves, the greater the change in magnetic flux per unit time, resulting in higher voltage output. This relationship is linear, meaning doubling the speed of the magnet will double the induced voltage, assuming all other factors remain constant.
To harness this effect effectively, consider practical scenarios where speed can be controlled. For instance, in a hand-cranked generator, increasing the rotation speed from 60 revolutions per minute (RPM) to 120 RPM can significantly boost voltage output. Similarly, in a linear generator where a magnet slides through a coil, accelerating the magnet from 0.5 meters per second to 1 meter per second can yield a noticeable increase in voltage. However, it’s crucial to balance speed with mechanical limitations, as excessive velocity can lead to friction, heat, or wear that may damage the system.
While increasing speed is a straightforward way to boost voltage, it’s not the only factor to consider. The number of coil turns, the strength of the magnet, and the orientation of motion also play critical roles. For example, a magnet moving at 2 meters per second through a coil with 100 turns will generate more voltage than the same magnet moving at the same speed through a coil with 50 turns. Combining higher speed with optimized coil design and magnet strength can maximize voltage output efficiently.
In real-world applications, such as bicycle dynamos or portable generators, controlling the speed of motion is key to achieving desired voltage levels. For a bicycle dynamo, riding at 20 km/h might produce 6 volts, while increasing speed to 30 km/h could raise the output to 9 volts. Similarly, in a portable wind turbine, adjusting the blade pitch to capture higher wind speeds can directly translate to increased rotational speed of the magnets, thereby generating higher voltage. Practical tips include using lightweight materials to reduce inertia and employing bearings to minimize friction, allowing for smoother and faster motion.
Ultimately, the speed of motion is a powerful lever for controlling voltage generation in magnetic systems. By understanding and manipulating this variable, users can tailor voltage output to specific needs, whether for charging devices, powering lights, or driving small motors. However, it’s essential to pair speed adjustments with careful consideration of system durability and efficiency to ensure long-term reliability.
Magnetic Fields: Essential Shields and Navigators for Planetary Survival
You may want to see also
Explore related products
Core Material: Ferromagnetic cores amplify voltage by concentrating magnetic field lines
Ferromagnetic cores, such as those made from iron, nickel, or cobalt, are essential components in devices like transformers and inductors because they significantly amplify voltage by concentrating magnetic field lines. When a magnetic field passes through a ferromagnetic material, its permeability—a measure of how easily magnetic lines of flux pass through it—can be thousands of times greater than that of air. This concentration of magnetic flux increases the magnetic field strength within the core, which in turn enhances the induced voltage in a coil wrapped around it. For instance, a transformer with a silicon steel core (a common ferromagnetic material) can achieve a magnetic flux density of up to 1.8 Tesla, far exceeding what would be possible with an air core.
To maximize voltage amplification, selecting the right ferromagnetic core material is critical. Silicon steel, for example, is widely used in power transformers due to its high permeability and low core loss at operating frequencies of 50–60 Hz. For higher frequencies, such as those in switching power supplies, materials like ferrite are preferred because they minimize eddy currents, which can dissipate energy as heat. The core’s geometry also matters: a toroidal core, with its closed-loop design, provides better magnetic field containment than a straight core, reducing leakage and improving efficiency. Practical tip: When designing a transformer, calculate the required core cross-sectional area using the formula *A = (B × N × l) / (μ₀ × μᵣ × ΔB)*, where *A* is the area, *B* is the flux density, *N* is the number of turns, *l* is the magnetic path length, *μ₀* is the permeability of free space, *μᵣ* is the relative permeability, and *ΔB* is the peak-to-peak flux density.
One caution when using ferromagnetic cores is their susceptibility to saturation, which occurs when the core’s magnetic domains are fully aligned and cannot further increase the magnetic field. Saturation limits the maximum voltage output and can distort the waveform, leading to inefficiency or damage. To avoid this, ensure the operating flux density remains below the material’s saturation point—typically 1.5–1.8 Tesla for silicon steel. Additionally, laminating the core (stacking thin sheets coated with insulating material) reduces eddy currents, which are parasitic currents that oppose changes in the magnetic field and waste energy as heat. This technique is standard in high-frequency applications.
In practice, ferromagnetic cores are indispensable for achieving high voltage outputs in magnet-based systems. For example, a simple hand-cranked generator with a ferrite core can produce 10–50 volts, depending on the rotation speed and coil configuration. Compare this to an air-core design, which might yield only a fraction of that voltage under the same conditions. The takeaway is clear: ferromagnetic cores are not just passive components but active enablers of voltage amplification, turning theoretical magnetic principles into practical, high-efficiency devices. By understanding their properties and limitations, engineers and hobbyists alike can harness their full potential.
Discover the Versatile Uses of the Elf Magnetic Mask
You may want to see also
Explore related products
Load Resistance: Voltage drops under load; higher resistance yields higher open-circuit voltage
Magnetic fields can induce voltage, but the amount generated depends heavily on load resistance. When a conductor, like a wire, moves through a magnetic field or experiences a changing magnetic flux, it generates an electromotive force (EMF), measurable as voltage. However, this voltage isn’t constant; it fluctuates based on the resistance of the circuit it powers. Understanding this relationship is crucial for optimizing voltage output in magnet-based generators or experiments.
Consider a simple setup: a coil of wire rotating in a magnetic field. Without any load (open-circuit), the voltage across the coil’s terminals will be at its maximum. This is because the resistance is effectively infinite, allowing the full EMF to manifest. As soon as a load is connected—say, a resistor or a device drawing power—the voltage drops. Ohm’s Law explains this: voltage equals current times resistance (V = IR). With a fixed EMF, higher resistance reduces current flow, preserving voltage, while lower resistance increases current, causing voltage to plummet.
For practical applications, this principle dictates design choices. For instance, in a magnet-based flashlight that generates power by shaking, the internal circuitry must balance load resistance to maximize usable voltage. If the LED requires 3V to operate efficiently, the generator’s open-circuit voltage might need to be 4V or higher to account for the drop under load. Experimenters can test this by varying resistor values in a circuit and measuring voltage changes, observing how higher resistance (e.g., 10kΩ vs. 1kΩ) yields higher voltage but lower current.
A cautionary note: pushing for higher open-circuit voltage by increasing resistance isn’t always beneficial. In real-world scenarios, excessive resistance can limit current to the point where devices fail to function. For example, a 1MΩ resistor might show 10V open-circuit, but the current would be too low to power even a small LED. The key is matching resistance to the load’s requirements, ensuring sufficient voltage and current for operation.
In summary, load resistance is the linchpin in determining voltage from magnet-based systems. Higher resistance boosts open-circuit voltage but must be balanced against the load’s needs. Practical experiments with resistors and voltage meters can illustrate this dynamic, offering insights for optimizing magnet-based power generation. Whether building a DIY generator or troubleshooting a device, understanding this relationship ensures efficient voltage utilization.
Japan's Magnetic Innovation: Applications, Advancements, and Industrial Impact
You may want to see also
Frequently asked questions
Magnets alone cannot generate electricity; they require movement relative to a conductor (like a coil of wire) to induce voltage. The voltage generated depends on factors like magnet strength, coil size, and speed of movement, typically ranging from a few millivolts to several volts in simple setups.
The voltage produced depends on the magnet's strength, coil's design, and speed of motion. A neodymium magnet with a fast-moving coil can generate anywhere from 0.1V to 10V or more, but this varies widely based on the specific setup.
Achieving high voltage (100V+) with magnets and coils requires a highly optimized setup, including strong magnets, many coil turns, and rapid movement. While theoretically possible, it’s challenging and typically requires specialized equipment and careful design.
