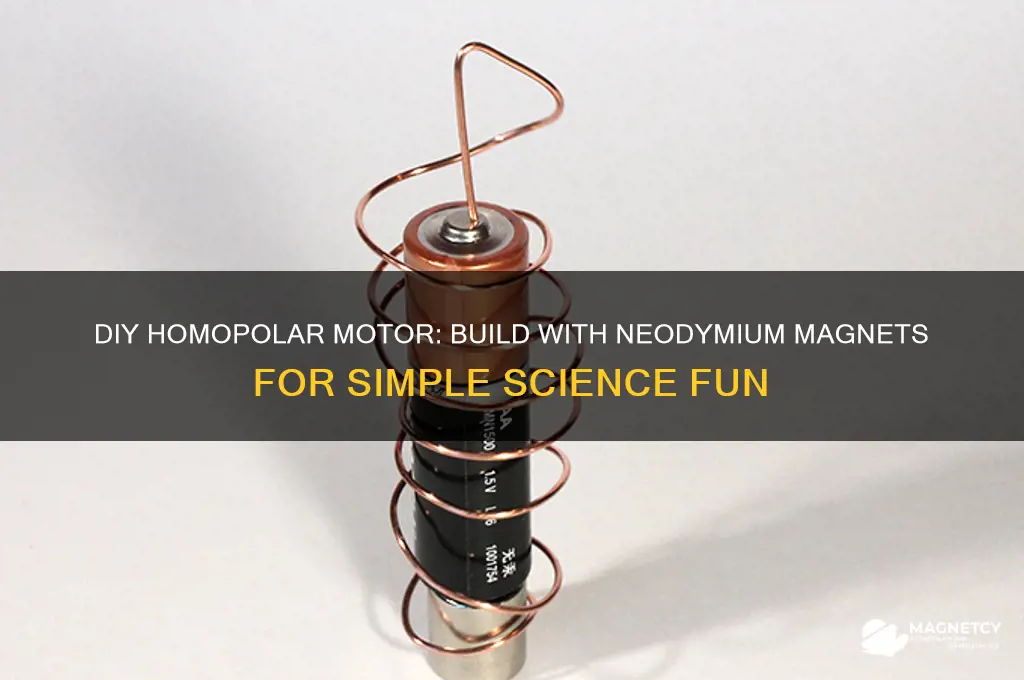

Building a homopolar motor using neodymium magnets is a fascinating and accessible science project that demonstrates the principles of electromagnetism and motion. This simple yet powerful motor consists of just a few components: a battery, a conductor (such as a copper wire), and strong neodymium magnets. By arranging these elements correctly, you can create a continuous rotational motion driven by the interaction between the magnetic field and the electric current. The key to its operation lies in the Lorentz force, which causes the conductor to experience a force perpendicular to both the current and the magnetic field. This project not only provides insight into fundamental physics concepts but also serves as an engaging hands-on activity for learners of all ages.
Explore related products
What You'll Learn
- Materials Needed: Neodymium magnets, copper wire, battery, and a conductive base for assembly
- Magnet Placement: Position magnets with opposite poles facing for optimal rotation
- Coil Construction: Create a balanced coil using insulated copper wire for stability
- Battery Connection: Attach battery terminals to coil ends for continuous current flow
- Balancing the Rotor: Ensure even weight distribution to minimize friction and wobble
Materials Needed: Neodymium magnets, copper wire, battery, and a conductive base for assembly
Neodymium magnets are the powerhouse of any homopolar motor, providing the strong, stable magnetic field necessary for consistent rotation. These rare-earth magnets, often disk or cylinder-shaped, should be at least 10mm in diameter and 5mm thick for optimal performance. Stronger magnets (N52 grade or higher) yield better results, but handle them with care—their brittle nature and powerful attraction can cause chipping or injury if mishandled. Always keep them away from electronics and pacemakers, and store them with a spacer to prevent accidental collisions.
Copper wire, the motor’s conductor, must be insulated yet flexible. A 22-26 AWG magnet wire works best, as it strikes a balance between conductivity and ease of coiling. Strip a small section at both ends to ensure a solid connection to the battery and conductive base. The length of the wire depends on your design, but aim for 12–18 inches to allow for multiple loops without tangling. Avoid using bare copper wire, as it may short-circuit the battery or cause overheating during operation.
The battery serves as the motor’s energy source, and a single 1.5V AA or AAA battery is sufficient for most small-scale projects. For a more dramatic effect, a 9V battery can be used, but ensure your wire and base can handle the increased current. Connect the battery securely to the wire and base using alligator clips or soldering, but never leave it unattended while the motor is running to prevent overheating or leakage. Always disconnect the battery when not in use to conserve power and extend its lifespan.
A conductive base is essential for completing the circuit and supporting the motor’s components. Aluminum foil or a copper plate works well, but for added stability, use a flat wooden or plastic base covered with a thin layer of conductive material. Ensure the base is clean and free of scratches to maintain a smooth flow of current. If using foil, press it firmly to eliminate air gaps, and secure the magnet and wire in place with non-conductive tape or glue to prevent shifting during operation.
Assembling these materials requires precision and patience. Start by placing the neodymium magnet on the conductive base, ensuring its polarity aligns with your design. Coil the copper wire around the magnet, leaving enough slack to connect to the battery. Attach one end of the wire to the base and the other to the battery’s opposite terminal, completing the circuit. With a gentle touch, give the wire a nudge to start the rotation, and watch as the homopolar motor comes to life. Experiment with different configurations to optimize speed and stability, and always prioritize safety when handling these powerful components.
