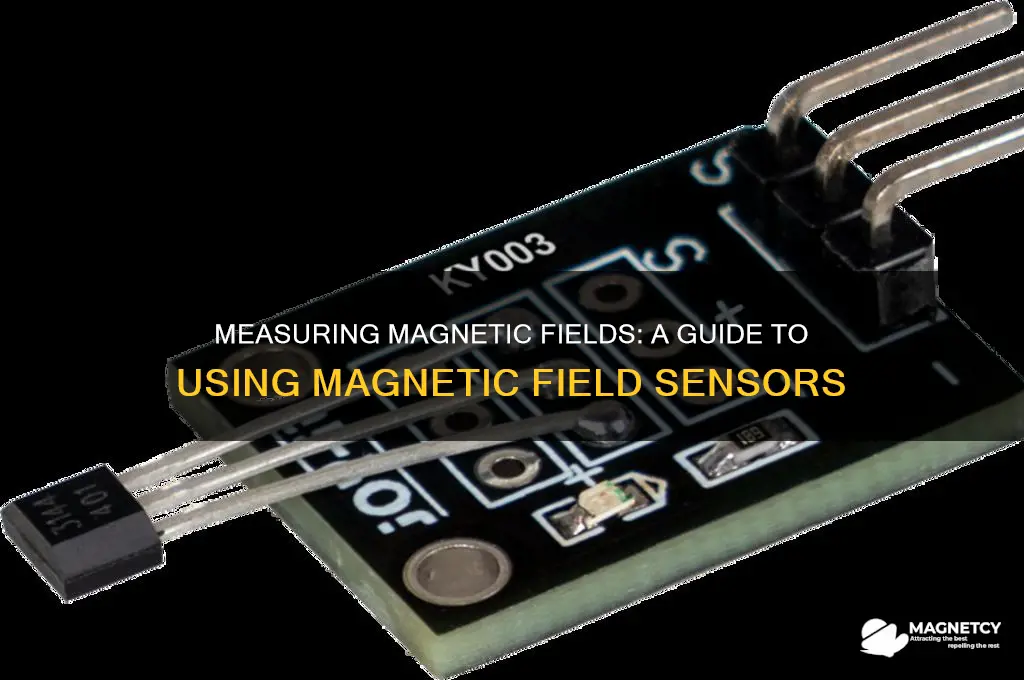

Calculating the magnetic field using a magnetic field sensor involves a systematic process that combines the sensor's measurements with fundamental principles of magnetism. Magnetic field sensors, such as Hall effect sensors or magnetoresistive sensors, detect changes in magnetic flux density and convert them into measurable electrical signals. To calculate the magnetic field, the sensor's output is first calibrated to ensure accuracy, often by referencing known magnetic field strengths. The sensor's reading is then converted into units of magnetic flux density (e.g., Tesla or Gauss) using the sensor's sensitivity and gain. Additional factors, such as temperature compensation and environmental interference, are accounted for to improve precision. By applying these steps, the magnetic field can be accurately determined, making magnetic field sensors valuable tools in applications ranging from industrial automation to scientific research.
Explore related products
What You'll Learn
- Sensor Calibration Techniques: Methods to ensure accurate readings by calibrating the magnetic field sensor
- Data Acquisition Process: Steps to collect and record magnetic field data using the sensor
- Noise Reduction Strategies: Techniques to minimize interference and improve measurement precision
- Field Strength Calculation: Formulas and algorithms to compute magnetic field strength from sensor data
- Sensor Placement Optimization: Best practices for positioning the sensor to maximize accuracy and reliability
Sensor Calibration Techniques: Methods to ensure accurate readings by calibrating the magnetic field sensor
Magnetic field sensors, while powerful tools for measuring magnetic fields, are susceptible to errors from various sources. Environmental factors like temperature fluctuations, mechanical stress, and nearby magnetic interference can all skew readings. Even the sensor itself may have inherent biases or drift over time. Calibration is the process of mitigating these errors, ensuring the sensor provides accurate and reliable measurements.
Uncalibrated sensors lead to inaccurate data, compromising the integrity of any application relying on magnetic field measurements. This is particularly critical in fields like navigation, where precise magnetic heading information is essential, or in industrial settings where magnetic field strength directly impacts machinery performance.
Calibration Techniques: A Multi-Pronged Approach
Zero-Field Calibration: This fundamental technique involves exposing the sensor to a known zero magnetic field environment, typically achieved using a mu-metal shield. By measuring the sensor's output in this null field, any inherent offset can be identified and subsequently subtracted from future readings. This correction factor is crucial for eliminating baseline errors.
Known Field Calibration: For more comprehensive calibration, expose the sensor to a series of known magnetic field strengths, ideally covering the sensor's entire operating range. This can be achieved using calibrated electromagnets or Helmholtz coils. By comparing the sensor's output to the known field values, a calibration curve can be generated. This curve allows for the correction of non-linearities and sensitivity variations across the sensor's range.
Temperature Compensation: Temperature significantly affects sensor performance. Calibration should be performed at multiple temperatures representative of the sensor's operating environment. This data is used to create a temperature compensation model, which adjusts readings based on the measured temperature. This is especially important for applications in environments with fluctuating temperatures.
In-Situ Calibration: In some cases, calibration can be performed in the actual operating environment. This involves comparing the sensor's readings to a reference sensor known to be accurate in that specific location. While convenient, this method relies on the availability of a reliable reference sensor and may not address all sources of error.
Software-Based Techniques: Advanced calibration techniques leverage software algorithms to refine sensor readings. These methods often involve statistical analysis of sensor data to identify and correct for systematic errors. For example, least-squares fitting can be used to refine the calibration curve, while more sophisticated algorithms can account for complex error patterns.
Regular Calibration: A Necessity Calibration is not a one-time event. Sensors should be recalibrated periodically to account for drift and changes in environmental conditions. The frequency of recalibration depends on the sensor type, application requirements, and the stability of the operating environment.
By employing these calibration techniques, magnetic field sensors can provide highly accurate and reliable measurements, ensuring the integrity of data and the success of applications that depend on precise magnetic field information. Remember, the specific calibration method chosen will depend on the sensor type, application requirements, and available resources.
Magnetic Magic: How Magnets Power Headphone Sound Technology
You may want to see also
Explore related products
Data Acquisition Process: Steps to collect and record magnetic field data using the sensor
Magnetic field sensors are pivotal tools for measuring and analyzing magnetic fields in various applications, from industrial monitoring to environmental studies. To harness their full potential, a structured data acquisition process is essential. This process begins with sensor selection, where the choice of sensor depends on the specific magnetic field range, resolution, and environmental conditions. For instance, Hall effect sensors are ideal for static or low-frequency fields, while fluxgate sensors excel in detecting weaker, dynamic fields. Once the sensor is chosen, the next step is calibration, ensuring the sensor’s readings are accurate and reliable. Calibration involves exposing the sensor to known magnetic fields and adjusting its output to match these reference values. This step is critical, as even minor discrepancies can skew data interpretation.
Following calibration, sensor placement becomes a strategic consideration. The sensor must be positioned to capture the magnetic field of interest without interference from external sources. For example, in geophysical surveys, sensors are often placed at specific depths or orientations to isolate Earth’s magnetic field from local anomalies. Data logging is the subsequent step, where the sensor’s output is recorded over time. Modern sensors often integrate with microcontrollers or data loggers that can store readings at predefined intervals, such as every second or minute, depending on the application’s requirements. Ensuring the logging device has sufficient memory and battery life is crucial for uninterrupted data collection.
During data acquisition, environmental factors must be monitored and controlled. Temperature fluctuations, mechanical vibrations, and electromagnetic interference can all affect sensor performance. For instance, some sensors exhibit temperature drift, requiring compensation algorithms or additional temperature sensors to correct readings. Similarly, shielding the sensor from external magnetic sources, such as power lines or electronic devices, is essential to maintain data integrity. Ignoring these factors can introduce noise or systematic errors, compromising the dataset’s quality.
Finally, data validation is a critical step to ensure the collected data is both accurate and meaningful. This involves cross-referencing sensor readings with theoretical models or secondary measurements. For example, in magnetic anomaly detection, comparing sensor data with known geological features can confirm the validity of the readings. Additionally, visualizing the data through graphs or heatmaps can reveal patterns or anomalies that might not be apparent in raw numerical form. By meticulously following these steps—sensor selection, calibration, placement, logging, environmental control, and validation—the data acquisition process becomes a robust foundation for precise magnetic field calculations.
Mastering the Trout Magnet: Essential Tips for Effective Fishing Success
You may want to see also
Explore related products
Noise Reduction Strategies: Techniques to minimize interference and improve measurement precision
Magnetic field sensors are invaluable tools for measuring magnetic fields in various applications, from industrial monitoring to scientific research. However, their precision is often compromised by noise—unwanted signals that distort measurements. Effective noise reduction strategies are essential to ensure accurate and reliable data. By understanding the sources of interference and implementing targeted techniques, users can significantly enhance measurement precision.
One of the most straightforward yet effective strategies is shielding. Magnetic interference often originates from external sources like power lines, electronic devices, or nearby machinery. Using materials such as mu-metal or ferrite to enclose the sensor or the entire setup can dramatically reduce external magnetic fields. For instance, a mu-metal shield with a thickness of 0.5 mm can attenuate low-frequency magnetic fields by up to 99%. When applying shielding, ensure the material is properly grounded to avoid capacitive coupling, which can introduce additional noise.
Another critical technique is frequency filtering. Noise often manifests at specific frequencies, such as the 50/60 Hz hum from power supplies. Incorporating low-pass, high-pass, or band-stop filters into the sensor’s circuitry can isolate the desired signal from interference. For example, a notch filter tuned to 60 Hz can effectively eliminate power line noise in North American applications. Digital filters, such as those implemented in software, offer flexibility but require careful calibration to avoid signal distortion.
Sensor placement and orientation also play a pivotal role in noise reduction. Magnetic fields are vector quantities, and noise sources often have specific directional characteristics. By strategically positioning the sensor perpendicular to the noise source or aligning it with the desired field, interference can be minimized. For instance, in automotive applications, placing the sensor away from the engine or wiring harnesses can reduce electromagnetic interference. Additionally, using differential sensors that measure the gradient of the magnetic field can inherently cancel out uniform noise.
Finally, averaging and oversampling are powerful software-based techniques to improve precision. By taking multiple measurements over time and averaging the results, random noise can be statistically reduced. Oversampling—sampling at a rate significantly higher than the Nyquist frequency—allows for more effective digital filtering. For example, sampling at 10 kHz and averaging over 100 readings can reduce noise by a factor of 10. However, this approach requires careful consideration of the sensor’s bandwidth and the computational resources available.
In conclusion, minimizing noise in magnetic field measurements demands a multi-faceted approach. Combining shielding, filtering, strategic placement, and data processing techniques can yield significant improvements in precision. Each strategy has its strengths and limitations, and the optimal solution often involves a tailored combination of these methods. By addressing noise at its source and leveraging both hardware and software tools, users can achieve highly accurate magnetic field measurements even in challenging environments.
Magnetic Healing: Exploring the Potential of Magnets for Wellness
You may want to see also
Explore related products
Field Strength Calculation: Formulas and algorithms to compute magnetic field strength from sensor data
Magnetic field sensors, such as Hall effect sensors and magnetoresistive sensors, provide raw data in the form of voltage, resistance, or digital outputs. To compute magnetic field strength (B) from this data, you must first understand the sensor’s calibration curve, which maps its output to magnetic field values. Manufacturers typically provide this curve or a sensitivity value (V/T or mV/G) in the datasheet. For instance, a Hall effect sensor might output 1.2V in a 0.5T field, allowing you to establish a linear relationship: *B = (V_output - V_offset) / Sensitivity*. Always verify this relationship experimentally, as real-world conditions may introduce deviations.
Algorithms for field strength calculation vary based on sensor type and application. For linear sensors, a simple proportionality equation suffices: *B = k * Output*, where *k* is the sensitivity factor. Nonlinear sensors, like certain magnetoresistive types, require polynomial fitting or lookup tables to accurately map output to field strength. Advanced algorithms, such as Kalman filters, can be employed to reduce noise and improve accuracy, especially in dynamic environments. For example, a 3-axis magnetometer might use a tilt compensation algorithm to correct for sensor orientation, ensuring accurate field strength calculations regardless of alignment.
Practical implementation involves several steps. First, collect baseline data in a known magnetic field (e.g., Earth’s field, ~25–65 μT) to calibrate the sensor. Next, apply the calibration formula to raw sensor data to compute field strength. For instance, if a sensor outputs 2.5V in a 50 μT field with a sensitivity of 50 mV/μT, the formula becomes *B = (2.5V - V_offset) / (50 mV/μT)*. Caution: environmental factors like temperature and nearby ferromagnetic materials can skew readings. Use temperature compensation techniques and shielding to mitigate these effects.
Comparing methods reveals trade-offs. Linear equations are simple but may lack precision for nonlinear sensors. Polynomial fitting offers better accuracy but requires more computational resources. Digital sensors with built-in algorithms provide convenience but limit customization. For instance, a digital Hall sensor might output field strength directly, while an analog sensor requires external processing. Choose the method based on your application’s accuracy, speed, and resource constraints.
In conclusion, calculating magnetic field strength from sensor data hinges on understanding sensor characteristics and applying appropriate formulas or algorithms. Whether using linear equations, polynomial fitting, or advanced filtering techniques, calibration and environmental considerations are critical. By tailoring the approach to your sensor and application, you can achieve reliable and accurate field strength measurements.
