Finding Magnetic Field Direction: A Guide Using Current Flow

how to find direction of magnetic field using current

Understanding how to determine the direction of a magnetic field generated by an electric current is a fundamental concept in electromagnetism. This can be achieved using Ampère's Right-Hand Rule, a simple yet powerful tool. When a current flows through a conductor, it creates a magnetic field around it. By pointing your right thumb in the direction of the current, the curling of your fingers indicates the direction of the magnetic field lines. This rule applies to straight wires, loops, and solenoids, making it a versatile method for visualizing and predicting magnetic field orientations in various current-carrying configurations.

Characteristics Values
Method Name Right-Hand Rule (RHR) or Ampere's Rule
Primary Principle Biot-Savart Law or Ampere's Law
Applicable For Straight wires, loops, and symmetric current distributions
Direction Determination Thumb points in current direction, curled fingers show field direction
Mathematical Representation ( \vec = \frac{\mu_0}{4\pi} \int \frac{I d\vec \times \hat}{r^2} )
Units of Magnetic Field (B) Tesla (T)
Permeability of Free Space (μ₀) ( 4\pi \times 10^{-7} , \text{T·m/A} )
Current (I) Amperes (A)
Distance (r) Meters (m)
Limitations Assumes steady current, non-relativistic speeds
Practical Tools Compass, Hall effect sensor, or magnetic field probe
Common Applications Electromagnets, motors, solenoids, and magnetic field mapping
Alternative Method Use of Maxwell's Equations for complex geometries
Historical Context Derived from experiments by Hans Christian Ørsted (1820)

magnetcy

Biot-Savart Law Application: Calculate magnetic field direction using current elements and cross product rules

The Biot-Savart Law is a cornerstone in magnetostatics, offering a precise method to calculate the magnetic field generated by a steady current. At its core, this law leverages the concept of current elements—infinitesimally small segments of a current-carrying wire—and the cross product to determine both the magnitude and direction of the magnetic field at any point in space. Understanding this application is crucial for engineers, physicists, and students tackling problems in electromagnetism.

To apply the Biot-Savart Law, begin by identifying the current element \( \text{d}\mathbf{l} \), which carries current \( I \). The magnetic field \( \text{d}\mathbf{B} \) at a point \( \mathbf{r} \) due to this element is given by \( \text{d}\mathbf{B} = \frac{\mu_0 I}{4\pi} \frac{\text{d}\mathbf{l} \times \mathbf{r}}{r^3} \), where \( \mu_0 \) is the permeability of free space, and \( \mathbf{r} \) is the position vector from the current element to the point of interest. The direction of \( \text{d}\mathbf{B} \) is determined by the right-hand rule applied to the cross product \( \text{d}\mathbf{l} \times \mathbf{r} \): point your right thumb along \( \text{d}\mathbf{l} \), and your curled fingers will indicate the direction of \( \text{d}\mathbf{B} \).

Consider a practical example: a circular loop of radius \( R \) carrying current \( I \). To find the magnetic field at the center of the loop, break the loop into infinitesimal current elements. For each element, \( \mathbf{r} \) is perpendicular to \( \text{d}\mathbf{l} \), simplifying the cross product. The contributions from all elements add up symmetrically, resulting in a magnetic field directed along the loop’s axis. This demonstrates how the Biot-Savart Law, combined with vector calculus, provides both quantitative and directional insights.

A critical caution: the Biot-Savart Law assumes steady current and neglects relativistic effects. For time-varying currents or high velocities, Ampere’s Law with Maxwell’s correction is more appropriate. Additionally, numerical integration may be required for complex geometries, as analytical solutions are often intractable. Tools like MATLAB or Python can streamline these calculations, but understanding the underlying principles remains essential.

In conclusion, the Biot-Savart Law’s application to magnetic field direction hinges on mastering current elements and cross product rules. By systematically applying these principles, one can predict magnetic fields in diverse scenarios, from simple wires to intricate circuits. This skill is not just theoretical—it underpins technologies like MRI machines, particle accelerators, and electric motors, making it a vital tool in modern engineering and physics.

magnetcy

Right-Hand Grip Rule: Determine field direction around a straight current-carrying wire

A straight current-carrying wire generates a magnetic field that encircles it, but determining the field's direction can be tricky. The Right-Hand Grip Rule provides a simple, intuitive method to solve this problem. Imagine gripping the wire with your right hand, with your thumb pointing in the direction of the current flow. Your curled fingers will then wrap around the wire in the direction of the magnetic field lines. This rule is a direct application of Ampère's law, which states that the magnetic field created by a current-carrying conductor is proportional to the current and follows a circular path around the wire.

Application and Visualization:

To apply the rule, align your right thumb with the current direction, which is conventionally from positive to negative. For instance, if current flows upward through a vertical wire, point your thumb upward. Your fingers, when curled around the wire, will naturally indicate the magnetic field's direction. This visualization technique is particularly useful in educational settings or when designing electromagnetic devices. For example, in a simple electromagnet, understanding the field direction helps optimize coil winding for maximum magnetic strength.

Practical Tips and Cautions:

While the Right-Hand Grip Rule is straightforward, it’s essential to remember that it only applies to straight wires. For loops or solenoids, the Right-Hand Rule for coils (where you point your thumb along the field inside the coil) is more appropriate. Additionally, ensure consistency in using the right hand, as the left-hand rule corresponds to electron flow (opposite to conventional current). Always double-check current direction, as errors here will invert the field direction.

Real-World Relevance:

This rule isn’t just theoretical—it’s foundational in engineering and physics. For instance, in designing electric motors, the interaction between current-carrying wires and magnetic fields relies on precise knowledge of field direction. Similarly, in MRI machines, understanding how currents generate magnetic fields ensures accurate imaging. By mastering the Right-Hand Grip Rule, you gain a tool applicable across disciplines, from building simple circuits to advanced electromagnetic systems.

Takeaway:

The Right-Hand Grip Rule transforms abstract electromagnetism into a tangible, actionable concept. By linking current direction to magnetic field orientation, it bridges theory and practice. Whether you’re a student, hobbyist, or professional, this rule is indispensable for predicting and manipulating magnetic fields around straight wires. Practice it regularly, and it’ll become second nature, streamlining your approach to electromagnetic problems.

magnetcy

Ampere's Law for Symmetry: Use symmetry to find field direction in loops or solenoids

Symmetry is a powerful tool in physics, and when it comes to determining the direction of magnetic fields generated by current-carrying loops or solenoids, Ampère's Law leverages this principle brilliantly. By examining the symmetrical properties of the current distribution, one can predict the magnetic field's orientation without resorting to complex calculations. This method is particularly useful in highly symmetric systems, such as circular loops or long solenoids, where the field lines exhibit predictable patterns.

Consider a circular loop carrying a steady current. Due to its rotational symmetry, the magnetic field lines must form concentric circles around the loop's axis. Applying the right-hand rule—where you point your thumb in the direction of the current and your fingers curl in the direction of the field—confirms that the field inside the loop is perpendicular to the plane of the loop and points either upward or downward, depending on the current direction. This symmetry-based approach eliminates the need for integrating Biot-Savart's law, saving both time and effort.

In the case of a solenoid, axial symmetry dictates that the magnetic field lines run parallel to the solenoid's axis. Outside the solenoid, the field resembles that of a bar magnet, with lines emerging from one end and re-entering the other. Inside, the field is uniform and strong, directed along the axis. Here, Ampère's Law not only simplifies the direction determination but also highlights the solenoid's ability to approximate a uniform magnetic field, a property exploited in devices like MRI machines and particle accelerators.

However, symmetry alone doesn't always provide the complete picture. For instance, in a finite solenoid, edge effects can cause deviations from perfect uniformity. Practical tips include ensuring the solenoid is long enough (length ≥ 10 times the radius) to minimize these effects and using the right-hand grip rule to confirm the field direction: if you wrap your right hand around the solenoid with your fingers following the current, your extended thumb points in the direction of the field inside.

In summary, Ampère's Law for symmetry offers a streamlined approach to determining magnetic field directions in loops and solenoids. By recognizing and exploiting the inherent symmetries of these systems, one can bypass intricate calculations and focus on intuitive, rule-based methods. This technique is not only efficient but also deepens the understanding of how current distributions influence magnetic fields, making it an indispensable tool in both theoretical and applied electromagnetism.

magnetcy

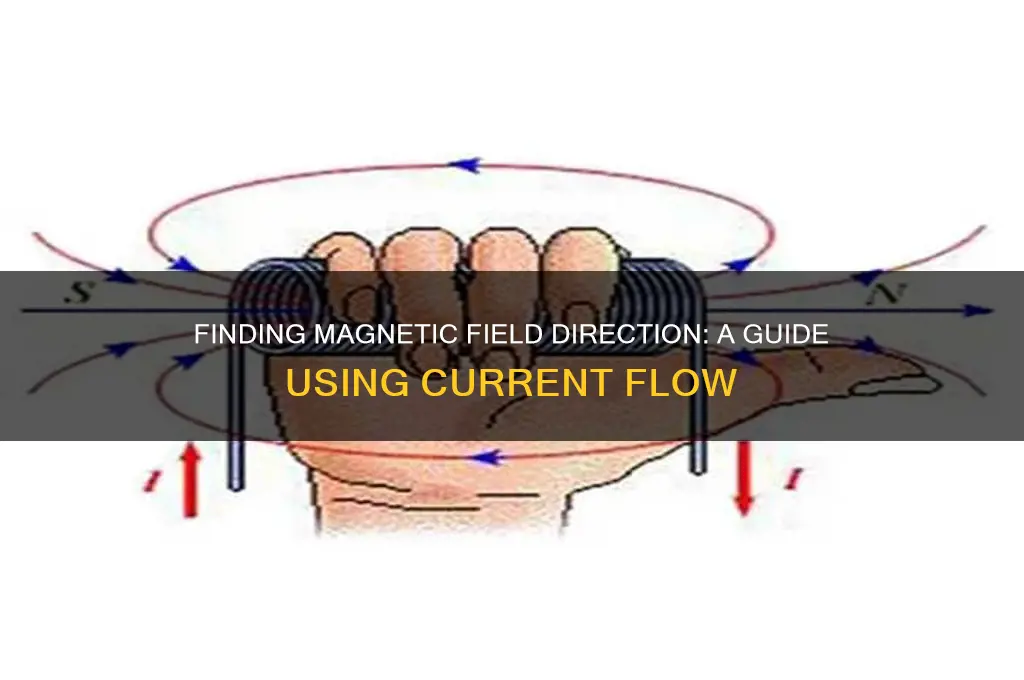

Magnetic Field Due to Coils: Predict field direction inside and outside circular coils

The magnetic field generated by a current-carrying coil is a fundamental concept in electromagnetism, with circular coils being particularly intriguing due to their symmetry. Understanding the direction of the magnetic field inside and outside such coils is crucial for applications ranging from electric motors to MRI machines. The key to predicting this direction lies in the right-hand rule, a simple yet powerful tool that connects current flow to magnetic field orientation.

Application of the Right-Hand Rule:

To determine the magnetic field direction inside a circular coil, point your right thumb in the direction of the current (conventional current flow, from positive to negative). Your curled fingers will then wrap around the coil in the direction of the magnetic field lines. Inside the coil, this rule consistently indicates that the field lines run from one end of the coil to the other, creating a uniform, straight-line field parallel to the coil's axis. For example, if current flows counterclockwise when viewing the coil from one end, the magnetic field inside points away from you at that end and toward you at the opposite end.

Field Behavior Outside the Coil:

Outside the coil, the magnetic field behaves differently. Using the same right-hand rule, you’ll find that the field lines form concentric circles around the coil, with their direction determined by the current flow. If the current is counterclockwise, the field lines outside the coil will circulate in the direction of your curled fingers when your thumb points along the current. This circular pattern weakens rapidly with distance, following an inverse square law, but its direction remains consistent.

Practical Tips for Precision:

When working with circular coils, ensure the wire is evenly spaced and the coil is tightly wound to maximize field uniformity. For precise measurements, use a compass or a Hall effect probe to map the field direction. If designing a coil for a specific application, such as a solenoid, increase the number of turns (N) and current (I) to strengthen the magnetic field, as the field strength inside a coil is directly proportional to both (B ∝ NI).

Comparative Analysis with Other Configurations:

Unlike straight wires, where the field forms concentric circles around the conductor, circular coils produce a more complex field pattern. Inside the coil, the field resembles that of a bar magnet, while outside, it mimics the field of a current loop. This duality makes circular coils versatile for applications requiring both concentrated and distributed magnetic fields. For instance, a coil with 100 turns carrying 2 A of current can generate a field strength of approximately 0.0125 T inside the coil, assuming a radius of 0.1 meters and using the formula for a long solenoid.

Takeaway for Predictive Accuracy:

Mastering the right-hand rule and understanding the field’s spatial distribution inside and outside circular coils enables precise predictions in experimental and engineering contexts. Always verify your predictions with empirical data, as real-world factors like coil imperfections or external magnetic fields can introduce deviations. By combining theoretical knowledge with practical techniques, you can harness the magnetic field of circular coils effectively for a wide range of applications.

magnetcy

Field Direction in Toroidal Solenoids: Apply Ampere's Law to toroidal geometries for field orientation

Toroidal solenoids, with their doughnut-like shape, present a unique challenge when determining the direction of the magnetic field generated by the current flowing through them. Unlike straight solenoids, where the field lines run parallel to the axis, toroidal geometries confine the field within the loop, creating a more complex orientation. To unravel this complexity, we turn to Ampère's Law, a powerful tool in electromagnetism that relates the magnetic field around a closed loop to the current passing through the loop.

Applying Ampère's Law to Toroidal Solenoids:

Imagine a circular path, or Amperian loop, that follows the center of the toroid's cross-section. This loop encloses the current-carrying wires wound around the torus. Ampère's Law states that the line integral of the magnetic field B around this closed path is equal to μ₀ times the total current I enclosed by the loop. Mathematically, this is expressed as ∮ B · dl = μ₀I, where μ₀ is the permeability of free space.

In a toroidal solenoid, the symmetry of the geometry simplifies the application of Ampère's Law. The magnetic field B is tangential to the Amperian loop at every point, meaning the dot product B · dl becomes Bdl, as the angle between them is 0 degrees. Furthermore, the magnitude of B is constant along the loop due to the symmetry of the current distribution. This allows us to pull B out of the integral, leaving us with B ∮ dl = μ₀I. Since the integral of dl around the closed loop is simply the circumference of the loop (2πr, where r is the radius of the toroid's cross-section), we arrive at B(2πr) = μ₀I. Solving for B, we find B = (μ₀I) / (2πr).

Field Direction and Practical Considerations:

The direction of the magnetic field within the toroid is determined by the right-hand rule. If you wrap your right hand around the toroid with your fingers following the direction of the current, your thumb will point in the direction of the magnetic field lines. This rule is a direct consequence of the cross product inherent in the definition of the magnetic field generated by a current.

In practical applications, toroidal solenoids are favored for their ability to produce a strong, confined magnetic field. This makes them valuable in devices like transformers, inductors, and tokamaks (used in nuclear fusion research). Understanding the field direction is crucial for optimizing the performance of these devices. For example, in a transformer, the orientation of the magnetic field determines the efficiency of energy transfer between coils.

Key Takeaways:

Ampère's Law provides a powerful tool for determining the magnetic field within toroidal solenoids. The unique geometry of toroids leads to a magnetic field that is tangential to the circular cross-section and constant in magnitude along the loop. The right-hand rule allows for easy determination of the field direction based on the current flow. This understanding is essential for the design and application of toroidal solenoids in various technological fields.

Frequently asked questions

You can use the right-hand rule. Point your right thumb in the direction of the current flow, and your fingers will curl in the direction of the magnetic field lines around the wire.

The right-hand grip rule is a technique where you imagine gripping the wire with your right hand, with your thumb pointing in the direction of the current. Your curled fingers then indicate the direction of the magnetic field lines forming concentric circles around the wire.

Yes, for a current loop, the magnetic field direction can be determined using the right-hand rule by pointing your thumb in the direction of the current and observing the direction of your curled fingers, which represents the field direction inside the loop. For a solenoid, the field lines run from one end to the other, and the right-hand grip rule can be applied to determine the field direction inside and outside the solenoid.

The direction of the current directly influences the magnetic field's orientation. Reversing the current flow will result in a reversal of the magnetic field direction. This relationship is fundamental in understanding electromagnetic principles and is described by Ampère's law.
