Creating a dynamo using magnets is a fascinating project that demonstrates the principles of electromagnetic induction. A dynamo converts mechanical energy into electrical energy by moving a conductor through a magnetic field, generating an electric current. To build one, you’ll need basic materials like strong magnets, a coil of copper wire, a rotating mechanism (such as a crank or wheel), and a frame to hold everything in place. The key is to ensure the coil rotates smoothly within the magnetic field, inducing a current in the wire. This simple yet powerful device not only illustrates the science behind electricity generation but also serves as a hands-on learning experience for understanding renewable energy concepts.
| Characteristics | Values |
|---|---|
| Materials Needed | Magnet (strong, permanent), Coil of wire (insulated copper), Axle (metal rod), Frame (wooden or plastic), 2 Supports (wooden blocks or stands), Wires (connecting), Load (small light bulb, motor, etc.) |
| Magnet Type | Permanent magnet, preferably neodymium for stronger magnetic field |
| Coil Construction | Multiple turns of insulated copper wire around a cylindrical core (more turns = higher voltage) |
| Axle Material | Non-magnetic material like aluminum or plastic to avoid interference with magnetic field |
| Frame Purpose | Holds magnet and coil in fixed positions, allowing relative motion |
| Supports Function | Secure the axle, allowing it to rotate freely |
| Wiring Configuration | Connect coil ends to load, ensuring proper polarity for current flow |
| Load Examples | LED, small motor, buzzer, voltmeter |
| Rotation Method | Manual (hand crank), wind power (small turbine), water flow (waterwheel) |
| Efficiency Factors | Magnet strength, coil turns, rotation speed, load resistance |
| Safety Precautions | Avoid short circuits, handle magnets with care, ensure secure connections |
Explore related products
What You'll Learn
- Magnet Selection: Choose strong neodymium magnets for efficient energy conversion in your dynamo setup
- Coil Construction: Wind insulated copper wire tightly around a cylindrical core for optimal induction
- Rotor Assembly: Attach magnets to a rotating disc or shaft to create a moving magnetic field
- Stator Setup: Position the coil near the rotor to maximize magnetic flux linkage during rotation
- Power Extraction: Connect a load (e.g., LED) to the coil terminals to harness generated electricity
Magnet Selection: Choose strong neodymium magnets for efficient energy conversion in your dynamo setup
The heart of any dynamo lies in its magnets. While various types exist, neodymium magnets stand out for their exceptional strength, making them ideal for maximizing energy conversion efficiency in your dynamo project. Their powerful magnetic field ensures a stronger interaction with the conductor, resulting in a higher voltage output for a given rotation speed.
Imagine a dynamo as a muscle: the magnet is its core strength. A weak magnet produces a feeble contraction, while a powerful neodymium magnet delivers a robust, energy-packed punch. This directly translates to a more efficient dynamo, capable of generating more electricity from the same mechanical input.
Selecting the right neodymium magnets involves considering size, shape, and grade. For most DIY dynamo projects, N42 or N52 grade magnets, ranging from 10mm to 25mm in diameter, offer a good balance of strength and affordability. Remember, stronger magnets (higher N-grade) will yield better performance but come at a higher cost.
Shape matters too. Disc or cylinder magnets are common choices, allowing for easy mounting and alignment within the dynamo's coil assembly.
Safety is paramount when handling neodymium magnets. Their incredible strength can pinch skin and damage electronics. Always keep them away from pacemakers and other sensitive devices. Use caution when handling larger magnets, as they can be difficult to separate once attracted to each other or metal surfaces. Consider wearing gloves for added protection.
By carefully selecting strong neodymium magnets and prioritizing safety, you'll lay the foundation for a dynamo that efficiently converts mechanical energy into electricity, powering your projects and fueling your creativity.
Harry Hess' Discovery: Magnetic Strips and Seafloor Spreading Explained
You may want to see also
Explore related products

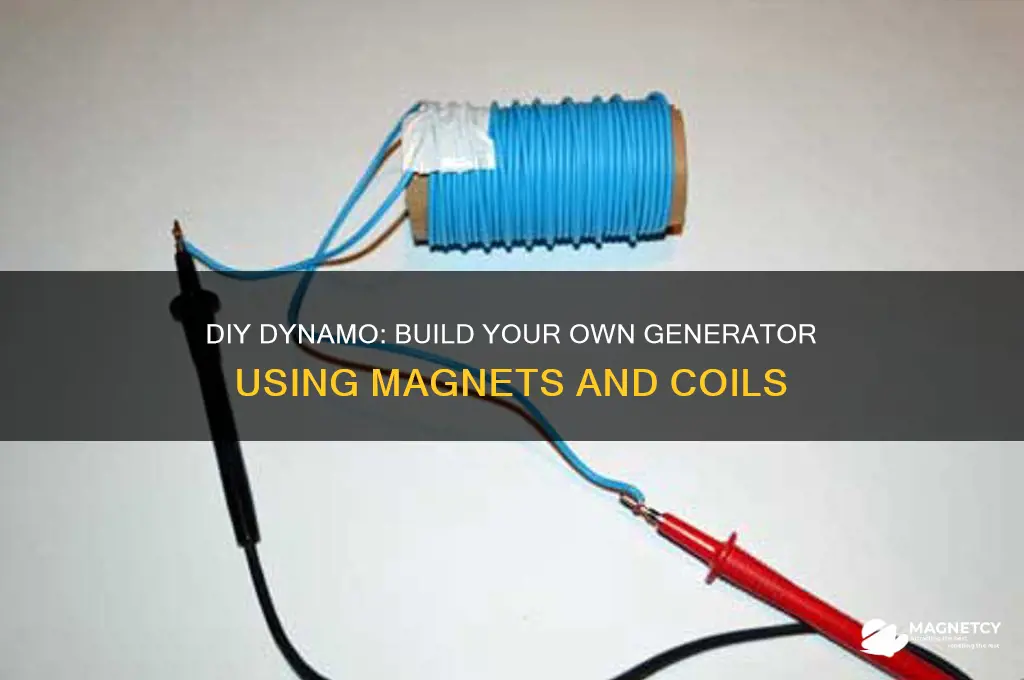

Coil Construction: Wind insulated copper wire tightly around a cylindrical core for optimal induction
The heart of a dynamo's efficiency lies in its coil construction. Imagine a cylindrical core, often made from iron or another ferromagnetic material, acting as a highway for magnetic flux. Around this core, you'll meticulously wind insulated copper wire, creating a coil. This coil is the dynamo's workhorse, converting mechanical energy into electrical energy through electromagnetic induction.
Tightly wound coils are crucial. Think of it like packing a suitcase – the tighter the coils, the more wire you fit, maximizing the number of turns. This directly translates to higher voltage output. Aim for a uniform, gapless winding pattern, ensuring each layer sits snugly against the previous one.
Insulation is non-negotiable. Bare copper wire would short-circuit, rendering your dynamo useless. Use enamel-coated magnet wire, readily available at electronics stores. The enamel acts as a thin, durable insulator, allowing current to flow through the length of the wire while preventing unwanted connections between adjacent turns.
Aim for a coil with at least 100 turns for a basic dynamo. More turns generally mean higher voltage, but be mindful of the wire gauge. Thicker wire (lower gauge number) can handle more current but results in fewer turns per unit length. Experimentation is key to finding the sweet spot for your specific dynamo design.
Consider the core diameter and wire thickness. A larger core diameter allows for more turns, but requires longer wire. Thicker wire handles more current but limits the number of turns. It's a balancing act – you want enough turns for sufficient voltage without overloading the wire's current-carrying capacity.
Using Magnetic Stirrers for Rick Simpson Oil: Benefits and Best Practices
You may want to see also
Explore related products
Rotor Assembly: Attach magnets to a rotating disc or shaft to create a moving magnetic field
The rotor assembly is the heart of a dynamo, where the magic of converting mechanical energy into electrical energy happens. To create a moving magnetic field, you'll need to attach magnets to a rotating disc or shaft. This can be achieved using a variety of materials, such as neodymium magnets, which are known for their strong magnetic properties. For optimal performance, consider using 10-15 small neodymium magnets (approximately 10mm in diameter) spaced evenly around the circumference of a 6-8 inch disc. This configuration ensures a consistent and strong magnetic field as the rotor spins.
When assembling the rotor, it's essential to ensure the magnets are securely attached to prevent them from flying off during operation. One effective method is to use a combination of epoxy glue and mechanical fasteners, such as small screws or rivets. Apply a thin layer of epoxy to the back of each magnet, then press it firmly onto the disc or shaft. Allow the epoxy to cure for at least 24 hours before proceeding. For added security, drill small holes through the center of each magnet and secure them with screws or rivets. This dual-attachment method guarantees the magnets remain in place, even at high rotational speeds.
A critical aspect of rotor assembly is maintaining proper polarity alignment. The magnets should be arranged in an alternating north-south pattern to create a strong, undulating magnetic field. This can be achieved by marking the positions of the magnets on the disc or shaft, ensuring each subsequent magnet is oriented opposite to its neighbor. Use a compass or a smartphone app to verify the polarity of each magnet before attachment. Proper alignment is crucial for maximizing the dynamo's efficiency, as it ensures the magnetic field interacts optimally with the stator coils.
For those working on a budget or with limited resources, consider using recycled materials for the rotor assembly. Old hard drives, for example, contain powerful neodymium magnets that can be carefully extracted and repurposed. Similarly, a bicycle wheel or a CD/DVD disc can serve as the rotating base. While these DIY solutions may require more effort and ingenuity, they demonstrate that building a dynamo is accessible to anyone with basic tools and creativity. Just ensure the recycled components are clean, free of debris, and securely fastened to maintain safety and functionality.
In conclusion, the rotor assembly is a pivotal step in constructing a dynamo using magnets. By carefully selecting and attaching magnets to a rotating disc or shaft, you create the moving magnetic field necessary for generating electricity. Whether using high-quality neodymium magnets or recycled materials, attention to detail in attachment methods and polarity alignment will determine the success of your project. With patience and precision, you can build a functional dynamo that harnesses the power of magnetism to produce clean, renewable energy.
Harnessing Earth's Magnetic Field: Innovative Applications and Practical Uses
You may want to see also
Explore related products
Stator Setup: Position the coil near the rotor to maximize magnetic flux linkage during rotation
The stator setup is a critical component in maximizing the efficiency of a dynamo. To achieve optimal performance, the coil must be positioned in close proximity to the rotor, ensuring that the magnetic flux linkage is at its peak during rotation. This principle is rooted in Faraday's law of electromagnetic induction, which states that the electromotive force (EMF) induced in a coil is directly proportional to the rate of change of magnetic flux through it. By minimizing the distance between the coil and the rotor, you effectively increase the magnetic field strength experienced by the coil, thereby enhancing the induced EMF.
Consider the practical implications of this setup. A typical DIY dynamo might use a rotor with permanent magnets, such as neodymium magnets, arranged to create alternating magnetic poles. The stator coil, often made of insulated copper wire wound around a cylindrical core, should be placed no more than 1-2 millimeters away from the rotor’s surface. This distance ensures that the magnetic field lines from the rotor pass through the coil with minimal divergence, maximizing flux linkage. For example, a 100-turn coil with a cross-sectional area of 10 square centimeters positioned 1 millimeter from a rotating magnet can generate a noticeable voltage when spun at 1200 RPM, suitable for powering small devices like LEDs.
However, proximity alone isn’t enough; alignment is equally crucial. The coil should be oriented such that its axis is perpendicular to the magnetic field lines generated by the rotor. This alignment ensures that the magnetic flux through the coil changes maximally as the rotor spins, inducing the highest possible voltage. Misalignment can reduce efficiency by up to 30%, so use a non-magnetic frame (e.g., wood or plastic) to hold the coil securely in place while allowing for fine adjustments.
A cautionary note: while closer proximity increases efficiency, it also raises the risk of mechanical interference between the rotor and stator. Ensure the rotor can spin freely without touching the coil by using spacers or bearings. Additionally, excessive heat from high-speed rotation can degrade the coil’s insulation, so consider using heat-resistant wire or incorporating a cooling mechanism if operating at speeds above 2000 RPM.
In conclusion, the stator setup is a delicate balance of proximity, alignment, and mechanical integrity. By positioning the coil near the rotor and ensuring proper orientation, you can maximize magnetic flux linkage and, consequently, the dynamo’s output. Practical tips like maintaining a 1-2 millimeter gap, using non-magnetic frames, and monitoring for heat buildup will help you achieve a robust and efficient design. This focused approach transforms theoretical principles into a tangible, functional dynamo capable of generating usable electricity.
Secure Your Space: Creative Magnet Lock Solutions for Everyday Use
You may want to see also
Explore related products
Power Extraction: Connect a load (e.g., LED) to the coil terminals to harness generated electricity
The moment your dynamo's coil spins within the magnetic field, electricity is born—fleeting and eager to escape. To capture this energy, you must introduce a load, a device hungry for power. An LED, with its modest appetite, is an ideal candidate. Connect its anode (longer lead) to one coil terminal and its cathode (shorter lead) to the other, completing the circuit. This simple act transforms raw electrical potential into visible light, proving your dynamo’s functionality.
Consider the load as a gatekeeper, dictating how much current flows through the circuit. Ohm’s Law—*V = IR*—remains your guiding principle here. A low-resistance load, like a high-brightness LED, will draw more current, potentially overheating the coil if not matched with a suitable power source. Conversely, a high-resistance load, such as a standard red LED (typical forward voltage: 1.8–2.2V, forward current: 20mA), ensures safe and efficient operation. Always pair your load with a current-limiting resistor to prevent damage.
The beauty of this step lies in its versatility. Swap the LED for a small motor, and your dynamo becomes a kinetic demonstrator. Attach a capacitor, and it stores energy for later use. Each load reveals a different facet of your dynamo’s capabilities, turning a simple experiment into a platform for exploration. For instance, a 1000µF capacitor charged by your dynamo can power an LED for several seconds after motion stops—a tangible lesson in energy storage.
Practical tip: Test your connections with a multimeter before attaching the load. Ensure the coil’s terminals are secure and free of debris, as poor contact can lead to voltage drops or short circuits. If using multiple LEDs, wire them in parallel to maintain consistent brightness, as series connections divide voltage unevenly. Remember, the goal isn’t just to light an LED but to understand how power extraction shapes the dynamo’s output, turning motion into a usable, measurable force.
Mastering Magnetic Rings: Practical Uses and Benefits for Daily Life
You may want to see also
Frequently asked questions
You will need a strong magnet, a coil of copper wire, a rotating mechanism (like a crank or wheel), a frame to hold the components, and a way to connect the coil to a device to test the generated electricity.
A dynamo generates electricity through electromagnetic induction. When the magnet rotates near the coil of wire, it creates a changing magnetic field, which induces an electric current in the wire according to Faraday's law of induction.
While you can use any magnet, strong permanent magnets like neodymium magnets work best because they produce a stronger magnetic field, resulting in more efficient electricity generation.
You can increase power output by using more coils of wire (increasing the number of turns), rotating the magnet faster, using a stronger magnet, or adding a soft iron core inside the coil to enhance the magnetic field.
