Creating a magnetic compass using cardboard is a fascinating and educational DIY project that combines basic principles of magnetism and navigation. By using simple materials like cardboard, a needle, and a magnet, you can construct a functional compass that aligns with the Earth’s magnetic field. This hands-on activity not only demonstrates how compasses work but also offers a deeper understanding of direction-finding and the science behind it. Whether for a school project, outdoor adventure, or just for fun, making a magnetic compass with cardboard is an accessible and rewarding way to explore the intersection of physics and practical tool-making.
| Characteristics | Values |
|---|---|
| Materials Needed | Cardboard, Magnet, Needle or Pin, Bowl of Water, Optional: Cork, Thread |
| Steps | 1. Magnetize the needle by rubbing it with a magnet for several minutes. 2. Attach the magnetized needle to a small piece of cork or cardboard (if using cork, push the needle through it). 3. If using cardboard, balance the needle on a small pivot point (e.g., a pin or thread). 4. Place the setup on the surface of still water in a bowl. 5. Allow the needle to settle and align with the Earth's magnetic field. |
| Working Principle | The magnetized needle aligns itself with the Earth's magnetic field, pointing north-south. |
| Accuracy | Basic and may not be highly precise; best for educational purposes. |
| Cost | Low; uses readily available household items. |
| Time Required | Approximately 15-30 minutes. |
| Safety Precautions | Handle needles and pins with care to avoid injury. |
| Applications | Educational projects, basic navigation, DIY experiments. |
| Limitations | Affected by nearby metal objects or strong magnetic fields. |
| Alternative Methods | Using a leaf or small piece of paper instead of cork/cardboard for the float. |
Explore related products
What You'll Learn
- Gather Materials: Cardboard, magnet, needle, bowl, water, and adhesive
- Magnetize Needle: Rub needle against magnet 20-30 times for polarization
- Create Base: Cut cardboard into a circular shape for stability
- Assemble Compass: Float magnetized needle on cork or foam in water
- Calibrate Direction: Align with Earth’s magnetic field for accurate north-south reading
Gather Materials: Cardboard, magnet, needle, bowl, water, and adhesive
The foundation of any magnetic compass lies in its ability to align with the Earth's magnetic field, and the materials you choose play a critical role in this process. Cardboard serves as the base, providing a lightweight yet sturdy platform for your compass. Opt for a thin, rigid cardboard sheet, such as those from a cereal box or a file folder, to ensure ease of manipulation and durability. The magnet, ideally a small, strong neodymium magnet, will be the heart of your compass, imparting its magnetic properties to the needle. A standard sewing needle, made of ferromagnetic steel, is perfect for this purpose, as it can be easily magnetized and is lightweight enough to float on water. Speaking of water, a shallow bowl filled with it acts as the medium in which the needle will freely rotate, allowing it to align with the magnetic field. Lastly, an adhesive—whether glue, tape, or a hot glue gun—will secure the components in place, ensuring your compass remains functional and intact.
Instructively, gathering these materials is a straightforward process, but attention to detail is key. Begin by sourcing a clean, flat piece of cardboard, cutting it into a circular or square shape approximately 4 inches in diameter. This size provides ample space for the needle to move without being too bulky. Next, locate a magnet; if you don’t have a neodymium magnet, a refrigerator magnet can suffice, though its strength may be less reliable. For the needle, ensure it’s free of rust or bends, as imperfections can hinder its ability to align properly. A small bowl, preferably glass or plastic, should be filled with enough water to allow the needle to float without touching the bottom. Finally, choose an adhesive that dries clear and holds firmly, such as a low-temperature hot glue gun, which is safe for all ages and provides quick, strong bonds.
Persuasively, the simplicity of these materials belies the profound science at work. Cardboard, often discarded as waste, becomes a tool for understanding Earth’s magnetic forces. The magnet, a tiny yet powerful object, demonstrates the invisible pull that governs compasses and much of modern technology. The needle, a humble household item, transforms into a sensitive instrument capable of detecting magnetic fields. Water, the universal solvent, becomes a frictionless stage for the needle’s movement. Even the adhesive, a mundane necessity, ensures the integrity of your creation. Together, these materials illustrate how everyday items can be repurposed to explore fundamental scientific principles.
Comparatively, while modern compasses rely on advanced materials like liquid-filled capsules and jeweled bearings, this cardboard version strips the concept down to its essence. The cardboard replaces the plastic or metal housing, the magnet substitutes for rare-earth magnets, and the needle mimics the precision of a manufactured needle. Water, in this case, serves the same purpose as the liquid in a commercial compass—reducing friction for smooth rotation. This DIY approach not only saves costs but also fosters a deeper appreciation for the ingenuity behind navigational tools. It’s a reminder that complexity isn’t always necessary to achieve functionality.
Descriptively, imagine the scene: a piece of cardboard lies flat, its surface smooth and ready to be transformed. A magnet rests nearby, its sleek, metallic surface hinting at the power within. The needle, slender and sharp, gleams under the light, poised to become the compass’s pointer. The bowl, filled with clear water, reflects the surroundings like a miniature mirror. The adhesive, whether in a glue stick or a hot glue gun, stands ready to bind these elements together. Each material, simple on its own, contributes to a greater whole, turning a collection of everyday items into a device that connects you to the Earth’s magnetic field. This assembly is not just a craft project but a tangible lesson in physics and resourcefulness.
Can Opponents Harness Your Magnetic Field? Exploring Energy Dynamics
You may want to see also
Explore related products
Magnetize Needle: Rub needle against magnet 20-30 times for polarization
A needle's magnetic personality is not innate but acquired through friction and repetition. To transform a humble sewing needle into a compass needle, you must introduce it to a magnet. This process, known as magnetization, involves rubbing the needle against a magnet's pole 20 to 30 times in a consistent direction. The magnet's magnetic field aligns the needle's atomic structure, inducing a north-seeking pole and a south-seeking pole. This polarization is crucial for the needle to interact with the Earth's magnetic field and point north.
The technique of rubbing a needle against a magnet is an ancient practice, dating back to the early days of navigation. Chinese sailors, for instance, used magnetized needles as early as the 11th century to navigate the vast oceans. To replicate this process, start with a clean, dry needle and a strong magnet, such as a neodymium or alnico magnet. Hold the magnet firmly in one hand and the needle in the other, ensuring the needle is aligned with the magnet's length. Rub the needle against the magnet's pole, moving it away from you in a smooth, consistent motion. Repeat this process 20 to 30 times, counting each stroke to ensure accuracy.
As you rub the needle, imagine the magnetic field lines flowing from the magnet to the needle, aligning its atomic structure. This visualization can help you maintain focus and precision during the magnetization process. Be cautious not to over-rub the needle, as excessive friction can cause it to become demagnetized or damaged. A gentle, consistent touch is key to achieving optimal polarization. If you're working with children or inexperienced individuals, supervise the process to prevent accidents and ensure proper technique.
The effectiveness of needle magnetization depends on several factors, including the magnet's strength, the needle's material, and the number of rubs. For best results, use a magnet with a minimum strength of 1 Tesla and a needle made of ferromagnetic material, such as steel or iron. If you're unsure about the needle's material, test its magnetization by placing it near a paperclip or another magnetic object. A successfully magnetized needle will attract the object, indicating its readiness for compass use. Remember, the goal is not to create a permanent magnet but to induce a temporary polarization that will interact with the Earth's magnetic field.
In practice, magnetizing a needle is a simple yet fascinating process that demonstrates the principles of magnetism and navigation. By rubbing a needle against a magnet 20 to 30 times, you can create a functional compass needle capable of pointing north. This technique is an excellent educational tool for teaching children about magnetism, geography, and navigation. Moreover, it's a valuable skill for outdoor enthusiasts, survivalists, and anyone interested in understanding the fundamentals of compass construction. With a little patience and precision, you can transform a ordinary needle into a powerful navigational tool, unlocking a world of exploration and discovery.
Exploring Magnetic Tape as a Reliable Server Backup Solution
You may want to see also
Explore related products
Create Base: Cut cardboard into a circular shape for stability
A stable base is crucial for a functional magnetic compass, and cardboard, when cut into a circular shape, provides the ideal foundation. The circular form ensures balance, allowing the compass needle to move freely without tilting or wobbling. Unlike square or rectangular bases, which can introduce uneven weight distribution, a circle naturally centers the needle, enhancing accuracy. This simple yet effective design choice is a cornerstone of DIY compass construction.
To create this base, start by selecting a piece of cardboard that is at least 2 millimeters thick for durability. Trace a circle with a compass tool or use a circular object like a cup or lid as a template. The diameter should be around 10 centimeters to provide ample space for the needle and markings. Cut along the traced line with a sharp craft knife or scissors, ensuring smooth edges to avoid interference with the needle’s movement. For added stability, consider layering two circles together with glue, creating a sturdier platform.
While cutting, precision is key. Jagged edges or uneven shapes can disrupt the compass’s functionality. If symmetry is a challenge, fold the cardboard in half twice to find the center point, then use a ruler to connect the quarters and create a perfect circle. This method guarantees a balanced base, essential for reliable readings. Remember, the goal is to mimic the stability of professional compasses, and a well-cut circular base is the first step in achieving that.
Comparing this approach to alternative base shapes highlights its superiority. A square base, for instance, may cause the needle to favor corners, leading to inaccurate readings. A triangular base introduces instability due to its uneven weight distribution. The circle, however, eliminates these issues by providing a uniform edge and equal weight distribution. This simplicity in design translates to reliability in function, making it the preferred choice for DIY compass builders.
In practice, this circular cardboard base serves as more than just a foundation—it’s a canvas for creativity. Once cut, you can decorate it with markings for directions, add a pin holder for the needle, or even laminate it for longevity. Its versatility, combined with its stability, makes it an excellent starting point for anyone looking to craft a magnetic compass from scratch. With this base in place, the rest of the compass assembly becomes a matter of precision and patience.
Do Subways Use Magnetic Brakes? Exploring Urban Rail Technology
You may want to see also
Explore related products

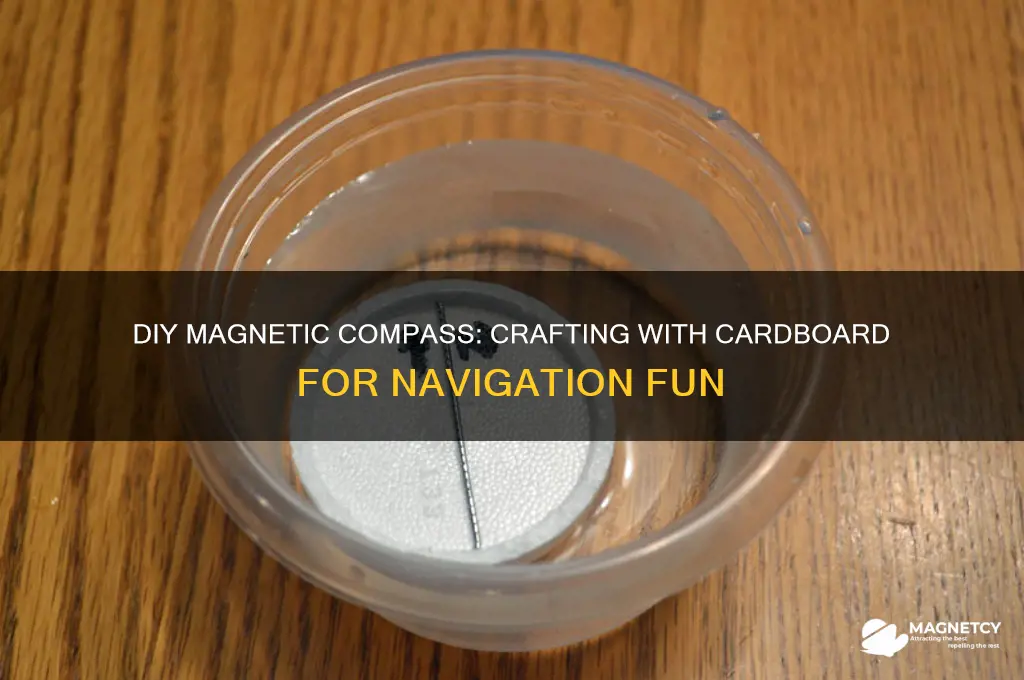

Assemble Compass: Float magnetized needle on cork or foam in water
A magnetized needle floating on cork or foam in water forms the heart of a simple yet effective magnetic compass. This method leverages the principles of buoyancy and magnetism, allowing the needle to align freely with the Earth’s magnetic field. The key lies in minimizing friction and ensuring the needle remains horizontal, which is achieved by suspending it on a lightweight, water-resistant platform like cork or foam. This setup not only demonstrates the basics of compass construction but also highlights the interplay between physical forces.
To assemble this compass, begin by magnetizing a sewing needle using a permanent magnet. Stroke the needle in one direction along the magnet’s length at least 20 times to align its magnetic domains. Test its polarity by observing how it interacts with the magnet’s ends. Next, attach the needle to a small piece of cork or foam, ensuring it lies flat. A toothpick or thin wire can serve as a pivot, inserted through the cork and needle to allow rotation. The cork or foam should be just large enough to support the needle without adding unnecessary weight, typically around 1–2 cm in diameter.
Place the setup in a shallow dish of water, ensuring the cork or foam floats freely. The water acts as a low-friction medium, allowing the needle to rotate without resistance. Observe the needle as it aligns itself with the Earth’s magnetic field, pointing north-south. For best results, perform this experiment away from metal objects or electronic devices that could interfere with the magnetic field. If the needle fails to align, recheck its magnetization or adjust its balance on the cork.
This method offers a clear advantage over traditional cardboard compasses, which often rely on pins or pivots that introduce friction. By floating the needle, you eliminate this resistance, ensuring accurate alignment. However, it requires careful handling to avoid tipping the cork or foam. For educational purposes, this design is ideal for demonstrating magnetic principles to children aged 8 and above, combining hands-on experimentation with observable results.
In conclusion, floating a magnetized needle on cork or foam in water provides a practical and insightful way to construct a magnetic compass. It emphasizes the importance of reducing friction and understanding magnetic forces, making it a valuable addition to any DIY compass project. With minimal materials and straightforward steps, this method bridges the gap between theory and practice, offering a tangible lesson in both physics and navigation.
Exploring Magnet Energy: Can Its Power Be Depleted Over Time?
You may want to see also
Explore related products
Calibrate Direction: Align with Earth’s magnetic field for accurate north-south reading
The Earth's magnetic field is a crucial factor in the functionality of any compass, and your cardboard creation is no exception. This invisible force, generated by the movement of molten iron in the planet's core, provides the reference point for your compass needle to align with. Understanding this relationship is key to ensuring your DIY compass points true north, not just any arbitrary direction.
Calibration is the process of adjusting your compass to account for local magnetic variations, ensuring it accurately reflects the Earth's magnetic field. This step is often overlooked in simple compass-making tutorials, but it's essential for reliability. Without proper calibration, your compass might lead you astray, especially in areas with significant magnetic anomalies.
The Calibration Process:
Imagine your compass needle as a dancer, responding to the Earth's magnetic rhythm. To calibrate, you need to fine-tune this dance. Start by placing your cardboard compass on a flat surface, away from any metal objects or electronic devices that could interfere. Gradually rotate the compass until the needle aligns with the Earth's magnetic field lines. This might require some patience, as the needle settles into its natural position. You can use a known north-south reference point, like a map or a GPS device, to verify the accuracy of your calibration.
A Practical Tip:
For a more precise calibration, consider using a magnetic declination map specific to your location. Magnetic declination is the angle between true north (geographic north) and magnetic north (where your compass needle points). This value varies depending on your latitude and longitude. By adjusting your compass reading by the declination angle, you can achieve a highly accurate north-south indication. For instance, if your local declination is 10 degrees east, you would need to rotate your compass reading by 10 degrees west to align with true north.
The Science Behind It:
The Earth's magnetic field is not uniform; it varies in strength and direction across the globe. This is due to the complex dynamics of the planet's core and the influence of magnetic minerals in the crust. When you calibrate your compass, you're essentially accounting for these local variations, ensuring your needle responds to the unique magnetic signature of your location. This process is a fascinating interplay between the macroscopic (the Earth's core) and the microscopic (the alignment of magnetic domains in your compass needle).
In essence, calibrating your cardboard compass is a blend of art and science. It requires patience, observation, and an understanding of the Earth's magnetic personality. By mastering this step, you transform a simple craft project into a functional tool, capable of guiding you through the intricacies of navigation.
Animals Navigating Earth's Magnetic Fields: Unseen Forces Guiding Wildlife
You may want to see also
Frequently asked questions
You will need a small piece of cardboard, a sewing needle, a magnet, a pin or thumbtack, a bowl of water, and optionally a marker for labeling directions.
Rub the sewing needle against a magnet in one direction for about 20–30 times to magnetize it. Ensure the needle is fully magnetized by testing if it attracts small metallic objects.
Place the magnetized needle on the cardboard, then carefully balance it on the pin or thumbtack. Ensure the needle can spin freely. Float the cardboard on the water in the bowl to allow the needle to align with Earth's magnetic field.
Once the needle settles, use a marker to label the end pointing north as "N" and the opposite end as "S." Ensure the compass is kept flat and undisturbed for accurate readings.
