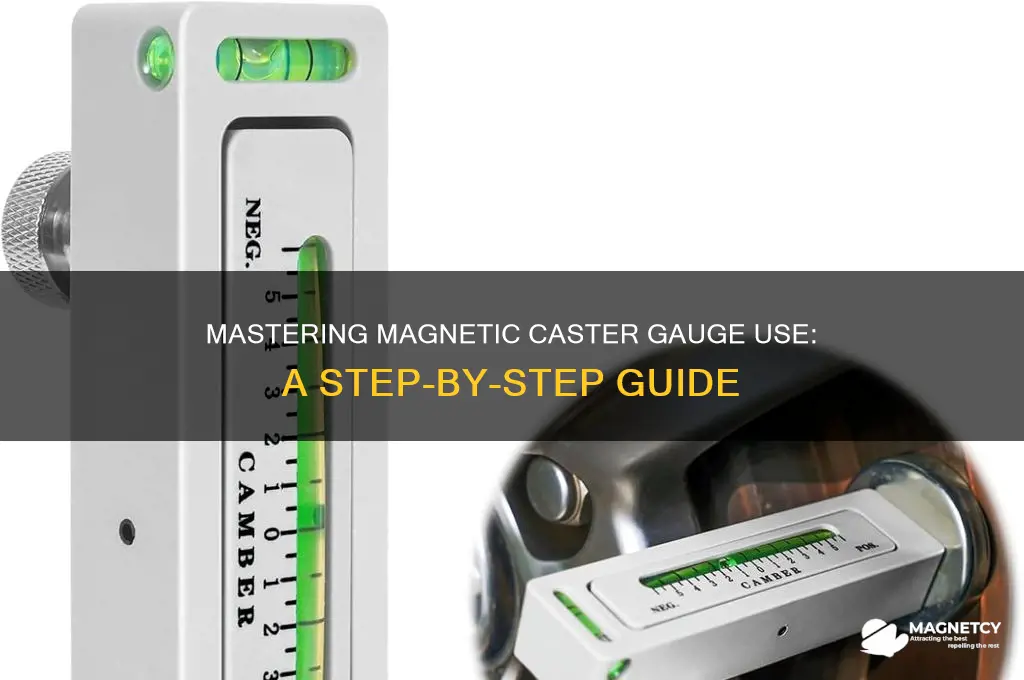

A magnetic caster gauge is an essential tool for accurately measuring and adjusting the caster angle of a vehicle's suspension system, ensuring optimal steering performance and alignment. This handheld device typically features a magnetic base that securely attaches to the vehicle's hub or spindle, allowing for precise readings of the caster angle by aligning the gauge with the wheel's axis. To use it effectively, start by cleaning the attachment surface to ensure a strong magnetic connection, then position the gauge so that its pointer aligns with the wheel's centerline. Adjust the gauge's indicator to match the wheel's orientation, and read the caster angle directly from the scale. Proper use of a magnetic caster gauge not only enhances vehicle handling and tire wear but also ensures safety and compliance with manufacturer specifications.
| Characteristics | Values |
|---|---|
| Purpose | Measure and adjust caster angles on vehicles for proper alignment. |
| Tool Required | Magnetic Caster Gauge (with magnetic base and adjustable protractor). |
| Vehicle Preparation | Park on a flat, level surface; turn off the engine; engage parking brake. |
| Wheel Position | Turn wheels to the straight-ahead position. |
| Attachment Method | Secure the gauge’s magnetic base to a flat, ferromagnetic surface (e.g., strut or control arm). |
| Alignment Procedure | Align the gauge’s arm parallel to the vehicle’s centerline or another reference point. |
| Measurement Reading | Read the caster angle from the protractor scale where the arm intersects. |
| Adjustment (if needed) | Loosen caster adjustment bolts, realign, and retighten to achieve the desired angle. |
| Accuracy Check | Verify readings on both sides of the vehicle for consistency. |
| Safety Precautions | Ensure stability; avoid contact with moving parts; use jack stands if necessary. |
| Post-Adjustment | Double-check alignment and test drive to ensure proper handling. |
| Common Caster Angles | Typically ranges from 2° to 6° positive caster (varies by vehicle). |
| Calibration | Ensure the gauge is calibrated and the protractor is accurate. |
| Storage | Store the gauge in a dry place to prevent magnetic or mechanical damage. |
Explore related products
What You'll Learn
- Understanding Gauge Components: Identify parts like magnetic base, dial, and plunger for accurate measurements
- Surface Preparation: Ensure clean, flat surfaces for proper magnetic adhesion and precise readings
- Zeroing the Gauge: Calibrate by setting the dial to zero on a reference surface
- Taking Measurements: Place gauge, note dial reading, and record air gap or thickness
- Post-Use Care: Clean, store in a case, and avoid exposure to extreme conditions
Understanding Gauge Components: Identify parts like magnetic base, dial, and plunger for accurate measurements
A magnetic caster gauge is a precision tool, and its effectiveness hinges on understanding its core components. The magnetic base is the unsung hero, anchoring the gauge securely to ferromagnetic surfaces. Its strength and stability are critical; a weak magnet can lead to inaccurate readings, while a robust one ensures the gauge remains firmly in place during measurement. Always inspect the base for debris or damage before use, as even small particles can compromise its grip.
Next, the dial serves as the gauge’s communication hub, displaying measurements with clarity. Modern dials often feature high-contrast markings and protective glass to prevent glare or scratches. When reading the dial, ensure it’s at eye level to avoid parallax errors, which can skew results by up to 0.002 inches. For optimal accuracy, zero the dial before each measurement by gently adjusting the bezel until the needle aligns with the reference mark.
The plunger is the gauge’s workhorse, directly interacting with the surface being measured. Its smooth, consistent movement is essential for precise readings. Over time, plungers can wear or accumulate debris, so regular cleaning and lubrication are vital. Use a non-residual lubricant like silicone-based oil to maintain fluid motion without contaminating surfaces. If the plunger feels stiff or binds, inspect it for damage or misalignment, as these issues can introduce errors of up to 0.005 inches.
Understanding the interplay between these components is key to mastering the magnetic caster gauge. For instance, a misaligned plunger can cause the dial to display incorrect values, even if the magnetic base is secure. Conversely, a slipping base can render the plunger’s movement irrelevant. By systematically checking each part—magnetic base, dial, and plunger—users can ensure the gauge operates as a cohesive unit, delivering reliable measurements every time.
Finally, consider the environment in which the gauge is used. Extreme temperatures can affect the magnet’s strength and the plunger’s fluidity, while dusty or greasy conditions can foul the dial and plunger mechanism. In industrial settings, pair the gauge with a protective case and wipe down components after each use. For delicate applications, such as measuring thin-walled casters, apply minimal pressure to the plunger to avoid deformation. With proper care and component awareness, a magnetic caster gauge becomes an indispensable tool for precision work.
Harnessing Magnetic Power: Exploring Energy Creation and Storage Potential
You may want to see also
Explore related products
Surface Preparation: Ensure clean, flat surfaces for proper magnetic adhesion and precise readings
Magnetic caster gauges rely on a fundamental principle: magnetic attraction between the gauge and the surface being measured. Any debris, dirt, or irregularities on the surface can disrupt this attraction, leading to inaccurate readings. Imagine trying to stick a magnet to a rusty, uneven surface – it simply won’t hold securely. The same principle applies here. Surface preparation is the unsung hero of accurate caster gauge measurements, ensuring the gauge adheres properly and provides reliable data.
The Cleaning Ritual: Begin by thoroughly cleaning the surface where the gauge will be placed. Use a degreaser or solvent suitable for the material (e.g., isopropyl alcohol for metals) to remove oils, grease, and grime. Follow with a dry cloth to ensure no residue remains. For stubborn contaminants, consider using a mild abrasive pad, but be cautious not to scratch the surface. Remember, the goal is a pristine, smooth area that allows the magnet to make full contact.
Flatness Matters: A seemingly flat surface might still have subtle imperfections that affect adhesion. Inspect the area for dents, bumps, or warping. For critical measurements, use a straightedge or a precision surface plate to verify flatness. If minor imperfections exist, consider sanding or machining the surface to achieve the necessary smoothness. While this step may seem excessive, it’s crucial for applications where precision is non-negotiable, such as in aerospace or automotive manufacturing.
Environmental Considerations: Humidity and temperature can also impact surface preparation. Moisture can create a barrier between the magnet and the surface, reducing adhesion. Ensure the area is dry and, if possible, control the environment to maintain consistent conditions. For outdoor applications, wait for optimal weather conditions or use protective measures like tarps to shield the surface from dew or rain. These precautions may seem minor, but they can make a significant difference in the accuracy of your readings.
The Takeaway: Surface preparation is not just a preliminary step; it’s the foundation of accurate magnetic caster gauge use. By dedicating time to cleaning and inspecting the surface, you ensure the gauge functions as intended, providing precise and reliable measurements. Skipping this step risks not only inaccurate data but also potential damage to the gauge or the surface itself. In the world of precision measurement, attention to detail is paramount, and surface preparation is where that attention begins.
Wireless Charging and Magnets: Safe to Use Together or Not?
You may want to see also
Explore related products
Zeroing the Gauge: Calibrate by setting the dial to zero on a reference surface
Before using a magnetic caster gauge, zeroing the gauge is a critical step that ensures accurate measurements. This process involves calibrating the gauge by setting the dial to zero on a reference surface, typically a flat and stable plane. The reference surface should be free from defects, such as scratches or dents, to guarantee a precise calibration. A common practice is to use a granite surface plate or a precision-ground steel plate as the reference surface, as these materials provide a consistent and reliable base for calibration.
Steps to Zero the Gauge:
- Place the magnetic caster gauge on the reference surface, ensuring the magnetic base is securely attached.
- Adjust the gauge's position so that the measuring tip is in contact with the reference surface.
- Rotate the bezel or dial until the needle or digital display reads exactly zero. This step may require fine-tuning the gauge's position or adjusting the bezel to achieve an accurate zero reading.
- Verify the calibration by moving the gauge slightly and observing if the reading remains at zero. If the reading deviates, repeat the process until the gauge is accurately calibrated.
Cautions and Considerations:
When zeroing the gauge, it is essential to avoid applying excessive force or pressure, as this can damage the measuring tip or alter the calibration. Additionally, ensure the reference surface is clean and free from debris, as contaminants can affect the accuracy of the calibration. For digital magnetic caster gauges, check the battery level and replace it if necessary, as low battery power can impact the accuracy of the readings.
Practical Tips:
To maintain the accuracy of the magnetic caster gauge, it is recommended to zero the gauge before each use, especially if the gauge has been subjected to rough handling or extreme temperatures. For industrial applications, consider using a master gauge or a certified reference standard to verify the calibration of the magnetic caster gauge periodically. Furthermore, store the gauge in a protective case when not in use to prevent damage and maintain its calibration.
Real-World Application:
In the automotive industry, for instance, zeroing the magnetic caster gauge is crucial when measuring the caster angle of a vehicle's suspension system. A properly calibrated gauge ensures accurate measurements, which are essential for diagnosing suspension issues, such as uneven tire wear or handling problems. By following the steps and considerations outlined above, technicians can confidently use the magnetic caster gauge to obtain precise measurements, ultimately leading to more effective repairs and maintenance.
Exploring Magnetic Resonance Imaging: Uses and Applications in Modern Medicine
You may want to see also
Explore related products
Taking Measurements: Place gauge, note dial reading, and record air gap or thickness
The magnetic caster gauge is a precision tool designed to measure the air gap or thickness between surfaces with accuracy. To begin taking measurements, place the gauge firmly against the surface where the reading is needed. Ensure the magnetic base adheres securely to the metal surface, providing stability and eliminating movement that could compromise accuracy. This initial step is crucial, as a wobbly or misaligned gauge will yield unreliable results.
Once the gauge is in position, observe the dial reading carefully. The dial indicator will display the measurement in thousandths of an inch or millimeters, depending on the gauge’s calibration. Note the reading precisely, as even a slight misreading can lead to significant errors in applications like machinery alignment or component fitting. For example, in automotive caster angle measurements, a variance of 0.002 inches can affect steering performance. Always double-check the reading to ensure consistency.
Recording the air gap or thickness is the final step in the measurement process. Use a notebook or digital device to log the value immediately, pairing it with the specific location or component being measured. This documentation is essential for troubleshooting, maintenance, or quality control. For instance, in industrial settings, recording air gaps between bearings and housings can prevent overheating or premature wear. Include timestamps or reference points in your records to track changes over time.
A practical tip to enhance accuracy is to take multiple measurements at slightly different positions around the target area. This approach accounts for surface irregularities or minor misalignments. Average the readings to obtain a more reliable value. Additionally, ensure the gauge is calibrated regularly, as wear or damage to the tool can introduce errors. By following these steps—placing the gauge securely, noting the dial reading meticulously, and recording results systematically—you can achieve precise and actionable measurements with a magnetic caster gauge.
Exploring Cast Iron's Potential as a Magnetic Core Material
You may want to see also
Explore related products
Post-Use Care: Clean, store in a case, and avoid exposure to extreme conditions
Proper post-use care ensures your magnetic caster gauge remains accurate and functional for years. After each use, wipe the gauge’s surface with a soft, lint-free cloth to remove dust, debris, or metal shavings that could interfere with readings. For stubborn contaminants, use a mild solvent like isopropyl alcohol applied sparingly to avoid damaging sensitive components. Never use abrasive cleaners or scouring pads, as these can scratch the gauge’s magnetic surface, compromising its precision.
Storage is equally critical. Always keep the gauge in a protective case when not in use. A hard-shell case with foam padding shields the instrument from physical shocks and prevents accidental activation of its magnetic components. Ensure the case is dry and free of moisture, as even small amounts of water can corrode internal mechanisms over time. If the gauge came with a custom case, use it—generic storage solutions may not provide adequate protection.
Extreme conditions are the silent killers of magnetic caster gauges. Avoid exposing the device to temperatures above 120°F (49°C) or below 14°F (-10°C), as these extremes can demagnetize the core or warp its housing. Similarly, keep the gauge away from humid environments or direct sunlight, both of which accelerate material degradation. If storing in a workshop or garage, place the gauge on a high shelf, away from heaters, air conditioners, or windows.
A proactive approach to care pays dividends in longevity. Inspect the gauge monthly for signs of wear, such as cracks in the housing or weakened magnetic strength. If the device begins to produce inconsistent readings, clean it thoroughly and test again before assuming it’s faulty. By treating your magnetic caster gauge as a precision tool—not a disposable gadget—you’ll preserve its accuracy and reliability, ensuring it remains a trusted asset in your toolkit.
Mastering Magnet Fishing: Essential Safety Tips for Responsible Treasure Hunting
You may want to see also
Frequently asked questions
A magnetic caster gauge is a tool used to measure the offset or alignment of caster wheels on vehicles or equipment. It helps ensure proper wheel alignment, reducing wear and improving handling.
Place the gauge’s magnetic base firmly against the wheel hub or a flat, ferromagnetic surface near the wheel. Ensure it is securely attached before taking measurements.
The gauge typically measures caster angle, which is the forward or backward tilt of the steering axis when viewed from the side of the vehicle.
Compare the gauge’s readings to the manufacturer’s specifications for your vehicle or equipment. Positive values indicate caster tilt toward the rear, while negative values indicate tilt toward the front.
No, the gauge requires a ferromagnetic surface to attach properly. If the surface is non-magnetic, the gauge will not adhere or function correctly.
