Logan Foster

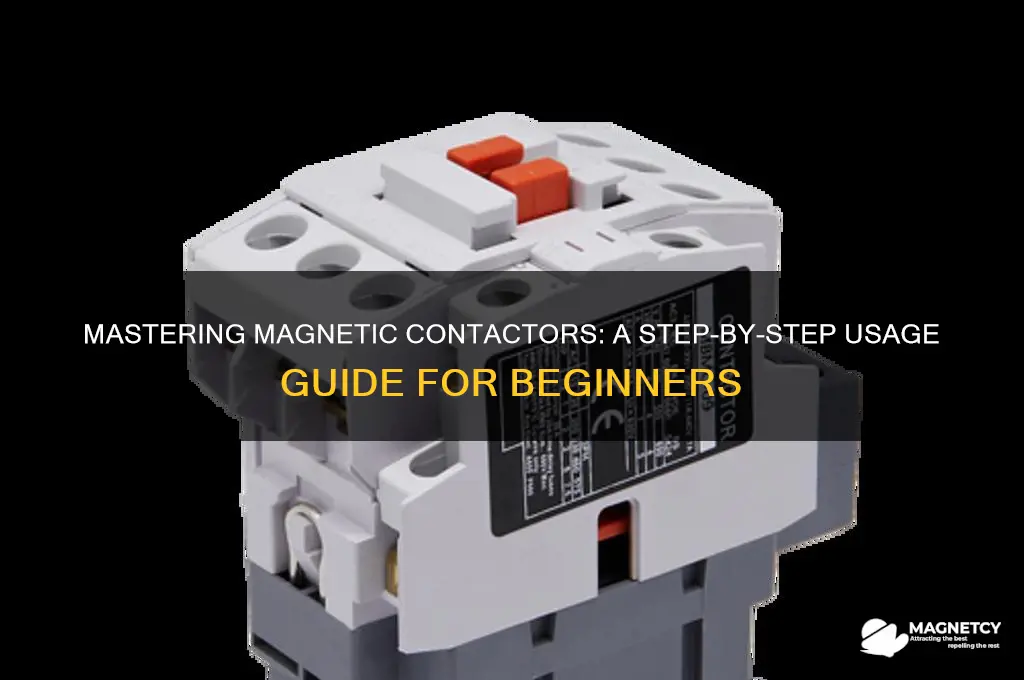

A magnetic contactor is an essential electromechanical switch used to control the flow of electricity in various applications, such as motors, lighting systems, and heating equipment. It operates by using an electromagnet to close or open a set of contacts, allowing or interrupting the electrical circuit. To use a magnetic contactor effectively, start by ensuring it is properly installed and connected to the power source and the load. Verify that the coil voltage matches the power supply and that the contacts are rated for the current and voltage of the application. Once installed, activate the contactor by applying power to the coil, which will energize the electromagnet and close the contacts, enabling the flow of electricity to the load. Always follow safety precautions, such as de-energizing the circuit before maintenance and using appropriate personal protective equipment, to prevent accidents and ensure reliable operation. Understanding the wiring diagram and the specific functions of auxiliary contacts, if present, will further enhance the efficient use of the magnetic contactor in your system.
| Characteristics | Values |
|---|---|
| Purpose | Controls the flow of electricity in a circuit using an electromagnet. |
| Main Components | Coil, Contacts (Normally Open/Normally Closed), Armature, Enclosure. |
| Operating Principle | Electromagnetism: Coil energizes, pulls armature, closes/opens contacts. |
| Power Supply | Typically AC (e.g., 120V, 240V) or DC (e.g., 12V, 24V) depending on model. |
| Contact Ratings | Amperage (e.g., 10A, 40A, 100A) and voltage (e.g., 240V, 600V). |
| Auxiliary Contacts | Additional contacts for control or signaling (e.g., 5A, 125V). |
| Coil Voltage | Matches control circuit voltage (e.g., 24V DC, 120V AC). |
| Enclosure Rating | IP or NEMA rating for environmental protection (e.g., NEMA 1, IP65). |
| Application | Motor control, lighting systems, HVAC, industrial machinery. |
| Wiring | Line (L1, L2, L3), Load (T1, T2, T3), Coil (A1, A2), Aux Contacts. |
| Safety Features | Overload protection, thermal cutoff (when paired with overload relay). |
| Maintenance | Regular inspection of contacts, coil, and wiring for wear or damage. |
| Installation | Mount securely, ensure proper grounding, follow manufacturer guidelines. |
| Troubleshooting | Check coil voltage, contact wear, and wiring connections for faults. |
| Advantages | Reliable, durable, suitable for high-power applications. |
| Disadvantages | Requires power to maintain operation, can generate heat. |
Explore related products
What You'll Learn
- Understanding Contactor Components: Identify main parts: coil, contacts, terminals, and enclosure for proper operation
- Wiring Basics: Connect power, load, and control circuits correctly to ensure safe functionality
- Coil Voltage Selection: Match coil voltage to control circuit to prevent damage or malfunction
- Overload Protection: Integrate thermal or electronic relays to safeguard against motor overcurrent
- Maintenance Tips: Regularly inspect contacts, clean terminals, and test operation for reliability
Understanding Contactor Components: Identify main parts: coil, contacts, terminals, and enclosure for proper operation
A magnetic contactor is a critical component in electrical control systems, acting as a switch to manage high-power loads. To use it effectively, understanding its core components is essential. The coil is the heart of the contactor, generating a magnetic field when energized, which pulls the contacts together to complete the circuit. Without a functional coil, the contactor cannot operate. The contacts themselves are the conductive elements that make or break the electrical connection, handling the load current. Terminals provide the connection points for both the control circuit (coil) and the power circuit (contacts), ensuring proper wiring and secure electrical flow. Finally, the enclosure protects these components from environmental factors and prevents accidental contact with live parts, ensuring safety and longevity.
Consider the coil as the brain of the contactor, dictating its action. It requires a specific voltage to operate—typically 12V, 24V, or 110V, depending on the model. Overloading the coil with incorrect voltage can cause overheating or failure, so always verify compatibility with your control circuit. The contacts, often made of silver alloys for durability, must be inspected periodically for wear or pitting, as degraded contacts can lead to arcing or incomplete connections. For instance, in industrial applications, contacts may need replacement after 10,000 to 100,000 operations, depending on the load and frequency of use.
Terminals are where precision meets practicality. They come in various types, such as screw terminals for secure connections or spring-loaded terminals for quick installation. When wiring, ensure the wire gauge matches the terminal rating—using a 12 AWG wire on a terminal rated for 10 AWG can lead to loose connections and potential hazards. Labeling terminals clearly during installation can save time during troubleshooting or maintenance. For example, color-coding wires (e.g., red for power, black for neutral) and matching them to corresponding terminals simplifies the process.
The enclosure is often overlooked but plays a vital role in safety and functionality. It must be rated for the environment in which the contactor operates—NEMA Type 1 for indoor use, Type 3R for outdoor use, or Type 4 for watertight applications. A poorly chosen enclosure can expose the contactor to dust, moisture, or physical damage, leading to premature failure. For instance, using a Type 1 enclosure in a dusty workshop will clog the contactor, while a Type 4 enclosure in a clean indoor setting is overkill and unnecessarily expensive.
In practice, understanding these components allows for efficient troubleshooting. If the contactor fails to engage, check the coil voltage and wiring. If the load doesn’t activate, inspect the contacts for wear or debris. Loose terminals? Tighten them with the appropriate torque (typically 0.5 to 1.5 Nm for screw terminals). By mastering these parts, you ensure the contactor operates reliably, whether controlling a motor, lighting system, or HVAC unit. This knowledge transforms the contactor from a black box into a tool you can trust and maintain with confidence.
Mastering Magnetic Bar Bead Clasps: A 3-Hole Usage Guide
You may want to see also
Explore related products
Wiring Basics: Connect power, load, and control circuits correctly to ensure safe functionality
Magnetic contactors are essential components in electrical systems, acting as switches to control the flow of power to motors, lighting, and other loads. Proper wiring is critical to ensure safe and efficient operation. The first step in wiring a magnetic contactor is understanding the three primary circuits involved: power, load, and control. Each circuit plays a distinct role, and incorrect connections can lead to equipment damage, electrical hazards, or system failure.
Power Circuit Connection: Begin by connecting the power supply to the contactor’s line terminals (typically labeled L1, L2, and L3 for three-phase systems or L1 and L2 for single-phase). Ensure the power source matches the contactor’s voltage rating, commonly 120V, 240V, or 480V. Use appropriately sized wires and torque terminal screws to manufacturer specifications—overtightening can strip threads, while undertightening causes loose connections and overheating. Always de-energize the circuit before wiring to prevent electrical shock.
Load Circuit Connection: The load circuit connects the contactor’s output terminals (labeled T1, T2, T3, etc.) to the device being controlled, such as a motor or heater. Verify the load’s amperage does not exceed the contactor’s rating, typically ranging from 9A to 1200A. For motors, include overload protection (e.g., thermal relays) in the load circuit to safeguard against overcurrent conditions. Route load wires away from control wires to minimize electromagnetic interference, which can disrupt control signals.
Control Circuit Wiring: The control circuit activates the contactor’s coil, closing the power contacts. Connect the control input (e.g., a switch, relay, or PLC output) to the contactor’s auxiliary terminals, usually labeled A1 and A2. The coil voltage, often 12V, 24V, or 120V, must match the control circuit’s power supply. Incorporate a normally closed (NC) auxiliary contact in series with the coil to provide feedback or interlocking with other devices. Always include a surge suppressor across the coil terminals to protect against voltage spikes during switching.
Safety and Testing: After wiring, perform a visual inspection to confirm all connections are secure and wires are correctly routed. Use a multimeter to test continuity in the power and load circuits and verify control voltage at the coil terminals. Energize the system and operate the control circuit to ensure the contactor engages and disengages smoothly. Monitor for unusual noise, heat, or arcing, which indicate improper wiring or component failure. Regularly inspect contactor contacts for wear and replace them if pitted or burned.
By meticulously connecting power, load, and control circuits according to these guidelines, you ensure the magnetic contactor operates safely and reliably, protecting both equipment and personnel. Proper wiring is not just a technical requirement—it’s a cornerstone of electrical safety and system longevity.
Navigating Mars: Can a Magnetic Compass Guide Exploration on the Red Planet?
You may want to see also
Explore related products
Coil Voltage Selection: Match coil voltage to control circuit to prevent damage or malfunction
Selecting the correct coil voltage for a magnetic contactor is critical to ensuring reliable operation and preventing costly damage. The coil voltage must match the voltage supplied by the control circuit—a discrepancy as small as 10% can lead to overheating, coil burnout, or failure to engage the contactor. For instance, using a 120V coil in a 24V control circuit will result in insufficient magnetism to close the contacts, while applying 240V to a 120V coil will likely destroy it instantly. Always verify the control circuit’s voltage with a multimeter before installation to avoid these pitfalls.
To illustrate, consider a common industrial scenario: a motor starter controlled by a 24V DC PLC output. If a 110V AC coil contactor is mistakenly installed, the coil will not energize, leaving the motor inoperative. Conversely, connecting a 24V DC coil to a 110V AC circuit will cause immediate failure. Manufacturers typically specify coil voltage options (e.g., 12V, 24V, 120V, 240V) for flexibility, but this variety demands careful selection. Cross-referencing the control circuit’s voltage with the contactor’s specifications is non-negotiable.
A systematic approach simplifies coil voltage selection. First, identify the control circuit’s voltage (AC or DC) and its nominal value. Next, consult the contactor’s datasheet to confirm available coil voltages. If the exact match isn’t available, opt for a coil rated slightly above the control voltage to ensure adequate magnetism without risking overload. For example, a 24.5V DC control circuit pairs safely with a 24V DC coil but not a 12V DC coil. When in doubt, use a voltage regulator or transformer to match voltages precisely.
Practical tips further mitigate risks. Always account for voltage drop in long control circuits—a 5% drop can reduce effective voltage, so select a coil with a slightly higher rating if wiring exceeds 50 feet. In environments with fluctuating power (e.g., construction sites), choose contactors with voltage tolerance ranges (e.g., ±10%). Additionally, test the coil’s resistance with a multimeter to ensure it aligns with manufacturer specifications before installation. These precautions transform a potentially error-prone task into a straightforward process.
In conclusion, coil voltage selection is not merely a detail but a cornerstone of magnetic contactor functionality. Mismatched voltages compromise safety, efficiency, and longevity, while proper alignment ensures seamless operation. By treating this step with the attention it deserves—through verification, cross-referencing, and proactive troubleshooting—users safeguard their systems against avoidable failures. The adage “measure twice, cut once” applies here: double-check voltage compatibility to cut out future problems.
Powerful DIY Magnet: Crafting an Intense Battery-Powered Magnetic Force
You may want to see also
Explore related products
Overload Protection: Integrate thermal or electronic relays to safeguard against motor overcurrent
Motors, the workhorses of industrial automation, are susceptible to overcurrent conditions that can lead to catastrophic failures. Overload protection is not just a safety measure; it’s a necessity to ensure longevity and reliability. Thermal and electronic relays serve as the first line of defense, detecting excessive current and interrupting the circuit before damage occurs. Without these safeguards, a minor overload can escalate into insulation breakdown, winding burnout, or even fire. Integrating these relays with a magnetic contactor transforms it from a simple switching device into a robust protective system.
Thermal relays, also known as thermal overload relays, operate based on the principle of heat dissipation. They contain a bimetallic strip that bends when heated by overcurrent, triggering a mechanical release to disconnect the motor. These relays are cost-effective and reliable, making them ideal for applications where simplicity and durability are prioritized. However, they have limitations—response time is slower, and they are less precise in detecting transient overloads. For motors operating under consistent loads, thermal relays are often sufficient, but they require periodic inspection to ensure the bimetallic strip hasn’t fatigued.
Electronic relays, on the other hand, offer faster response times and greater precision. They monitor current digitally and can be programmed to trip at specific thresholds, making them suitable for motors with variable loads or frequent starts and stops. These relays often include additional features like phase loss protection, ground fault detection, and communication capabilities for integration into larger control systems. While more expensive than thermal relays, their versatility and diagnostic capabilities justify the investment in critical applications. Pairing an electronic relay with a magnetic contactor ensures not only overload protection but also advanced monitoring and control.
Integrating these relays involves careful selection and wiring. For thermal relays, match the relay’s current rating to the motor’s full-load amperage, typically within ±10%. Connect the relay in series with the motor and ensure the trip class (e.g., Class 10, 20) aligns with the application’s overload tolerance. For electronic relays, configure the trip settings via a display or software interface, and verify compatibility with the contactor’s voltage and current ratings. Always test the system under load conditions to confirm proper operation and adjust settings as needed.
The takeaway is clear: overload protection is non-negotiable in motor control systems. Whether you choose thermal or electronic relays depends on your application’s demands, budget, and desired level of sophistication. By integrating these devices with a magnetic contactor, you not only protect the motor but also ensure uninterrupted operation and reduce downtime. It’s an investment in both safety and efficiency—a small price to pay for peace of mind.
Mastering Magnetic Eyelashes: A Beginner's Guide to Easy Application
You may want to see also
Explore related products
Maintenance Tips: Regularly inspect contacts, clean terminals, and test operation for reliability
Magnetic contactors are the unsung heroes of electrical systems, silently controlling high-power circuits with precision. Yet, their reliability hinges on diligent maintenance. Over time, contacts wear, terminals accumulate grime, and operational efficiency wanes. Regular inspections, cleaning, and testing aren’t just routine tasks—they’re critical to preventing costly downtime and ensuring safety.
Inspect Contacts for Wear and Damage
Contacts are the heart of a magnetic contactor, enduring repeated arcing and high currents. Over months or years, this stress causes pitting, burning, or uneven wear. Visually inspect contacts every 6–12 months, depending on usage. Look for discoloration, erosion, or debris buildup. A contact with less than 80% of its original surface area should be replaced. For high-demand applications, such as industrial machinery, consider quarterly inspections. Always power down the system before inspection to avoid electrical hazards.
Clean Terminals to Ensure Secure Connections
Dirty or corroded terminals disrupt current flow, leading to overheating or intermittent operation. Use a soft-bristle brush and isopropyl alcohol to remove dust, grease, or oxidation. For stubborn corrosion, apply a terminal cleaner or fine-grit sandpaper, ensuring not to damage the metal. After cleaning, coat terminals with a thin layer of dielectric grease to repel moisture and extend lifespan. This 10-minute task can prevent hours of troubleshooting later.
Test Operation to Verify Reliability
A contactor that looks clean might still malfunction under load. Test its operation annually or after maintenance. Use a multimeter to check coil voltage and contact resistance. Resistance should be near zero when closed and infinite when open. Simulate a load test by engaging the contactor while monitoring for unusual noise, heat, or delayed response. If the contactor fails to operate smoothly, inspect the coil and mechanical linkages for wear or misalignment.
Practical Tips for Longevity
Incorporate maintenance into a scheduled routine, not just reactive repairs. Label contactors with inspection dates and keep a log of findings. For outdoor installations, inspect more frequently due to environmental exposure. Store replacement parts onsite to minimize downtime. Finally, train staff to recognize early signs of failure, such as chattering contacts or burning odors. Proactive care transforms a magnetic contactor from a potential liability into a dependable asset.
Mastering Magnetic Stud Finders: A Step-by-Step Guide for Accurate Results
You may want to see also
Frequently asked questions
A magnetic contactor is an electrically controlled switch used to turn a power circuit on or off. Its primary function is to control high-power loads, such as motors, lighting, or heating systems, by using a low-power control signal.
Wire the magnetic contactor by connecting the power supply to the line terminals (L1, L2, L3), the motor to the load terminals (T1, T2, T3), and the control circuit to the coil terminals (A1, A2). Ensure the overload relay is properly connected to protect the motor.
Yes, magnetic contactors are available for both AC and DC applications, but the coil voltage and contact ratings must match the system requirements. Always check the specifications before use.
Apply the rated coil voltage to the control terminals (A1, A2) and check if the contacts close (switch on). Use a multimeter to verify continuity across the load terminals (T1, T2, T3) when the coil is energized. Also, inspect for any signs of damage or wear.
Ensure the power is disconnected before installation or maintenance. Use appropriate personal protective equipment (PPE), verify the correct voltage and current ratings, and ensure the contactor is properly grounded to prevent electrical hazards.
