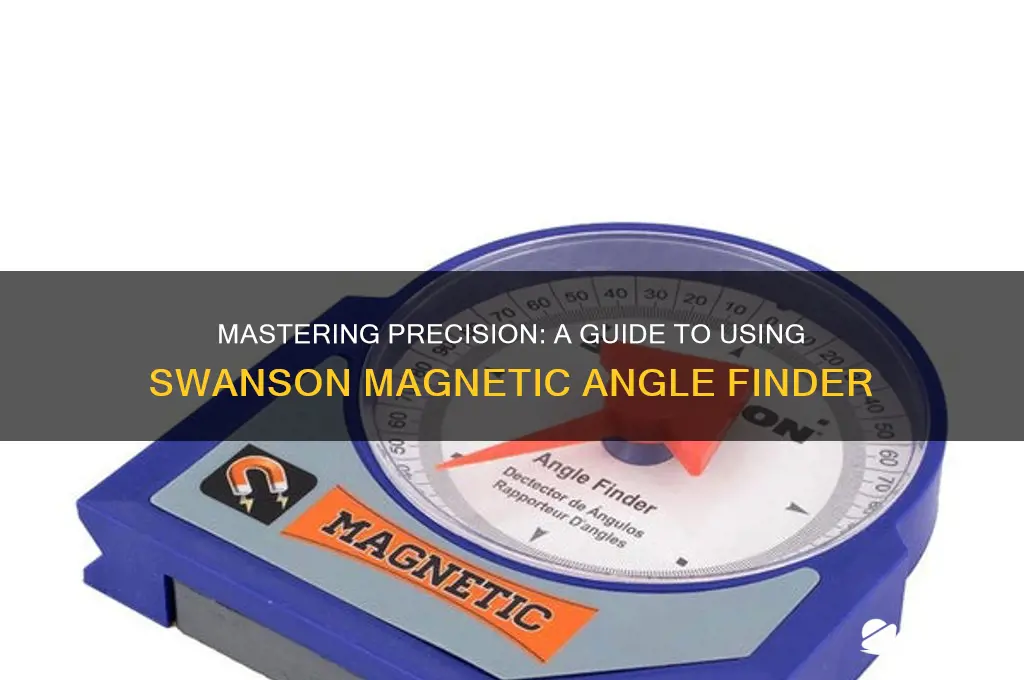

The Swanson Magnetic Angle Finder is a versatile tool designed to simplify the process of measuring and transferring angles in woodworking, construction, and other precision tasks. Equipped with a powerful magnet, it securely attaches to ferrous surfaces, ensuring stability and accuracy during measurements. Its dual-scale protractor allows for easy reading of angles in both degrees and roof pitches, while the sliding arm with a locking mechanism enables precise angle replication. Ideal for tasks like laying out stair stringers, setting bevels, or aligning crown molding, this tool streamlines workflows and reduces errors. Whether you're a professional tradesperson or a DIY enthusiast, mastering the use of the Swanson Magnetic Angle Finder can significantly enhance your efficiency and precision in angle-related projects.
Explore related products
What You'll Learn
Calibrating the Tool
Calibrating your Swanson Magnetic Angle Finder is a critical step to ensure accurate measurements, as even minor discrepancies can lead to significant errors in your projects. Over time, the tool’s magnetic components or moving parts may shift, making calibration essential for reliability. This process is straightforward but requires attention to detail to achieve precision.
Begin by placing the angle finder on a flat, stable surface known to be perfectly level, such as a machined table or a granite surface plate. Ensure the tool’s magnetic base is firmly attached to the surface to eliminate movement. Next, adjust the finder’s arms to align with the surface, zeroing the tool’s reading. If the display does not show zero, locate the calibration screw—typically found near the digital display—and use a small screwdriver to turn it clockwise or counterclockwise until the reading is accurate. This adjustment compensates for any internal misalignment.
A common mistake during calibration is rushing the process or using an uneven surface, which can introduce errors. To avoid this, verify the flatness of your calibration surface with a straightedge or machinist’s level. Additionally, perform calibration in a stable environment, free from vibrations or temperature fluctuations, as these factors can affect the tool’s magnetic properties. For optimal results, recalibrate the tool monthly or before starting a critical project.
Comparing the Swanson Magnetic Angle Finder to other angle-measuring tools highlights the importance of calibration. Unlike analog protractors, which rely on visual alignment, digital tools like the Swanson depend on internal sensors and magnets, making them more susceptible to drift over time. Regular calibration ensures this tool maintains its edge in precision, outperforming less sophisticated alternatives. By investing a few minutes in this process, you safeguard the accuracy of your measurements and the quality of your work.
