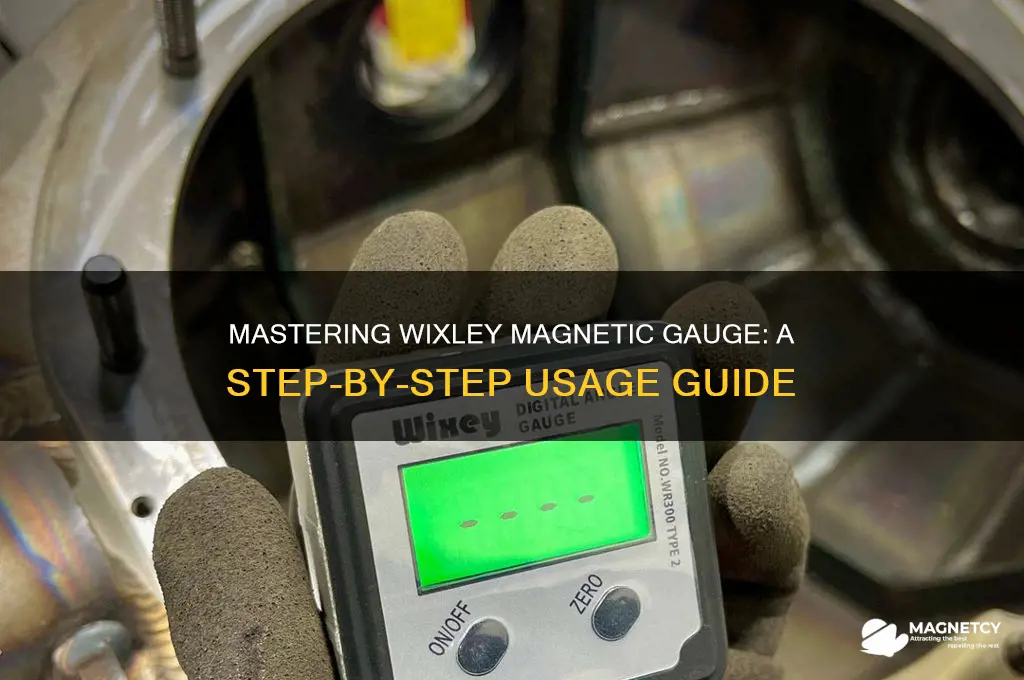

The Wixley Magnetic Gauge is a precision tool designed for measuring the thickness of non-magnetic coatings on magnetic substrates, such as paint on steel. To use it effectively, start by calibrating the gauge on a known standard to ensure accurate readings. Place the gauge firmly against the surface to be measured, allowing the magnetic pull to stabilize. The gauge will then display the coating thickness, typically in micrometers or mils, based on the strength of the magnetic attraction. Regularly clean the probe and verify calibration to maintain reliability, and always refer to the manufacturer’s instructions for specific model details. This tool is essential for industries requiring precise coating measurements, such as automotive, aerospace, and manufacturing.
Explore related products
What You'll Learn
- Understanding Gauge Components: Identify parts like the magnetic base, plunger, and scale for accurate measurements
- Surface Preparation: Ensure clean, flat surfaces for proper adhesion and precise readings
- Magnetic Base Alignment: Securely attach the gauge to ferrous materials for stability
- Reading the Scale: Interpret measurements by aligning the plunger with the scale markings
- Calibration Tips: Regularly check and adjust the gauge for consistent accuracy over time
Understanding Gauge Components: Identify parts like the magnetic base, plunger, and scale for accurate measurements
The Wixley magnetic gauge is a precision tool, but its accuracy hinges on understanding its core components. Let's dissect the anatomy of this instrument, focusing on the magnetic base, plunger, and scale – the trifecta of its functionality.
The magnetic base is the unsung hero, providing a secure and adjustable foundation. Its powerful magnet allows for firm attachment to ferromagnetic surfaces, ensuring stability during measurements. This base often features a fine-adjustment mechanism, typically a screw or lever, enabling precise positioning of the gauge. Imagine trying to measure a gap with a wobbly base – the results would be unreliable. This component is the bedrock of the gauge's accuracy, offering both strength and finesse.
Moving upwards, the plunger takes center stage. This slender rod, often made of hardened steel, is the gauge's sensing element. It extends and retracts smoothly, responding to the slightest variations in the measured gap. The plunger's tip, usually rounded or flat, makes contact with the surface being measured. Its movement is directly translated into a readable value on the scale. A well-maintained plunger, free from debris and damage, is crucial for consistent readings. Think of it as the gauge's feeler, delicately probing the gap and relaying the information to the user.
The scale, often a graduated ruler or dial, is where the magic happens – the translation of physical movement into quantifiable data. Linear scales provide direct readings, with each mark representing a specific unit of measurement. Dial gauges, on the other hand, offer a more dynamic display, with a needle sweeping across a numbered face. Understanding the scale's resolution (the smallest increment it can measure) is vital. For instance, a scale with 0.01mm resolution allows for more precise readings than one with 0.1mm. Calibration marks and zero-setting mechanisms are also essential features, ensuring the scale's accuracy over time.
In practice, consider a scenario where you're measuring the clearance between a lathe's tool bit and the workpiece. The magnetic base securely attaches to the lathe's bed, providing a stable reference point. The plunger extends to touch the tool bit, and the scale instantly displays the gap width. A quick adjustment of the tool bit, and the process repeats until the desired clearance is achieved. This example highlights the interplay between the gauge's components, each playing a critical role in achieving accurate measurements.
Mastering the Wixley magnetic gauge begins with recognizing the unique functions of its parts. The magnetic base offers stability and adjustability, the plunger provides sensitive measurement, and the scale delivers precise data. Together, they form a powerful tool for various applications, from machining to quality control. By understanding these components and their interactions, users can harness the gauge's full potential, ensuring reliable and consistent measurements in their work. This knowledge is the key to unlocking the gauge's accuracy and becoming proficient in its use.
