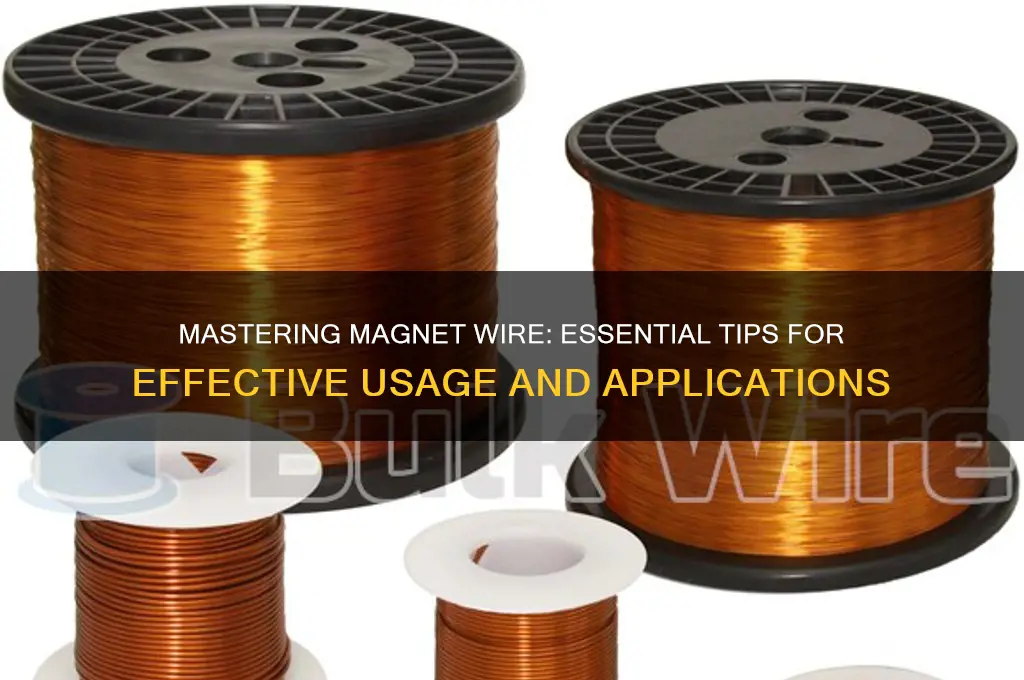

Magnet wire, also known as enameled wire, is a critical component in the construction of electromagnets, transformers, motors, and other electrical devices due to its insulating coating and high conductivity. To use magnet wire effectively, start by selecting the appropriate gauge and type based on your application's current requirements and operating temperature. Strip the enamel insulation carefully at the connection points using methods like abrasion, chemical removal, or heat, ensuring not to damage the wire itself. Wind the wire tightly and evenly around a core or in coils, maintaining consistent tension to maximize efficiency and minimize resistance. Secure the windings with insulation or adhesive to prevent short circuits, and connect the ends to your circuit or power source. Always follow safety guidelines, such as avoiding overheating during insulation removal and ensuring proper ventilation when working with chemicals or heat.
Explore related products
What You'll Learn
Selecting the Right Gauge for Specific Applications
Magnet wire gauge is a critical factor in determining the efficiency and performance of electromagnetic devices. The gauge, essentially the wire's diameter, directly influences the current-carrying capacity, resistance, and overall functionality. For instance, a 22 AWG (American Wire Gauge) wire has a diameter of 0.0253 inches and can safely carry up to 7 amperes, while a 16 AWG wire, with a diameter of 0.0508 inches, can handle up to 15 amperes. This fundamental relationship between gauge and current capacity underscores the importance of selecting the right gauge for specific applications.
Consider the application's current requirements and operating conditions when choosing a magnet wire gauge. High-current applications, such as electric motors or transformers, demand thicker wires (lower gauge numbers) to minimize resistance and heat generation. For example, a 12 V DC motor drawing 10 amperes would require a 14 AWG wire to ensure safe and efficient operation. In contrast, low-current applications like solenoids or small coils can utilize thinner wires (higher gauge numbers) without compromising performance. A 28 AWG wire, with a diameter of 0.008 inches, is suitable for delicate coils in precision instruments, where current draw is minimal.
The relationship between gauge, length, and resistance is another crucial aspect to consider. As wire length increases, so does resistance, which can lead to voltage drop and reduced efficiency. To mitigate this, use thicker wires (lower gauge numbers) for longer runs or applications with high resistance tolerance. For instance, a 10-foot coil of 24 AWG wire has a resistance of approximately 0.64 ohms, while the same length of 20 AWG wire exhibits a resistance of 0.16 ohms. This fourfold reduction in resistance highlights the significance of gauge selection in maintaining optimal performance.
In practical terms, selecting the right gauge involves a balance between current capacity, resistance, and physical constraints. Here’s a step-by-step approach: first, determine the maximum current draw of your application. Next, consult a wire gauge chart to identify suitable gauges based on current and length. Then, consider the physical space available for the wire, as thicker wires may not fit in compact designs. Finally, factor in temperature ratings and insulation type, especially in high-temperature environments. For example, a transformer operating at 150°C would require high-temperature-rated enamel insulation, paired with an appropriate gauge to handle the expected current load.
A comparative analysis of common applications illustrates the importance of gauge selection. In a small hobbyist coil, a 30 AWG wire might suffice due to its low current draw and compact size. However, in an industrial-grade motor, a 10 AWG wire would be necessary to handle the high current and minimize energy loss. This contrast highlights how gauge selection is not one-size-fits-all but rather a tailored decision based on specific requirements. By understanding these nuances, you can ensure that your magnet wire not only functions effectively but also contributes to the longevity and reliability of your electromagnetic devices.
