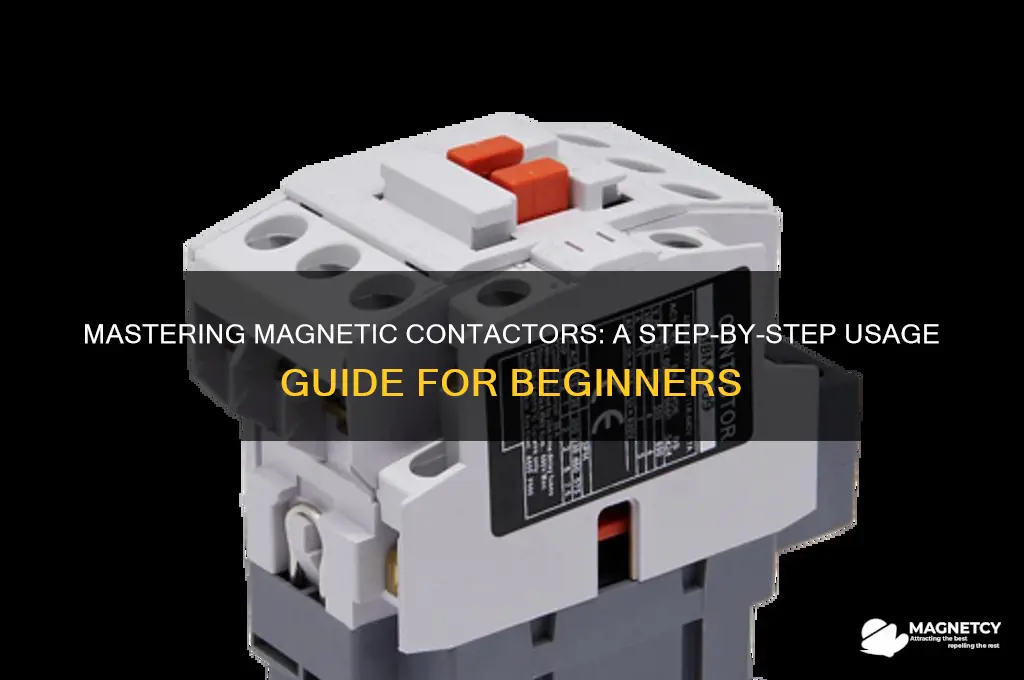

A magnetic contactor is an essential electromechanical switch used in controlling electric motors, lighting, heating, and other electrical loads. It operates by using an electromagnet to close or open the contacts, allowing or interrupting the flow of electricity. To use a magnetic contactor effectively, start by ensuring the device is properly installed and connected to the power source and the load. Verify that the control circuit, typically a low-voltage coil, is energized to activate the electromagnet, which then pulls the contacts together to complete the circuit. Always check the contactor’s ratings to ensure compatibility with the load’s voltage and current requirements. Regular maintenance, such as cleaning contacts and inspecting for wear, is crucial to prevent malfunctions. Additionally, incorporate safety measures like disconnecting power before servicing and using appropriate personal protective equipment to avoid electrical hazards. Understanding these steps ensures efficient and safe operation of the magnetic contactor in various industrial and commercial applications.
Explore related products
What You'll Learn
- Understanding Contactor Components: Identify main parts like coil, contacts, and terminals for proper operation
- Wiring Basics: Connect power, load, and control circuits correctly to ensure safe functionality
- Coil Voltage Selection: Match coil voltage to the control circuit to avoid damage or failure
- Overload Protection: Integrate thermal or electronic relays to protect motors from excessive current
- Troubleshooting Tips: Diagnose common issues like stuck contacts, coil burnout, or improper wiring
Understanding Contactor Components: Identify main parts like coil, contacts, and terminals for proper operation
A magnetic contactor is a critical component in electrical systems, acting as a switch to control the flow of electricity to motors, lighting, or other loads. To use it effectively, you must first understand its core components: the coil, contacts, and terminals. Each part plays a distinct role in ensuring the contactor operates reliably and safely. Without a clear grasp of these elements, troubleshooting or installation can become a daunting task.
Analytical Perspective:
The coil is the heart of the magnetic contactor, generating the electromagnetic field that drives its operation. When voltage is applied, the coil energizes, pulling the movable armature toward the fixed core. This action closes the contacts, allowing current to flow to the connected load. The coil’s voltage rating (e.g., 12V, 24V, 110V, or 230V) must match the control circuit to ensure proper functionality. A mismatch can lead to overheating, coil burnout, or failure to actuate. Understanding the coil’s role helps diagnose issues like a contactor that fails to engage despite power supply.
Instructive Approach:
Next, the contacts are the switch mechanism of the contactor. They come in two types: main contacts (for high-current loads) and auxiliary contacts (for control circuits). Main contacts are typically made of durable materials like silver alloys to handle heavy currents, while auxiliary contacts are smaller and used for signaling or interlocking. Inspect contacts regularly for pitting, welding, or wear, as these defects can cause arcing, voltage drops, or failure to disconnect. Cleaning or replacing contacts is essential for maintaining efficiency and safety.
Comparative Insight:
Terminals serve as the connection points for incoming and outgoing wires, linking the contactor to the power source and load. Unlike relays, which often have screw terminals, contactors frequently use spring-loaded or screw terminals rated for higher currents. Ensure wires are securely fastened and correctly sized (e.g., 12 AWG for 20A, 10 AWG for 30A) to prevent loose connections or overheating. Miswired terminals can lead to short circuits or incomplete circuits, so double-check diagrams and labels during installation.
Descriptive Takeaway:
Together, the coil, contacts, and terminals form a symbiotic system. The coil’s magnetic force activates the contacts, while the terminals ensure seamless electrical flow. For instance, in a 3-phase motor setup, the main contacts handle the high-current phases, while auxiliary contacts might signal the motor’s status to a control panel. By identifying and maintaining these parts, you ensure the contactor operates efficiently, prolonging its lifespan and preventing costly downtime. Always refer to the manufacturer’s manual for specific ratings and procedures.
Practical Tip:
When replacing a contactor, verify compatibility by matching the coil voltage, contact ratings (e.g., 40A, 60A), and terminal configuration. Use a multimeter to test coil continuity and contact resistance before installation. Regularly inspect for signs of wear, especially in high-cycle applications like conveyor systems or HVAC units. Proper understanding and care of these components transform the magnetic contactor from a simple switch into a reliable workhorse in your electrical system.
Unlocking Deadbolts with Magnets: Fact or Fiction? Expert Insights
You may want to see also
Explore related products
Wiring Basics: Connect power, load, and control circuits correctly to ensure safe functionality
Magnetic contactors are essential components in electrical systems, acting as switches to control the flow of power to motors, lighting, and other loads. Proper wiring is critical to ensure safe and efficient operation. The first step in wiring a magnetic contactor is understanding the three primary circuits involved: power, load, and control. Each circuit plays a distinct role, and incorrect connections can lead to equipment damage, electrical hazards, or system failure.
Power Circuit Connection: Begin by connecting the power supply to the contactor’s line terminals (typically labeled L1, L2, and L3 for three-phase systems or L1 and L2 for single-phase). Ensure the voltage rating of the contactor matches the power supply to prevent overheating or insulation breakdown. Use appropriately sized wires and torque terminal screws to manufacturer specifications to avoid loose connections, which can cause arcing or overheating. Always de-energize the circuit before making connections to eliminate the risk of electric shock.
Load Circuit Connection: The load circuit connects the contactor’s output terminals (often labeled T1, T2, and T3) to the device being controlled, such as a motor or lighting system. Verify the load’s amperage rating aligns with the contactor’s capacity to prevent overloading. Install overload relays or thermal protection devices in series with the load to safeguard against excessive current. Proper grounding of the load is equally vital to mitigate electrical faults and ensure operator safety.
Control Circuit Wiring: The control circuit activates the contactor’s coil, typically rated at 12V, 24V, or 110V AC/DC. Connect the control device (e.g., push button, switch, or PLC) in series with the coil terminals. Incorporate a normally closed (NC) auxiliary contact in parallel with the start button to create a seal-in circuit, maintaining power to the coil once activated. Always include a fuse or circuit breaker in the control circuit to protect against short circuits. Test the control circuit independently before integrating it with the power and load circuits to confirm functionality.
Safety and Best Practices: Label all wires and terminals clearly to avoid confusion during maintenance or troubleshooting. Use wire ferrules for secure terminal connections and route wires away from heat sources or moving parts. Regularly inspect connections for signs of wear, corrosion, or overheating. Adhere to local electrical codes and consult the contactor’s manual for specific wiring diagrams and recommendations. By meticulously connecting power, load, and control circuits, you ensure the magnetic contactor operates reliably and safely, minimizing downtime and hazards in industrial or commercial applications.
Magnetic Innovations in Wastewater Treatment: Efficient Solutions for Clean Water
You may want to see also
Explore related products
Coil Voltage Selection: Match coil voltage to the control circuit to avoid damage or failure
Selecting the correct coil voltage is a critical step in ensuring the reliable operation of a magnetic contactor. The coil is the heart of the contactor, generating the magnetic field that closes the main contacts. If the coil voltage does not match the control circuit voltage, the contactor may fail to operate, or worse, it could be damaged. For instance, applying 24V to a coil rated for 120V will result in insufficient magnetism to close the contacts, while applying 240V to a 24V coil will likely burn out the coil instantly. Always verify the control circuit voltage and match it precisely to the contactor’s coil voltage rating, typically found on the device’s nameplate or in the manufacturer’s specifications.
A common mistake is assuming that "close enough" will suffice when it comes to voltage matching. However, even small discrepancies can lead to operational issues. For example, a 24V coil supplied with 20V may not generate enough force to reliably close the contacts, especially under high loads or in cold environments where coil resistance increases. Conversely, overvoltage, even by a small margin, can cause excessive heat buildup, shortening the coil’s lifespan. To avoid these risks, use a multimeter to confirm the actual voltage in the control circuit and select a contactor with a coil voltage that matches exactly. If the available voltage doesn’t align with standard coil ratings (e.g., 12V, 24V, 120V, 240V), consider using a step-down transformer or a different contactor model.
In some applications, such as industrial automation or HVAC systems, the control circuit voltage may fluctuate due to external factors like power supply instability or long wire runs. In these cases, it’s essential to choose a contactor with a coil voltage that accommodates a voltage range rather than a single fixed value. For example, a 24V coil might be rated to operate reliably between 20.4V and 26.4V, providing a buffer against minor voltage drops or spikes. Always consult the manufacturer’s datasheet to understand the coil’s voltage tolerance and ensure it aligns with the expected operating conditions of the control circuit.
Finally, consider the practical implications of coil voltage selection in system design. For instance, in a large facility with multiple contactors, standardizing on a single control circuit voltage (e.g., 24V) simplifies wiring, reduces inventory, and minimizes the risk of errors during installation or maintenance. However, if the system requires higher voltages for long-distance control signals, ensure that the contactors are rated accordingly and that safety measures, such as proper insulation and overvoltage protection, are in place. By carefully matching coil voltage to the control circuit, you not only prevent damage and failure but also ensure the longevity and efficiency of the magnetic contactor in its intended application.
Do Magnets Lose Strength Over Time? Exploring Magnetic Wear and Tear
You may want to see also
Explore related products
Overload Protection: Integrate thermal or electronic relays to protect motors from excessive current
Motors are the workhorses of industrial and commercial systems, but they’re vulnerable to excessive current, which can lead to overheating, insulation breakdown, and catastrophic failure. Overload protection is non-negotiable, and integrating thermal or electronic relays with magnetic contactors is the most effective way to safeguard these critical components. Thermal relays, for instance, use bimetallic strips that bend when heated, triggering a trip mechanism when current exceeds safe limits. Electronic relays, on the other hand, monitor current digitally and offer faster response times, often with adjustable trip settings for precision. Both methods ensure that motors are automatically disconnected from the power supply before damage occurs, extending their lifespan and preventing costly downtime.
When implementing overload protection, start by selecting the appropriate relay type based on your motor’s specifications and application demands. For thermal relays, ensure the trip class (e.g., Class 10, 20) aligns with the motor’s full-load current and expected duty cycle. For electronic relays, configure the trip settings to match the motor’s rated current and desired protection level. Installation is straightforward: connect the relay in series with the motor circuit, typically through the magnetic contactor’s auxiliary contacts. Regularly test the system by simulating an overload condition to verify the relay’s functionality. Remember, improper calibration or neglect can render the protection ineffective, so treat this step with the same rigor as the initial setup.
A common misconception is that magnetic contactors alone provide sufficient overload protection. While contactors control the motor’s on/off state, they lack the ability to detect and respond to excessive current over time. This is where thermal and electronic relays step in, acting as a second line of defense. For example, in a conveyor system, a jammed belt can cause the motor to draw excessive current. Without overload protection, the motor might burn out within minutes. With a properly integrated relay, the system trips, preventing damage and allowing operators to address the issue before restarting. This synergy between contactors and relays is essential for robust motor control.
Finally, consider the long-term benefits of investing in overload protection. While the initial cost of thermal or electronic relays may seem insignificant compared to the motor itself, the savings in maintenance, repairs, and lost productivity are substantial. A single motor failure can halt an entire production line, costing thousands in downtime. By contrast, a relay typically costs less than $100 and lasts for years with minimal maintenance. Think of it as insurance for your motor—a small upfront expense that pays dividends in reliability and peace of mind. Whether you’re retrofitting an existing system or designing a new one, integrating overload protection is not just a best practice; it’s a necessity.
Magnetic Magic: How to Make a Paper Clip Float Effortlessly
You may want to see also
Explore related products
Troubleshooting Tips: Diagnose common issues like stuck contacts, coil burnout, or improper wiring
Magnetic contactors are reliable workhorses in industrial settings, but even the most robust components can falter. Stuck contacts, coil burnout, and improper wiring are common culprits behind their malfunction. Diagnosing these issues requires a systematic approach, combining visual inspection, electrical testing, and a dash of deductive reasoning.
Let's delve into the specifics.
Stuck Contacts: The Silent Saboteurs
Imagine a scenario where your motor refuses to stop, even after the control circuit is de-energized. This could be a telltale sign of stuck contacts. Over time, dust, debris, or excessive arcing can cause the contacts to weld together, preventing them from separating. To diagnose this, visually inspect the contacts for signs of burning, pitting, or foreign material. A multimeter can confirm continuity between the contacts even when the coil is de-energized. If stuck, carefully clean the contacts with a non-conductive cleaner and a soft brush. For severe cases, contact replacement might be necessary.
Remember, preventative maintenance, including regular cleaning and inspection, can significantly reduce the likelihood of stuck contacts.
Coil Burnout: The Silent Killer
A burnt-out coil renders your contactor useless. This often manifests as a complete failure to operate, regardless of control input. The culprit could be overloading, voltage fluctuations, or simply age. To diagnose, check for a burnt odor emanating from the contactor. Visually inspect the coil for discoloration or visible damage. A multimeter set to resistance (ohms) can confirm coil continuity. If the reading is infinite or significantly deviates from the specified value, the coil is likely burnt out. Replacement is the only solution in this case.
Improper Wiring: The Hidden Gremlin
Incorrect wiring can lead to a multitude of problems, from erratic operation to complete failure. Double-check your wiring against the contactor's schematic, ensuring correct terminal connections for the coil, line, and load. Loose connections can cause overheating and intermittent operation. Use a wiring diagram specific to your contactor model and application. If unsure, consult a qualified electrician.
Troubleshooting Flowchart:
Symptom: Motor won't stop.
- Check: Contacts for sticking, continuity with multimeter.
- Action: Clean contacts, replace if necessary.
Symptom: Contactor doesn't operate.
- Check: Coil for burnout (odor, visual damage, resistance test).
- Action: Replace coil.
Symptom: Erratic operation or overheating.
- Check: Wiring for correctness and tightness.
- Action: Correct wiring, tighten connections, consult electrician if needed.
By following these troubleshooting tips and adopting a methodical approach, you can effectively diagnose and resolve common magnetic contactor issues, ensuring the smooth operation of your industrial equipment. Remember, safety first: always disconnect power before performing any maintenance or repairs.
Understanding MRI Contrast: How Magnetic Resonance Imaging Utilizes Contrast Agents
You may want to see also
Frequently asked questions
A magnetic contactor is an electrically controlled switch used to turn a power circuit on or off. Its primary function is to control high-power loads, such as motors, heaters, or lighting systems, by using a low-power control signal to operate the magnetic coil, which then opens or closes the main power contacts.
To wire a magnetic contactor for motor control, connect the power supply to the line terminals (L1, L2, L3) and the motor to the load terminals (T1, T2, T3). Wire the control coil to a low-voltage power source (typically 12V, 24V, or 110V) through a push button or switch. Ensure the overload relay is connected in series with the motor windings for protection.
Magnetic contactors are designed for specific voltage and current ratings, so they can be used for both AC and DC applications, but you must select the correct type for your system. AC contactors are optimized for alternating current, while DC contactors are designed for direct current. Always check the manufacturer’s specifications to ensure compatibility.
