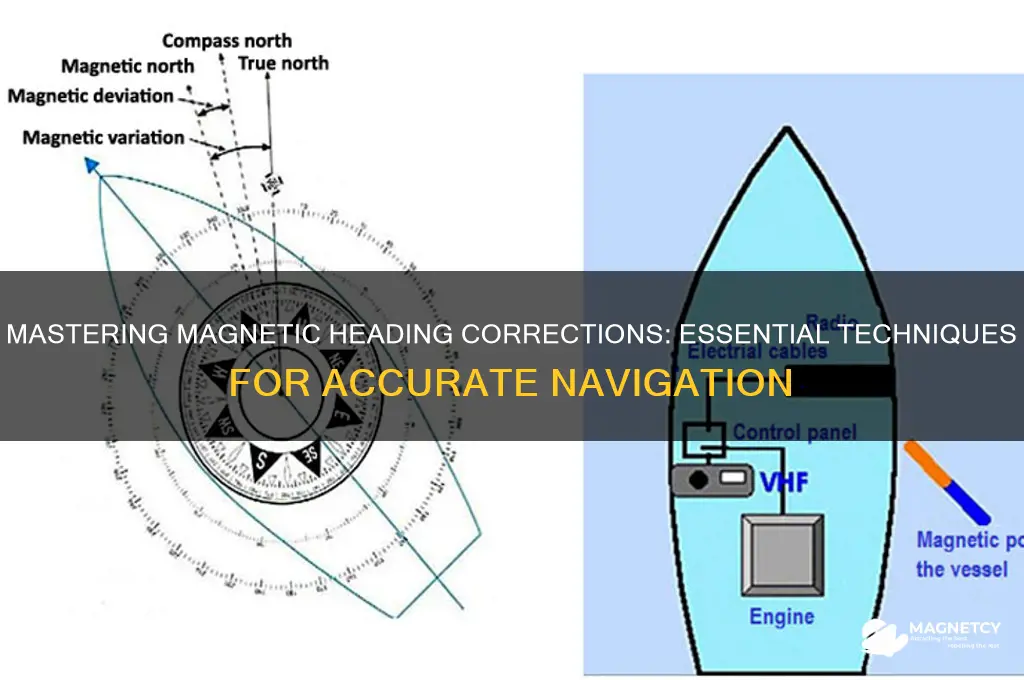

Magnetic heading corrections are essential for accurate navigation, as they account for the discrepancies between true north (geographic north) and magnetic north (the direction a compass needle points). These discrepancies, known as magnetic variation, declination, or deviation, arise from the Earth's magnetic field and local magnetic influences. To use magnetic heading corrections effectively, navigators must first determine the magnetic variation for their specific location, typically found on nautical charts or in navigation tables. This value is then applied to the compass reading to obtain the true heading. Additionally, compass deviation—errors caused by magnetic materials aboard a vessel—must be corrected using a deviation table or by manually adjusting the compass. By systematically applying both variation and deviation corrections, navigators ensure their headings align with true north, enhancing precision in both marine and aerial navigation.
| Characteristics | Values |
|---|---|
| Purpose | Correct magnetic heading to account for magnetic variation and deviation. |
| Magnetic Variation | The angle between True North and Magnetic North, obtained from nautical charts or GPS. |
| Magnetic Deviation | Error caused by magnetic fields within the vessel, corrected using a deviation table or compass adjuster. |
| Correction Process | Add or subtract variation and deviation from the magnetic heading to obtain True Heading. |
| Formula | True Heading = Magnetic Heading ± Variation ± Deviation. |
| Tools Required | Compass, deviation table, nautical chart, GPS (optional). |
| Frequency of Update | Regularly, especially after changes in vessel equipment or location. |
| Application | Navigation, dead reckoning, and maintaining accurate course at sea. |
| Units | Degrees (°) East or West for variation; degrees (°) for deviation. |
| Example | If Magnetic Heading = 045°, Variation = 5°W, Deviation = 2°E, True Heading = 045° + 5° + 2° = 052°. |
Explore related products
![[Industrial-Grade Magnetometer Compensation Chip] RM3100 High-Accuracy Magnetometer Geomagnetism, Magnet Field Sensor, SPI Interface, High-Revolution Electronic Compass Module for Arduino](https://m.media-amazon.com/images/I/51lFqSvN2mL._AC_UL320_.jpg)
What You'll Learn
- Understanding Magnetic Deviation: Learn how to measure and account for magnetic deviation in your compass
- Applying Variation Correction: Use nautical charts to adjust for magnetic variation in your location
- Compass Swing and Calibration: Perform a compass swing to identify and correct for deviations
- Using Correction Tables: Refer to correction tables for precise magnetic heading adjustments
- Electronic Compass Adjustments: Calibrate and correct magnetic headings on electronic navigation systems
Understanding Magnetic Deviation: Learn how to measure and account for magnetic deviation in your compass
Magnetic deviation is the difference between the magnetic north indicated by your compass and the true magnetic north. This discrepancy arises from magnetic fields generated by nearby objects like engines, electronics, or even the vessel’s own structure. Ignoring this deviation can lead to navigational errors, sometimes by several degrees, which compound over distance. For instance, a 3-degree deviation on a 100-mile journey could result in missing your target by nearly 5.2 miles. Understanding and correcting for magnetic deviation is therefore critical for accurate navigation, whether you’re sailing, flying, or hiking.
To measure magnetic deviation, start by identifying potential sources of interference. On a boat, this might include metal objects, electrical systems, or even the vessel’s hull. Use a process called "swinging the compass" to determine deviation at various headings. Secure the vessel at a known fixed point, then slowly rotate it while recording compass readings at 30-degree intervals (0°, 30°, 60°, etc.). Compare these readings to a known reference, such as a GPS or a chart plotter, to calculate the deviation for each heading. For example, if your compass reads 3° east of true north at a 0° heading, note this deviation for future corrections.
Once you’ve measured deviation, the next step is to account for it in your navigation. One practical method is to create a deviation table or card, which lists the deviation for each compass heading. For instance, if your compass reads 5° west at a 90° heading, you’d add 5° to your compass reading when traveling due east. Alternatively, modern electronic fluxgate compasses can automatically correct for deviation, but understanding the manual process ensures you’re prepared if technology fails. Always cross-reference your corrected heading with other navigational tools to verify accuracy.
A cautionary note: magnetic deviation is not constant. Changes in the vessel’s load, equipment additions, or even shifting magnetic fields can alter deviation over time. Regularly recalibrate your compass and remeasure deviation, especially after modifications to your vessel or equipment. For example, installing a new radio or adding metal fittings could introduce new magnetic fields, skewing your previous readings. Staying vigilant ensures your corrections remain reliable, reducing the risk of navigational errors.
In conclusion, mastering magnetic deviation is a blend of science and practice. By systematically measuring deviation, creating a correction table, and staying mindful of changes, you can trust your compass to guide you accurately. Whether you’re navigating open waters or dense forests, this skill transforms a simple tool into a precise instrument, bridging the gap between magnetic north and your true destination.
Mastering Hearthstone Magnetic: Strategies to Enhance Your Deck and Win
You may want to see also
Explore related products
Applying Variation Correction: Use nautical charts to adjust for magnetic variation in your location
Magnetic variation, the angle between true north and magnetic north, is a critical factor in navigation. Ignoring it can lead to significant errors in your course. Nautical charts provide the essential data to correct for this variation, ensuring your vessel stays on track. These charts, meticulously compiled by hydrographic offices, include a compass rose that clearly indicates the magnetic variation for a specific area, often with both the magnitude and direction (east or west) of the deviation.
Nautical charts are not just maps; they are navigational tools packed with vital information. The compass rose, typically found in the chart’s margin, is your key to understanding magnetic variation. For instance, if the rose shows a variation of 10° West, it means magnetic north lies 10° west of true north in that location. To apply this correction, subtract the variation from your magnetic heading if it’s west, or add it if it’s east. This simple adjustment transforms your magnetic heading into a true heading, aligning your course with geographical coordinates.
Consider a practical scenario: You’re sailing off the coast of Florida, where the magnetic variation is approximately 6° West. Your compass reads 090° (due east). To find your true heading, subtract the 6° variation: 090° - 6° = 084°. This corrected heading ensures you’re actually sailing due east relative to the Earth’s surface, not just your compass. Failing to make this adjustment could result in drifting off course, potentially into hazardous waters. Always cross-reference the chart’s publication date, as magnetic variation changes over time, typically at a rate of about 0.2° to 0.5° per year.
While applying variation correction is straightforward, it requires vigilance. Modern GPS systems often account for magnetic variation automatically, but relying solely on technology can be risky. Batteries die, signals drop, and equipment fails. Nautical charts and a compass remain indispensable tools. Additionally, be mindful of local anomalies, such as magnetic rocks or shipwrecks, which can distort readings. Always double-check your calculations and maintain situational awareness. By mastering this skill, you not only enhance your navigational accuracy but also deepen your connection to the age-old art of seafaring.
How Salmon Navigate Oceans Using Earth's Magnetic Field
You may want to see also
Explore related products
Compass Swing and Calibration: Perform a compass swing to identify and correct for deviations
A compass, though seemingly simple, is prone to deviations caused by magnetic influences aboard a vessel. These deviations can lead to significant navigational errors if left uncorrected. A compass swing is the process of identifying and quantifying these deviations by rotating the vessel through a full 360 degrees while observing the compass readings at specific headings. This procedure is essential for accurate navigation, especially in critical situations where precise heading information is paramount.
Steps to Perform a Compass Swing:
- Preparation: Ensure the vessel is in a safe, open area with ample room to maneuver. Remove any temporary magnetic objects from the vicinity of the compass, such as tools, electronic devices, or ferrous materials. Record the initial compass reading as a baseline.
- Execution: Slowly rotate the vessel in a full circle, pausing at each cardinal and intercardinal heading (North, Northeast, East, Southeast, South, Southwest, West, Northwest). At each point, note the compass reading and compare it to the true heading. This can be done using a GPS or known landmarks.
- Data Analysis: Plot the deviations on a compass deviation card or table. Deviations are typically expressed in degrees east or west of the true heading. For example, if the compass reads 5° east at North, the deviation is +5°.
- Correction Application: Use the deviation table to apply corrections manually or adjust the compass’s built-in corrector magnets, if available. Modern electronic fluxgate compasses may require software adjustments based on the deviation data.
Cautions and Considerations: Avoid performing a compass swing near large metal structures, underwater cables, or other vessels, as these can influence the magnetic field. Ensure the vessel is stable and not subject to excessive rolling or pitching during the procedure. For steel-hulled vessels, permanent magnetic deviations may require professional recalibration.
Practical Tips: For small boats, a handheld compass can be used to verify deviations. Repeat the swing in both directions (clockwise and counterclockwise) to ensure consistency. Document all findings in a logbook for future reference. Regularly repeat the compass swing, especially after repairs, modifications, or the addition of new equipment, to maintain accuracy.
By systematically performing a compass swing and applying corrections, navigators can ensure their compass provides reliable heading information, reducing the risk of errors and enhancing safety at sea. This process, though time-consuming, is a cornerstone of maritime navigation and a testament to the interplay between traditional techniques and modern technology.
Neodymium Magnets in Transformers: Feasibility and Potential Applications
You may want to see also
Explore related products
$8.98 $9.98
Using Correction Tables: Refer to correction tables for precise magnetic heading adjustments
Magnetic heading corrections are essential for accurate navigation, especially in aviation and maritime contexts where even minor deviations can lead to significant errors. Correction tables serve as a critical tool in this process, providing precise adjustments to account for magnetic variation, deviation, and other factors. These tables are meticulously compiled, often by maritime or aeronautical authorities, and are designed to be user-friendly yet highly accurate. By referencing these tables, navigators can ensure their magnetic compass readings align with true or grid headings, minimizing the risk of off-course deviations.
To effectively use correction tables, start by identifying the specific table relevant to your location and type of navigation. For instance, maritime correction tables often include data for different latitudes and longitudes, while aeronautical tables may account for altitude and aircraft type. Once the appropriate table is selected, locate the current position’s magnetic variation value, typically given in degrees east or west. This value represents the angular difference between magnetic north and true north at that location. Apply this correction to your magnetic heading by adding or subtracting the variation value, depending on its direction. For example, if your magnetic heading is 090° and the variation is 5°W, your true heading would be 095°.
While correction tables are invaluable, they require careful interpretation to avoid errors. Always double-check the date of the table, as magnetic variation changes over time due to shifts in the Earth’s magnetic field. Modern tables often include annual change rates, allowing for interpolation if using outdated data. Additionally, be mindful of the table’s resolution—some tables provide corrections in whole degrees, while others offer decimal precision. For high-accuracy applications, such as precision navigation or surveying, opt for tables with finer resolution and consider supplementary corrections for factors like magnetic deviation caused by onboard equipment.
Practical tips can further enhance the effectiveness of using correction tables. For instance, keep a physical copy of the table readily accessible, as digital tools may fail in remote or offshore environments. Laminated versions are particularly durable and resistant to water damage. When working with multiple tables, organize them by region or type to streamline the lookup process. Finally, practice applying corrections under simulated conditions to build familiarity and speed, ensuring seamless execution during actual navigation. By mastering the use of correction tables, navigators can achieve unparalleled precision in their magnetic heading adjustments.
Does Magnetism Get Used Up? Exploring the Science Behind Magnetic Energy
You may want to see also
Explore related products
Electronic Compass Adjustments: Calibrate and correct magnetic headings on electronic navigation systems
Magnetic heading corrections are essential for accurate navigation, especially in electronic systems that rely on compasses. Electronic compasses, while convenient, are susceptible to interference from magnetic fields generated by nearby electronics, metal structures, or even the Earth’s magnetic anomalies. Without proper calibration, these devices can drift, leading to navigational errors that compound over time. Correcting magnetic headings involves accounting for deviations caused by local magnetic influences, ensuring the compass aligns with true north rather than magnetic north. This process is critical for marine, aviation, and land-based navigation systems to maintain precision and safety.
Calibration of an electronic compass begins with identifying the source of interference. Common culprits include onboard electronics, such as radios or engines, and external factors like metal hulls or nearby power lines. To calibrate, follow the manufacturer’s instructions, which typically involve rotating the device through a full 360-degree circle in a figure-eight pattern. This motion helps the compass map out and compensate for local magnetic fields. For marine systems, ensure the vessel is stationary and away from docks or other vessels during calibration. In aviation, calibrate on the ground, away from hangar structures or aircraft with running engines. Always verify the calibration by comparing readings to a known reference point.
Correcting magnetic headings requires applying variation and deviation adjustments. Variation is the angle between true north and magnetic north, which varies by geographic location and can be found on nautical or aeronautical charts. Deviation, on the other hand, is caused by the magnetic fields within the vessel or vehicle itself. Use a deviation table or curve provided by the manufacturer to apply these corrections. For example, if a marine compass reads 010° magnetic and the deviation table indicates a +3° correction, the true heading would be 013°. Regularly update these corrections, as magnetic fields can shift over time due to changes in equipment or environmental conditions.
Advanced electronic navigation systems often include automatic calibration features, but manual intervention is still necessary for optimal accuracy. For instance, some systems allow users to input specific deviation values or select predefined profiles based on vessel or aircraft configuration. In aviation, pilots can use flux valves or remote compasses to minimize deviation. Mariners may employ soft-iron correctors, which are magnetic materials strategically placed to counteract interference. Regardless of the method, periodic checks are crucial. A simple test is to compare the electronic compass reading to a handheld magnetic compass in a neutral environment, ensuring both align within acceptable tolerances.
In conclusion, mastering electronic compass adjustments is a blend of technical knowledge and practical application. Calibration and correction processes demand attention to detail and an understanding of magnetic principles. By systematically addressing interference, applying variation and deviation adjustments, and leveraging advanced system features, users can ensure their electronic navigation systems provide reliable, accurate headings. Whether navigating open waters, skies, or unfamiliar terrain, precise magnetic heading corrections are the cornerstone of safe and efficient travel.
Mastering Magnetic Bobbins: Efficient Use in Tajima Embroidery Machines
You may want to see also
Frequently asked questions
A magnetic heading correction adjusts for the difference between true north (geographic north) and magnetic north (compass direction). It is necessary because the Earth's magnetic field varies by location, causing compass readings to deviate from true north.
You can find the magnetic heading correction (also known as magnetic variation) using nautical charts, aviation maps, or online tools like NOAA's Magnetic Field Calculator. It is typically given in degrees east or west.
If the magnetic variation is east, add the correction to your compass reading to get the true heading. If it is west, subtract the correction. For example, if your compass reads 45° and the variation is 5°W, your true heading is 40°.
Yes, the Earth's magnetic field shifts over time, causing magnetic variation to change. It is important to use up-to-date charts or data to ensure accurate corrections.
No, magnetic heading corrections account for the difference between true north and magnetic north, while compass deviations account for errors caused by magnetic interference from the vessel or aircraft itself. Both must be considered for accurate navigation.
