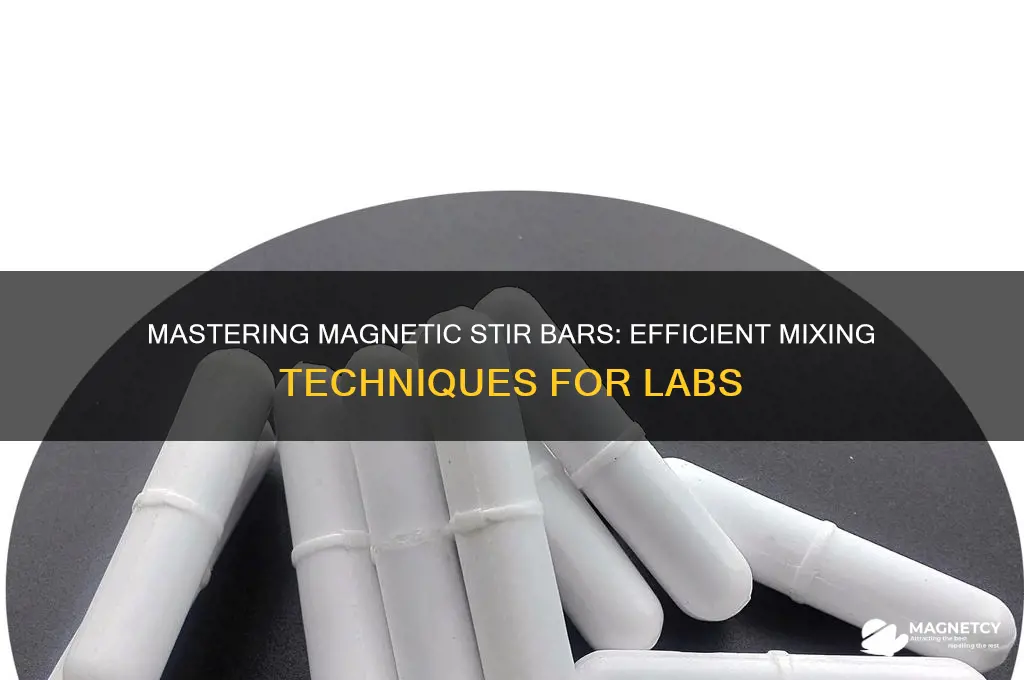

A magnetic stir bar is a small, cylindrical magnet encased in a plastic or glass coating, designed to be used in conjunction with a magnetic stirrer for efficient mixing of liquids in laboratory settings. To use a magnetic stir bar, first ensure the stir bar is clean and free of any residue. Place it at the bottom of a suitable container, such as a beaker or flask, filled with the liquid you intend to mix. Position the container on the magnetic stirrer's platform, and activate the device to create a rotating magnetic field. This field causes the stir bar to spin, generating a consistent and controlled mixing motion within the liquid. Adjust the stirrer's speed as needed to achieve the desired mixing intensity, ensuring thorough blending without causing splashing or aeration. Always monitor the process and turn off the stirrer before removing the stir bar from the liquid to avoid damage or contamination.
| Characteristics | Values |
|---|---|
| Purpose | To create a uniform mixing of liquids in a laboratory setting. |
| Equipment Needed | Magnetic stir bar, magnetic stirrer (hotplate stirrer), beaker/flask. |
| Stir Bar Size | Choose size based on vessel volume (e.g., 20 mm for 100-250 mL). |
| Placement | Place stir bar at the bottom center of the vessel. |
| Stirrer Speed | Start at low speed, increase gradually to avoid splashing or cavitation. |
| Temperature Control | Use a hotplate stirrer for heating; monitor temperature to avoid boiling. |
| Stir Bar Material | Typically PTFE-coated for chemical resistance. |
| Cleaning | Clean stir bar with solvent or soap after use to prevent contamination. |
| Safety Precautions | Avoid overheating, ensure proper ventilation, and use PPE if necessary. |
| Compatibility | Ensure stir bar and vessel materials are chemically compatible. |
| Magnetic Coupling | Stir bar rotates via magnetic field from the stirrer, no direct contact. |
| Applications | Mixing reagents, dissolving solids, and maintaining homogeneous solutions. |
| Maintenance | Regularly inspect stir bar for wear or damage; replace if necessary. |
Explore related products
What You'll Learn
Choosing the Right Stir Bar Size and Shape
The size and shape of a magnetic stir bar significantly influence its effectiveness in mixing solutions. A stir bar that is too small may struggle to create adequate turbulence in larger volumes, while one that is too large can waste energy and potentially damage the glassware. For instance, a 7 mm x 30 mm oval stir bar is ideal for 100–250 mL of liquid in a standard round-bottom flask, whereas a 10 mm x 50 mm bar is better suited for 500–1000 mL volumes. Always match the stir bar’s dimensions to the vessel size and liquid volume to ensure efficient mixing without unnecessary wear on the equipment.
Consider the shape of the stir bar as well, as it affects both mixing performance and stability. Cylindrical stir bars are versatile and work well in most applications, but oval or egg-shaped bars are better for larger vessels or viscous liquids, as their design promotes smoother rotation and reduces the risk of spinning out of control. For specialized tasks, like suspending solids or creating a vortex, a cross-shaped or winged stir bar can be more effective. Experimenting with different shapes can help optimize mixing for specific experimental conditions.
Selecting the appropriate stir bar size and shape also depends on the nature of the liquid being mixed. For low-viscosity solutions, such as water or dilute acids, a smaller, lighter stir bar is sufficient. However, high-viscosity liquids like syrups or thick suspensions require larger, heavier bars to generate the necessary force for thorough mixing. For example, a 12 mm x 50 mm cylindrical bar is recommended for mixing 500 mL of a viscous polymer solution, while a 5 mm x 20 mm bar would be inadequate.
Practical tips can further refine your selection process. Always ensure the stir bar is fully submerged in the liquid to prevent it from jumping out of the solution, especially at higher speeds. If working with hazardous or valuable materials, choose a stir bar with a PTFE coating to minimize contamination and corrosion. Additionally, keep a variety of sizes and shapes on hand to accommodate different experimental needs. Regularly inspect stir bars for wear or damage, as cracked or chipped bars can introduce contaminants or fail mid-experiment.
In conclusion, choosing the right stir bar size and shape is a balance of volume, viscosity, and vessel geometry. By understanding these factors and applying practical considerations, you can enhance mixing efficiency and prolong the lifespan of your equipment. Whether you’re working in a lab or a classroom, the right stir bar ensures consistent results and smoother workflows.
Magnetic Bowling Pin Resetters: Fact or Fiction in Modern Alleys?
You may want to see also
Explore related products
$13.66 $14.49
Setting Up the Magnetic Stirrer Properly
A magnetic stirrer is a laboratory device that uses a rotating magnetic field to cause a stir bar immersed in a liquid to spin rapidly, thereby stirring the liquid. Proper setup is crucial for efficient mixing and to prevent damage to the equipment or the sample. Begin by ensuring the stirrer is placed on a stable, flat surface to maintain balance and minimize vibrations during operation. Clean the stirrer plate with a soft, damp cloth to remove any dust or residue that could interfere with the magnetic coupling.
Next, select the appropriate stir bar for your application. Stir bars come in various sizes and materials, such as glass, PTFE, or stainless steel. The size should be proportional to the vessel’s diameter and the volume of the liquid. For example, a 20-milliliter sample in a 50-milliliter beaker typically requires a stir bar 1–2 cm in length. Place the stir bar at the bottom of the container, ensuring it is centered to avoid uneven mixing or excessive noise. If using a hotplate stirrer, position the beaker or flask so that the stir bar aligns directly above the magnet.
Adjust the speed gradually to avoid splashing or cavitation, which can introduce air bubbles or cause the stir bar to decouple from the magnetic field. Start at a low speed (e.g., 200–300 rpm) and increase incrementally until the desired mixing is achieved. For viscous solutions, higher speeds may be necessary, but monitor the setup to prevent overheating or mechanical stress. Always ensure the stirrer’s speed control is set to zero before powering on to avoid sudden, uncontrolled rotation.
Safety precautions are essential during setup. Never use flammable or volatile solvents without proper ventilation or a fume hood, as the heat from a hotplate stirrer can pose a fire risk. Secure the vessel with a clamp or stand to prevent tipping, especially when working with large volumes or high speeds. Regularly inspect the power cord and control panel for damage, and unplug the device when not in use or during cleaning.
In conclusion, proper setup of a magnetic stirrer involves careful selection of the stir bar, precise positioning, gradual speed adjustment, and adherence to safety protocols. By following these steps, you can ensure consistent, efficient mixing while prolonging the life of your equipment and maintaining a safe working environment. Whether in a research lab or educational setting, attention to detail during setup pays dividends in the quality and reliability of your experimental results.
Smartphones and Tablets: Do They Use Magnetic Hard Drives?
You may want to see also
Explore related products
Optimizing Stirring Speed for Efficiency
The speed of your magnetic stir bar can make or break your experiment. Too slow, and your solution remains unevenly mixed; too fast, and you risk creating unwanted heat or splashing. Finding the optimal stirring speed is a delicate balance, but it’s essential for efficiency and consistency in your lab work.
Consider the viscosity of your solution as your starting point. For low-viscosity liquids like water or dilute acids, a moderate speed of 500–800 RPM is often sufficient to achieve thorough mixing without generating excess heat. However, for high-viscosity substances like syrups or thick suspensions, you’ll need to increase the speed to 1000–1500 RPM to ensure the stir bar moves effectively through the medium. Always start at a lower speed and gradually increase it while observing the solution’s behavior.
A common mistake is assuming faster is always better. High speeds can lead to cavitation, where air bubbles form and collapse, potentially altering your solution’s properties. For temperature-sensitive reactions, excessive stirring can introduce unwanted heat, affecting reaction rates. To mitigate this, use a temperature probe and adjust the speed to maintain a stable environment. For example, in a 250 mL beaker, a speed of 600 RPM is often ideal for gentle mixing without overheating.
Experimentation is key to optimization. Test different speeds in small batches to observe mixing efficiency and energy consumption. For instance, a 1000 RPM setting might reduce mixing time by 20% for a specific solution, but it could also increase energy use by 15%. Weigh the trade-offs based on your priorities—whether it’s time, energy, or solution integrity.
Finally, don’t overlook the stir bar’s size and shape. A larger bar requires more force to move, so you may need to adjust the speed accordingly. For example, a 20 mm stir bar in a 500 mL solution might perform optimally at 800 RPM, while a 10 mm bar could achieve the same result at 1200 RPM. Pairing the right bar with the right speed ensures efficiency without unnecessary strain on your equipment.
By systematically adjusting speed based on viscosity, temperature, and stir bar characteristics, you can optimize your magnetic stirring process for maximum efficiency. This approach not only saves time and energy but also ensures consistent, reproducible results in your experiments.
Mastering Biot-Savart's Law: A Guide to Calculating Magnetic Fields
You may want to see also
Explore related products
Cleaning and Maintaining Stir Bars
Magnetic stir bars are essential tools in laboratories, ensuring efficient mixing without the need for direct contact with the sample. However, their effectiveness hinges on proper cleaning and maintenance. Neglecting this aspect can lead to contamination, reduced performance, and even damage to the stir bar or the stirring apparatus.
Analytical Insight: Stir bars accumulate residues from various substances, from viscous liquids to crystalline solids. Over time, these residues can harden, affecting the bar’s magnetic response and surface smoothness. For instance, organic compounds like oils or polymers may leave a film that interferes with the bar’s movement, while inorganic salts can crystallize and cause uneven rotation. Understanding the nature of the residue is key to selecting the appropriate cleaning method.
Instructive Steps: Begin by removing the stir bar from the flask or beaker immediately after use to prevent residue from drying. Rinse it under running water or with a solvent compatible with the residue—acetone for organic compounds, distilled water for water-soluble substances, or isopropanol for general cleaning. For stubborn residues, soak the stir bar in the solvent for 10–15 minutes, then use a soft brush or pipette tip to gently scrub the surface. Avoid abrasive materials like steel wool, as they can scratch the coating and compromise the bar’s integrity.
Comparative Cautions: While ultrasonic cleaners are effective for deep cleaning, they may damage the stir bar’s coating or dislodge embedded particles if used improperly. Similarly, heating the stir bar to remove residues is risky, as excessive heat can deform the plastic or weaken the magnet. Always prioritize gentle methods over aggressive ones to prolong the stir bar’s lifespan.
Descriptive Takeaway: A well-maintained stir bar is smooth, free of visible residue, and moves effortlessly in the magnetic field. Regular cleaning not only ensures consistent performance but also prevents cross-contamination between experiments. By adopting a systematic cleaning routine—rinsing, soaking, and gentle scrubbing—you can preserve the stir bar’s functionality and reliability, making it a durable asset in your laboratory toolkit.
Magnetic Lashes for Alopecia: Safe, Effective, and Confidence-Boosting Options
You may want to see also
Explore related products
Safety Tips for Using Magnetic Stir Bars
Magnetic stir bars are essential tools in laboratories for mixing solutions efficiently, but their use requires careful attention to safety to prevent accidents and ensure accurate results. One critical safety tip is to always ensure the stir bar is properly centered in the flask or beaker before starting the stirrer. Misalignment can cause the bar to spin erratically, leading to uneven mixing or, worse, the bar being ejected from the container at high speed. This simple precaution can prevent physical injury and damage to equipment.
Another vital safety measure involves the selection of appropriate glassware. Never use cracked or chipped containers, as the mechanical stress from the spinning stir bar can exacerbate these flaws, causing the glass to shatter. Additionally, ensure the container is made of a material compatible with magnetic stirring, such as borosilicate glass or certain plastics. Using unsuitable materials can lead to chemical reactions or physical damage, compromising both safety and experimental integrity.
Temperature control is a frequently overlooked aspect of magnetic stir bar safety. When working with heat-sensitive solutions or high-temperature applications, monitor the temperature closely to avoid overheating. Excessive heat can cause the stir bar to expand or the solution to boil violently, potentially leading to spills or splashes. Always use a heating mantle or hotplate with built-in temperature regulation, and never leave the setup unattended while heating.
Finally, proper handling and storage of magnetic stir bars are essential for long-term safety. After use, clean the stir bar thoroughly to remove any chemical residue, as leftover substances can contaminate future experiments or corrode the bar. Store stir bars in a designated container, away from strong magnetic fields or other lab equipment that could be affected by their magnetic properties. By adopting these practices, users can minimize risks and maximize the efficiency of their laboratory processes.
Magnet Charger Compatibility: Safe for Galaxy S9 or Not?
You may want to see also
Frequently asked questions
A magnetic stir bar is a small, magnetized object typically made of PTFE (polytetrafluoroethylene) or glass, used in laboratory settings to mix liquids. It is placed inside a container with the liquid, and when a magnetic stirrer is activated, the stir bar rotates, creating a stirring motion to ensure thorough mixing.
After use, rinse the stir bar with an appropriate solvent (e.g., water, ethanol, or acetone) to remove any residue. For stubborn contaminants, soak it in the solvent or use a mild detergent. Avoid abrasive materials that could scratch the surface. Store the stir bar in a clean, dry place to prevent contamination or damage.
Yes, but choose the right material for the application. PTFE stir bars are resistant to most chemicals and can withstand high temperatures, making them suitable for corrosive or heated solutions. Glass stir bars are less chemically resistant and may crack under high heat, so they are best for milder conditions. Always check compatibility before use.
