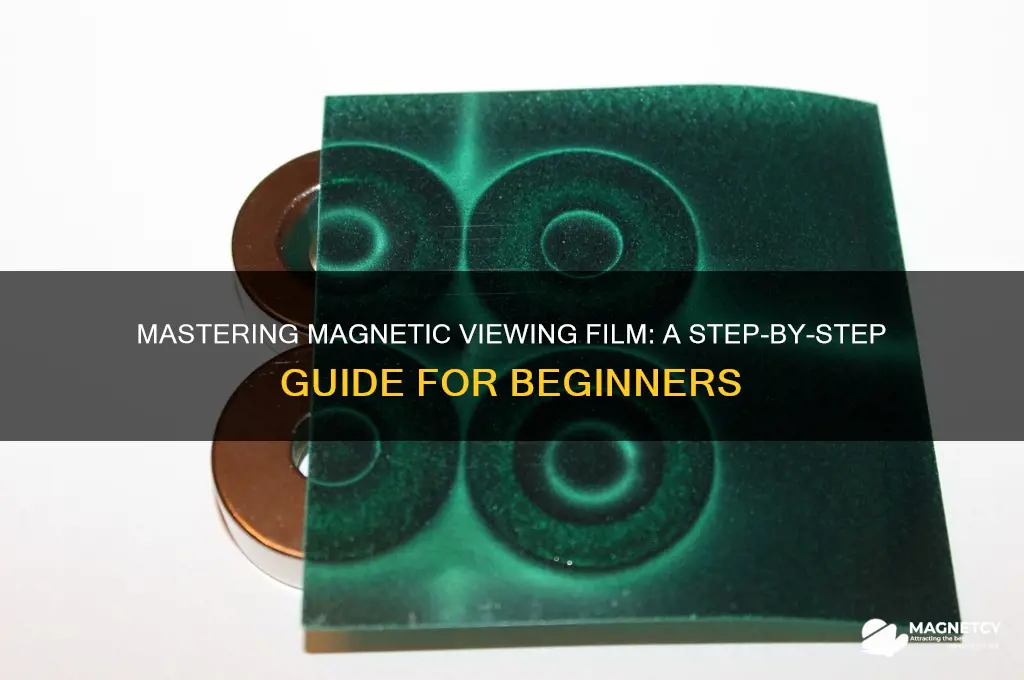

Magnetic viewing film is a versatile tool used to visualize magnetic fields, making it invaluable for educational, industrial, and hobbyist applications. This thin, flexible sheet contains microscopic particles that align with magnetic fields, creating visible patterns when placed over a magnetized surface. To use it effectively, start by ensuring the film is clean and free of debris. Place the film directly onto the surface of the magnet or magnetic material you wish to analyze, and observe the distinct lines or patterns that emerge, revealing the direction and strength of the magnetic field. This simple yet powerful technique allows users to study magnetism, inspect magnetic components, or even troubleshoot magnetic devices with ease.
| Characteristics | Values |
|---|---|
| Purpose | Visualizing magnetic fields and patterns on magnetic materials. |
| Material | Flexible, thin film coated with micro-particles (e.g., nickel or iron). |
| Application Method | Place directly on the surface of a magnet or magnetic material. |
| Visibility | Displays dark and light patterns corresponding to magnetic field lines. |
| Field Strength Detection | Indicates direction and strength of magnetic fields. |
| Compatibility | Works with permanent magnets, electromagnets, and magnetic surfaces. |
| Reusability | Can be reused multiple times without degradation. |
| Flexibility | Bendable to conform to curved or irregular surfaces. |
| Safety | Non-toxic and safe for educational and industrial use. |
| Storage | Store flat in a cool, dry place to prevent damage. |
| Limitations | Does not measure exact field strength; qualitative visualization only. |
| Common Uses | Education, quality control, magnet design, and magnetic field analysis. |
| Size Availability | Comes in sheets, rolls, or custom sizes for various applications. |
| Temperature Resistance | Typically operates between -20°C to 80°C (-4°F to 176°F). |
| Thickness | Usually 0.1mm to 0.5mm for flexibility and ease of use. |
| Cost | Affordable, with prices varying by size and quality. |
Explore related products
What You'll Learn
- Preparing the Film: Clean surface, ensure film is flat, and remove any dust or debris for clear viewing
- Magnetic Field Detection: Place film over magnetized material to visualize field patterns and polarity
- Inspecting Tools: Use film to check magnetic properties of tools like screwdrivers or wrenches
- Educational Demonstrations: Show magnetic fields in classroom settings for physics or engineering lessons
- Quality Control: Verify magnetization in industrial parts or products using the film for consistency
Preparing the Film: Clean surface, ensure film is flat, and remove any dust or debris for clear viewing
Magnetic viewing film is a delicate tool, and its effectiveness hinges on proper preparation. Before you begin, ensure the surface you’re working with is pristine. A single speck of dust or a smudge of oil can distort the magnetic field patterns, rendering the film useless for its intended purpose. Use a soft, lint-free cloth dampened with isopropyl alcohol (70% concentration is ideal) to wipe down the surface thoroughly. Avoid abrasive materials or harsh chemicals that could scratch or damage the area.
Once the surface is clean, focus on the film itself. Magnetic viewing film is typically thin and flexible, making it susceptible to wrinkles or air bubbles if not handled carefully. Lay the film flat on the surface, starting from one edge and smoothing it out gradually with your fingertips or a plastic squeegee. Work methodically to avoid trapping air underneath, as this will obscure the magnetic field lines. If the film is larger than the area you’re examining, trim it to size using sharp scissors, ensuring clean edges to prevent snagging or peeling.
Dust and debris are the silent saboteurs of magnetic viewing film applications. Even microscopic particles can interfere with the film’s ability to reveal magnetic patterns clearly. After cleaning the surface and laying the film, inspect the area under bright, even lighting to spot any remaining contaminants. A handheld air blower or compressed air canister (held at least 6 inches away to avoid liquid propellant damage) can be used to remove stubborn particles. For larger surfaces, consider using a tack cloth to pick up fine dust without leaving residue.
The final step in preparing the film is ensuring it adheres uniformly to the surface. If the film is self-adhesive, press it firmly but gently, starting from the center and moving outward to eliminate bubbles. Non-adhesive films can be secured with low-tack tape along the edges, taking care not to stretch or distort the material. Once in place, allow the film to settle for a few minutes before applying a magnetic field. This ensures any residual static or minor imperfections have time to resolve, providing a clear and accurate visualization of the magnetic flux.
Proper preparation of magnetic viewing film is as much an art as it is a science. By meticulously cleaning the surface, ensuring the film lies flat, and eliminating dust or debris, you set the stage for precise and reliable results. Skipping these steps may save time initially but will inevitably lead to frustration and inaccurate readings. Treat this process with the attention it deserves, and the film will reward you with a vivid, unobstructed view of the magnetic world beneath the surface.
