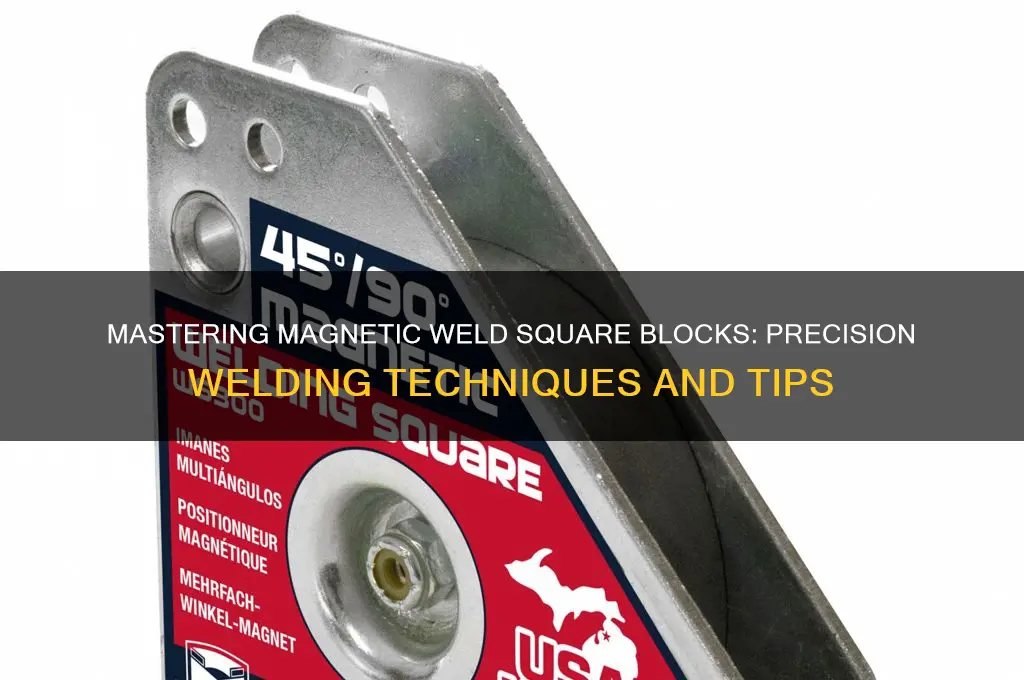

Magnetic weld square blocks are essential tools for ensuring precise and accurate welding angles, particularly when working with metal fabrication projects. These blocks utilize strong magnets to securely hold workpieces at 90-degree or 45-degree angles, simplifying the alignment process and reducing the need for clamps or additional fixtures. Ideal for both professional welders and DIY enthusiasts, magnetic weld square blocks enhance efficiency and consistency by maintaining proper angles during welding, soldering, or assembly. Their durable construction and ease of use make them a valuable addition to any workshop, ensuring clean, professional results with minimal effort.
| Characteristics | Values |
|---|---|
| Purpose | Ensures precise 90-degree angles during welding |
| Material | Typically made from steel with strong magnets |
| Magnetic Strength | High-strength magnets for secure attachment to ferromagnetic surfaces |
| Size Variations | Available in various sizes (e.g., 2", 3", 4") to suit different welding projects |
| Surface Finish | Machined or ground surfaces for accuracy and durability |
| Application | Align and hold metal pieces at a perfect 90-degree angle |
| Ease of Use | Simple to attach and detach due to magnetic base |
| Portability | Compact and lightweight for easy handling and storage |
| Compatibility | Works with ferromagnetic materials like steel and iron |
| Precision | Ensures accurate square corners and joints |
| Durability | Resistant to heat and welding spatter |
| Common Uses | Welding frames, brackets, boxes, and other structures requiring right angles |
| Maintenance | Requires occasional cleaning to maintain magnetic strength and surface accuracy |
| Safety | Keep away from sensitive electronic devices due to strong magnetic field |
Explore related products
What You'll Learn
- Setting Up the Block: Attach block to workpiece, ensure flat surface, align with welding joint for precision
- Magnetic Alignment: Activate magnets, adjust position, verify square alignment before welding starts
- Angle Adjustment: Use built-in angles, lock desired position, maintain consistency for accurate welds
- Securing Workpiece: Clamp or hold workpiece firmly, prevent movement, ensure stable welding conditions
- Post-Weld Inspection: Check alignment, measure angles, verify weld quality using the square block
Setting Up the Block: Attach block to workpiece, ensure flat surface, align with welding joint for precision
Attaching a magnetic weld square block to your workpiece is the foundation of precision welding. This initial step demands attention to detail, as it directly impacts the accuracy of your welds. Begin by cleaning both the block's magnetic surface and the workpiece to ensure maximum adhesion. Any debris or residue can compromise the bond, leading to misalignment and flawed welds. Use a degreaser or acetone to remove oils, and a wire brush for rust or scale. Once clean, position the block firmly against the workpiece, applying gentle pressure to activate the magnets. A solid connection is crucial; test the block's stability by attempting to shift it slightly. If it moves, reapply pressure or consider using a stronger magnet or an additional block for larger or heavier pieces.
The importance of a flat surface cannot be overstated when setting up your magnetic weld square block. Even minor imperfections can introduce errors in your weld joint, leading to structural weaknesses. To verify flatness, use a straightedge or a precision level. Run the tool along the surface where the block will be attached, checking for any gaps or deviations. If you detect unevenness, address it before proceeding. For minor discrepancies, shims can be placed between the block and workpiece to compensate. For more significant issues, consider machining the surface or selecting a different area of the workpiece that is flatter. Ensuring a level foundation is a critical step that pays dividends in the accuracy and quality of your welds.
Aligning the magnetic weld square block with the welding joint is where precision truly comes into play. The block’s primary function is to hold the joint at a perfect 90-degree angle, so alignment must be exact. Start by visually aligning the block with the joint, using the block’s edges as a guide. For added accuracy, employ a combination square or a ruler to double-check the alignment. Once visually aligned, tap the block gently with a mallet to ensure it is seated firmly against the joint. Avoid excessive force, as this can misalign the block or damage the workpiece. If your project requires multiple blocks, ensure they are aligned not only with their respective joints but also with each other to maintain consistency across the entire structure.
A practical tip for achieving flawless alignment is to use a dry run before welding. With the block securely in place, clamp a test piece or a scrap material to the joint and assess the fit. This allows you to make any necessary adjustments without risking the integrity of your actual workpiece. Additionally, consider marking the alignment points with a marker or scribe for future reference, especially in complex projects with multiple joints. By taking the time to meticulously align your magnetic weld square block, you set the stage for welds that are not only strong but also aesthetically pleasing, showcasing your craftsmanship and attention to detail.
Creative Uses for Avery Magnet Sheets: Tips and Tricks
You may want to see also
Explore related products
$15.99 $19.99
Magnetic Alignment: Activate magnets, adjust position, verify square alignment before welding starts
Magnetic weld square blocks are indispensable tools for achieving precise 90-degree angles in welding projects. Their core function relies on powerful magnets embedded within the block, which securely hold metal pieces in place during alignment. This magnetic force eliminates the need for cumbersome clamps, freeing up your hands and streamlining the setup process.
Before striking an arc, activating the magnets is the crucial first step. Most magnetic weld square blocks feature a simple on/off switch or lever, allowing you to control the magnetic field. Ensure the switch is in the "on" position, engaging the magnets and creating a firm grip on the metal surfaces.
Positioning is key. Place the magnetic weld square block at the joint where you need a perfect right angle. Carefully adjust the metal pieces until they are flush against the block's surfaces. The magnets will hold them securely, allowing for fine-tuning without slippage. Remember, even a slight misalignment at this stage will be amplified in the final weld, compromising the structural integrity of your project.
Once positioned, verify square alignment. This is a critical step that shouldn't be rushed. Use a reliable square or protractor to double-check the angle. Some magnetic weld square blocks even incorporate built-in spirit levels for added convenience. If any deviation is detected, make minor adjustments until the pieces are perfectly aligned.
The beauty of magnetic alignment lies in its precision and efficiency. By activating the magnets, adjusting the position, and verifying square alignment before welding, you ensure a strong, accurate weld with minimal effort. This technique is particularly valuable for projects requiring multiple 90-degree joints, such as frames, brackets, and furniture, where consistency and accuracy are paramount.
Can Photo Scanners Harm Magnetic Media? Uncovering Potential Risks
You may want to see also
Explore related products
Angle Adjustment: Use built-in angles, lock desired position, maintain consistency for accurate welds
Magnetic weld square blocks are engineered with precision, often featuring built-in angles like 30°, 45°, 60°, and 90°, to eliminate guesswork in weld setups. These predefined angles are machined to exact tolerances, typically within ±0.002 inches, ensuring repeatability across projects. For instance, when aligning a 45° joint, simply position the block’s corresponding angle against the workpiece. The magnet’s strength, often rated at 100+ lbs of pull force, holds the block firmly in place, allowing you to focus on the weld without slippage. This integration of angles directly into the tool streamlines the process, reducing the need for additional measuring tools or manual adjustments.
Locking the desired angle is a critical step that transforms a magnetic weld square block from a positioning aid to a consistency tool. Most models include a locking mechanism, such as a screw or cam lever, to secure the angle once set. Tighten the lock until the block’s resistance matches the force required to hold the material—overtightening can distort the angle, while undertightening risks shifting under welding heat. For example, when welding a bracket at 60°, lock the block at that angle and verify alignment with a digital protractor before proceeding. This step ensures the angle remains constant, even when working with warped or uneven materials.
Consistency in angle adjustment directly correlates to weld quality, particularly in applications like T-joints or fillet welds, where deviations as small as 2° can compromise structural integrity. Magnetic blocks excel here by maintaining the same angle across multiple pieces, ideal for batch work or assemblies. For instance, in fabricating a steel frame, using the block’s 90° angle for each corner joint ensures all intersections are square, reducing post-weld grinding and improving load-bearing capacity. Pairing the block with a welding table or fixture further enhances stability, creating a repeatable setup that minimizes variability between welds.
Practical tips can maximize the utility of angle adjustment features. Always clean the magnetic face and workpiece surface to ensure full contact and magnetic strength. When working with thin materials (under 1/8 inch), reduce the locking force to prevent deformation. For non-ferrous materials like aluminum, combine the block with a magnetic adapter plate or use an alternative clamping method. Periodically check the block’s angles with a machinist square or angle finder to confirm accuracy, especially after heavy use or drops. These practices ensure the tool remains a reliable ally in achieving precise, consistent welds.
How Tesla Cars Utilize Magnetic Fields for Advanced Technology
You may want to see also
Explore related products
$24.99 $28.99
Securing Workpiece: Clamp or hold workpiece firmly, prevent movement, ensure stable welding conditions
A magnetic weld square block is only as effective as the stability of the workpiece it’s holding. Even the slightest movement during welding can compromise joint integrity, leading to warping, misalignment, or weak bonds. Securing the workpiece firmly is non-negotiable, and magnetic blocks excel at this when used correctly. Their powerful magnets grip ferrous materials with force measured in pounds of pull, often exceeding 100 lbs per block, depending on size and grade. However, this force must be complemented by proper clamping or holding techniques to ensure the workpiece remains immobile under the stress of welding.
Consider the scenario of welding a 90-degree joint on a steel frame. A single magnetic weld square block positioned at the corner provides initial alignment, but without additional support, the heat from welding can cause the metal to expand, shifting the joint. To counteract this, use a C-clamp or vise grip on the opposite side of the joint, creating a counterforce that locks the workpiece in place. For larger projects, combine multiple magnetic blocks with adjustable clamps, distributing pressure evenly to prevent localized stress points. This dual approach—magnetic holding and mechanical clamping—transforms the setup into a rigid, vibration-resistant platform.
The choice of clamping method depends on the workpiece’s size, shape, and material. For thin sheets, over-clamping can dent or deform the metal, so use softer jaw pads or magnetic blocks with wider contact surfaces. Conversely, thick plates may require heavy-duty clamps and additional magnetic blocks to counteract the material’s weight and thermal expansion. Always pre-fit the joint before securing it, ensuring the magnetic block’s alignment pins or edges are flush with the workpiece. This preliminary step eliminates gaps and ensures the magnets’ full holding power is engaged.
A common mistake is underestimating the cumulative effect of small movements. Even a 0.5-degree shift during welding can result in a visibly misaligned joint. To avoid this, test the setup by tapping the workpiece with a mallet; if it moves, reinforce the clamps or add more magnetic blocks. For precision work, such as TIG welding, consider using a tack weld at the joint’s midpoint to temporarily stabilize the pieces before full welding. This hybrid approach combines the magnetic block’s alignment accuracy with the rigidity of a fused joint.
In conclusion, magnetic weld square blocks are powerful tools for alignment, but their effectiveness in securing workpieces relies on strategic clamping and holding techniques. By combining magnetic force with mechanical restraints, welders can create a stable environment that withstands the rigors of welding. Always assess the project’s specific demands—material thickness, joint type, and welding method—to tailor the securing approach. With proper execution, the result is a flawless, distortion-free weld that meets both functional and aesthetic standards.
Material Impact on Roller Coasters' Magnetic Force: A Scientific Exploration
You may want to see also
Explore related products
Post-Weld Inspection: Check alignment, measure angles, verify weld quality using the square block
Post-weld inspection is critical for ensuring structural integrity and precision in welding projects. A magnetic weld square block becomes an indispensable tool during this phase, offering a reliable method to verify alignment, measure angles, and assess weld quality. Its magnetic base allows for secure attachment to ferrous surfaces, ensuring stability while you conduct your checks. This tool’s simplicity belies its effectiveness—it transforms subjective visual inspections into objective, measurable assessments.
Begin by placing the magnetic weld square block against the welded joint, ensuring its flat surface aligns with the base metal. The block’s right-angle design acts as a reference point to check if the weld is perpendicular or parallel to the adjoining surfaces. Misalignment, even by a fraction of a degree, can compromise structural strength. For example, a 2-degree deviation in a 90-degree joint can reduce load-bearing capacity by up to 10%. Use a protractor or angle finder in conjunction with the block to quantify deviations accurately.
Next, measure the angles formed by the weld bead and the base metal. The square block’s precision edges help identify inconsistencies such as undercut, overlap, or concave/convex profiles. A well-formed weld should maintain a consistent angle along its length, typically between 60° and 70° for fillet welds. Deviations indicate poor technique or inadequate material preparation, both of which can lead to premature failure. Document these measurements for quality control records and future reference.
Finally, verify weld quality by examining the bead’s appearance and penetration. The square block’s flat surface highlights defects like porosity, cracks, or incomplete fusion, which are often invisible to the naked eye. Run a straightedge along the weld to detect surface irregularities. For critical applications, pair this visual inspection with non-destructive testing methods like dye penetrant or ultrasonic testing. The square block’s role here is to provide a standardized reference, ensuring consistency across inspections.
Incorporating a magnetic weld square block into post-weld inspection protocols elevates precision and reliability. It bridges the gap between visual estimation and measurable accuracy, reducing the risk of errors that could lead to costly rework or structural failure. Whether you’re working on a small-scale project or industrial fabrication, this tool ensures that every weld meets the required standards. Master its use, and you’ll not only save time but also deliver work that stands the test of time.
GM's Neodymium Magnet Innovation: Enhancing Efficiency in Modern Vehicles
You may want to see also
Frequently asked questions
A magnetic weld square block is a tool with built-in magnets designed to hold metal pieces at precise 90-degree angles during welding. It ensures accurate alignment and reduces the need for clamps or additional support.
Clean the surface of the metal to remove any debris or rust. Place the magnetic weld square block firmly against the workpiece, ensuring the magnets are securely attached. Verify the alignment with a square or ruler before welding.
No, magnetic weld square blocks rely on magnetic attraction, which only works with ferrous metals (e.g., steel, iron). For non-ferrous metals, use non-magnetic clamping tools or alternative alignment methods.
Keep the magnets clean and free from debris by wiping them with a dry cloth. Store the block in a dry place to prevent rust. Avoid dropping or exposing it to extreme heat, as this can damage the magnets or the block’s structure.
