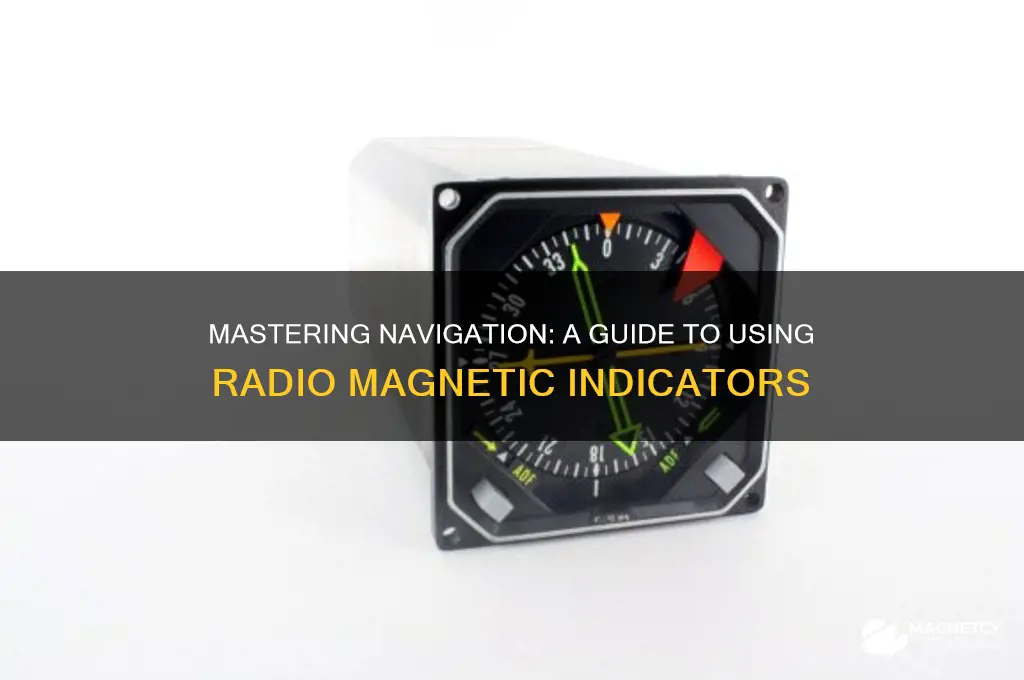

The Radio Magnetic Indicator (RMI) is a crucial navigational instrument used in aviation to determine an aircraft's position relative to a radio beacon, such as a VOR (VHF Omnidirectional Range) or NDB (Non-Directional Beacon). By combining magnetic heading information with radio bearing data, the RMI provides pilots with a clear visual representation of their aircraft's orientation and direction to or from the beacon. Understanding how to use the RMI effectively is essential for accurate navigation, especially during instrument flight conditions, as it helps pilots maintain their desired course, intercept radials, and execute precise approaches. Proper interpretation of the RMI’s needle movements and alignment with the aircraft’s heading indicator ensures safe and efficient flight operations.
| Characteristics | Values |
|---|---|
| Purpose | To determine the aircraft's magnetic heading relative to true north. |
| Components | Compass card, Lubber line, Housing, Correction markers, Adjustment screws. |
| Installation | Mounted in the cockpit, aligned with the aircraft's longitudinal axis. |
| Calibration | Adjusted for deviation using correction markers and screws. |
| Reading Method | Align the lubber line with the aircraft's nose; read the heading from the compass card. |
| Error Types | Deviation (magnetic interference), Variation (local magnetic field difference). |
| Maintenance | Regular checks for fluid level, card movement, and accuracy. |
| Limitations | Affected by magnetic fields, turbulence, and rapid changes in direction. |
| Backup | Use a directional gyro or GPS-based heading indicator if RMI fails. |
| Integration | Often paired with a VOR/ADF receiver for navigation. |
| Power Source | Typically powered by the aircraft's electrical system. |
| Accuracy | ±5° under normal conditions. |
| Usage in Navigation | Helps in tracking VOR/ADF signals and maintaining desired headings. |
| Training Requirement | Pilots must be trained to interpret readings and apply corrections. |
| Modern Alternatives | Replaced by electronic flight instruments in many modern aircraft. |
Explore related products
![Shars Magnetic Base Indicator Back Holder for AGD2 1" Dial Indicator 202-6055 !]](https://m.media-amazon.com/images/I/71oX6-RHViL._AC_UY218_.jpg)
What You'll Learn
Understanding the Basics of Radio Magnetic Indicators
Radio Magnetic Indicators (RMIs) are essential tools in aviation, providing pilots with critical navigational information by combining compass headings with radio signals. Unlike traditional magnetic compasses, RMIs integrate inputs from Very High Frequency Omnidirectional Range (VOR) or Non-Directional Beacon (NDB) systems, offering a more dynamic and precise way to track course deviations. This dual functionality makes RMIs indispensable for both visual and instrument flight rules (IFR) conditions, ensuring accuracy even when other instruments fail.
To use an RMI effectively, start by understanding its components. The instrument features a rotating azimuth card marked with degrees, similar to a compass, and a fixed aircraft symbol. A needle or pointer indicates the station’s relative bearing, while a "TO/FROM" indicator shows whether the aircraft is flying toward or away from the station. For VOR navigation, tune the RMI to the desired frequency and observe the needle’s alignment with the aircraft symbol. If the needle points directly at the symbol, you’re on the radial; if it’s offset, adjust your heading accordingly. For NDB navigation, the process is similar, but the needle indicates the station’s magnetic bearing, requiring manual compensation for aircraft heading.
One common misconception is that RMIs are solely for long-distance navigation. In reality, they’re equally valuable for short-haul flights, especially in areas with limited GPS coverage or during instrument approaches. For instance, when executing a VOR approach, the RMI provides real-time feedback on your position relative to the station, allowing for precise course corrections. Pairing the RMI with a Holding Pattern or Procedure Turn enhances its utility, ensuring you remain within safe airspace boundaries.
Practical tips for RMI usage include cross-checking its readings with other navigational tools, such as GPS or a Horizontal Situation Indicator (HSI), to verify accuracy. In case of discrepancies, trust the RMI when flying IFR, as it’s less prone to interference from terrain or weather. Additionally, practice interpreting the "TO/FROM" indicator to avoid confusion—flying "TO" a VOR station means the needle points toward the aircraft symbol, while "FROM" means it points away. Regularly calibrate the instrument and ensure the frequency is correctly tuned to avoid errors.
Mastering the RMI requires both theoretical knowledge and hands-on experience. Simulators or dual flights with an instructor can provide a safe environment to practice interpreting readings and making adjustments. By integrating RMIs into your navigational toolkit, you’ll enhance your situational awareness and confidence, whether flying under clear skies or in challenging conditions.
Creating Magnetic Slime: Using Iron Filings for Fun Science Experiments
You may want to see also
Explore related products
$12.99
Calibrating the Radio Magnetic Indicator for Accuracy
Calibrating a Radio Magnetic Indicator (RMI) is crucial for ensuring accurate navigation, as even minor discrepancies can lead to significant errors in bearing interpretation. The RMI combines compass and radio direction finder (RDF) inputs to display the aircraft’s position relative to a radio beacon. Over time, mechanical wear, magnetic interference, or electrical drift can compromise its precision, making calibration a non-negotiable step in pre-flight or maintenance routines. Without proper alignment, pilots risk misinterpreting signals, potentially leading to navigational errors or unsafe flight paths.
Step-by-Step Calibration Process: Begin by ensuring the aircraft is stationary and free from external magnetic influences, such as nearby metal objects or electrical equipment. Power on the RMI and allow it to stabilize for 2–3 minutes. Next, tune the RDF to a known, strong station and rotate the aircraft or the RMI’s azimuth card until the needle points directly to the station’s bearing. Compare this reading with a verified source, such as a sectional chart or GPS, to confirm accuracy. Adjust the RMI’s calibration screw in small increments (typically 1–2 degrees at a time) until the displayed bearing matches the reference value. Repeat this process for at least two additional stations at different bearings to ensure consistency.
Cautions and Common Pitfalls: Over-adjustment is a frequent mistake during calibration. Always use the smallest possible increments to avoid overshooting the correct bearing. Be mindful of environmental factors like temperature fluctuations or nearby electrical systems, which can temporarily skew readings. If the RMI fails to align despite repeated attempts, inspect for mechanical damage or consult a certified technician. Additionally, avoid relying solely on a single station for calibration, as this may mask errors in specific azimuth ranges.
Practical Tips for Long-Term Accuracy: Regularly inspect the RMI for physical damage, such as loose connections or cracked components, which can affect performance. Keep detailed records of calibration dates, adjustments made, and reference bearings used for future troubleshooting. For aircraft operating in regions with high magnetic variation, recalibrate the RMI every 50–100 flight hours or after significant maintenance. Finally, cross-check RMI readings with other navigational tools, such as GPS or VOR, during flight to validate ongoing accuracy and identify potential drift early.
Earth's Magnetic Field: A Natural Compass for Navigation
You may want to see also
Explore related products
![Shars 176 Lbs Universal Magnetic Base Indicator Holder with Speed Set Fine Adjustment + 0.03" Dial Test Indicator 202-7960(202-7932+303-3203) P]](https://m.media-amazon.com/images/I/61EHobFq92L._AC_UY218_.jpg)
Interpreting Readings on the Indicator Display
The radio magnetic indicator (RMI) is a critical instrument for pilots, blending compass and radio direction finder (RDF) information into a single display. Interpreting its readings accurately ensures precise navigation, especially during instrument flight conditions. The needle on the RMI points to the station’s relative bearing, while the compass card beneath it rotates to reflect the aircraft’s heading. Mastering this dual-layer display is essential for cross-checking data and maintaining situational awareness.
Consider the RMI’s operation in two modes: ADF (Automatic Direction Finder) and VOR (VHF Omnidirectional Range). In ADF mode, the needle points to the station’s bearing, but it’s relative to the aircraft’s nose. For example, if the needle is at the 12 o’clock position, the station is directly ahead. In VOR mode, the needle indicates the radial (magnetic course) to or from the station. If the needle points to 270° while on a 270° radial, you’re flying directly toward the station. Understanding these modes prevents misinterpretation, as confusing ADF and VOR readings can lead to navigational errors.
One practical tip for interpreting RMI readings is to use the "needle-tail-heading" method. In ADF mode, imagine a line from the needle’s tail to the compass card’s heading. The angle between this line and the 12 o’clock position is the relative bearing to the station. For instance, if the tail points to 30° on the compass card and the needle is at 10 o’clock, the relative bearing is 150°. This technique simplifies calculations and reduces reliance on mental math during critical phases of flight.
Caution must be exercised when flying near station limits or in areas with magnetic interference. ADF signals weaken beyond 150-200 nautical miles, causing the needle to drift or become unreliable. VOR accuracy diminishes within 25-30 nautical miles of the station due to signal bending. Always cross-reference RMI readings with other instruments, such as the GPS or DME, to confirm accuracy. Ignoring these limitations can lead to dangerous deviations from the intended course.
Finally, practice is key to mastering RMI interpretation. Simulate scenarios like flying toward or away from a station, turning onto a specific radial, or intercepting a course. Use flight simulators or ground training tools to familiarize yourself with the instrument’s behavior under various conditions. Consistent practice builds muscle memory, ensuring you can interpret readings swiftly and accurately, even under stress. This skill is not just theoretical—it’s a lifeline in low-visibility or emergency situations.
Mastering the CH Hanson Magnetic Stud Finder: A Step-by-Step Guide
You may want to see also
Explore related products
![Shars 176 LBS Magnetic Base Indicator Holder with Speed-Set Fine Adjustment +1" .001" Dial Indicator 202-7958(202-7932+303-3111S) P]](https://m.media-amazon.com/images/I/71S02TRTLUL._AC_UY218_.jpg)
Troubleshooting Common Issues with the Device
One of the most frequent issues users encounter with radio magnetic indicators (RMIs) is inaccurate readings, often stemming from improper calibration. Calibration is critical because the device relies on precise alignment with the Earth’s magnetic field to function correctly. To troubleshoot, first ensure the RMI is mounted securely and level, as even slight tilts can skew results. Next, perform a manual calibration by rotating the device in a figure-eight pattern while in a stationary position, allowing it to re-sync with the magnetic field. If inaccuracies persist, check for nearby ferromagnetic materials—such as metal tools, vehicles, or structures—that could interfere with the reading. Relocating the device to a clearer area often resolves the issue.
Another common problem is erratic behavior or complete failure of the RMI, which may indicate a power supply issue. Most RMIs operate on 12V or 24V DC systems, so verify the voltage input using a multimeter. Fluctuations or insufficient power can cause the device to malfunction. Inspect the wiring for loose connections, corrosion, or damage, as these can disrupt the electrical flow. If the power supply is stable, the issue may lie in the internal circuitry or the RMI’s display unit. In such cases, consult the manufacturer’s manual for troubleshooting steps or consider professional repair, as DIY fixes can void warranties or exacerbate the problem.
Users often report difficulty interpreting the RMI’s display, particularly in low-light conditions or when the device is exposed to glare. This issue can be mitigated by adjusting the display’s brightness and contrast settings, typically accessible via a control panel or menu. For older models without adjustable settings, consider installing an anti-glare screen protector or repositioning the device to reduce direct sunlight exposure. Additionally, familiarize yourself with the display’s symbology—such as the relationship between the aircraft symbol and the heading indicator—to ensure accurate interpretation. Practice in controlled environments, like a hangar or simulator, can build confidence in reading the RMI under various conditions.
Lastly, some users experience drift in the RMI’s heading indication over time, which can be caused by magnetic deviation or gradual misalignment. Magnetic deviation occurs when the aircraft’s own magnetic fields interfere with the RMI’s readings. To correct this, apply a deviation card—a corrective chart provided by the manufacturer—to adjust the displayed heading. If drift persists, re-calibrate the device and inspect for new sources of magnetic interference, such as recently installed avionics or equipment. Regular maintenance, including periodic calibration checks, can prevent drift and ensure the RMI remains a reliable navigational tool.
Mastering CRT Magnet Use: Tips for Safe and Effective Application
You may want to see also
Explore related products
Integrating the Indicator with Navigation Systems
The Radio Magnetic Indicator (RMI) is a critical tool for pilots, offering a visual representation of an aircraft's position relative to a selected radio beacon. However, its true potential is unlocked when integrated with modern navigation systems, transforming it from a standalone instrument to a seamless component of a comprehensive navigational suite. This integration allows for a more intuitive and efficient workflow, reducing pilot workload and enhancing situational awareness.
Seamless Data Fusion: The first step in integration involves connecting the RMI to the aircraft's navigation system, typically through an ARINC 429 or RS-232 interface. This enables the RMI to receive data from GPS, FMS (Flight Management System), and other navigation sources. For instance, a GPS-derived position can be overlaid on the RMI's display, providing a real-time comparison between the aircraft's actual position and the bearing to the selected radio station. This fusion of data allows pilots to quickly identify discrepancies and make informed decisions.
Enhanced Situational Awareness: Integrated RMIs can display multiple navigation sources simultaneously, such as VOR, NDB, and GPS. This multi-source display is particularly useful during approach and landing, where pilots can cross-reference the RMI's indication with the ILS (Instrument Landing System) localizer and glideslope. For example, if the ILS signal is weak or intermittent, the RMI's bearing to the runway threshold can serve as a valuable backup. Moreover, some advanced systems allow for the customization of display parameters, enabling pilots to prioritize specific navigation sources based on their current phase of flight.
Automated Navigation Functions: Integration with the FMS enables automated navigation functions, such as automatic tuning of the RMI to the nearest or most relevant radio station. This feature is especially beneficial during long-haul flights, where pilots can focus on strategic decision-making while the system handles routine tasks. Additionally, the FMS can calculate and display the aircraft's track, ground speed, and estimated time of arrival, further enriching the RMI's functionality. For optimal performance, ensure that the FMS database is updated regularly, as outdated information can lead to inaccurate RMI readings.
Practical Implementation Tips: When integrating an RMI with a navigation system, consider the following: (1) Ensure compatibility between the RMI and the navigation system's data formats and communication protocols. (2) Calibrate the RMI regularly to maintain accuracy, especially after significant changes in heading or position. (3) Provide pilots with comprehensive training on the integrated system, emphasizing the interpretation of multi-source data and the management of automated functions. (4) Establish clear procedures for troubleshooting and fallback to manual navigation in case of system failures. By following these guidelines, operators can maximize the benefits of RMI integration while minimizing risks.
Future Trends and Innovations: The ongoing evolution of navigation technology promises even more sophisticated RMI integration. For instance, the incorporation of ADS-B (Automatic Dependent Surveillance-Broadcast) data can enhance the RMI's situational awareness capabilities by providing real-time traffic information. Furthermore, the development of touch-screen interfaces and 3D displays may revolutionize how pilots interact with the RMI, offering more intuitive controls and richer visual feedback. As these innovations become mainstream, pilots can expect a more seamless and immersive navigation experience, with the RMI playing a central role in the cockpit of the future.
Using Magnets to Pick Up Cell Phones: Safe or Risky?
You may want to see also
Frequently asked questions
A Radio Magnetic Indicator (RMI) is an aircraft instrument that combines the functions of a radio direction finder (RDF) and a magnetic compass. It displays the aircraft's magnetic heading and the bearing to a selected radio station, helping pilots navigate using radio signals.
To use the RMI with an NDB, tune the NDB frequency on the navigation radio, then select the NDB mode on the RMI. The needle on the RMI will point to the relative bearing of the NDB station. To determine the magnetic bearing, add or subtract the aircraft's magnetic heading as indicated on the instrument.
Yes, the RMI can be used for VOR navigation. Tune the VOR frequency on the navigation radio and select the VOR mode on the RMI. The needle will indicate the radial (magnetic course) to or from the VOR station, depending on whether you are tracking inbound or outbound.
When flying directly towards a radio station, the RMI needle will point to the aircraft's magnetic heading. When flying away from the station, the needle will point 180 degrees opposite to the heading. Use the "TO/FROM" indicator on the RMI to determine if you are flying towards ("TO") or away from ("FROM") the station.
