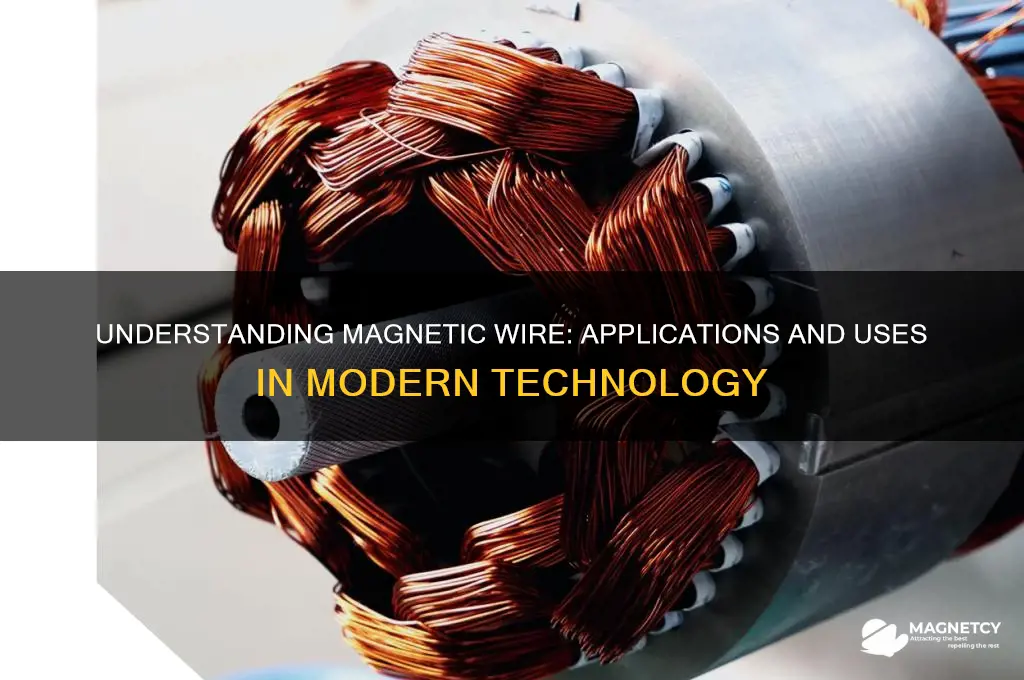

Magnetic wire, also known as enameled wire, is a critical component in the manufacturing of electromagnetic devices such as transformers, motors, inductors, and solenoids. It consists of a conductive core, typically made of copper or aluminum, coated with a thin layer of insulating material like enamel or polymer. This insulation allows the wire to be wound into tight coils without short-circuiting, enabling the efficient generation of magnetic fields when an electric current passes through it. The unique properties of magnetic wire, including its high conductivity, flexibility, and resistance to heat and chemicals, make it indispensable in applications ranging from household appliances and automotive systems to advanced electronics and renewable energy technologies. Its ability to convert electrical energy into magnetic energy and vice versa forms the foundation of many modern electrical and electronic systems.
Explore related products
What You'll Learn
- Transformers: Magnetic wire creates efficient coils for voltage transformation in power distribution systems
- Motors: Used in electric motors to generate rotational motion via electromagnetic fields
- Inductors: Essential for storing energy in magnetic fields within electronic circuits
- Generators: Converts mechanical energy into electrical energy through magnetic wire coils
- Electromagnets: Enables temporary magnetism for applications like lifting, MRI, and relays
Transformers: Magnetic wire creates efficient coils for voltage transformation in power distribution systems
Magnetic wire, often made of copper or aluminum with a thin insulating coating, is the unsung hero of power distribution systems. Its primary role in transformers is to create efficient coils that facilitate voltage transformation. These coils, known as windings, are essential for stepping up or stepping down electrical voltage levels, ensuring electricity can travel long distances with minimal loss and be safely used in homes and industries. Without magnetic wire, the modern power grid as we know it would be impossible.
The efficiency of a transformer hinges on the quality and design of its coils. Magnetic wire’s insulating layer prevents short circuits between adjacent turns, while its conductivity ensures minimal energy loss during voltage transformation. For instance, in a typical power transformer, the primary winding (connected to the high-voltage source) and the secondary winding (connected to the load) are made of magnetic wire wound around a laminated iron core. The number of turns in each coil determines the voltage ratio, following the principle of electromagnetic induction. A well-designed coil using high-quality magnetic wire can achieve efficiency rates of up to 99%, making it a cornerstone of energy conservation in power systems.
Selecting the right magnetic wire for transformer coils involves considering factors like wire gauge, insulation type, and operating temperature. For high-voltage applications, enamel-insulated copper wire is commonly used due to its excellent conductivity and heat resistance. In contrast, aluminum wire, though less conductive, is lighter and more cost-effective, making it suitable for low-voltage transformers. Engineers must also account for the coil’s size and shape, as these affect the transformer’s performance and cooling requirements. For example, a transformer designed for a 110kV to 11kV step-down would require a primary coil with significantly fewer turns than the secondary coil, demanding precise calculations and high-quality magnetic wire to ensure reliability.
Practical tips for working with magnetic wire in transformer construction include ensuring proper tension during winding to avoid coil deformation and using automated winding machines for consistency. Regularly inspect the insulation for cracks or damage, as even minor defects can lead to short circuits. Additionally, consider the environmental conditions where the transformer will operate; for outdoor installations, choose wire with weather-resistant insulation. By optimizing the use of magnetic wire, engineers can build transformers that not only meet but exceed performance standards, contributing to a more stable and efficient power distribution network.
Magnet Pull's Impact on Nosepass: A Strategic Pokémon Battle Guide
You may want to see also
Explore related products
Motors: Used in electric motors to generate rotational motion via electromagnetic fields
Magnetic wire, often made of copper or aluminum with a thin insulating coating, is a critical component in electric motors. Its primary role is to create the electromagnetic fields necessary for generating rotational motion. When an electric current passes through the wire, it produces a magnetic field around it. This field interacts with permanent magnets or other coils, causing the motor’s rotor to spin. Without magnetic wire, electric motors would lack the ability to convert electrical energy into mechanical motion efficiently.
Consider the construction of a typical DC motor, where magnetic wire is wound into coils around the armature. As current flows through these coils, it creates a temporary electromagnet. The interaction between this electromagnet and the motor’s permanent magnets results in torque, driving the rotor. The precision of the wire’s winding pattern and the number of turns directly influence the motor’s efficiency and power output. For instance, a motor with 1,000 turns of wire will generate a stronger magnetic field than one with 500 turns, assuming the same current.
In applications requiring high efficiency, such as electric vehicles or industrial machinery, the choice of magnetic wire is crucial. Enamelled copper wire is preferred due to its high conductivity and durability. However, for cost-sensitive projects, aluminum wire can be used, though it requires a larger cross-sectional area to achieve similar performance. The insulating coating, typically made of polyurethane or polyester, prevents short circuits between adjacent turns. Proper selection and handling of magnetic wire ensure the motor operates reliably under varying loads and environmental conditions.
One practical tip for engineers and hobbyists is to calculate the required wire gauge based on the motor’s current rating and operating temperature. For example, a motor drawing 10 amps might use 20-gauge wire, while a high-current application could require 12-gauge or thicker. Overheating due to excessive resistance can degrade the insulation, leading to motor failure. Additionally, ensuring the wire is wound evenly and securely minimizes energy loss and maximizes torque. Regular maintenance, such as checking for insulation cracks or loose connections, prolongs the motor’s lifespan.
In summary, magnetic wire is the backbone of electric motors, enabling the conversion of electrical energy into rotational motion through electromagnetic fields. Its properties, such as material, gauge, and insulation quality, directly impact motor performance and reliability. By understanding its role and selecting the appropriate wire for specific applications, engineers can design motors that are efficient, powerful, and durable. Whether in household appliances or advanced robotics, magnetic wire remains indispensable in modern technology.
Navigating Earth's Magnetic Field: Compass-Based Calculation Techniques Explained
You may want to see also
Explore related products
Inductors: Essential for storing energy in magnetic fields within electronic circuits
Magnetic wire, often made of copper or aluminum with a thin insulating coating, is a cornerstone in the construction of inductors—passive electronic components that store energy in magnetic fields. These components are pivotal in various applications, from filtering noise in power supplies to tuning radio frequencies. The wire’s unique properties, such as its ability to conduct electricity while generating a magnetic field when current flows through it, make it indispensable in inductor design. Without magnetic wire, inductors would lack the efficiency and reliability required for modern electronics.
Consider the process of creating an inductor: magnetic wire is coiled tightly around a core, which can be air, iron, or ferrite, depending on the desired inductance value. The number of turns in the coil directly influences the inductor’s ability to store energy. For instance, a 100-turn coil will store more energy than a 50-turn coil when the same current passes through it. Practical applications often require precise inductance values, measured in henries (H), millihenries (mH), or microhenries (µH). A typical inductor in a smartphone’s charging circuit might have an inductance of 10 µH, while a larger inductor in a power supply could range from 1 mH to 10 mH.
The energy stored in an inductor’s magnetic field is given by the formula \( E = \frac{1}{2} L I^2 \), where \( E \) is energy in joules, \( L \) is inductance in henries, and \( I \) is current in amperes. This equation highlights the importance of magnetic wire quality and coil design. For example, a 1 mH inductor carrying a current of 2 A stores \( 0.5 \times 1 \times 2^2 = 2 \) joules of energy. In high-frequency applications, such as RF circuits, the wire’s insulation must withstand rapid current changes without degrading, ensuring the inductor’s performance remains stable over time.
One critical aspect of inductor design is minimizing energy loss. Magnetic wire with low resistance and high insulation integrity reduces heat generation, which can degrade circuit efficiency. For instance, using wire with a higher conductivity, such as copper instead of aluminum, improves performance in high-current applications. Additionally, the core material plays a role: iron cores increase inductance but can introduce losses at high frequencies, while air cores are ideal for RF circuits but require more coil turns to achieve the same inductance.
In practice, inductors are often paired with capacitors to form LC circuits, which are fundamental in oscillators and filters. For example, a 10 µH inductor combined with a 100 pF capacitor creates a resonant circuit with a frequency of approximately 1.6 MHz, suitable for AM radio tuning. When selecting magnetic wire for such applications, consider the operating frequency, current rating, and temperature stability. For DIY enthusiasts, enameled copper wire (AWG 24–30) is a popular choice due to its balance of flexibility and insulation strength. Always ensure the wire’s current rating exceeds the circuit’s maximum current to prevent overheating and failure.
Inductors, built with precision-engineered magnetic wire, are not just components but enablers of modern technology. From stabilizing voltage in power supplies to enabling wireless charging, their role in storing and releasing energy in magnetic fields is irreplaceable. Understanding the interplay between wire properties, coil design, and application requirements empowers engineers and hobbyists alike to harness inductors effectively, ensuring circuits operate reliably and efficiently.
Mastering Magnetic Lasso: Seamlessly Move Images in Photoshop Effortlessly
You may want to see also
Explore related products
Generators: Converts mechanical energy into electrical energy through magnetic wire coils
Magnetic wire, often made of copper or aluminum and coated with a thin layer of insulation, is a critical component in the operation of generators. These devices are the backbone of modern power generation, converting mechanical energy into electrical energy through the interaction of magnetic fields and wire coils. At the heart of this process is Faraday’s law of electromagnetic induction, which states that a changing magnetic field induces an electromotive force (voltage) in a conductor. In generators, this principle is harnessed by rotating a coil of magnetic wire within a magnetic field, creating a flow of electric current. This mechanism powers everything from household appliances to industrial machinery, making generators indispensable in today’s energy-dependent world.
To understand how generators work, consider the internal structure of a basic model. A rotor, typically equipped with magnets or electromagnets, spins within a stationary component called the stator, which contains multiple coils of magnetic wire. As the rotor turns, the magnetic field it generates cuts across the wire coils, inducing an electric current. This current is then collected and transmitted through an external circuit, providing usable electrical energy. The efficiency of this process depends on factors such as the speed of rotation, the strength of the magnetic field, and the number of wire coils. For optimal performance, generators often use high-gauge magnetic wire, which balances conductivity and flexibility, ensuring minimal energy loss during conversion.
One practical example of generator use is in portable power supplies for outdoor activities or emergency situations. Small, hand-cranked generators utilize magnetic wire coils to convert manual effort into electricity, charging devices like smartphones or powering LED lights. These compact units demonstrate the versatility of magnetic wire in applications where traditional power sources are unavailable. Similarly, large-scale generators in power plants employ thousands of wire coils to produce electricity for entire cities. Whether in a handheld device or a massive industrial setup, the role of magnetic wire remains consistent: to facilitate the transformation of mechanical motion into electrical power.
When designing or maintaining generators, several considerations must be taken into account. First, the insulation on magnetic wire must withstand high temperatures and mechanical stress to prevent short circuits. Second, the wire’s gauge and length should be carefully selected to match the generator’s intended output. For instance, thicker wire reduces resistance but increases cost, while thinner wire may be more economical but less efficient. Lastly, regular inspection of wire coils is essential to detect wear or damage, ensuring uninterrupted operation. By adhering to these guidelines, engineers and technicians can maximize the lifespan and efficiency of generators, making the most of magnetic wire’s unique properties.
In conclusion, magnetic wire is the unsung hero of generators, enabling the conversion of mechanical energy into electrical energy through its interaction with magnetic fields. From small portable devices to large power plants, its role is fundamental to modern energy systems. Understanding its function, selecting the right specifications, and ensuring proper maintenance are key to harnessing its full potential. As technology advances, magnetic wire will continue to play a pivotal role in meeting the world’s growing energy demands, proving its importance in both everyday life and industrial applications.
Finding Magnetic Fields: Utilizing Intensity Measurements for Accurate Calculations
You may want to see also
Explore related products
Electromagnets: Enables temporary magnetism for applications like lifting, MRI, and relays
Magnetic wire, when coiled and energized with electric current, becomes the core of an electromagnet—a device that harnesses temporary magnetism for precise, controllable applications. Unlike permanent magnets, electromagnets can be switched on and off, adjusted in strength, or reversed in polarity by altering the current flow. This versatility makes them indispensable in industries ranging from healthcare to manufacturing, where adaptability and precision are paramount.
Consider the medical field, where Magnetic Resonance Imaging (MRI) machines rely on powerful electromagnets to generate detailed images of the human body. These magnets, often superconducting and cooled to near-absolute zero, produce magnetic fields up to 3 Tesla—strong enough to align hydrogen atoms in the body and detect their signals. For patients, this means non-invasive diagnostics with unparalleled clarity. However, safety is critical: metallic objects near an MRI can become projectiles, and individuals with pacemakers or certain implants are typically excluded from scans. Always consult a radiologist to ensure compatibility and safety.
In industrial settings, electromagnets are the backbone of lifting equipment, capable of handling tons of ferromagnetic materials like steel. Scrapyards, for instance, use electromagnetic cranes to sort and transport metal debris efficiently. The key advantage? The magnetism is activated only when needed, preventing accidental pickups and reducing energy consumption. For optimal performance, ensure the magnetic wire is insulated to withstand high currents and environmental stresses. Regularly inspect coils for damage, as even minor faults can lead to overheating or failure.
Relays, another critical application, use electromagnets to control high-power circuits with low-power signals. In automotive systems, relays manage functions like headlights or fuel pumps, isolating sensitive electronics from high-voltage components. When designing relay systems, match the coil voltage to the power supply and select a wire gauge that minimizes resistance while fitting the coil’s dimensions. A rule of thumb: the higher the current, the thicker the wire needed to prevent overheating.
The takeaway? Electromagnets, enabled by magnetic wire, offer a unique blend of flexibility and power, tailored to applications requiring temporary, adjustable magnetism. Whether in MRI machines, industrial lifters, or electrical relays, their effectiveness hinges on precise design, safety considerations, and maintenance. By understanding these principles, engineers and operators can harness electromagnets’ full potential while mitigating risks.
Do Battery Chargers Use Magnets? Unveiling the Charging Technology
You may want to see also
Frequently asked questions
Magnetic wire is primarily used in the construction of electromagnets, transformers, inductors, motors, and other electrical devices where a magnetic field is required.
Magnetic wire works by carrying an electric current, which generates a magnetic field around the wire. This property is utilized in various applications to produce controlled magnetic effects.
Magnetic wire is typically made from copper or aluminum, coated with a thin layer of insulation such as enamel, varnish, or fiberglass to prevent short circuits.
Yes, specialized magnetic wire with heat-resistant insulation, such as polyimide or polyester, can be used in high-temperature applications like industrial motors or transformers.
No, magnetic wire is specifically designed for applications requiring the generation of magnetic fields, featuring insulated, fine-gauge wire optimized for coiling and electromagnetic use.
