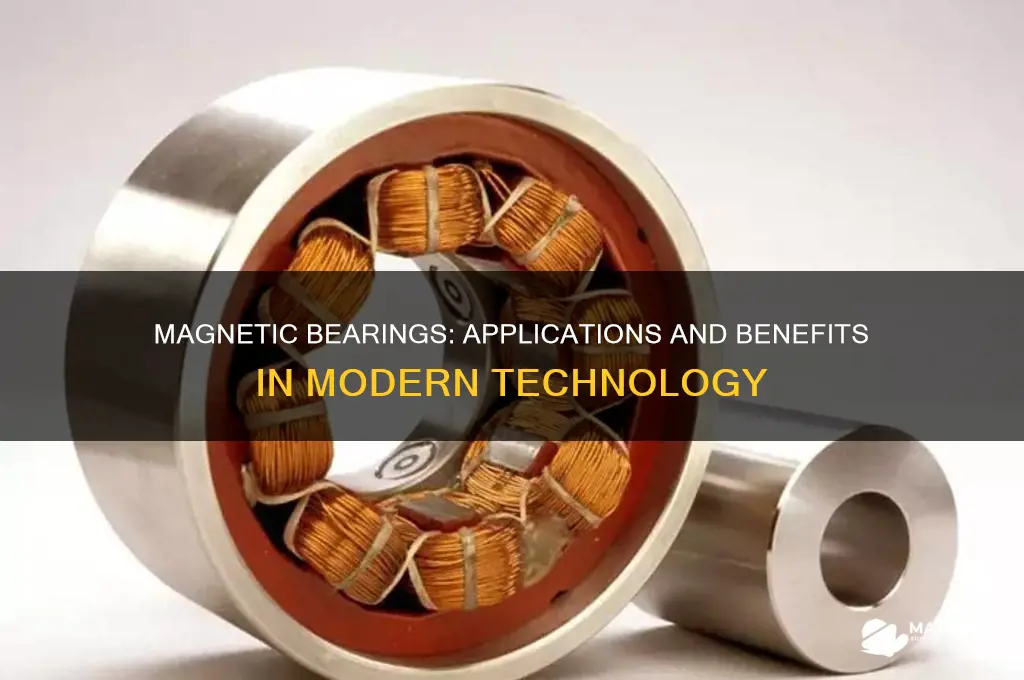

Magnetic bearings are advanced, non-contacting bearing systems that utilize magnetic fields to support and stabilize rotating machinery, eliminating the need for traditional mechanical bearings. Widely used in industries such as aerospace, energy, and manufacturing, they offer significant advantages including reduced friction, higher rotational speeds, and improved reliability due to the absence of physical wear. By leveraging electromagnetic forces to levitate and control the position of a rotor, magnetic bearings enhance efficiency, minimize maintenance requirements, and enable operation in extreme conditions, such as high temperatures or vacuum environments. Their precision and adaptability make them ideal for applications like high-speed turbines, compressors, and advanced machinery where performance and longevity are critical.
Explore related products
What You'll Learn
High-speed machinery support
Magnetic bearings are pivotal in high-speed machinery support, enabling rotational speeds that traditional mechanical bearings cannot achieve. Unlike their mechanical counterparts, which rely on physical contact and lubricants, magnetic bearings use electromagnetic forces to suspend and stabilize rotating components. This non-contact design eliminates friction, allowing machines to operate at speeds exceeding 100,000 RPM (revolutions per minute), a threshold often unattainable with conventional systems. For instance, in turbo-molecular pumps used in semiconductor manufacturing, magnetic bearings ensure ultra-high speeds while maintaining precision and reliability, critical for creating microscopic circuitry.
The application of magnetic bearings in high-speed machinery follows a structured process. First, the system requires precise alignment of the rotor within the magnetic field, achieved through active control algorithms. Second, sensors monitor the rotor’s position in real-time, feeding data to a control system that adjusts the magnetic forces to counteract vibrations or misalignments. Third, power amplifiers supply the necessary current to the electromagnets, ensuring stability even under dynamic loads. For optimal performance, engineers must calibrate the control system to account for factors like rotor mass, speed, and environmental conditions, such as temperature fluctuations in industrial settings.
One of the most compelling advantages of magnetic bearings in high-speed applications is their ability to reduce wear and maintenance costs. Traditional bearings suffer from material degradation due to friction and heat, necessitating frequent replacements, especially in high-speed scenarios. Magnetic bearings, however, operate without physical contact, significantly extending the lifespan of machinery. For example, in high-speed compressors used in natural gas pipelines, magnetic bearings can reduce downtime by up to 50%, translating to millions of dollars in savings annually. This durability makes them indispensable in industries where uninterrupted operation is non-negotiable.
Despite their benefits, implementing magnetic bearings in high-speed machinery requires careful consideration of potential challenges. The initial cost of magnetic bearing systems is higher than that of mechanical bearings, primarily due to the complexity of the control electronics and sensors. Additionally, the system’s reliance on electricity means that power failures can lead to immediate rotor instability, necessitating backup power solutions. Engineers must also account for the magnetic bearing’s limited load-carrying capacity compared to mechanical bearings, making them unsuitable for heavy-duty applications. However, in high-speed scenarios where efficiency and precision outweigh these drawbacks, magnetic bearings remain the superior choice.
In conclusion, magnetic bearings are transformative in high-speed machinery support, offering unparalleled speed, precision, and durability. Their non-contact design eliminates friction, enabling machines to reach speeds that redefine industry standards. While implementation requires careful planning and investment, the long-term benefits—reduced maintenance, increased efficiency, and enhanced reliability—make them a cornerstone of modern high-speed applications. From semiconductor manufacturing to energy infrastructure, magnetic bearings are not just a technological advancement but a necessity for pushing the boundaries of what machinery can achieve.
Monarch Butterflies: Navigating Earth's Magnetic Field for Migration Mastery
You may want to see also
Explore related products
Oil-free operation in turbines
Magnetic bearings eliminate the need for oil lubrication in turbines, a critical advancement for high-speed, high-efficiency applications. Traditional oil-lubricated bearings suffer from friction losses, oil contamination risks, and maintenance demands. Magnetic bearings, by contrast, use electromagnetic forces to suspend the rotor without physical contact, enabling frictionless operation. This oil-free approach is particularly vital in industries like aerospace, power generation, and manufacturing, where reliability, cleanliness, and efficiency are paramount.
Consider the operational benefits of oil-free turbines. Without oil, there’s no risk of lubricant degradation at extreme temperatures or speeds, making magnetic bearings ideal for turbochargers, high-speed compressors, and aerospace engines. For instance, in jet engines, magnetic bearings reduce weight by eliminating oil systems while improving fuel efficiency by up to 20%. Similarly, in industrial gas turbines, oil-free operation minimizes maintenance downtime, as there are no oil filters, seals, or pumps to replace. This translates to cost savings and extended equipment lifespan.
Implementing magnetic bearings for oil-free operation requires careful design and control. The bearing system must precisely manage the rotor’s position using sensors and feedback loops to counteract vibrations or misalignments. For example, active magnetic bearings (AMBs) use position sensors and actuators to adjust the magnetic field in real-time, ensuring stability even at speeds exceeding 100,000 RPM. However, this complexity demands robust power electronics and backup systems, such as auxiliary bearings, to handle power failures or faults.
A comparative analysis highlights the environmental advantages of oil-free turbines. Oil-lubricated systems pose contamination risks, particularly in industries like food processing or semiconductor manufacturing, where even trace amounts of oil can compromise product quality. Magnetic bearings eliminate this hazard, ensuring a clean, sealed environment. Additionally, the absence of oil reduces greenhouse gas emissions associated with oil production, disposal, and leaks, aligning with sustainability goals.
In conclusion, oil-free operation in turbines via magnetic bearings represents a transformative shift in rotational machinery. By removing the limitations of traditional lubrication, these systems deliver unparalleled efficiency, reliability, and cleanliness. While the initial investment and technical complexity are higher, the long-term benefits—reduced maintenance, improved performance, and environmental compliance—make magnetic bearings a compelling choice for next-generation turbine applications.
Magnetic Water Purification: A Revolutionary Approach to Clean Water
You may want to see also
Explore related products
Active vibration control systems
Magnetic bearings, which operate without physical contact, are increasingly integral to systems requiring precision and reliability. One of their most transformative applications is in active vibration control systems, where they address unwanted oscillations in rotating machinery. Unlike passive methods that rely on mechanical dampers, active systems use real-time feedback and actuation to counteract vibrations, ensuring smoother operation and extending equipment lifespan. This approach is particularly critical in high-speed turbomachinery, aerospace components, and advanced manufacturing systems, where even minor vibrations can lead to catastrophic failure.
Consider a high-speed turbine operating at 30,000 RPM. At such velocities, vibrations from imbalance or external forces can amplify rapidly, causing fatigue in components. Active vibration control systems, integrated with magnetic bearings, employ sensors (e.g., accelerometers or eddy-current probes) to detect vibrations in milliseconds. These signals are processed by a controller, which calculates the necessary counterforce. Magnetic bearings then adjust their electromagnetic fields to apply this force, effectively canceling out the vibration. For instance, if a turbine blade develops an imbalance, the system can shift the rotor’s position by fractions of a millimeter in under 10 milliseconds, preventing resonance and maintaining stability.
Implementing such a system requires careful calibration. Engineers must tune the control algorithm to match the machine’s natural frequencies, avoiding overcompensation that could introduce new oscillations. For example, a proportional-integral-derivative (PID) controller is often used, with gains adjusted based on the machine’s mass, stiffness, and damping characteristics. In aerospace applications, where weight is critical, lightweight magnetic bearings paired with compact sensors and controllers offer a viable solution. However, the system’s effectiveness depends on precise sensor placement and robust signal processing to filter noise from actual vibration data.
The benefits of active vibration control with magnetic bearings are multifaceted. In industrial settings, reduced vibrations minimize wear on bearings and seals, cutting maintenance costs by up to 30%. In medical devices like centrifuges, vibration suppression ensures consistent performance, critical for processes like blood separation. Even in electric vehicles, magnetic bearings with active control can enhance motor efficiency by reducing energy losses from vibrations. However, the initial cost and complexity of these systems can be prohibitive for smaller applications, making them most suitable for high-value or mission-critical equipment.
To maximize the effectiveness of active vibration control systems, follow these practical steps: first, conduct a modal analysis of the machinery to identify critical frequencies. Second, select magnetic bearings with sufficient bandwidth (typically >1 kHz) to respond to high-frequency vibrations. Third, integrate a fail-safe mechanism, such as backup mechanical bearings, to ensure operation during power loss. Finally, regularly update control algorithms based on operational data to adapt to changing conditions. By combining these strategies, active vibration control systems leveraging magnetic bearings can deliver unparalleled precision and reliability in even the most demanding environments.
Magnetic Downloading: Innovative Techniques to Enhance Your File Transfer Process
You may want to see also
Explore related products
![100pcs Precision Chrome Steel Balls - [1/8inch] G25 Bearing Balls for Industrial Machinery, Automotive Applications, DIY Projects](https://m.media-amazon.com/images/I/61PTS+TqDKL._AC_UL320_.jpg)
Cryogenic environment applications
In cryogenic environments, where temperatures plummet to near absolute zero, traditional mechanical bearings face critical challenges. Materials become brittle, lubricants freeze, and friction increases, leading to rapid wear and failure. Magnetic bearings, however, thrive in these extreme conditions. By leveraging electromagnetic forces to suspend and stabilize rotating components without physical contact, they eliminate the need for lubricants and minimize friction-induced heat. This makes them indispensable in applications like liquefied natural gas (LNG) turbines, where operational efficiency and reliability are paramount.
Consider the LNG industry, where turbines operate at temperatures as low as -162°C (-260°F). Magnetic bearings enable these turbines to run smoothly, ensuring uninterrupted gas liquefaction and transportation. Unlike mechanical bearings, which require frequent maintenance and are prone to seizure in cryogenic conditions, magnetic bearings offer a maintenance-free solution. Their non-contact design prevents wear, while their ability to operate in a vacuum or inert gas environment aligns perfectly with cryogenic system requirements. For engineers designing such systems, integrating magnetic bearings can reduce downtime by up to 50% and extend equipment lifespan by decades.
However, deploying magnetic bearings in cryogenic applications isn’t without challenges. The extreme cold affects the performance of electronic components, such as sensors and control systems, which are critical for active magnetic bearing operation. Engineers must select specialized materials and electronics rated for cryogenic temperatures, such as superconducting wires or ruggedized semiconductors. Additionally, thermal management becomes crucial to prevent heat buildup in the bearing’s electromagnetic coils, which could compromise the cryogenic environment. Proper insulation and cooling strategies, like integrating heat exchangers, are essential to maintain system integrity.
A compelling example of magnetic bearings in cryogenic environments is their use in superconducting electric motors. These motors, often employed in research and emerging energy technologies, operate at temperatures below -200°C (-328°F) to achieve zero electrical resistance. Magnetic bearings provide the necessary stability and precision for rotor alignment, ensuring optimal motor performance. Their ability to function seamlessly in ultra-low temperatures positions them as a cornerstone technology for advancements in superconductivity and sustainable energy systems.
In conclusion, magnetic bearings are not just a solution for cryogenic environments—they are a necessity. Their unique ability to operate without physical contact, lubricants, or heat generation makes them ideal for applications where traditional bearings falter. From LNG turbines to superconducting motors, their role in enhancing efficiency, reliability, and innovation cannot be overstated. For industries pushing the boundaries of cryogenic technology, magnetic bearings are a critical enabler, bridging the gap between extreme conditions and operational excellence.
Effortless Staple Removal: Mastering the Magnetic Staple Remover Technique
You may want to see also
Explore related products
Precision motion in robotics
Magnetic bearings are pivotal in achieving precision motion in robotics, a critical factor in applications demanding high accuracy, repeatability, and reliability. Unlike traditional mechanical bearings, magnetic bearings eliminate physical contact between moving parts, reducing friction and wear. This non-contact design allows robotic systems to operate with minimal vibration and heat generation, ensuring smoother and more precise movements. For instance, in semiconductor manufacturing, where robotic arms must position wafers with micron-level accuracy, magnetic bearings provide the stability and control required to meet stringent tolerances.
To implement magnetic bearings effectively in robotics, engineers must consider several key factors. First, the magnetic field strength and configuration must be precisely calibrated to support the load while maintaining stability. Active magnetic bearings, which use feedback control systems to adjust the magnetic field in real time, are particularly suited for dynamic robotic applications. Second, the control system must be highly responsive to compensate for external disturbances, such as changes in payload or environmental conditions. For example, in a robotic surgical system, the control algorithm must adjust the magnetic field instantaneously to ensure the instrument’s tip moves with sub-millimeter precision.
Comparing magnetic bearings to traditional alternatives highlights their advantages in precision motion. Mechanical bearings, while robust, introduce friction and wear that degrade performance over time. Air bearings, another non-contact option, require a constant supply of compressed air, adding complexity and cost. Magnetic bearings, however, offer a maintenance-free solution with virtually unlimited lifespan, making them ideal for long-term, high-precision applications. For instance, in space exploration robots, where maintenance is impractical, magnetic bearings ensure reliable operation in extreme conditions.
Practical implementation of magnetic bearings in robotics requires careful integration with the overall system design. The robot’s structure must be optimized to minimize magnetic interference from external sources, such as nearby electrical components. Additionally, power consumption must be managed efficiently, as active magnetic bearings require continuous energy to maintain the magnetic field. A case in point is the use of magnetic bearings in high-speed pick-and-place robots, where energy-efficient designs reduce operational costs without compromising performance. By addressing these considerations, engineers can harness the full potential of magnetic bearings to achieve unparalleled precision in robotic motion.
Regular Magnets for Corsages: Creative or Risky DIY Idea?
You may want to see also
Frequently asked questions
Magnetic bearings are used to support rotating machinery, such as turbines, motors, and compressors, by using magnetic fields instead of physical contact, reducing friction and wear.
Magnetic bearings are commonly used in industries like aerospace, oil and gas, power generation, and manufacturing, where high-speed, low-maintenance, and reliable operations are critical.
Magnetic bearings offer advantages such as zero mechanical wear, reduced vibration, higher rotational speeds, and improved energy efficiency compared to traditional bearings.
Yes, magnetic bearings can operate in extreme conditions, including high temperatures, vacuum environments, and corrosive atmospheres, making them suitable for demanding applications.
