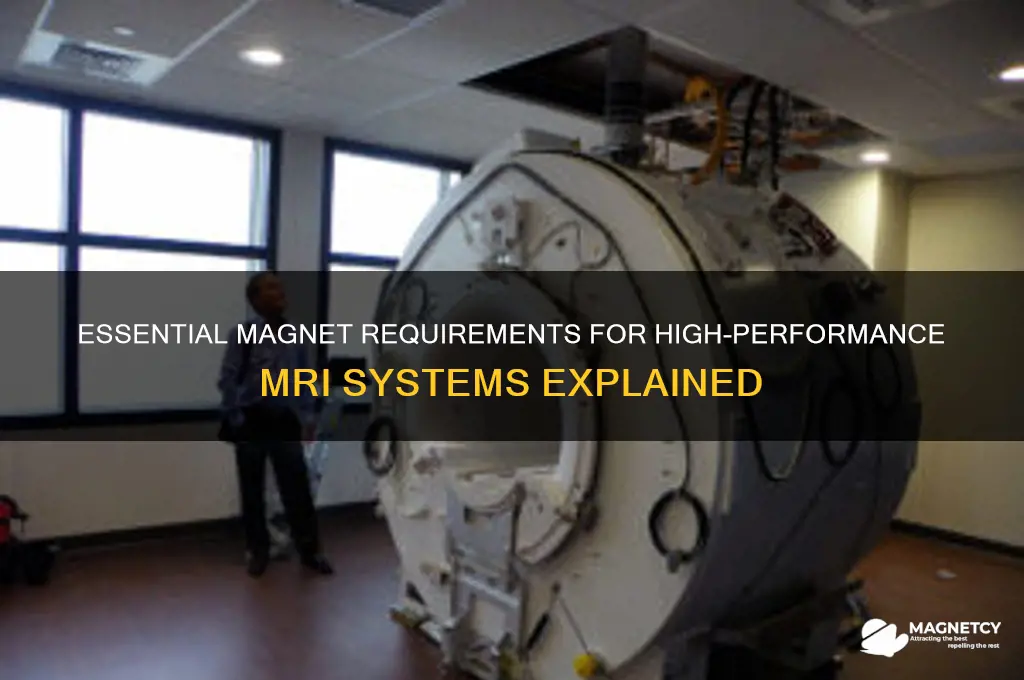

Magnets used in Magnetic Resonance Imaging (MRI) are critical components that enable the technology to produce detailed images of internal body structures. The primary requirement for these magnets is their ability to generate a strong, uniform, and stable magnetic field, typically ranging from 0.5 to 3 Tesla or higher in clinical settings. This field must be highly homogeneous to ensure accurate imaging, as even minor deviations can distort the resulting pictures. Additionally, MRI magnets must be superconducting to maintain the necessary field strength efficiently, which requires cooling to cryogenic temperatures using liquid helium. Durability, safety, and compatibility with other MRI components, such as gradient coils and radiofrequency systems, are also essential to ensure reliable and safe operation in medical environments.
| Characteristics | Values |
|---|---|
| Magnetic Field Strength | Typically 1.5 Tesla (T) to 3.0 T for clinical MRI; ultra-high field MRI can reach 7.0 T or higher. |
| Field Homogeneity | High uniformity, typically < 1 part per million (ppm) over the imaging volume. |
| Stability | Fluctuations < 0.01 ppm/hour to ensure consistent imaging quality. |
| Magnet Type | Superconducting magnets (most common), resistive magnets, or permanent magnets. |
| Cooling Requirement | Superconducting magnets require cryogenic cooling (liquid helium at ~4.2 K). |
| Size and Shape | Cylindrical or open-bore designs to accommodate patients and reduce claustrophobia. |
| Gradient Coils | High-performance gradient coils for spatial encoding (typically 20-40 mT/m). |
| Shielding | Active or passive shielding to minimize magnetic interference outside the MRI room. |
| Power Consumption | High for superconducting magnets (e.g., 10-20 kW for cooling and operation). |
| Safety Standards | Compliance with IEC 60601-2-33 and ASTM International standards for magnetic field safety. |
| Bore Diameter | Typically 60-70 cm for patient comfort and accessibility. |
| Weight | Superconducting magnets can weigh several tons. |
| Cost | High initial investment (several million USD for a 3T MRI system). |
| Maintenance | Regular helium level checks, cryogenic system maintenance, and coil inspections. |
| Compatibility | Must be compatible with RF coils, patient monitoring systems, and contrast media. |
| Environmental Impact | Requires careful handling of cryogens and adherence to environmental regulations. |
Explore related products
What You'll Learn
- High Magnetic Field Strength: Magnets must produce strong, stable fields for clear imaging, typically 1.5 to 3 Tesla
- Uniformity of Field: Homogeneous magnetic fields are essential to avoid image distortion and artifacts
- Superconducting Materials: Use of niobium-titanium alloys cooled by liquid helium for efficient, powerful magnets
- Cryogenic Cooling Systems: Maintain superconducting state at extremely low temperatures, ensuring magnet functionality
- Structural Integrity: Magnets must withstand mechanical stress and remain aligned for safe, reliable operation
High Magnetic Field Strength: Magnets must produce strong, stable fields for clear imaging, typically 1.5 to 3 Tesla
Magnetic field strength is a cornerstone of MRI technology, directly influencing image clarity and diagnostic accuracy. Fields typically range from 1.5 to 3 Tesla (T), with higher strengths offering sharper resolution and faster scan times. A 3T magnet, for instance, can differentiate between tissue types with greater precision than a 1.5T magnet, making it invaluable for complex neurological or musculoskeletal imaging. However, the choice of field strength isn’t one-size-fits-all; it depends on the clinical application, patient safety, and facility resources.
Achieving and maintaining such high magnetic fields requires meticulous engineering. Superconducting magnets, cooled to near-absolute zero using liquid helium, are the industry standard for generating stable, uniform fields. These magnets must be housed in specialized suites with robust shielding to prevent interference from external magnetic sources, such as elevators or metal structures. Even minor fluctuations in field strength can degrade image quality, so continuous monitoring and calibration are essential. For example, a deviation of just 0.1% in field homogeneity can blur fine anatomical details, rendering an image diagnostically useless.
The benefits of higher field strengths extend beyond image quality. Stronger magnets enable the use of advanced imaging techniques, such as functional MRI (fMRI) and diffusion tensor imaging (DTI), which require high signal-to-noise ratios. A 3T scanner, for instance, can map brain activity with greater temporal and spatial resolution than a 1.5T scanner, making it a preferred choice for neuroscience research. Similarly, in oncology, higher field strengths improve the detection of small tumors and enhance the accuracy of staging procedures.
However, higher magnetic fields are not without challenges. Patient safety is a critical consideration, as stronger magnets can interact with metallic implants or devices, posing risks such as heating or displacement. For example, pacemakers and certain types of aneurysm clips are contraindicated in high-field MRI environments. Additionally, the cost of installing and maintaining a 3T scanner is significantly higher than that of a 1.5T system, including expenses for cryogenic cooling and larger shielded spaces. Facilities must weigh these factors against the clinical benefits when selecting a magnet.
In practice, optimizing magnetic field strength involves a balance between technical capabilities and practical constraints. Radiologists and technologists must tailor scan protocols to the specific field strength of their equipment, adjusting parameters like repetition time and echo time to maximize image quality. For patients, understanding the importance of remaining still during scans is crucial, as movement can introduce artifacts that even the strongest magnets cannot overcome. Ultimately, high magnetic field strength is a powerful tool in medical imaging, but its effective use demands precision, planning, and collaboration across disciplines.
Mastering Abdominal Magnetic Cupping: A Step-by-Step Guide for Beginners
You may want to see also
Explore related products
Uniformity of Field: Homogeneous magnetic fields are essential to avoid image distortion and artifacts
Magnetic Resonance Imaging (MRI) relies on precise magnetic fields to generate detailed images of the body’s internal structures. At the heart of this process is the requirement for a uniform magnetic field, often referred to as field homogeneity. Even slight deviations in field strength can lead to image distortion, signal loss, or the appearance of artifacts, which compromise diagnostic accuracy. For instance, a 1% variation in field uniformity across the imaging volume can result in blurred edges or ghosting effects, making it difficult to distinguish between healthy and abnormal tissues. Achieving this uniformity is not just a technical challenge but a critical necessity for reliable MRI results.
To understand why uniformity matters, consider the role of the main magnet in an MRI system. This magnet, typically superconducting and operating at strengths ranging from 1.5 to 3 Tesla, must produce a consistent magnetic field across the entire imaging area. The human body, however, contains materials like air, bone, and tissue that have different magnetic susceptibilities, causing local distortions in the field. These distortions are quantified using metrics such as the homogeneity index, which measures the deviation from the ideal field strength. Clinically acceptable systems aim for a homogeneity of better than ±10 parts per million (ppm) over a 20 cm diameter spherical volume (DSV), ensuring minimal image degradation.
Achieving such uniformity requires meticulous engineering and calibration. Shim coils, both passive and active, are integrated into MRI systems to correct field inhomogeneities. Passive shims are permanently positioned to address static distortions, while active shims use adjustable electric currents to fine-tune the field dynamically. Additionally, gradient coils are employed to create controlled variations in the magnetic field for spatial encoding, but these must be precisely synchronized to avoid introducing artifacts. Regular maintenance, including shim adjustments and field mapping, is essential to maintain optimal performance over time.
The consequences of poor field uniformity extend beyond image quality. Inaccurate field strength can lead to miscalibrated tissue contrast, affecting the diagnosis of conditions like multiple sclerosis or tumors. For example, a non-uniform field might cause fat tissue to appear brighter or darker than it should, mimicking pathology or obscuring it entirely. This is particularly critical in high-field MRI systems (e.g., 3T and above), where the increased magnetic strength amplifies susceptibility effects. Radiologists and technologists must therefore prioritize systems with robust homogeneity features and adhere to strict quality control protocols.
In practice, ensuring field uniformity involves a combination of technology and technique. Patients are often positioned carefully within the magnet’s isocenter, the region of highest homogeneity. Ferromagnetic objects, such as jewelry or clothing with metal components, are strictly prohibited as they can severely distort the field. Advanced MRI systems may also incorporate real-time shimming algorithms that adjust the field during scanning based on patient-specific anatomy. For research or specialized applications, ultra-high-field MRI systems (7T and above) demand even tighter uniformity standards, often requiring customized solutions to manage increased susceptibility challenges.
In summary, the uniformity of the magnetic field is a cornerstone of MRI functionality. It demands a blend of sophisticated engineering, precise calibration, and vigilant operational practices. By maintaining homogeneity within stringent limits, MRI systems can produce images that are not only visually clear but also diagnostically reliable, ensuring patients receive accurate and effective care.
Effective Magnetic Sauna Belt Usage: Tips for Optimal Results and Benefits
You may want to see also
Explore related products
Superconducting Materials: Use of niobium-titanium alloys cooled by liquid helium for efficient, powerful magnets
Magnets in MRI machines demand exceptional strength and stability to generate precise, high-resolution images. Among the materials that meet these stringent requirements, niobium-titanium (NbTi) alloys stand out for their superconducting properties when cooled by liquid helium. This combination enables the creation of powerful, efficient magnets that are essential for modern medical imaging.
Step 1: Understanding Superconductivity in NbTi Alloys
Niobium-titanium alloys become superconducting below their critical temperature of approximately 9.2 Kelvin (–263.95°C or –443.11°F). At this state, they offer zero electrical resistance, allowing current to flow indefinitely without energy loss. This property is crucial for MRI magnets, which require sustained, high-current operation to produce strong, uniform magnetic fields. Cooling NbTi with liquid helium, which has a boiling point of 4.2 Kelvin, ensures the alloy remains in its superconducting state during MRI scans.
Step 2: Constructing the Magnet
NbTi wires are wound into coils, forming the core of the MRI magnet. These coils are then immersed in a cryostat filled with liquid helium to maintain the necessary low temperature. The magnet’s design must account for thermal insulation, mechanical stability, and uniformity of the magnetic field. For instance, a typical 1.5 Tesla MRI magnet uses around 100 kilometers of NbTi wire, arranged in layers to optimize field strength and homogeneity.
Cautions: Challenges and Maintenance
While NbTi superconducting magnets are highly efficient, they require meticulous maintenance. Liquid helium is expensive and must be replenished periodically due to boil-off. Additionally, any temperature fluctuation above the critical threshold can cause the magnet to "quench," rapidly losing its superconductivity and potentially damaging the system. Regular monitoring and backup cooling systems are essential to prevent such failures.
Takeaway: Why NbTi Alloys Dominate MRI Technology
NbTi alloys cooled by liquid helium remain the gold standard for MRI magnets due to their ability to produce stable, high-field strengths with minimal energy loss. Despite the challenges of cryogenic maintenance, their efficiency and reliability make them indispensable in medical imaging. Advances in superconducting materials continue to build on this foundation, but for now, NbTi remains the cornerstone of MRI magnet technology.
Mastering Magnetic Holders: Creative Uses and Practical Tips for Organization
You may want to see also
Explore related products
Cryogenic Cooling Systems: Maintain superconducting state at extremely low temperatures, ensuring magnet functionality
Superconducting magnets are the backbone of MRI technology, generating the powerful, stable magnetic fields necessary for high-resolution imaging. However, these magnets only achieve superconductivity at extremely low temperatures, typically below 10 Kelvin (-263.15°C or -441.67°F). This is where cryogenic cooling systems become indispensable. These systems use liquid helium, a cryogen with a boiling point of 4.2 Kelvin, to maintain the magnet’s superconducting state. Without this cooling, the magnet would lose its superconductivity, rendering the MRI machine inoperable.
The design of cryogenic cooling systems is a delicate balance of precision and efficiency. The system must insulate the liquid helium from external heat sources while continuously replenishing the cryogen lost to boil-off. Vacuum-insulated dewars, often with multiple layers of thermal shielding, are used to house the superconducting magnet. Additionally, cryocoolers, which operate on the principle of the Gifford-McMahon cycle or pulse tube technology, are employed to recondense helium vapor and minimize helium consumption. This dual approach ensures the magnet remains at the required temperature for extended periods, often years, with minimal maintenance.
One critical challenge in cryogenic cooling is managing helium boil-off, a natural consequence of heat infiltration. Helium is a non-renewable resource, and its scarcity has driven innovations in system design. Modern MRI machines incorporate advanced monitoring systems that track helium levels and alert operators to potential leaks or inefficiencies. Some systems even feature helium recovery mechanisms, which capture and reliquefy boil-off gas, reducing operational costs and environmental impact. For facilities in regions with limited helium supply, this feature is not just a luxury but a necessity.
Practical considerations for maintaining cryogenic cooling systems include regular inspections of vacuum integrity, monitoring helium levels, and ensuring backup power systems are in place to prevent temperature spikes during outages. Operators must also be trained to recognize early signs of system failure, such as increased helium consumption or unusual temperature fluctuations. Proactive maintenance, combined with a deep understanding of the system’s thermodynamics, is key to avoiding costly downtime and ensuring the MRI machine’s reliability.
In conclusion, cryogenic cooling systems are the unsung heroes of MRI technology, enabling superconducting magnets to operate at the extreme temperatures required for optimal performance. Their design, operation, and maintenance demand a blend of engineering precision and resource management. As helium becomes scarcer and more expensive, the efficiency and sustainability of these systems will only grow in importance, shaping the future of medical imaging.
Mastering Magnetization: A Step-by-Step Guide to Using a Magnetizer
You may want to see also
Explore related products
Structural Integrity: Magnets must withstand mechanical stress and remain aligned for safe, reliable operation
Magnets in MRI machines are subjected to immense mechanical stress, from the weight of their own components to external forces like patient movement and structural vibrations. A typical superconducting MRI magnet can weigh several tons, generating forces that require robust engineering to manage. For instance, a 1.5 Tesla MRI system’s magnet may weigh upwards of 10,000 pounds, necessitating a support structure capable of withstanding not only its static load but also dynamic stresses during operation. Without structural integrity, misalignment or deformation could lead to catastrophic failure, compromising patient safety and equipment functionality.
To ensure alignment, MRI magnets rely on precision engineering and active stabilization systems. Even a slight misalignment of the magnetic field, measured in milliteslas, can degrade image quality or render scans unusable. For example, a 3 Tesla MRI system requires field homogeneity within ±1 ppm (parts per million) over the imaging volume. Achieving this demands not only rigid construction materials like reinforced cryostats but also real-time monitoring systems that adjust for thermal expansion, helium level fluctuations, or external magnetic interference. Manufacturers often incorporate active shimming coils and passive shielding to maintain alignment under varying conditions.
The consequences of structural failure in MRI magnets extend beyond equipment damage. A compromised magnet can lead to quenching, a rapid loss of superconductivity that releases stored energy as heat, potentially causing explosions or fires. For instance, a quench in a 3 Tesla magnet releases energy equivalent to several kilograms of TNT, posing risks to both personnel and infrastructure. To mitigate this, safety protocols include quench protection systems, such as vented helium exhausts and emergency shutdown mechanisms. Regular maintenance, including cryogen level checks and stress testing, is critical to identifying vulnerabilities before they escalate.
Practical considerations for maintaining structural integrity include material selection and environmental controls. MRI magnets are typically constructed from non-magnetic, high-strength alloys like aluminum or fiberglass-reinforced composites to avoid interference with the magnetic field. Cryogenic systems, which cool superconducting coils to near-absolute zero temperatures, must be insulated to prevent thermal stress. Facilities housing MRI machines should also minimize vibrations from nearby machinery or foot traffic, as even minor oscillations can accumulate over time, leading to misalignment. For example, placing MRI units on vibration-damping foundations can reduce the risk of gradual structural fatigue.
In summary, structural integrity in MRI magnets is a non-negotiable requirement, achieved through meticulous design, active stabilization, and proactive maintenance. From withstanding multi-ton loads to maintaining sub-millimeter alignment, every aspect of magnet construction and operation must prioritize safety and reliability. By understanding the forces at play and implementing targeted safeguards, healthcare providers and engineers can ensure MRI systems deliver accurate, consistent results without compromising patient or operator well-being.
Mastering Magnetic Barrel Clasps: A Step-by-Step Guide for Jewelry Makers
You may want to see also
Frequently asked questions
The primary requirements for magnets used in MRI machines include high magnetic field strength (typically 1.5 to 3 Tesla or higher), uniformity of the magnetic field to ensure accurate imaging, and stability over time to minimize signal degradation.
MRI magnets are typically constructed from superconducting materials like niobium-titanium (NbTi) alloys, which allow for the creation of strong, stable magnetic fields when cooled to cryogenic temperatures. These materials minimize energy loss and maintain the required field strength efficiently.
Magnetic field homogeneity is critical in MRI to ensure clear and accurate images. It is achieved through precise engineering of the magnet’s geometry, the use of passive shimming (adjustable metal pieces), and active shimming (adjustable current loops) to correct for field inhomogeneities.
