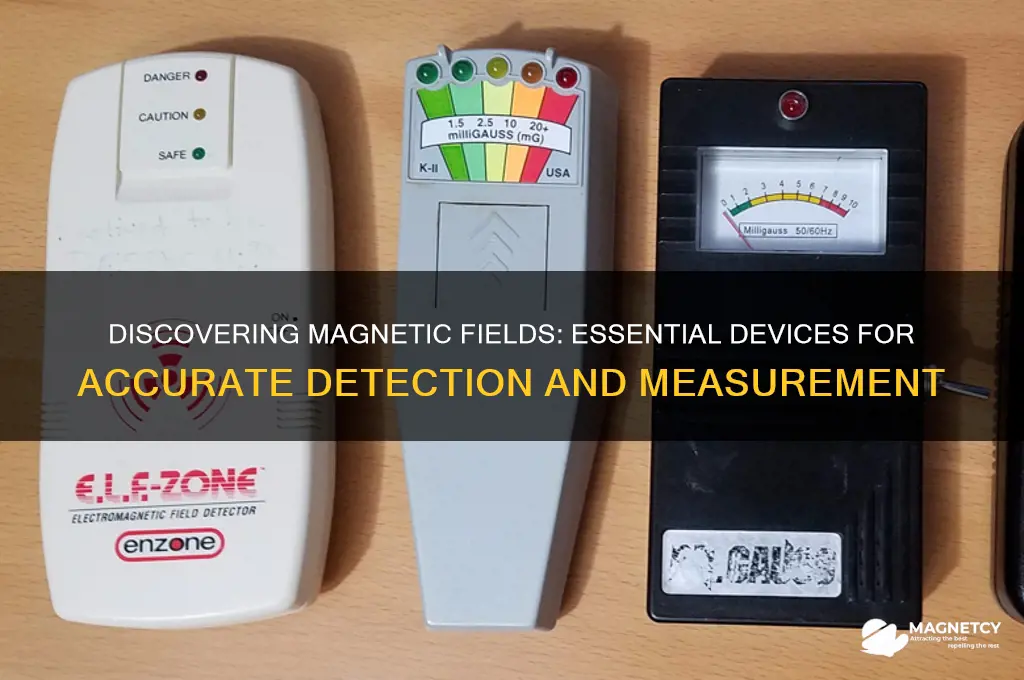

Magnetic fields, though invisible to the naked eye, play a crucial role in various scientific, industrial, and everyday applications. To detect and measure these fields, several specialized devices have been developed, each tailored to specific needs and sensitivities. One of the most common and widely used devices is the magnetometer, which comes in various forms such as Hall effect sensors, fluxgate magnetometers, and superconducting quantum interference devices (SQUIDs). These tools are essential in fields like geology, archaeology, and electronics, enabling the detection of magnetic anomalies, the study of Earth's magnetic field, and the calibration of magnetic components in technology. Understanding the capabilities and applications of these devices is key to harnessing the power of magnetic fields in both research and practical scenarios.
| Characteristics | Values |
|---|---|
| Device Name | Hall Effect Sensor, Magnetometer, Fluxgate Magnetometer, SQUID (Superconducting Quantum Interference Device), Proton Precession Magnetometer |
| Working Principle | Hall Effect (current flow in semiconductor), Magnetic field strength measurement, Quantum interference, Nuclear magnetic resonance |
| Sensitivity | High (e.g., SQUID: ~1 fT), Moderate (e.g., Hall Effect: ~1 mT), Low (e.g., Fluxgate: ~1 nT) |
| Measurement Range | Wide (e.g., Magnetometer: ±100 μT to ±10 T) |
| Response Time | Fast (e.g., Hall Effect: ~1 μs), Slow (e.g., Proton Precession: ~1 s) |
| Applications | Electronics (Hall Effect), Geophysics (Proton Precession), Medical (SQUID), Navigation (Magnetometer) |
| Power Consumption | Low (e.g., Hall Effect: ~1 mW), High (e.g., SQUID: requires cryogenic cooling) |
| Size | Small (e.g., Hall Effect: mm scale), Large (e.g., SQUID: requires specialized setup) |
| Cost | Low (e.g., Hall Effect: ~$1), High (e.g., SQUID: ~$100,000+) |
| Temperature Range | Wide (e.g., Hall Effect: -40°C to 150°C), Limited (e.g., SQUID: requires low temperatures) |
| Accuracy | High (e.g., SQUID: ±0.1 nT), Moderate (e.g., Fluxgate: ±1 nT) |
| Output Signal | Analog (voltage) or Digital (Hall Effect), Analog (magnetic field strength) |
| Environmental Immunity | Moderate (Hall Effect), High (SQUID requires shielding) |
| Calibration Requirement | Periodic (e.g., Fluxgate), Rarely (e.g., SQUID) |
Explore related products
What You'll Learn
- Hall Effect Sensors: Utilize semiconductor material to measure magnetic field strength via voltage difference
- Magnetometers: Detect magnetic fields using various technologies like fluxgate or SQUID
- Proximity Sensors: Identify nearby magnetic objects by changes in field intensity
- Compass Needles: Align with Earth's magnetic field, indicating direction and field presence
- Magnetic Field Viewers: Use iron filings or liquid to visualize field patterns
Hall Effect Sensors: Utilize semiconductor material to measure magnetic field strength via voltage difference
Magnetic field detection is a critical function in numerous applications, from automotive systems to consumer electronics. Among the devices capable of this task, Hall Effect sensors stand out for their precision and versatility. These sensors leverage the Hall Effect, a phenomenon where a magnetic field induces a voltage difference across a conductor perpendicular to the current flow. By utilizing semiconductor materials, Hall Effect sensors can accurately measure magnetic field strength, making them indispensable in modern technology.
How Hall Effect Sensors Work: A Step-by-Step Breakdown
When a magnetic field is applied perpendicular to a current-carrying semiconductor material, the Lorentz force deflects charge carriers (electrons or holes), creating a separation of charges. This separation results in a voltage difference, known as the Hall voltage, across the material’s width. The magnitude of this voltage is directly proportional to the magnetic field strength. Hall Effect sensors amplify this voltage, allowing for precise measurement. Key steps include:
- Current Application: Pass a known current through the semiconductor material.
- Magnetic Field Exposure: Apply the magnetic field perpendicular to the current flow.
- Voltage Measurement: Detect the Hall voltage generated across the material.
- Signal Processing: Amplify and condition the signal for accurate field strength determination.
Practical Applications and Advantages
Hall Effect sensors are widely used in industries where magnetic field detection is essential. In automotive systems, they monitor wheel speed, position, and current flow in electric vehicles. Consumer electronics, such as smartphones and laptops, use them for proximity detection and compass functionality. Their advantages include:
- Non-Contact Operation: No physical connection is required to measure the magnetic field.
- High Accuracy: Semiconductor materials ensure precise voltage measurements.
- Durability: Solid-state construction makes them resistant to wear and tear.
For example, in brushless DC motors, Hall Effect sensors determine rotor position, enabling efficient motor control without mechanical wear.
Cautions and Limitations
While Hall Effect sensors are highly effective, they are not without limitations. Temperature variations can affect semiconductor properties, leading to measurement inaccuracies. To mitigate this, calibration or temperature compensation circuits are often employed. Additionally, external electromagnetic interference (EMI) can disrupt readings, necessitating shielding in sensitive applications. Users should also consider the sensor’s operating range, as exceeding the maximum detectable field strength can saturate the device, rendering it unresponsive.
Hall Effect sensors combine simplicity, accuracy, and reliability, making them a preferred choice for magnetic field detection. Their ability to convert magnetic field strength into a measurable voltage difference, using semiconductor materials, ensures precise and consistent performance. Whether in industrial automation, automotive systems, or everyday gadgets, these sensors play a pivotal role in advancing technology. By understanding their operation, applications, and limitations, engineers and enthusiasts can harness their full potential in diverse projects.
Magnets in Space: How the ISS Utilizes Magnetic Technology
You may want to see also
Explore related products
Magnetometers: Detect magnetic fields using various technologies like fluxgate or SQUID
Magnetometers are indispensable tools for detecting and measuring magnetic fields, leveraging diverse technologies to suit specific applications. Among the most prominent are fluxgate and SQUID (Superconducting Quantum Interference Device) magnetometers, each with distinct advantages and use cases. Fluxgate magnetometers operate by detecting changes in magnetic flux within a ferromagnetic core, making them ideal for geological surveys, archaeology, and military applications due to their robustness and wide dynamic range. SQUID magnetometers, on the other hand, exploit quantum interference in superconducting loops to achieve unparalleled sensitivity, often measuring fields as weak as femtoteslas (fT). This precision makes SQUIDs essential in medical diagnostics, such as magnetoencephalography (MEG), where they map brain activity by detecting magnetic fields generated by neural currents.
When selecting a magnetometer, understanding the trade-offs between sensitivity, cost, and operational requirements is crucial. Fluxgate devices are relatively affordable and portable, with sensitivities typically ranging from 1 nanotesla (nT) to 1 microtesla (µT), making them suitable for field work. SQUIDs, while far more sensitive, require cryogenic cooling to maintain superconductivity, which increases complexity and cost. For instance, a SQUID system used in MEG can cost upwards of $1 million and demands a liquid helium or nitrogen cooling system. However, their ability to detect minute magnetic signals, such as those from the human heart or brain, justifies the investment in specialized fields like cardiology and neuroscience.
Practical considerations also dictate the choice of technology. Fluxgate magnetometers are often preferred for outdoor applications due to their resistance to environmental interference and ease of deployment. For example, archaeologists use them to locate buried structures by mapping variations in the Earth’s magnetic field caused by iron artifacts or fired clay. In contrast, SQUIDs are confined to controlled environments, such as shielded rooms, to minimize external magnetic noise. Researchers must also account for factors like sampling rate and bandwidth; fluxgate devices typically operate at frequencies up to 1 kHz, while SQUIDs can reach MHz ranges, enabling high-resolution temporal measurements.
To maximize the utility of these devices, users should adhere to best practices tailored to their technology. For fluxgate magnetometers, calibrating the instrument regularly and ensuring the core material remains undamaged are essential steps. SQUID users must maintain precise temperature control and shield the device from external magnetic fields using materials like mu-metal. In medical applications, patient preparation—such as removing ferromagnetic objects—is critical to avoid signal contamination. By aligning the choice of magnetometer with the specific demands of the task, professionals can harness the full potential of these technologies to advance scientific and industrial endeavors.
Master Magnetic Lasso: Effortlessly Cut Out Images in Photoshop
You may want to see also
Explore related products
Proximity Sensors: Identify nearby magnetic objects by changes in field intensity
Magnetic field detection is a critical function in various industries, from automotive to consumer electronics, and proximity sensors stand out as a versatile solution. These sensors operate by identifying nearby magnetic objects through changes in field intensity, offering a non-contact method to detect presence or movement. Unlike traditional mechanical switches, proximity sensors provide durability and reliability in harsh environments, making them ideal for applications where physical contact is impractical or detrimental.
Consider a practical example: in automotive manufacturing, proximity sensors are used to detect the position of car doors or hoods. When a door is closed, the sensor detects the magnetic field of a permanent magnet embedded in the door frame, triggering a signal that confirms the door is securely shut. This application not only enhances safety but also integrates seamlessly with modern vehicle systems, such as alarms or automatic locking mechanisms. The sensor’s ability to operate without physical wear ensures longevity, even in high-use scenarios.
Analyzing the technology, proximity sensors typically use Hall effect principles or magnetoresistive elements to measure magnetic field intensity. Hall effect sensors generate a voltage proportional to the magnetic field strength, while magnetoresistive sensors alter their resistance in response to changes in the field. Both methods offer high sensitivity, allowing detection of magnetic objects at distances ranging from millimeters to several centimeters, depending on the sensor’s design and the strength of the magnet involved. Calibration is key to optimizing performance, as environmental factors like temperature or electromagnetic interference can affect readings.
For those implementing proximity sensors, several practical tips can ensure success. First, select a sensor with a detection range suited to your application—for instance, a sensor with a 10–20 mm range is ideal for door detection, while a longer-range sensor may be needed for larger objects. Second, position the sensor and magnet carefully to maximize field intensity changes. Third, shield the sensor from external magnetic fields to avoid false triggers. Finally, test the system under real-world conditions to verify reliability, especially in applications where safety is critical.
In conclusion, proximity sensors offer a robust and efficient solution for detecting magnetic objects by monitoring field intensity changes. Their non-contact nature, combined with high sensitivity and durability, makes them indispensable in modern technology. By understanding their principles and following best practices, users can harness their full potential across diverse applications, from industrial automation to everyday consumer devices.
Magnetic Tracing Techniques: Locating Buried Cables Efficiently and Accurately
You may want to see also
Explore related products
Compass Needles: Align with Earth's magnetic field, indicating direction and field presence
A compass needle is a simple yet profoundly effective tool for detecting magnetic fields, particularly the Earth's magnetic field. Suspended freely, the needle aligns itself with the magnetic north-south axis, providing both directional information and confirmation of the field's presence. This alignment occurs because the needle is magnetized, with one end drawn toward the Earth's magnetic north pole. The mechanism is rooted in the interaction between the needle's magnetic dipole moment and the ambient magnetic field, demonstrating a fundamental principle of magnetism.
To use a compass needle effectively, ensure it is unhindered by external magnetic influences, such as nearby electronics or ferromagnetic materials. Hold the compass on a level surface, allowing the needle to stabilize. Observe the red or painted end, which conventionally points toward magnetic north. This basic technique not only aids in navigation but also serves as a practical experiment to verify the existence of magnetic fields. For educational purposes, demonstrate this by placing a magnet near the compass and noting the needle's deflection, illustrating how magnetic fields can be detected and their strength inferred.
While compass needles are ideal for detecting the Earth's magnetic field, their sensitivity is limited compared to specialized devices like Hall effect sensors or magnetometers. For instance, a compass needle may not detect weaker or localized magnetic fields, such as those generated by household appliances. However, its simplicity and accessibility make it a valuable starting point for understanding magnetism. Pairing compass observations with theoretical knowledge enhances comprehension of how magnetic fields interact with magnetized objects.
In practical applications, compass needles are indispensable in navigation, geology, and even recreational activities like orienteering. For hikers, a compass ensures accurate direction-finding, especially in areas with poor GPS reception. Geologists use compasses to measure strike and dip of rock formations, correlating these with magnetic field data. To maximize accuracy, calibrate the compass periodically and account for magnetic declination—the angle between true north and magnetic north, which varies by location. This ensures reliable readings and reinforces the compass's role as a versatile magnetic field detector.
Mastering Magnet Links: A Step-by-Step Guide for Android Users
You may want to see also
Explore related products
Magnetic Field Viewers: Use iron filings or liquid to visualize field patterns
Iron filings and ferrofluids offer a tangible, visually striking way to reveal the invisible patterns of magnetic fields. By sprinkling iron filings on a surface near a magnet or suspending ferrofluid in a clear container, you can watch as the particles align themselves along the field lines. This simple yet powerful method transforms abstract magnetic forces into a dynamic, observable phenomenon. For educators, hobbyists, or anyone curious about magnetism, this hands-on approach bridges the gap between theory and practice, making complex concepts accessible and engaging.
To create your own magnetic field viewer, start with a flat, non-magnetic surface like a sheet of paper or glass. Place a magnet beneath the surface, ensuring it’s close enough to exert a noticeable force. Sprinkle a thin, even layer of iron filings on top, then gently tap or tilt the surface to allow the filings to move freely. The filings will naturally cluster into curved lines, illustrating the direction and strength of the magnetic field. For a more fluid display, use a ferrofluid—a magnetic liquid that spikes and shifts dramatically in response to a magnet. Seal the ferrofluid in a clear container to prevent spills, and experiment with different magnet shapes and positions to observe varying patterns.
While both iron filings and ferrofluids serve the same purpose, they offer distinct experiences. Iron filings are cost-effective, readily available, and ideal for quick demonstrations or classroom activities. However, they can be messy and require careful handling to avoid contamination. Ferrofluids, on the other hand, provide a cleaner, more dramatic visualization, especially when illuminated with colored lights or backlighting. They’re perfect for detailed observations or artistic projects but come with a higher price tag and require careful storage to prevent leakage.
Safety and precision are key when working with these materials. Iron filings should be kept away from electronics and sensitive equipment, as they can interfere with magnetic components. Ferrofluids, though non-toxic, should not be ingested and must be handled with gloves to avoid skin irritation. For younger audiences, supervise closely and consider using a sealed container for ferrofluid experiments. By following these precautions, you can safely explore the mesmerizing world of magnetic fields and unlock a deeper understanding of their behavior.
Mastering Samsung Powerbot: Magnetic Strip Usage Guide for Effortless Cleaning
You may want to see also
Frequently asked questions
A magnetometer is the primary device used to detect and measure magnetic fields.
Yes, handheld magnetometers and smartphone apps with built-in sensors are portable options for detecting magnetic fields.
Yes, a compass can detect Earth's magnetic field but is not suitable for precise measurements of other magnetic fields.
A Hall effect sensor is a device that detects magnetic fields by measuring the voltage difference across a conductor in the presence of a magnetic field.
