Ashley Morgan

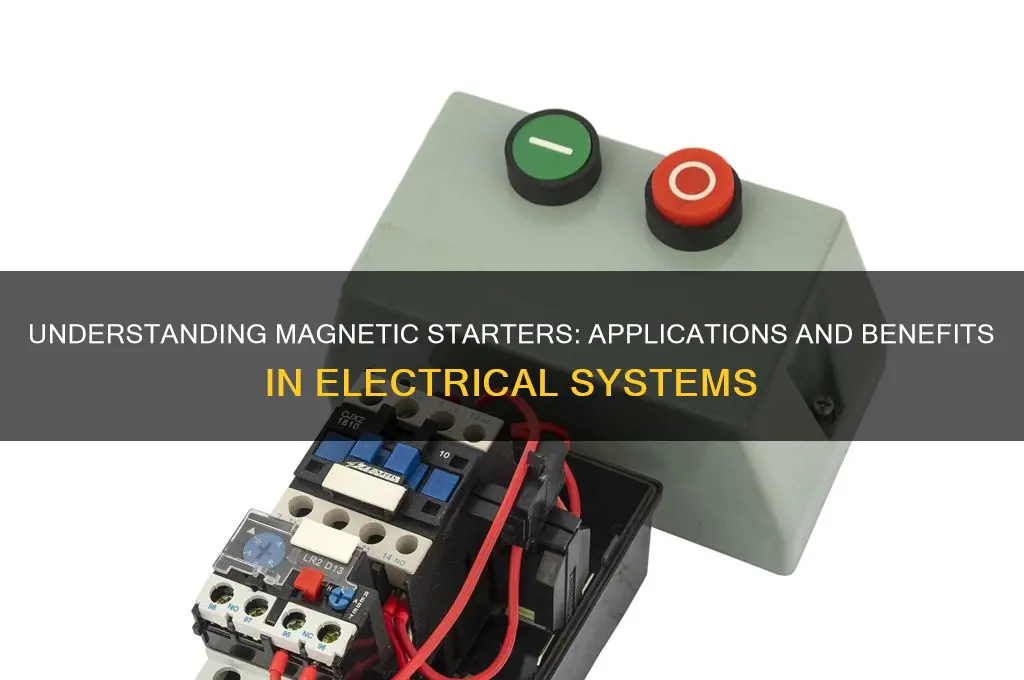

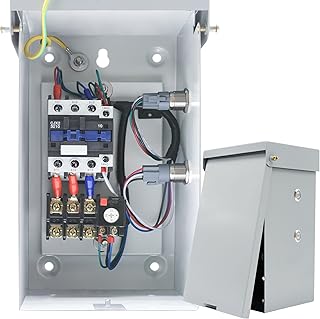

A magnetic starter is an electrical device used to control and protect electric motors, particularly in industrial and commercial applications. It operates by using an electromagnet to engage and disengage the motor circuit, allowing for safe and efficient starting, stopping, and overload protection. Commonly employed in high-power motor systems, such as those found in conveyor belts, pumps, and machinery, magnetic starters prevent damage from excessive current by automatically interrupting the power supply when an overload or short circuit is detected. They also provide a convenient means of controlling motor operation, often featuring manual or remote control options, making them essential for ensuring the reliability and safety of motor-driven equipment.
| Characteristics | Values |
|---|---|
| Purpose | Controls the starting, stopping, and reversing of electric motors. |
| Application | Commonly used in industrial and commercial settings for motor control. |
| Functionality | Uses electromagnets to open or close contacts, enabling motor operation. |
| Protection Features | Provides overload protection, short-circuit protection, and phase failure protection. |
| Voltage Range | Typically operates on 120V, 240V, 480V, or higher, depending on the model. |
| Current Rating | Ranges from a few amperes to several hundred amperes. |
| Enclosure Types | Available in NEMA 1, NEMA 3R, NEMA 7, and other enclosures for different environments. |
| Control Method | Manual (push buttons) or automatic (via PLC or other control systems). |
| Motor Compatibility | Suitable for single-phase and three-phase AC motors. |
| Size and Mounting | Compact to large sizes; can be panel-mounted or free-standing. |
| Durability | Designed for heavy-duty use with long operational life. |
| Additional Features | May include thermal overload relays, auxiliary contacts, and indicators. |
| Industry Usage | Manufacturing, HVAC systems, pumps, conveyors, and other machinery. |
| Safety Standards | Complies with standards like UL, CSA, and IEC for safety and performance. |
Explore related products
What You'll Learn
- Motor Control: Magnetic starters control electric motors, ensuring safe start/stop operations in industrial applications
- Overload Protection: They protect motors from damage by cutting power during electrical overloads
- Remote Operation: Enable motors to be started or stopped from a distance for operator safety
- Reversing Control: Allow motors to change rotation direction, essential for bidirectional machinery
- Circuit Isolation: Provide a safe way to disconnect motors from power for maintenance or repairs
Motor Control: Magnetic starters control electric motors, ensuring safe start/stop operations in industrial applications
Magnetic starters are essential components in industrial settings, designed to manage the operation of electric motors with precision and safety. These devices act as intermediaries between the power supply and the motor, enabling controlled start and stop sequences that prevent damage and ensure operational efficiency. By using electromagnets to engage and disengage contacts, magnetic starters handle high inrush currents during motor startup, protecting both the motor and the electrical system from potential harm. This mechanism is particularly critical in applications where frequent motor cycling or heavy loads are involved, such as conveyor systems, pumps, and machinery in manufacturing plants.
Consider the process of starting a large industrial motor without a magnetic starter. The sudden surge of current could cause overheating, voltage drops, or even electrical fires. Magnetic starters mitigate these risks by gradually applying power to the motor, reducing mechanical stress and extending the motor’s lifespan. For instance, in a water treatment facility, a magnetic starter ensures that pumps can be safely started and stopped without causing water hammer or damaging the pump’s internal components. This not only safeguards equipment but also maintains consistent performance in critical operations.
One of the key advantages of magnetic starters is their ability to provide overload protection. Integrated thermal overload relays monitor the motor’s current, automatically disconnecting power if excessive current is detected. This feature is vital in preventing motor burnout, especially in environments where motors operate under varying loads or conditions. For example, in a woodworking shop, a magnetic starter with overload protection ensures that a saw motor shuts down if it becomes overloaded, preventing both equipment failure and potential injury to operators.
When implementing magnetic starters, it’s important to select the appropriate size and type for the specific motor and application. Starters are rated based on the motor’s horsepower, voltage, and full-load amperage, ensuring compatibility and optimal performance. For instance, a 5-horsepower motor operating at 230 volts would require a magnetic starter with a matching rating to handle the expected current draw. Additionally, environmental factors such as temperature, humidity, and dust levels should be considered when choosing a starter, as these can affect its reliability and longevity.
In conclusion, magnetic starters play a pivotal role in motor control by ensuring safe and efficient start/stop operations in industrial applications. Their ability to manage inrush currents, provide overload protection, and adapt to specific motor requirements makes them indispensable in environments where reliability and safety are paramount. By understanding their function and selecting the right starter for the job, operators can maximize equipment performance while minimizing downtime and maintenance costs. Whether in manufacturing, water treatment, or other heavy-duty applications, magnetic starters are a cornerstone of effective motor management.
Using ModMic Without Magnet: Creative Attachment Alternatives for Clear Audio
You may want to see also
Explore related products
Overload Protection: They protect motors from damage by cutting power during electrical overloads
Electrical overloads are a motor's silent saboteur, capable of causing irreversible damage if left unchecked. This is where the magnetic starter steps in as a vigilant guardian, employing overload protection to safeguard the motor's integrity. At its core, overload protection is a fail-safe mechanism that monitors the motor's current draw. When this draw exceeds the motor's rated capacity—typically due to excessive load, mechanical failure, or electrical faults—the magnetic starter interrupts the power supply, preventing catastrophic damage.
Consider a scenario where a conveyor belt motor is tasked with moving an unexpectedly heavy load. The increased resistance causes the motor to draw more current than it can handle. Without intervention, the motor's windings could overheat, leading to insulation breakdown or even a short circuit. The magnetic starter's overload relay, calibrated to the motor's specific current rating (e.g., 1.25 times the full-load amperage), detects this surge and trips the circuit, cutting power before harm occurs. This instantaneous response is critical, as motors can fail within seconds under severe overload conditions.
The design of overload protection in magnetic starters is both precise and adaptable. Thermal overload relays, the most common type, use bimetallic strips that bend in response to heat generated by excessive current. Once the strip reaches a predetermined temperature, it triggers the trip mechanism. For more dynamic applications, electronic relays offer adjustable trip settings and faster response times, making them ideal for motors operating under variable loads. Proper calibration is key—overloading the relay with too high a current rating negates its protective function, while setting it too low results in nuisance tripping.
Practical implementation of overload protection requires careful consideration of the motor's operating environment. For instance, motors in industrial settings should have overload relays with manual or automatic reset options, depending on whether immediate restart is feasible. In hazardous locations, explosion-proof magnetic starters with sealed overload relays are essential to prevent ignition of flammable gases or dust. Regular maintenance, including testing the overload relay's trip function and ensuring proper ventilation around the motor, further enhances reliability.
In essence, overload protection in magnetic starters is not just a feature—it’s a necessity for motor longevity and operational safety. By understanding its mechanics, selecting the right type, and maintaining it diligently, users can mitigate risks and ensure uninterrupted performance. Whether in a manufacturing plant, HVAC system, or water pump, this protective measure stands as a testament to the magnetic starter's role as both a starter and a safeguard.
Magnet Air Filters for PCs: Safety Concerns and Practical Tips
You may want to see also
Explore related products
Remote Operation: Enable motors to be started or stopped from a distance for operator safety
In industrial settings, proximity to high-power motors can expose operators to hazards like electrical shocks, mechanical injuries, or arc flashes. Magnetic starters address this risk by enabling remote motor control, often from distances exceeding 50 feet. This feature is particularly critical in environments where machinery operates under high voltage (e.g., 480V or 600V systems) or in confined spaces with limited escape routes. By integrating a magnetic starter with a remote control panel or push-button station, operators can initiate or halt motor functions without entering danger zones, significantly reducing workplace accidents.
Consider a scenario in a manufacturing plant where a 100-horsepower motor drives a conveyor system. Without remote operation, an operator would need to stand within arm’s reach of the motor control cabinet to start or stop the system, risking exposure to moving parts or electrical faults. A magnetic starter equipped with remote capabilities allows the operator to control the motor from a designated safe area, often via a sealed, weather-resistant control box mounted on a nearby wall. This setup not only protects personnel but also complies with OSHA standards for electrical safety (e.g., NFPA 70E guidelines for arc-flash prevention).
Implementing remote operation with a magnetic starter involves several key steps. First, ensure the starter is rated for the motor’s full-load amperage (FLA) and voltage. For instance, a 50-hp motor with a 90-amp FLA requires a starter with a contactor rated at least 90A. Second, install a remote control station using appropriately gauged wires—typically 12-14 AWG for control circuits—to connect the starter to the remote panel. Third, incorporate safety interlocks, such as emergency stop buttons or gate switches, to halt operation instantly if needed. Always follow the National Electrical Code (NEC) for wiring and grounding to prevent electrical hazards.
While remote operation enhances safety, it’s not without limitations. For example, wireless control systems, though convenient, may introduce latency or signal interference in environments with heavy electromagnetic noise. Wired systems, while reliable, require careful cable management to avoid tripping hazards or damage. Additionally, remote setups must include visual indicators (e.g., pilot lights or status LEDs) to confirm motor status, as operators cannot directly observe the equipment. Regular maintenance, such as testing control circuits monthly and inspecting contacts for wear, ensures long-term reliability.
The takeaway is clear: remote operation via magnetic starters is a non-negotiable safety measure in high-risk industrial applications. By separating operators from hazardous areas, these systems mitigate risks while maintaining operational efficiency. Whether in food processing, mining, or water treatment, the ability to control motors remotely not only protects lives but also reduces downtime caused by accidents. For facilities upgrading legacy systems, retrofitting magnetic starters with remote capabilities offers a cost-effective path to modern safety standards. Always consult a certified electrician to ensure compliance with local codes and optimal system performance.
Magnetic Finisher on Copper: Compatibility, Techniques, and Best Practices
You may want to see also
Explore related products
Reversing Control: Allow motors to change rotation direction, essential for bidirectional machinery
In industrial settings, bidirectional machinery often requires motors to operate in both forward and reverse directions. A magnetic starter equipped with reversing control accomplishes this by managing the motor's windings, ensuring seamless direction changes. This functionality is critical in applications like conveyor systems, where reversing the motor direction allows for material flow in opposite directions, enhancing operational flexibility. Without such control, machinery would lack the adaptability needed for dynamic processes, leading to inefficiencies and potential downtime.
Implementing reversing control involves wiring the magnetic starter to switch the motor's phase sequence. For a three-phase motor, this typically means rearranging the connections to alter the rotational direction. For instance, swapping any two of the three phases (L1, L2, L3) reverses the magnetic field, thereby reversing the motor's rotation. This process must be executed with precision to avoid phase loss or electrical damage. Always consult the motor's wiring diagram and use a properly rated magnetic starter to ensure compatibility and safety.
One practical example of reversing control is in overhead cranes, where bidirectional movement is essential for positioning loads accurately. Here, the magnetic starter integrates with a reversing switch, allowing operators to change the motor's direction instantly. This setup not only improves productivity but also reduces wear on mechanical components by eliminating the need for manual adjustments. However, frequent direction changes can strain the motor and starter, so regular maintenance checks are crucial to monitor for overheating or contact wear.
When designing systems with reversing control, consider the motor's thermal limits and duty cycle. Reversing a motor under load or too frequently can cause excessive heat buildup, shortening its lifespan. To mitigate this, incorporate thermal overload protection within the magnetic starter and program delays between direction changes if possible. Additionally, ensure the starter is rated for the motor's full load amperage and includes a mechanical or electrical interlock to prevent simultaneous forward and reverse commands, which could cause short circuits.
In summary, reversing control in magnetic starters is indispensable for bidirectional machinery, enabling motors to change rotation direction efficiently and safely. By understanding the wiring principles, practical applications, and maintenance requirements, operators can maximize the functionality of their systems while minimizing risks. Whether in manufacturing, logistics, or construction, this feature transforms static processes into dynamic, adaptable workflows, underscoring its value in modern industrial automation.
Deer's Magnetic Sense: Navigating Earth's Field for Survival and Migration
You may want to see also
Explore related products
$324.95
Circuit Isolation: Provide a safe way to disconnect motors from power for maintenance or repairs
In industrial settings, motors are the backbone of machinery, driving everything from conveyor belts to pumps. However, maintenance and repairs are inevitable, and working on a live motor poses significant risks—electric shock, arc flashes, and mechanical hazards. Circuit isolation through a magnetic starter provides a critical safety mechanism by ensuring motors are completely disconnected from power during these tasks. Unlike simple switches, magnetic starters incorporate both mechanical and electrical isolation, creating a clear break in the circuit that eliminates the risk of accidental re-energization.
Consider the process of isolating a motor for maintenance. First, the magnetic starter’s stop button is pressed, de-energizing the coil and opening the contacts. This mechanical action physically separates the motor from the power supply. However, safety protocols demand an additional step: locking out the starter. Most magnetic starters are equipped with lockout/tagout (LOTO) provisions, allowing a padlock or tag to be attached to prevent unauthorized re-energization. This dual-layer approach—mechanical disconnection and physical lockout—ensures that maintenance personnel can work safely without fear of unexpected power restoration.
The importance of circuit isolation becomes even clearer when examining the consequences of its absence. Without proper isolation, residual voltage or accidental switch activation can turn routine maintenance into a life-threatening situation. For instance, a technician replacing a motor bearing might inadvertently come into contact with live components, resulting in severe injury or fatality. Magnetic starters mitigate this risk by providing a visible and verifiable break in the circuit, often indicated by a clear gap in the contacts or a lockout mechanism in place.
Practical implementation of circuit isolation requires adherence to specific steps. After stopping the motor via the magnetic starter, verify de-energization using a voltage tester. Next, apply a lockout device to the starter’s isolation points, ensuring it cannot be reactivated. Tag the device with the technician’s name and the reason for lockout, as required by OSHA standards. Finally, test the system by attempting to restart the motor to confirm isolation is effective. These steps, when followed rigorously, create a safe environment for maintenance and repairs.
In summary, circuit isolation via magnetic starters is not just a convenience—it’s a necessity for safeguarding personnel and equipment. By combining mechanical disconnection with lockout capabilities, magnetic starters provide a reliable means to isolate motors from power, minimizing risks during maintenance. Adhering to proper procedures ensures that this safety feature functions as intended, protecting workers and maintaining operational integrity.
Plotting Magnetic Field Lines: A Compass-Guided Visualization Technique
You may want to see also
Frequently asked questions
A magnetic starter is used to control the operation of electric motors, providing a safe and efficient way to start, stop, and protect motors from overloads and phase failures.
Magnetic starters are commonly used in industries such as manufacturing, HVAC systems, conveyor systems, and machinery where electric motors require reliable control and protection.
A magnetic starter protects an electric motor by incorporating overload relays that detect excessive current and automatically shut off the motor to prevent damage from overheating or overloading.
Yes, some magnetic starters are designed with a reversing feature, allowing them to control the direction of motor rotation by switching the phase sequence of the power supply.
