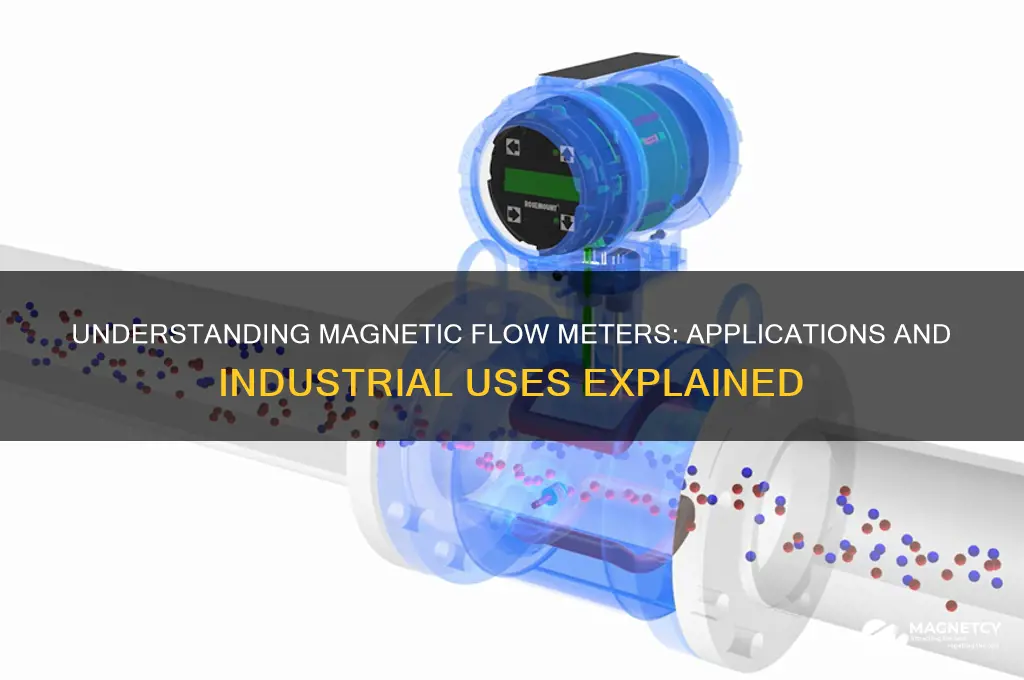

A magnetic flow meter, also known as a mag meter, is a device used to measure the flow rate of conductive fluids, such as water, wastewater, acids, and slurries, in closed pipes. It operates based on Faraday's law of electromagnetic induction, where a magnetic field is applied to the fluid, and the voltage generated is proportional to the fluid's velocity. This non-invasive and obstruction-free technology ensures accurate measurements without pressure loss, making it ideal for applications requiring high precision and minimal maintenance. Commonly used in industries like water treatment, chemical processing, and food and beverage, magnetic flow meters are valued for their reliability, versatility, and ability to handle corrosive or abrasive fluids.
| Characteristics | Values |
|---|---|
| Purpose | Measures volumetric flow rate of conductive fluids (liquids or slurries). |
| Operating Principle | Faraday’s Law of Electromagnetic Induction. |
| Fluid Requirements | Must be electrically conductive (minimum conductivity ~5 µS/cm). |
| Accuracy | ±0.5% to ±1.0% of full scale. |
| Pressure Range | Up to 40 bar (580 psi), depending on design. |
| Temperature Range | -40°C to +180°C (-40°F to +356°F), depending on liner material. |
| Pipe Size | DN10 (3/8") to DN3000 (120") and larger. |
| Applications | Water treatment, wastewater, chemical processing, food & beverage, mining. |
| Advantages | No moving parts, low maintenance, unobstructed flow, bidirectional flow measurement. |
| Disadvantages | Requires conductive fluids, not suitable for hydrocarbons or gases. |
| Material Compatibility | Liners: PTFE, rubber, polyurethane; Electrodes: stainless steel, Hastelloy. |
| Output Signals | 4-20 mA, pulse, HART, Modbus, Fieldbus. |
| Installation Requirements | Straight pipe runs (5D upstream, 2D downstream) to ensure stable flow profile. |
| Cost | Moderate to high, depending on size and material. |
| Maintenance | Minimal; periodic electrode cleaning and liner inspection. |
Explore related products
What You'll Learn
- Measuring volumetric flow rate of conductive fluids in industrial processes
- Monitoring wastewater flow in treatment plants for accurate billing and control
- Used in chemical industries to measure corrosive fluid flow rates
- Ideal for slurry flow measurement in mining and mineral processing
- Applied in food and beverage industries for hygienic flow monitoring
Measuring volumetric flow rate of conductive fluids in industrial processes
Magnetic flow meters, also known as magmeters, are indispensable tools in industries where the precise measurement of conductive fluids is critical. These devices operate on Faraday’s law of electromagnetic induction, generating a voltage signal proportional to the fluid’s velocity. This principle allows them to measure volumetric flow rates with exceptional accuracy, even in challenging conditions such as slurries, corrosive liquids, or fluids with suspended solids. Their non-invasive design ensures minimal pressure drop and no moving parts, reducing maintenance needs and extending operational life.
In industrial processes, the ability to measure volumetric flow rate accurately is vital for optimizing efficiency and ensuring product quality. For instance, in water treatment plants, magmeters monitor the flow of chemically treated water, ensuring precise dosing of coagulants or disinfectants. Similarly, in the food and beverage industry, they track the flow of liquids like milk or fruit juices, maintaining consistency in recipes and production. The key advantage here is their compatibility with conductive fluids, which include most aqueous solutions, acids, and bases commonly found in manufacturing.
Implementing a magnetic flow meter requires careful consideration of the fluid’s conductivity, typically above 5 µS/cm for reliable readings. Installation is straightforward but demands attention to detail: the meter must be mounted in a straight pipe section, free from disturbances like bends or tees, to ensure laminar flow. Calibration is equally important, as it accounts for factors like pipe material, fluid temperature, and conductivity variations. For example, in chemical dosing applications, a magmeter might be calibrated to measure flow rates as low as 0.1 L/min with an accuracy of ±0.5%, ensuring precise control over additive quantities.
One of the standout features of magnetic flow meters is their versatility across industries. In pharmaceuticals, they handle the flow of sterile water or buffer solutions, meeting stringent hygiene standards with their full-bore design. In mining, they measure abrasive slurries without clogging or wear, thanks to their lack of obstructions. Even in wastewater management, they excel at handling dirty, variable flows, providing reliable data for process control. This adaptability makes them a go-to solution for any process involving conductive fluids.
Despite their advantages, magnetic flow meters are not without limitations. They cannot measure non-conductive fluids like oils or hydrocarbons, and their accuracy can be affected by low conductivity or turbulent flow. However, when applied correctly, they offer unparalleled benefits in volumetric flow measurement. By understanding their capabilities and constraints, industries can leverage magmeters to enhance precision, reduce waste, and improve overall process efficiency. Whether in chemical dosing, food production, or wastewater treatment, these devices play a pivotal role in modern industrial automation.
DIY Saltwater and Magnet Power: Lighting a Bulb Easily
You may want to see also
Explore related products
Monitoring wastewater flow in treatment plants for accurate billing and control
Wastewater treatment plants face a critical challenge: ensuring accurate flow measurement for fair billing and efficient process control. Magnetic flow meters emerge as the ideal solution, leveraging Faraday's law of electromagnetic induction to measure conductive fluids like wastewater. Unlike mechanical meters prone to clogging from debris and sludge, magnetic flow meters have no moving parts, ensuring reliability in the harsh conditions of wastewater treatment.
Their unobstructed design prevents pressure loss, crucial for maintaining system efficiency.
Consider a mid-sized treatment plant processing 5 million gallons daily. Inaccurate flow measurement, even by a modest 2%, translates to significant financial losses. Magnetic flow meters, with their high accuracy (±0.5%), provide precise data for billing, ensuring fair charges for municipalities and industries. This accuracy extends to monitoring inflow and infiltration, helping identify leaks and optimize treatment processes.
For instance, sudden spikes in flow rates detected by the meter can signal a broken pipe, allowing for prompt repairs and preventing overflows.
Installation and calibration are key to maximizing the benefits of magnetic flow meters. The meter should be positioned in a straight pipe run, free from disturbances like bends or valves, to ensure laminar flow. Calibration using a known flow rate standard is essential, especially after installation and periodically throughout the meter's lifespan. Regular maintenance, including cleaning the electrodes and checking for liner wear, guarantees long-term accuracy and reliability.
Manufacturers often recommend annual maintenance checks, though frequency may vary based on wastewater characteristics and meter usage.
While magnetic flow meters offer numerous advantages, understanding their limitations is crucial. They require a minimum conductivity in the wastewater, typically above 5 microsiemens per centimeter. Treatment plants handling primarily industrial effluent with low conductivity may need to explore alternative flow measurement technologies. Additionally, the presence of air bubbles or gas pockets can interfere with readings, necessitating proper installation and potential air elimination measures.
Magnets on Monochromatic Stainless Steel: Compatibility and Practical Applications
You may want to see also
Explore related products
$37.99
Used in chemical industries to measure corrosive fluid flow rates
In the chemical industry, where fluids range from mildly reactive to highly corrosive, accurate flow measurement is critical for process control, safety, and efficiency. Magnetic flow meters, or magmeters, are particularly suited for this environment due to their non-invasive design and ability to handle aggressive substances. Unlike mechanical meters, magmeters have no moving parts, reducing wear and tear from caustic materials like hydrochloric acid, sodium hydroxide, or sulfuric acid. This makes them ideal for applications where traditional meters would quickly degrade.
Consider the process of measuring the flow rate of a 30% hydrochloric acid solution in a chemical plant. The fluid’s corrosive nature would rapidly damage a turbine or positive displacement meter, leading to frequent replacements and downtime. A magmeter, however, can be installed with a non-conductive liner (e.g., PTFE or rubber) that resists chemical attack while maintaining accuracy. The meter operates by detecting the voltage induced in the fluid as it passes through a magnetic field, a principle unaffected by the fluid’s corrosiveness. This ensures reliable measurements even in harsh conditions.
One practical tip for implementing magmeters in corrosive environments is to select the appropriate liner material based on the fluid’s chemical composition and temperature. For instance, PTFE liners are excellent for strong acids and bases but may not be suitable for high-temperature applications, where rubber or ceramic liners might be preferable. Additionally, ensure the meter’s electrodes are made of corrosion-resistant materials like Hastelloy or titanium to prolong their lifespan. Regular calibration and inspection are also essential to maintain accuracy, especially in processes where flow rates directly impact product quality or safety.
A comparative analysis highlights the advantages of magmeters over other technologies in corrosive fluid applications. For example, while ultrasonic flow meters offer non-invasive measurement, they struggle with accuracy in aerated or turbulent flows, which are common in chemical processes. Similarly, Coriolis meters, though highly accurate, are expensive and may not withstand prolonged exposure to highly corrosive fluids. Magmeters strike a balance between cost, durability, and precision, making them a preferred choice for industries handling aggressive chemicals.
In conclusion, magnetic flow meters are indispensable in the chemical industry for measuring corrosive fluid flow rates. Their non-invasive design, coupled with the ability to customize liners and electrodes, ensures longevity and accuracy in harsh environments. By carefully selecting materials and maintaining the meter, operators can achieve reliable measurements that enhance process efficiency and safety. For anyone dealing with corrosive fluids, magmeters offer a robust solution that minimizes downtime and maximizes operational integrity.
Effective Methods to Heat a Magnet Safely and Efficiently
You may want to see also
Explore related products
Ideal for slurry flow measurement in mining and mineral processing
Magnetic flow meters, also known as magmeters, are particularly well-suited for slurry flow measurement in mining and mineral processing operations due to their unique design and operational principles. Slurries, which are mixtures of solids and liquids, present significant challenges for flow measurement because of their abrasive nature, varying densities, and tendency to settle or segregate. Traditional flow meters often struggle with these conditions, leading to inaccurate readings, frequent maintenance, and reduced lifespan. Magmeters, however, excel in such environments because they have no moving parts and are non-invasive, minimizing wear and tear while maintaining accuracy.
One of the key advantages of magnetic flow meters in slurry applications is their ability to handle highly abrasive materials without degradation. In mining and mineral processing, slurries often contain sharp, hard particles like ore fragments, sand, or coal, which can quickly damage mechanical flow meters. Magmeters, on the other hand, rely on Faraday’s law of electromagnetic induction, measuring the voltage generated by a conductive slurry as it passes through a magnetic field. This non-contact method ensures that the meter remains unaffected by the abrasive components, making it ideal for long-term use in harsh conditions. For instance, in gold mining operations, slurries with high concentrations of ore particles can be accurately measured without the risk of meter obstruction or damage.
Another critical factor in slurry flow measurement is the ability to handle varying concentrations and densities of solids within the liquid medium. Magnetic flow meters are inherently capable of accommodating these fluctuations because their measurements are directly proportional to the velocity and conductivity of the slurry. This makes them highly reliable for processes like thickening, where slurry density changes significantly over time. For example, in copper ore processing, slurry density can range from 10% to 60% solids by weight, and magmeters can provide consistent readings across this spectrum without requiring recalibration or adjustments.
Practical implementation of magnetic flow meters in mining and mineral processing requires careful consideration of installation and maintenance practices. To ensure optimal performance, the meter should be installed in a straight section of pipe with sufficient upstream and downstream straight-run requirements, typically 5 to 10 pipe diameters. This minimizes flow disturbances that could affect accuracy. Additionally, grounding the meter properly is essential to eliminate electrical noise, which can interfere with the signal. Regular inspection of the liner and electrodes is also recommended, as these components are the primary points of contact with the slurry. Using liners made of durable materials like polyurethane or ceramic can extend the meter’s lifespan in highly abrasive applications.
In conclusion, magnetic flow meters are the ideal choice for slurry flow measurement in mining and mineral processing due to their robustness, accuracy, and adaptability to challenging conditions. Their non-invasive design ensures longevity in abrasive environments, while their ability to handle variable slurry densities makes them indispensable for critical processes. By following best practices for installation and maintenance, operators can maximize the performance and reliability of magmeters, ultimately improving efficiency and reducing downtime in their operations. Whether measuring ore slurries in a gold mine or tailings in a copper processing plant, magnetic flow meters provide a dependable solution for even the most demanding slurry applications.
Is Silver a Common Magnet Component? Exploring Its Magnetic Properties
You may want to see also
Explore related products
Applied in food and beverage industries for hygienic flow monitoring
In the food and beverage industries, maintaining impeccable hygiene standards is non-negotiable. Magnetic flow meters (magmeters) play a critical role in this context by providing non-invasive, highly accurate flow monitoring without compromising the integrity of the product. Unlike mechanical flow meters, magmeters have no moving parts or obstructions in the flow path, reducing the risk of contamination and making them ideal for handling liquids like milk, fruit juices, and beer. Their smooth, easy-to-clean surfaces align with stringent sanitary regulations, such as those set by the FDA and EHEDG, ensuring that every drop measured meets safety and quality standards.
Consider the production of pasteurized milk, where precise flow measurement is essential for maintaining consistent heating and cooling processes. A magmeter installed in the pipeline can monitor the flow rate of milk at temperatures up to 140°F (60°C) without affecting its quality. The meter’s full-bore design ensures minimal pressure drop, preserving the product’s texture and nutritional value. For instance, in a dairy plant processing 50,000 liters of milk per hour, a magmeter with a turndown ratio of 20:1 can accurately measure flow rates from 2,500 to 50,000 liters per hour, ensuring optimal efficiency and waste reduction.
While magmeters offer unparalleled advantages, their application in food and beverage industries requires careful consideration. For example, the liquid being measured must be electrically conductive—a limitation for products like oils or alcohol-based beverages. Additionally, proper installation is crucial; the meter should be positioned in a straight pipe section with adequate upstream and downstream straight-run requirements to ensure accurate readings. Regular calibration and verification against master meters or gravimetric standards are also essential to maintain precision, especially in high-stakes applications like dosage control in flavored beverages or alcohol content monitoring in beer.
The persuasive case for magmeters lies in their ability to streamline operations while upholding hygiene. In breweries, for instance, magmeters are used to monitor wort flow during mashing, ensuring consistent extraction of sugars for fermentation. Their compatibility with CIP (Clean-in-Place) systems allows for automated cleaning without disassembly, saving time and labor. For small-scale craft breweries producing 1,000 barrels annually, investing in a magmeter can reduce product loss by up to 5%, translating to significant cost savings and improved batch consistency.
In conclusion, magnetic flow meters are indispensable tools for hygienic flow monitoring in the food and beverage industries. Their design, accuracy, and compatibility with sanitary standards make them ideal for handling sensitive liquids. By addressing specific challenges like conductivity requirements and installation nuances, manufacturers can maximize the benefits of magmeters, ensuring both compliance and operational efficiency. Whether in dairy, brewing, or juice production, these devices exemplify how technology can harmonize precision, safety, and productivity.
Mastering Magnet Sensor Integration in Kodular: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A magnetic flow meter is used to measure the volumetric flow rate of conductive fluids, such as water, wastewater, acids, and slurries, in closed pipes.
A magnetic flow meter operates based on Faraday’s Law of electromagnetic induction. It generates a magnetic field perpendicular to the flow direction, and the conductive fluid passing through the field induces a voltage, which is proportional to the flow rate.
Magnetic flow meters are widely used in industries such as water and wastewater treatment, chemical processing, food and beverage, pharmaceuticals, and mining due to their accuracy and ability to handle corrosive or abrasive fluids.
No, magnetic flow meters cannot measure non-conductive fluids like oil or gases because they rely on the conductivity of the fluid to induce a voltage and measure flow.
Advantages include high accuracy, no moving parts (reducing maintenance), ability to handle dirty or abrasive fluids, and suitability for a wide range of temperatures and pressures.
