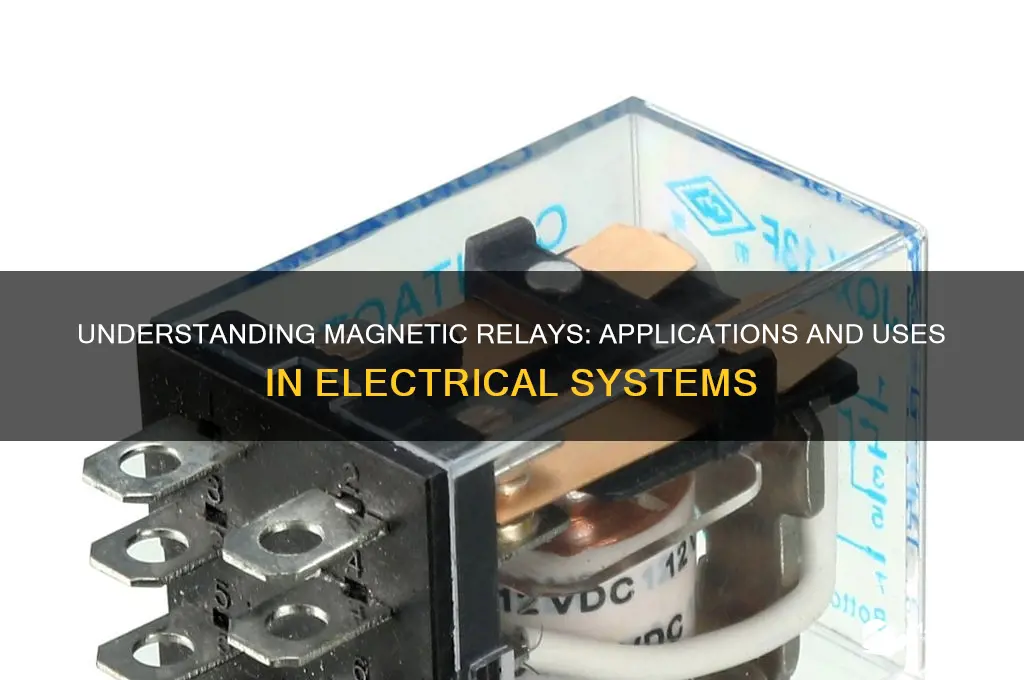

A magnetic relay is an electromechanical switch used to control high-power electrical circuits with a low-power signal, typically from a control device. It operates by utilizing an electromagnet to open or close a set of contacts, allowing it to isolate or connect different parts of an electrical system. Commonly employed in applications such as motor control, lighting systems, and industrial automation, magnetic relays ensure safe and efficient operation by preventing damage to sensitive components and enabling remote or automated control. Their reliability, versatility, and ability to handle high currents make them indispensable in various industries, including manufacturing, automotive, and home appliances.
| Characteristics | Values |
|---|---|
| Function | Controls high-power electrical circuits using a low-power signal |
| Operation Principle | Electromagnetic induction (coil creates magnetic field to close/open contacts) |
| Applications | Motor control, lighting systems, HVAC systems, industrial automation, power distribution, home appliances |
| Types | Latching, Non-latching, Single-pole single-throw (SPST), Double-pole double-throw (DPDT) |
| Voltage Range | Typically 5V to 240V AC/DC (varies by model) |
| Current Rating | Up to several amperes (varies by model) |
| Switching Speed | Milliseconds to seconds (depends on design) |
| Contact Material | Silver alloys, gold, or other conductive materials for durability |
| Lifespan | 10,000 to 1,000,000 cycles (varies by usage and quality) |
| Advantages | Electrical isolation, high switching capacity, reliability |
| Disadvantages | Slower than solid-state relays, mechanical wear over time |
| Common Industries | Manufacturing, automotive, telecommunications, power generation |
| Size | Compact to large, depending on application |
| Cost | Varies widely ($1 to $100+ depending on specifications) |
Explore related products
What You'll Learn
- Motor Control: Magnetic relays control motor operations, ensuring safe start/stop and reversing functions in industrial applications
- Power Switching: Used to switch high-power circuits, protecting devices from electrical surges and overloads effectively
- Circuit Protection: Relays isolate faulty circuits, preventing damage and ensuring system safety in electrical networks
- Signal Processing: Amplify weak signals for control systems, enabling precise operation in automation and electronics
- Lighting Control: Manage lighting systems, allowing remote switching and dimming in commercial and residential setups
Motor Control: Magnetic relays control motor operations, ensuring safe start/stop and reversing functions in industrial applications
Magnetic relays are indispensable in motor control, serving as the backbone for safe and efficient operation in industrial settings. These devices act as electrical switches, activated by a magnetic field generated by a coil. When current flows through the coil, it creates a magnetic force that either attracts or repels a set of contacts, thereby opening or closing the circuit. This mechanism is crucial for controlling motors, ensuring they start, stop, and reverse direction reliably and safely. Without magnetic relays, motors would be prone to overheating, short circuits, and mechanical failures, posing significant risks to both equipment and personnel.
Consider the start-up process of a large industrial motor. When a motor is initially powered, it draws a high inrush current, which can be several times the normal operating current. Magnetic relays are designed to handle this surge, preventing damage to the motor and associated circuitry. For instance, a time-delay relay can be programmed to allow the motor to ramp up gradually, reducing mechanical stress and extending the motor’s lifespan. Similarly, during stopping operations, relays ensure the motor’s power is cut off smoothly, avoiding sudden stops that could cause load shocks or damage to connected machinery.
Reversing the direction of a motor is another critical function where magnetic relays excel. In applications like conveyor systems or automated manufacturing lines, motors often need to change direction to facilitate bidirectional movement. Magnetic relays achieve this by switching the polarity of the motor’s power supply. For example, a double-pole double-throw (DPDT) relay can alternate between two sets of contacts, effectively reversing the motor’s rotation. This capability is essential for optimizing workflow efficiency and ensuring seamless operation in complex systems.
Safety is paramount in industrial environments, and magnetic relays play a vital role in safeguarding motor operations. Overload relays, a specialized type of magnetic relay, monitor the motor’s current and disconnect power if it exceeds a preset threshold, preventing burnout. Similarly, thermal relays detect excessive heat buildup, a common precursor to motor failure. These protective features not only prevent costly downtime but also mitigate the risk of fires or electrical accidents. For instance, in a textile mill, an overload relay might be set to trip at 120% of the motor’s rated current, ensuring immediate shutdown before damage occurs.
In practice, integrating magnetic relays into motor control systems requires careful consideration of the application’s specific needs. Engineers must select relays with appropriate voltage and current ratings, contact configurations, and response times. For high-power motors, heavy-duty relays with robust contacts are essential, while smaller motors may require compact, low-power relays. Additionally, environmental factors like temperature, humidity, and vibration must be accounted for to ensure reliability. By tailoring the relay selection to the motor’s requirements, industries can achieve optimal performance, longevity, and safety in their operations.
