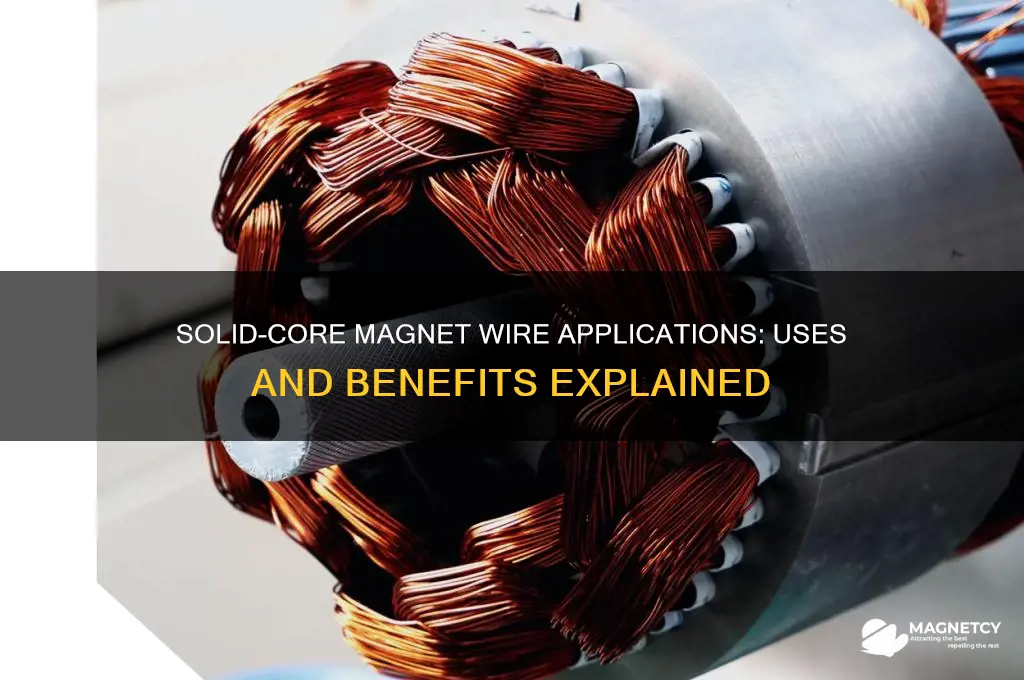

Solid-core magnet wire is a type of insulated copper or aluminum wire specifically designed for use in electromagnetic applications, such as motors, transformers, and inductors. Its primary function is to conduct electricity while withstanding high temperatures and mechanical stress, making it ideal for winding coils in electrical devices. The solid core provides excellent conductivity and structural integrity, while the insulation layer, typically made of materials like enamel, polyimide, or fiberglass, prevents short circuits and ensures durability in demanding environments. This wire is widely used in industries ranging from automotive and aerospace to consumer electronics, where efficiency, reliability, and compact design are critical.
| Characteristics | Values |
|---|---|
| Application | Used in electromagnetic devices like motors, transformers, inductors, and solenoids. |
| Core Material | Solid metal core (e.g., iron, steel, or other ferromagnetic materials). |
| Wire Material | Typically copper or aluminum, insulated with enamel, fiberglass, or other coatings. |
| Insulation Type | High-temperature resistant insulation (e.g., polyamide-imide, polyurethane). |
| Temperature Resistance | Can withstand temperatures up to 180°C (356°F) or higher, depending on insulation. |
| Conductivity | High electrical conductivity due to solid metal core and wire material. |
| Magnetic Properties | Enhances magnetic field strength and efficiency in electromagnetic devices. |
| Flexibility | Less flexible compared to stranded wire due to solid core. |
| Diameter | Varies based on application, typically ranging from 0.1 mm to several mm. |
| Strength | High mechanical strength due to solid core construction. |
| Common Uses | Electric motors, transformers, relays, loudspeakers, and magnetic coils. |
| Advantages | Improved magnetic efficiency, reduced energy loss, and high durability. |
| Disadvantages | Less flexible, more prone to breakage under stress compared to stranded wire. |
Explore related products
What You'll Learn
- Electric Motors: Used in motor windings for efficient power conversion and durability
- Transformers: Essential for high-frequency applications and minimizing energy loss
- Generators: Provides reliable insulation and heat resistance in power generation
- Solenoids: Ideal for precise magnetic field control in electromechanical devices
- Inductors: Ensures stability and performance in electronic circuits and filters
Electric Motors: Used in motor windings for efficient power conversion and durability
Solid-core magnet wire is the unsung hero in the heart of electric motors, where it forms the intricate windings that convert electrical energy into mechanical motion. These windings are the lifeblood of motors, determining their efficiency, power output, and longevity. Unlike stranded wire, solid-core magnet wire offers a uniform cross-section, minimizing resistance and maximizing current flow. This is critical in motor applications, where even small inefficiencies can lead to energy loss, overheating, and reduced performance. For instance, in a 1-horsepower motor, using high-quality solid-core wire can improve efficiency by up to 5%, translating to significant energy savings over time.
The durability of solid-core magnet wire is equally vital in motor windings. Motors often operate in harsh environments—high temperatures, vibrations, and exposure to chemicals—where inferior materials would fail. Solid-core wire, typically made from copper or aluminum, is coated with insulating materials like polyurethane or polyester-imide, which provide resistance to heat, abrasion, and solvents. For example, in automotive applications, motors must withstand temperatures up to 150°C, and the insulation on solid-core wire ensures the windings remain intact and functional under such conditions. This robustness is why solid-core wire is preferred in high-performance motors used in electric vehicles, industrial machinery, and aerospace systems.
Selecting the right gauge and insulation type for solid-core magnet wire is crucial for optimizing motor performance. The wire gauge determines the current-carrying capacity and resistance, with smaller gauges (e.g., 24 AWG) used for low-power applications and larger gauges (e.g., 12 AWG) for high-power motors. Insulation thickness and material must balance thermal resistance with flexibility, as thicker insulation improves heat dissipation but reduces coil density. For instance, a motor designed for continuous operation at 10A should use wire with a temperature rating of at least 130°C and insulation capable of withstanding repeated thermal cycling. Practical tip: Always consult the motor’s specifications and operating conditions before choosing the wire to ensure compatibility and safety.
Comparatively, solid-core magnet wire outperforms stranded wire in motor windings due to its superior thermal conductivity and mechanical stability. Stranded wire, while flexible, introduces air gaps between strands, increasing resistance and reducing efficiency. In contrast, solid-core wire’s compact structure allows for tighter winding configurations, maximizing the number of turns within a given space. This is particularly advantageous in compact motors, where size and weight are critical factors. For example, in drone motors, where every gram counts, solid-core wire enables higher power density without compromising reliability. The takeaway? For applications demanding efficiency, durability, and precision, solid-core magnet wire is the clear choice for motor windings.
