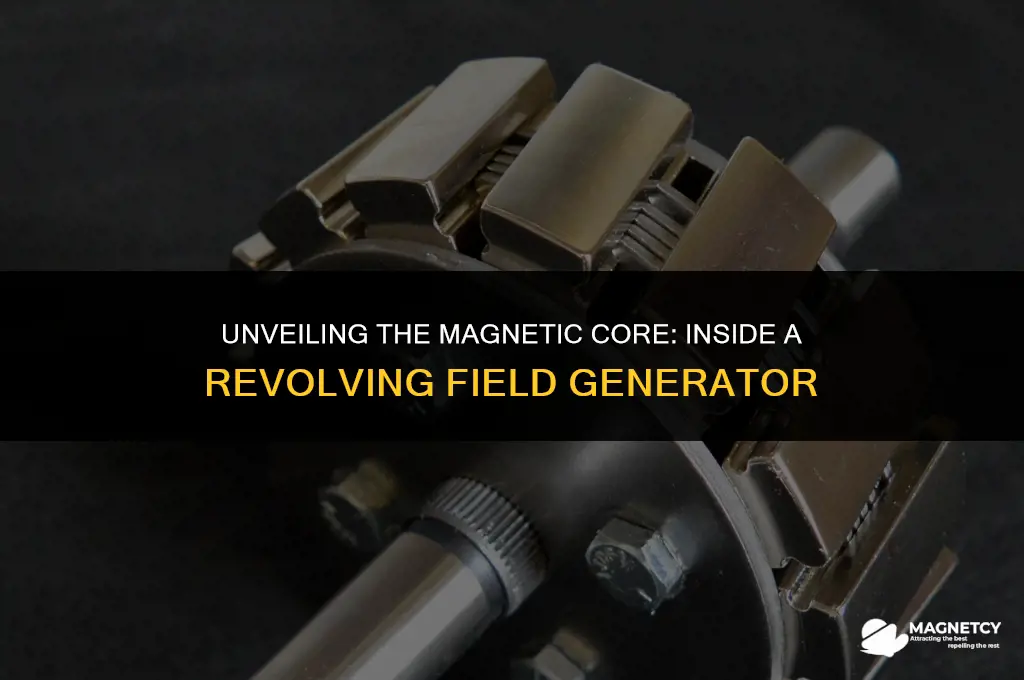

In a revolving field generator, the component that contains the magnet is known as the rotor. The rotor is a crucial part of the generator, responsible for creating the rotating magnetic field that induces an electric current in the stationary windings, known as the stator. The rotor typically consists of a cylindrical core made from a ferromagnetic material, with magnets or magnetic poles attached to its surface. As the rotor spins, the magnetic field it generates rotates relative to the stator, causing the magnetic flux to change and inducing an electromotive force (EMF) in the stator windings. This process is fundamental to the operation of the generator, allowing it to convert mechanical energy into electrical energy.
| Characteristics | Values |
|---|---|
| Component | Magnet |
| Location | Within the revolving field generator |
| Purpose | To interact with the revolving magnetic field |
| Type | Permanent magnet or electromagnet |
| Shape | Typically cylindrical or rectangular |
| Material | Ferrite, neodymium, or other magnetic materials |
| Function | Converts mechanical energy into electrical energy |
| Efficiency | Depends on the strength of the magnetic field and the speed of rotation |
| Maintenance | Requires regular cleaning and inspection to ensure optimal performance |
| Safety | Must be handled with care to avoid injury from the strong magnetic field |
Explore related products
What You'll Learn
- Stator: The stationary part of the generator housing the magnetic field coils
- Rotor: The rotating component with conductive bars or coils where induced current flows
- Magnetic Field: Created by the stator coils, it interacts with the rotor to generate electricity
- Slip Rings: Conductive rings on the rotor shaft for transferring current to external circuits
- Shaft: The mechanical component connecting the rotor to the generator's drive mechanism
Stator: The stationary part of the generator housing the magnetic field coils
The stator is a crucial component in a revolving field generator, serving as the stationary part that houses the magnetic field coils. These coils are responsible for creating the magnetic field that interacts with the rotor to generate electricity. The stator's design and construction play a significant role in the efficiency and performance of the generator.
One of the key aspects of the stator is its ability to maintain a stable magnetic field. This is achieved through the use of laminated steel cores, which reduce eddy current losses and help to concentrate the magnetic flux. The stator coils are typically made of copper or aluminum, materials chosen for their excellent conductivity and ability to withstand high temperatures.
The arrangement of the stator coils is also critical. In a three-phase generator, for example, the coils are arranged in a specific pattern to create a rotating magnetic field that aligns with the rotor's magnetic poles. This alignment is essential for efficient energy transfer and the production of a stable output voltage.
In addition to its role in generating electricity, the stator also helps to protect the generator from damage. The magnetic field created by the stator coils can act as a barrier, preventing the rotor from coming into direct contact with the generator's housing in the event of a fault. This protective function is vital for ensuring the longevity and reliability of the generator.
Overall, the stator is a complex and essential component of a revolving field generator. Its design and construction require careful consideration of materials, arrangement, and function to ensure efficient and reliable operation. By understanding the role of the stator, engineers and technicians can better design, maintain, and troubleshoot generators, leading to improved performance and reduced downtime.
Unveiling the Terrestrial World with the Strongest Magnetic Field
You may want to see also
Explore related products
Rotor: The rotating component with conductive bars or coils where induced current flows
The rotor is a crucial component in a revolving field generator, responsible for converting mechanical energy into electrical energy. It consists of a rotating shaft with conductive bars or coils attached, which are designed to carry induced current. As the rotor spins within the magnetic field created by the stator, the relative motion between the two induces an electromotive force (EMF) in the rotor's conductive elements. This EMF drives the flow of current through the rotor, which in turn generates a magnetic field that interacts with the stator's field, producing torque and sustaining the generator's operation.
One of the key challenges in designing a rotor is ensuring efficient energy transfer while minimizing energy losses. The rotor's conductive bars or coils must be carefully engineered to optimize the induced current flow and reduce resistance. Additionally, the rotor's magnetic field must be carefully controlled to prevent interference with the stator's field, which could lead to reduced efficiency or even damage to the generator.
In practice, rotors can be designed with different configurations depending on the specific application and power requirements of the generator. For example, some rotors may use a squirrel-cage design, where the conductive bars are arranged in a circular pattern around the shaft, while others may employ a wound-rotor design, where the coils are wound around the shaft in a helical pattern. Each design has its own advantages and disadvantages in terms of efficiency, cost, and maintenance requirements.
To ensure optimal performance, it is essential to properly maintain and inspect the rotor regularly. This includes checking for signs of wear and tear, such as cracks or corrosion, as well as monitoring the rotor's temperature and vibration levels during operation. Any issues detected should be addressed promptly to prevent further damage and ensure the generator continues to operate safely and efficiently.
In conclusion, the rotor is a vital component in a revolving field generator, playing a critical role in converting mechanical energy into electrical energy. Its design and maintenance are essential factors in determining the overall efficiency and reliability of the generator. By understanding the unique challenges and considerations associated with rotor design and operation, engineers can develop more effective and sustainable power generation solutions.
Exploring the Intricacies of Magnetic Fields Within Bar Magnets
You may want to see also
Explore related products
Magnetic Field: Created by the stator coils, it interacts with the rotor to generate electricity
The magnetic field in a revolving field generator is a crucial component that enables the conversion of mechanical energy into electrical energy. This field is created by the stator coils, which are stationary windings of wire that form a circular pattern around the rotor. When an alternating current (AC) flows through these coils, it generates a rotating magnetic field that interacts with the rotor to produce electricity.
The rotor, which is the rotating part of the generator, contains a series of conductors that are arranged in a specific pattern to maximize the interaction with the magnetic field. As the rotor spins, the conductors move through the magnetic field, inducing an electromotive force (EMF) that causes electrons to flow through the conductors. This flow of electrons is what generates the electrical current that is output by the generator.
The interaction between the magnetic field and the rotor is a complex process that involves a number of factors, including the strength of the magnetic field, the speed of the rotor, and the design of the conductors. Engineers must carefully consider these factors when designing a generator to ensure that it operates efficiently and produces the desired amount of electricity.
One of the key challenges in designing a generator is ensuring that the magnetic field is strong enough to induce a sufficient EMF in the rotor conductors. This can be achieved by using materials with high magnetic permeability, such as iron or steel, to construct the stator coils. Additionally, the coils can be designed with a larger number of turns to increase the magnetic field strength.
Another important consideration is the speed at which the rotor spins. The faster the rotor spins, the greater the interaction between the magnetic field and the conductors, and the more electricity that can be generated. However, the speed of the rotor is also limited by the physical constraints of the generator, such as the strength of the materials used in its construction and the need to minimize wear and tear on the components.
In conclusion, the magnetic field created by the stator coils is a critical component of a revolving field generator, as it interacts with the rotor to generate electricity. Engineers must carefully design the generator to ensure that the magnetic field is strong enough and that the rotor spins at an optimal speed to maximize the efficiency of the electricity generation process.
Unveiling the Mysteries: How Earth's Core May Generate Its Magnetic Shield
You may want to see also
Explore related products
Slip Rings: Conductive rings on the rotor shaft for transferring current to external circuits
Slip rings are a critical component in many electrical machines, including revolving field generators. These conductive rings are mounted on the rotor shaft and serve as a means of transferring electrical current between the rotating and stationary parts of the machine. This is achieved through a sliding contact between the rings and a set of brushes, which are typically made of carbon or a similar conductive material.
The primary function of slip rings is to provide a continuous electrical connection as the rotor rotates. This is essential in a revolving field generator, where the magnetic field is created by the rotation of the rotor. The slip rings allow the current to flow from the external power source to the rotor windings, which in turn generate the magnetic field. Without slip rings, it would be impossible to maintain a consistent electrical connection as the rotor spins, leading to a loss of power and efficiency.
Slip rings are designed to withstand high levels of wear and tear, as they are in constant contact with the brushes. They are typically made of materials such as copper or brass, which offer excellent conductivity and durability. The rings are also often coated with a layer of silver or other conductive material to reduce friction and improve electrical contact.
In addition to their role in transferring current, slip rings can also be used to measure the speed of the rotor. This is done by using a tachometer, which is a device that measures the rotational speed of a shaft. The tachometer is connected to the slip rings, and as the rotor spins, the device generates a signal that is proportional to the speed of rotation. This information can be used to monitor the performance of the machine and ensure that it is operating within safe and efficient parameters.
Overall, slip rings are a vital component in revolving field generators, providing a reliable means of transferring electrical current and measuring rotor speed. Their design and construction are critical to the efficient operation of these machines, and they play a key role in ensuring that the generator can produce a consistent and reliable output.
Shielding Strategies: Effective Ways to Block Magnetic Fields
You may want to see also
Explore related products
Shaft: The mechanical component connecting the rotor to the generator's drive mechanism
The shaft in a revolving field generator serves as a critical mechanical link, transferring the rotational energy from the prime mover to the rotor. This component is essential for the generator's operation, as it ensures the rotor spins at the correct speed to induce the necessary magnetic field. The shaft must be robust and precisely engineered to handle the mechanical stresses and maintain alignment between the rotor and the drive mechanism.
In the context of a revolving field generator, the shaft's design and material selection are crucial. It must be able to withstand the torsional forces exerted during operation while also being resistant to wear and fatigue. Typically, high-strength steel alloys are used for the shaft to provide the necessary durability and tensile strength. The shaft is also often subjected to heat treatment processes to enhance its mechanical properties and resistance to deformation.
The connection between the shaft and the rotor is another important aspect. This connection must be secure and reliable to prevent any slippage or misalignment that could lead to generator failure. Various methods are used to achieve this, including the use of keyed connections, splines, or shrink fits. Each method has its advantages and is selected based on the specific requirements of the generator design.
The shaft also plays a role in the overall efficiency of the generator. Any misalignment or imbalance in the shaft can lead to increased vibration and energy losses, reducing the generator's efficiency. Therefore, precise alignment and balancing procedures are followed during the installation and maintenance of the generator to ensure optimal performance.
In summary, the shaft is a vital component in a revolving field generator, responsible for transferring rotational energy from the drive mechanism to the rotor. Its design, material selection, and connection to the rotor are all critical factors that impact the generator's performance and reliability. Proper engineering and maintenance of the shaft are essential to ensure the efficient and safe operation of the generator.
Exploring Bar Magnets: Where the Magnetic Field Reigns Supreme
You may want to see also
Frequently asked questions
The rotor contains the magnet in a revolving field generator.
The stator is the stationary part of the generator that houses the armature windings, which are responsible for converting the magnetic flux into electrical current.
The revolving field generator produces electricity through the interaction of the magnetic field created by the rotor and the armature windings in the stator. As the rotor spins, it induces a changing magnetic flux in the stator windings, which in turn generates an electrical current.
Revolving field generators are known for their efficiency, reliability, and ability to produce a stable output voltage. They are also relatively simple in design and can be easily maintained.
Revolving field generators are commonly used in power plants, wind turbines, and hydroelectric dams to generate electricity. They are also used in various industrial applications, such as powering motors and providing backup power.
