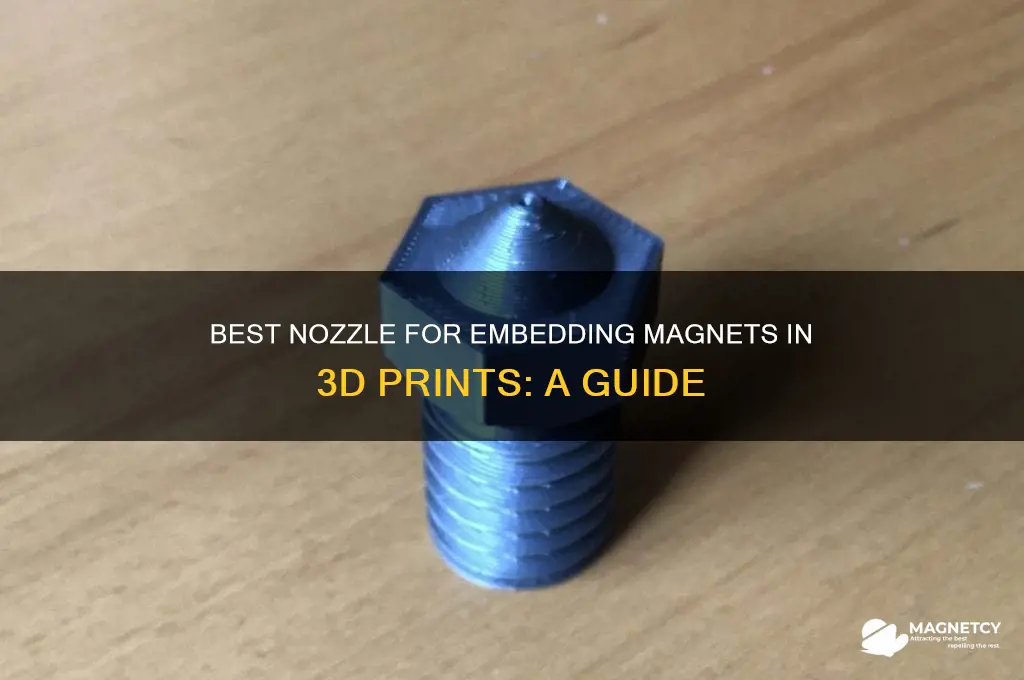

When embedding magnets in 3D prints, selecting the right nozzle is crucial for achieving a strong and reliable bond between the magnet and the printed material. The nozzle size directly impacts the precision and flow of the filament, affecting how well the magnet is encapsulated. For most applications, a standard 0.4mm nozzle is sufficient, offering a balance between detail and material flow. However, smaller nozzles like 0.2mm or 0.3mm can be used for finer details and tighter fits, ensuring the magnet is securely embedded without gaps. Conversely, larger nozzles such as 0.6mm or 0.8mm may be preferred for faster printing or thicker layers, though they require careful calibration to avoid compromising the magnet’s placement. Ultimately, the choice depends on the magnet size, desired print quality, and the specific requirements of the project.
| Characteristics | Values |
|---|---|
| Nozzle Diameter | 0.4 mm (most common), 0.6 mm, 0.8 mm |
| Nozzle Material | Hardened steel, stainless steel, ruby-tipped (for abrasive filaments) |
| Printing Temperature | 190-220°C (PLA), 220-250°C (PETG), 240-260°C (ABS) |
| Magnet Size | 3mm diameter (common), 5mm diameter, 8mm diameter |
| Magnet Placement | Embedded during printing, inserted after printing (less common) |
| Filament Type | PLA (easiest), PETG (stronger), ABS (requires higher temp) |
| Infill Density | 100% (for maximum strength around magnet) |
| Printing Speed | Slow (20-40 mm/s) for precise magnet placement |
| Cooling | Active cooling recommended to prevent warping |
| Support Material | May be needed for complex geometries |
| Adhesion | Strong bed adhesion required (e.g., glue stick, hairspray) |
| Post-Processing | Sanding or filing may be needed to ensure smooth magnet fit |
Explore related products
What You'll Learn
Nozzle size selection for magnet embedding
Selecting the right nozzle size for embedding magnets in 3D prints hinges on balancing precision and material flow. Smaller nozzles, such as 0.2mm or 0.4mm, offer finer detail and tighter tolerances, ensuring the magnet recess aligns perfectly with the magnet’s dimensions. However, they restrict material flow, which can lead to clogs or uneven layers when printing denser materials like PETG or nylon. Larger nozzles, like 0.6mm or 0.8mm, excel in extruding material quickly and handling high-flow scenarios but sacrifice precision, potentially leaving gaps or misalignments around the magnet. The ideal choice depends on the magnet’s size, the printer’s capabilities, and the material’s properties.
An analytical approach reveals that nozzle size directly impacts the strength of the magnet’s embedment. A nozzle too small may create weak walls around the magnet cavity, while one too large can result in excessive material buildup, compromising structural integrity. For instance, a 0.4mm nozzle paired with PLA works well for small magnets (3mm–5mm diameter), as PLA’s low melting point and smooth flow allow for precise recesses. Conversely, embedding larger magnets (8mm+ diameter) in ABS might require a 0.6mm nozzle to ensure consistent material deposition and avoid warping. Testing with calibration cubes or test prints is essential to verify the nozzle’s performance before embedding magnets in a final design.
From a practical standpoint, consider the magnet’s placement depth and the nozzle’s layer height. A common rule of thumb is to use a nozzle diameter that’s 1.5–2 times the layer height for optimal adhesion and surface finish. For example, if printing with a 0.2mm layer height, a 0.4mm nozzle strikes a balance between detail and flow. When embedding magnets, ensure the recess depth is at least 0.5mm greater than the magnet’s thickness to account for tolerances and material shrinkage. Adjusting the infill percentage (e.g., 100% infill around the magnet) and using a brim or raft can further stabilize the print during embedding.
Persuasively, investing in a nozzle upgrade kit can significantly enhance magnet embedding success. Multi-nozzle systems or quick-change nozzles allow for mid-print swaps, enabling the use of a smaller nozzle for intricate details and a larger one for faster infill or support structures. For instance, starting with a 0.6mm nozzle for the initial layers and switching to a 0.4mm nozzle for the magnet recess combines speed and precision. Additionally, abrasive-resistant nozzles are recommended when using carbon fiber or metal-filled filaments, which are ideal for high-strength magnet embeddings but wear down standard brass nozzles quickly.
In conclusion, nozzle size selection for magnet embedding is a nuanced decision requiring consideration of material, magnet size, and printer capabilities. Smaller nozzles offer precision but demand careful calibration, while larger nozzles prioritize speed and material flow. Practical tips, such as adjusting layer height and infill, coupled with strategic nozzle upgrades, can elevate the success rate of magnet embeddings. By tailoring the nozzle size to the specific demands of the project, creators can achieve robust, functional 3D prints with seamlessly integrated magnets.
